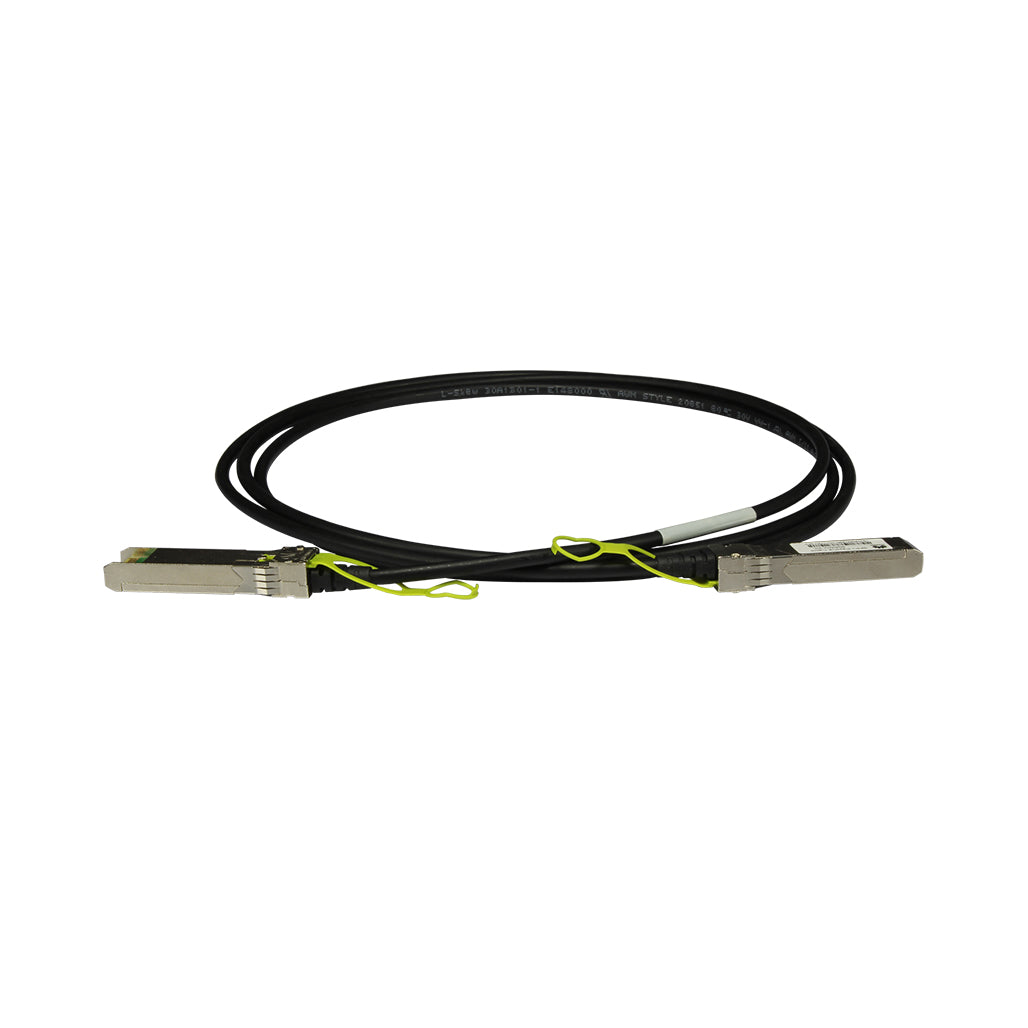

Huawei SFP+ 10G Direct Attach Cable 3m Passive High Speed - SFP-10G-CU3M

High-speed short-distance connectivity is provided by the SFP-10G-CU3M SFP+ Direct Attach Cable, designed for 10G data transmission in indoor networking environments. A passive DAC design is used to support reliable and low-latency connections between SFP+ ports, making it suitable for switch-to-switch or switch-to-server links where cost-effective and power-efficient performance is required.

Both ends of the cable are equipped with SFP+ connectors to ensure secure and standardized connections. A 3-meter cable length is provided to support flexible rack and equipment layouts, while controlled bend radius and routing clearance requirements help maintain signal integrity during installation. This high-speed direct-attach cable is intended for indoor use where stable 10G connectivity is essential.

Key Features

• 10G SFP+ Direct Attach Cable – High-speed data transmission at 10 Gbit/s is supported for short-range connections.

• Passive Cable Design – Low power consumption and reduced complexity are enabled through a passive electrical structure.

• 3-Meter Cable Length – Flexible equipment placement is supported within racks and networking cabinets.

• Dual SFP+ Connectors – Standardized SFP+ interfaces are used on both ends for compatibility with SFP+ ports.

• Indoor Application Support – Reliable performance is provided for controlled indoor networking environments.

• Optimized Cable Handling – Defined bend radius and routing clearance help protect cable integrity during installation.

Specifications

• Part Number: 02310MUP

• Model: SFP-10G-CU3M

• Description: SFP+,10G,High Speed Direct-attach Cables,3m,SFP+20M,CC2P0.254B(S),SFP+20M,Used indoor

• Level-1 category: High Speed Cable

• Connector X1: SFP+

• Connector X2: SFP+

• Cable length [m (ft.)]: 3 (9.84)

• Electrical attribute: Passive

• Bend radius [mm (in.)]: 25 (0.98)

• Minimum Clearance for Cable Routing [mm (in.)]: 60 (2.36)

Conclusion

A practical and efficient cabling solution is delivered by the SFP-10G-CU3M for short-range 10G network connections. It is well suited for data centers and enterprise environments where passive SFP+ direct-attach cabling is preferred for indoor deployments requiring dependable performance and simplified installation.
