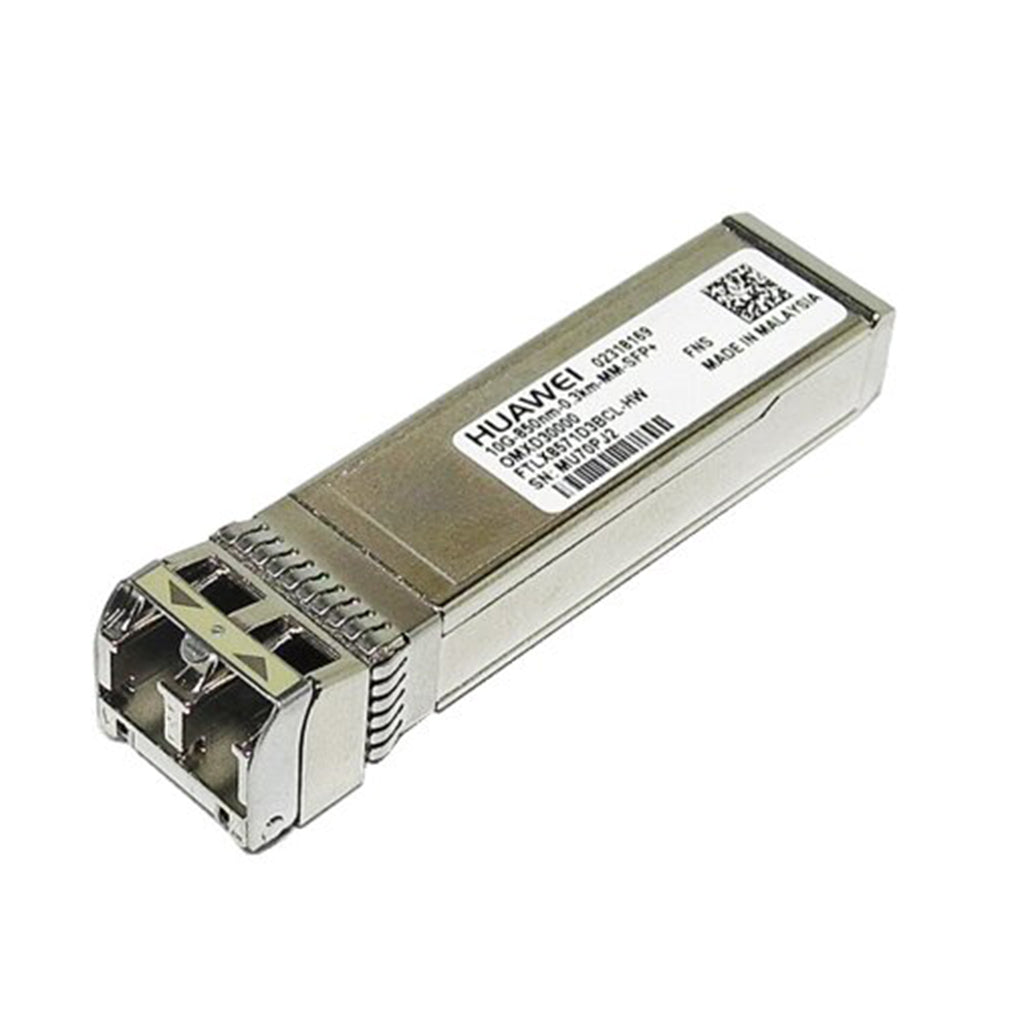

Huawei SFP+ Optical Transceiver 10G Multi-Mode up to 0.3 km - OMXD30000

High-speed optical connectivity is provided by the Huawei OMXD30000 SFP+ Optical Transceiver, delivering a transmission rate of 10 Gbit/s for short-range fiber networking applications. Designed in an SFP+ form factor, this transceiver supports 10G optical transmission and is suitable for deployment in compatible Huawei switches. Stable performance is supported within standard operating temperature ranges, while digital diagnostic monitoring is included to assist with real-time module status monitoring.

Multi-mode fiber support is provided with varying transmission distances depending on fiber type, reaching up to 0.3 km on OM3 fiber. An LC connector interface is used to ensure secure and widely compatible fiber connections. The module is designed for enterprise and data center environments where reliable 10G connectivity, compact form factor, and standards-based optical performance are required.

Key Features

• 10 Gbit/s SFP+ Optical Module – High-speed data transmission is supported for 10G network environments.

• Multi-Mode Fiber Support – Compatibility is provided with multiple MMF types, supporting short-range optical links.

• LC Connector Interface – Secure and standardized fiber connections are enabled through LC connectors.

• Digital Diagnostic Monitoring – Real-time monitoring of optical parameters is supported for improved maintenance.

• Standards-Based Operation – Compliance with defined 10G application standards is supported for reliable interoperability.

• Compact SFP+ Form Factor – Flexible installation is supported in compatible SFP+ switch slots.

Specifications

• Module name: OMXD30000

• Part Number: 02318169

• Model: OMXD30000

• Form factor: SFP+

• Application standard: 10GBASE-SR

• Connector type: LC

• Optical fiber type: MMF

• Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)

• Digital diagnostic monitoring (DDM): Supported

• Transmission rate [bit/s]: 10 Gbit/s

• Target transmission distance [km]: Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km

• Target transmission distance [km]: Multimode fiber (OM1): 0.033 km

• Target transmission distance [km]: Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km

• Target transmission distance [km]: Multimode fiber (OM2): 0.082 km

• Target transmission distance [km]: Multimode fiber (OM3): 0.3 km

• Target transmission distance [km]: Multimode fiber (OM4): 0.4 km

• Center wavelength [nm]: 850 nm

• Maximum Tx optical power [dBm]: -1.0 dBm

• Minimum Tx optical power [dBm]: -7.3 dBm

• Minimum extinction ratio [dB]: 3.0 dB

• Rx sensitivity [dBm]: -11.1 dBm

• Overload power [dBm]: -1.0 dBm

• Product Code: OMXD30000

• Transceiver form factor: SFP+

• Transmission speed: 10 Gbit/s

• Center wavelength (nm): 1310

• Standard compliance: 10GBASE-iLR

• Connector type: LC

• Applicable cable and maximum transmission distance: Single-mode fiber: 1.4 km

• Transmit power (dBm): -8.2 to +0.5

• Maximum receiver sensitivity (dBm): -14.4

• Overload power (dBm): 0.5

• Extinction ratio (dB): 3.5

• Operating temperature: -40°C to +85°C (-40°F to +185°F)

Conclusion

A compact and standards-compliant 10G optical solution is delivered by the Huawei OMXD30000 SFP+ Transceiver for short-range fiber deployments. It is suitable for enterprise switching environments where dependable multi-mode or single-mode connectivity, SFP+ flexibility, and diagnostic monitoring are required within supported Huawei networking platforms.
