Seamless Video Conferencing for Small to Medium Rooms

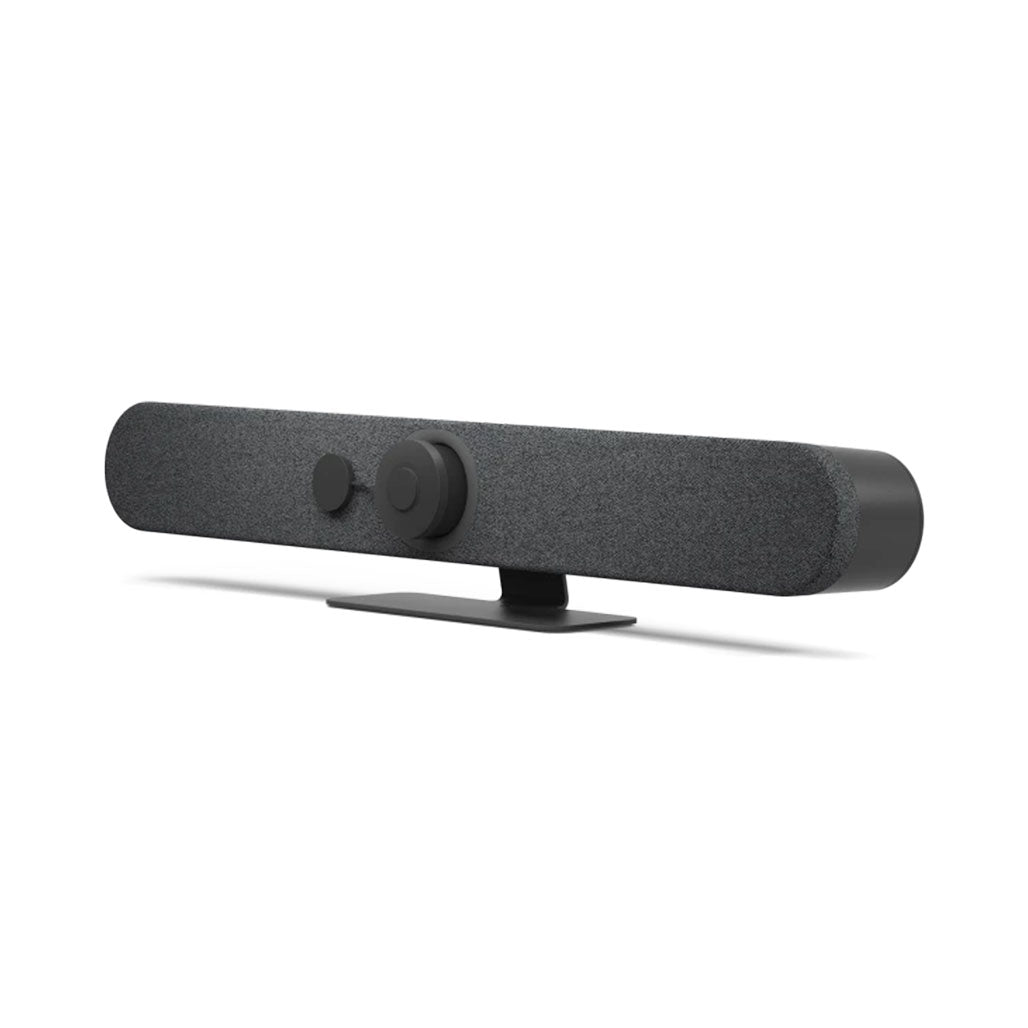

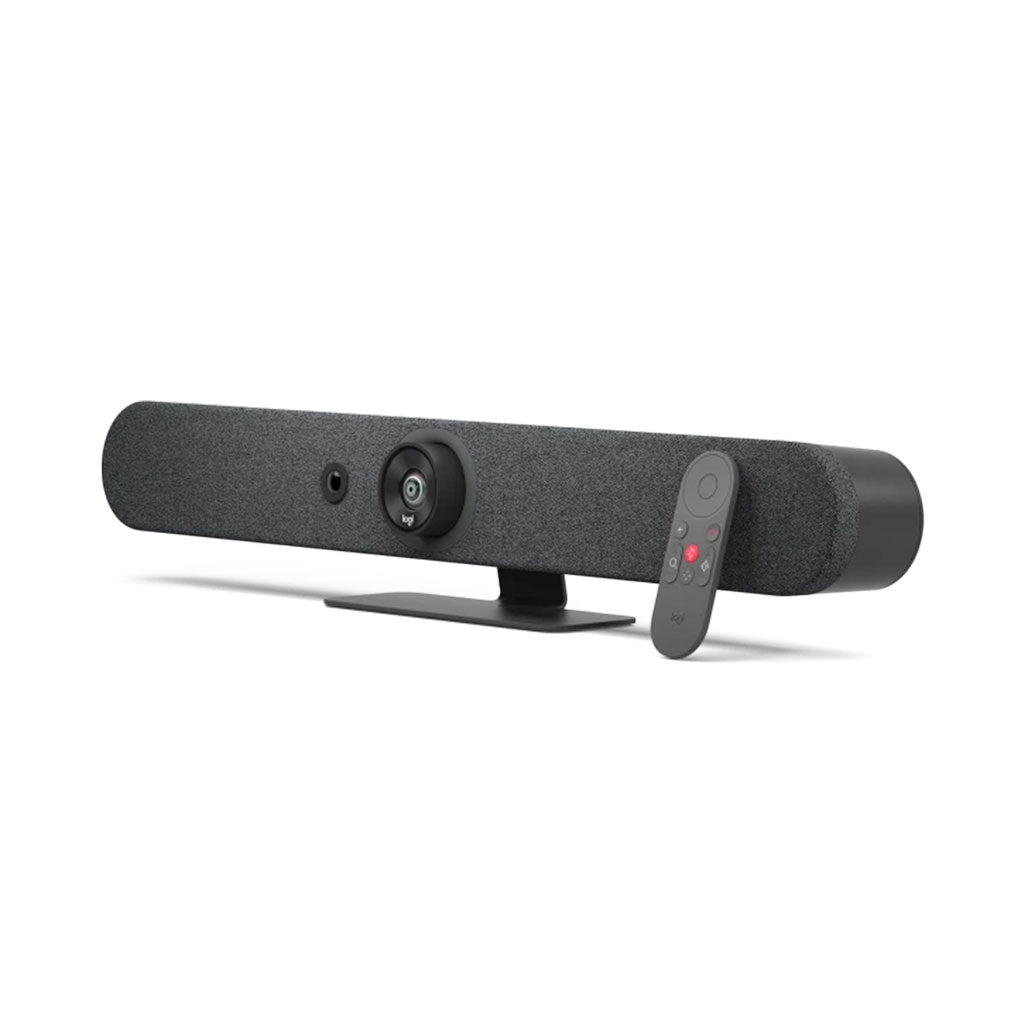

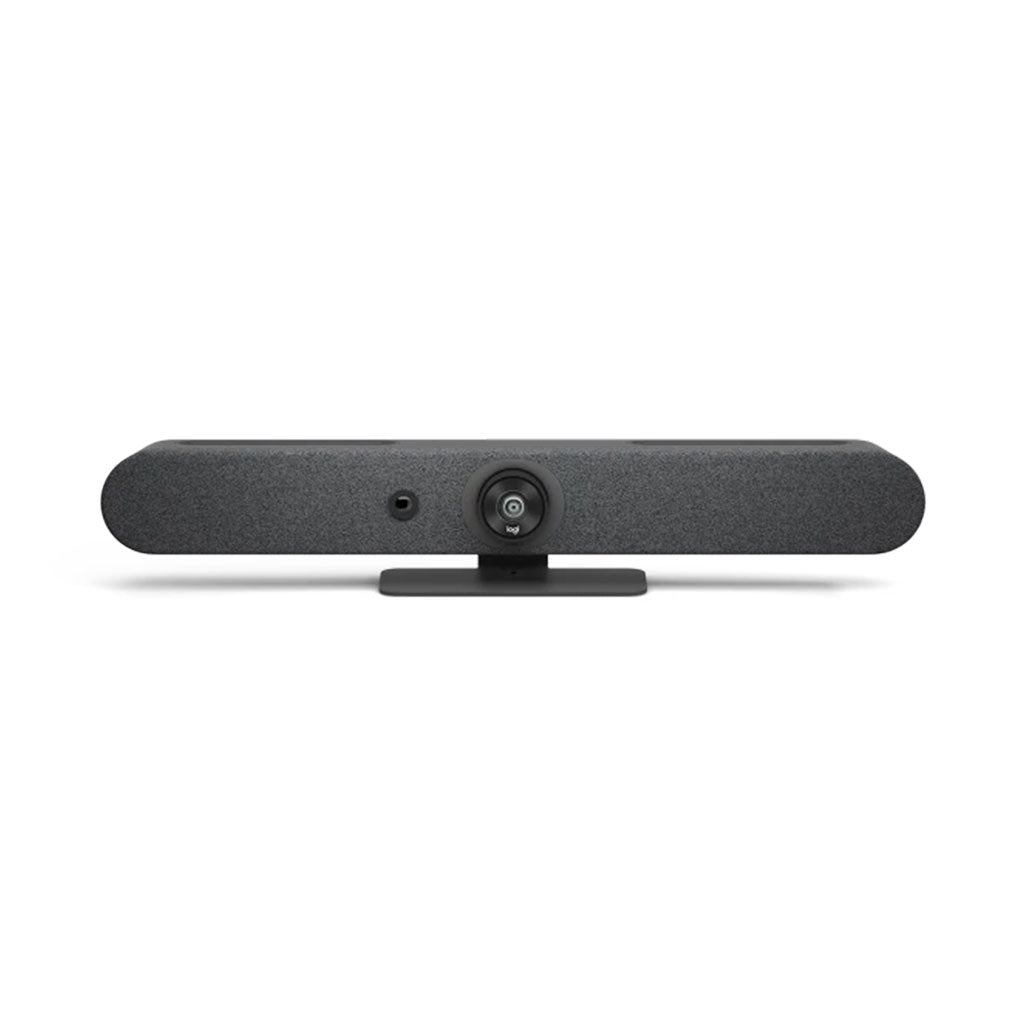

The Logitech Rally Bar Mini is designed to deliver a superior video conferencing experience for small to medium-sized rooms. This all-in-one solution incorporates a dual-camera system with RightSight 2 auto-framing technology, ensuring that every participant is visible and well-framed. The Rally Bar Mini supports multiple viewing modes, including Grid View for highlighting individual participants, Speaker View to focus on the active speaker, and Group View to encompass everyone in the room. These features, combined with its advanced audio capabilities, make it a versatile choice for professional video meetings.

Professional Video and Audio Quality

Featuring an innovative dual-camera system, the Rally Bar Mini provides 4K resolution and fluid, cinematic video quality. Its AI Viewfinder enhances video clarity, while the RightSound technology automatically adjusts audio levels and suppresses background noise to ensure clear communication. With a pickup range of up to 7 meters, the Rally Bar Mini can be expanded with additional Rally Mic Pods for larger spaces. Compatibility with various video conferencing platforms and simple management via Logitech Sync further enhance its usability.

Key Features:

• Dual-Camera System: Includes a 4K resolution camera with motorized pan, tilt, and zoom, and a secondary camera for enhanced framing and AI-assisted views.
• RightSight 2 Technology: Auto-framing technology that adjusts camera angles based on participant locations and conversation focus.
• Advanced Audio Performance: Features 6 beamforming microphones and AI-based RightSound technology for natural sound and effective noise suppression.
• Flexible Expansion: Supports up to three additional Rally Mic Pods for extended audio coverage.
• Platform Compatibility: Integrates with Microsoft Teams Rooms, Zoom Rooms, Google Meet, and other popular conferencing platforms.
• Easy Management: Logitech Sync allows for remote monitoring, updates, and settings adjustments, with additional analytics through Sync Insights.

Specifications:

• Dimensions:

  • Height: 91.4 mm
  • Width: 719 mm
  • Depth: 101 mm
  • Lens Depth: 18.5 mm
  • Weight: 4.03 kg

• Compatibility:

  • Internet Connection: Wired or wireless
  • USB Mode: Windows® 11, Windows 10, the two most recent versions of macOS
  • Appliance Mode: Room solution software license (not included)

• Technical Specifications:

  • Certifications & Compatibility: Microsoft Teams Rooms on Android™ and Windows, Zoom Room™, Tencent Meeting Rooms, Google Meet (ChromeOS/USB)

  • General Specifications:

    • Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
    • Enclosure: Integrated table stand with patented speaker suspension system
    • Device Management: Logitech Sync
    • Displays Supported: 2 (up to 1080p)
    • Display Resolution: Up to 1080p
    • Network Protocol Support: IPv4, IPv6
    • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

  • Camera:

    • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
    • Pan: Motorized ±25°
    • Tilt: Motorized ±15°
    • Zoom: 4X HD digital zoom
    • Diagonal Field of View: 120°
    • Horizontal Field of View: 113°
    • Vertical Field of View: 80.7°
    • Total Room Coverage: 163° horizontal x 110° vertical

  • Woofer Speaker:

    • Driver: 70 mm
    • Sensitivity: 92 dB SPL @1W, 99 dB SPL @8.0W, both +/-2dB at ½ meter
    • Rated Power: 8W
    • THD: 1kHz <2% at 1W
    • Speaker Sampling Rate: 48KHz
    • Impedance: 4 Ohms

  • Midrange Speakers:

    • Drivers: 2 x 43 mm
    • Sensitivity: 84 dB SPL @ 1W/1M
    • Rated Power: 4W
    • THD: 1kHz <2% at 1W
    • Speaker Sampling Rate: 48KHz
    • Impedance: 4 Ohms

  • Microphones:

    • Frequency Response: 90Hz – 16kHz
    • Sensitivity: >-36dBFS +/-1 dB @ 1Pa
    • Microphone Data Rate Output: 48 kHz
    • Pickup Range: Up to 7 m
    • Beamforming Elements: Six omnidirectional digital MEMS microphones
    • Audio Processing: AEC, VAD
    • Noise Suppression: AI based de-noising algorithm
    • Add-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs

  • RightSense™ Technologies:

    • RightLight: Renders natural skin tones for each participant
    • RightSight: Frames the active speaker and captures all participants
    • RightSound: Auto-levels voices and suppresses background noise

  • Interfaces:

    • HDMI Out: 2 (up to 1080p)
    • HDMI In: 1
    • MAC: 3x Type A, 1x Type C
    • Network: 10/100/1G Ethernet
    • WiFi: 802.11a/b/g/n/ac
    • External Mic Input: Yes

  • Power & Cables:

    • Power Supply: Auto-sensing
    • Operating Voltage/Power: 100-240V, 19V, 4.74A
    • Power Supply Dimensions: 127 mm x 51 mm x 30 mm
    • DC Cable: 1.5 m
    • AC Cable: 1 m
    • HDMI 1.4 Cable: 2 m
    • USB A to USB C 3.0 Cable: 2.2 m

  • Environmental:

    • Operating Temperature: 0 to 40°C
    • Storage Temperature: -40 to 70°C
    • Humidity: 10 to 95%
    • BTU/hr: 57 idle, 64 in meeting

  • Security:

    • Full Disk Encryption: AES-128
    • Data Encryption: Symmetric Keys, PKI
    • Device Identity: Protected by device attestation
    • Device Access: Authenticated using API
    • Key Protection: Arm TrustZone, RPMP

  • Accessories:

    • Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
    • Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
    • Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
    • Touch Controller: Logitech Tap and Tap IP

Conclusion

The Logitech Rally Bar Mini provides a comprehensive video conferencing solution with its dual-camera system, advanced audio technology, and intuitive management features. Designed for small to medium-sized rooms, it ensures high-quality video and audio performance while offering flexibility for expanding audio coverage and integrating with various video conferencing platforms. The Rally Bar Mini's robust set of features, combined with its ease of use and management, makes it a valuable addition to any professional meeting space.
