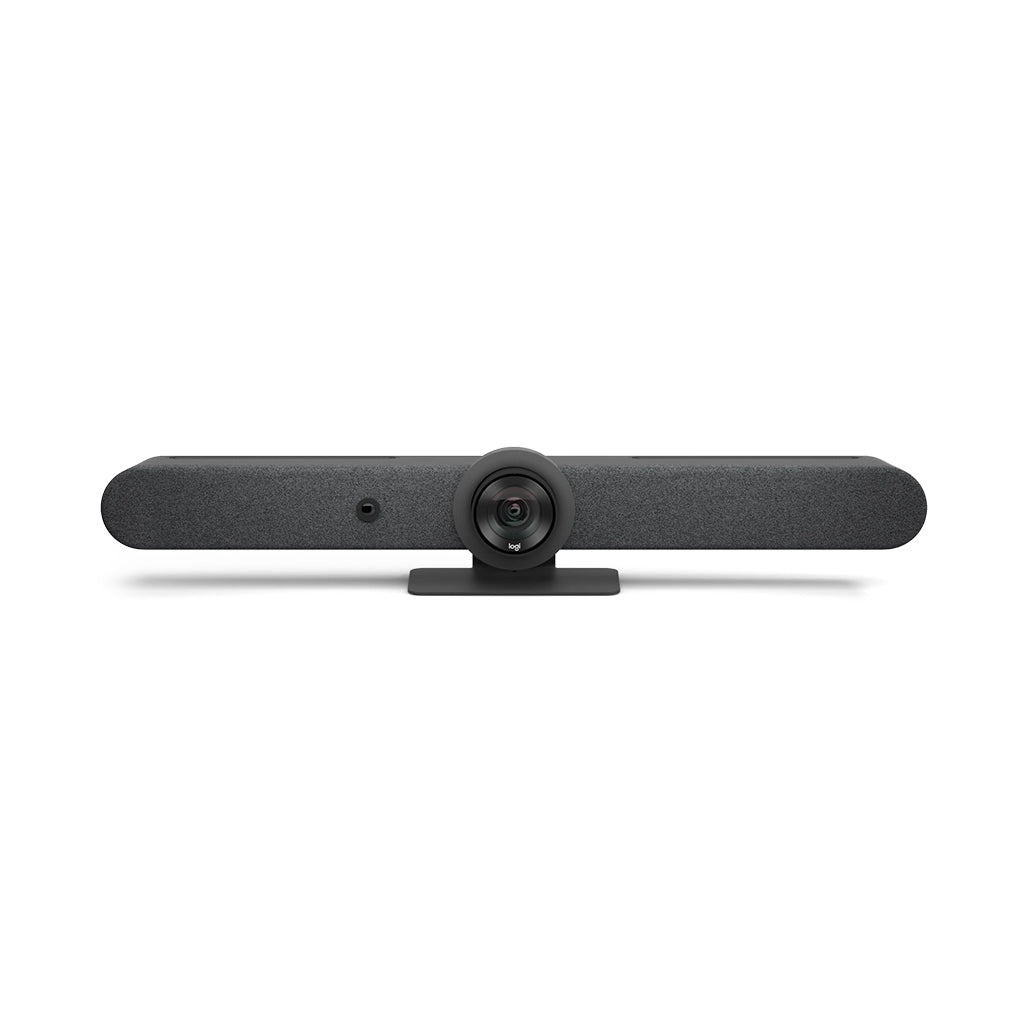

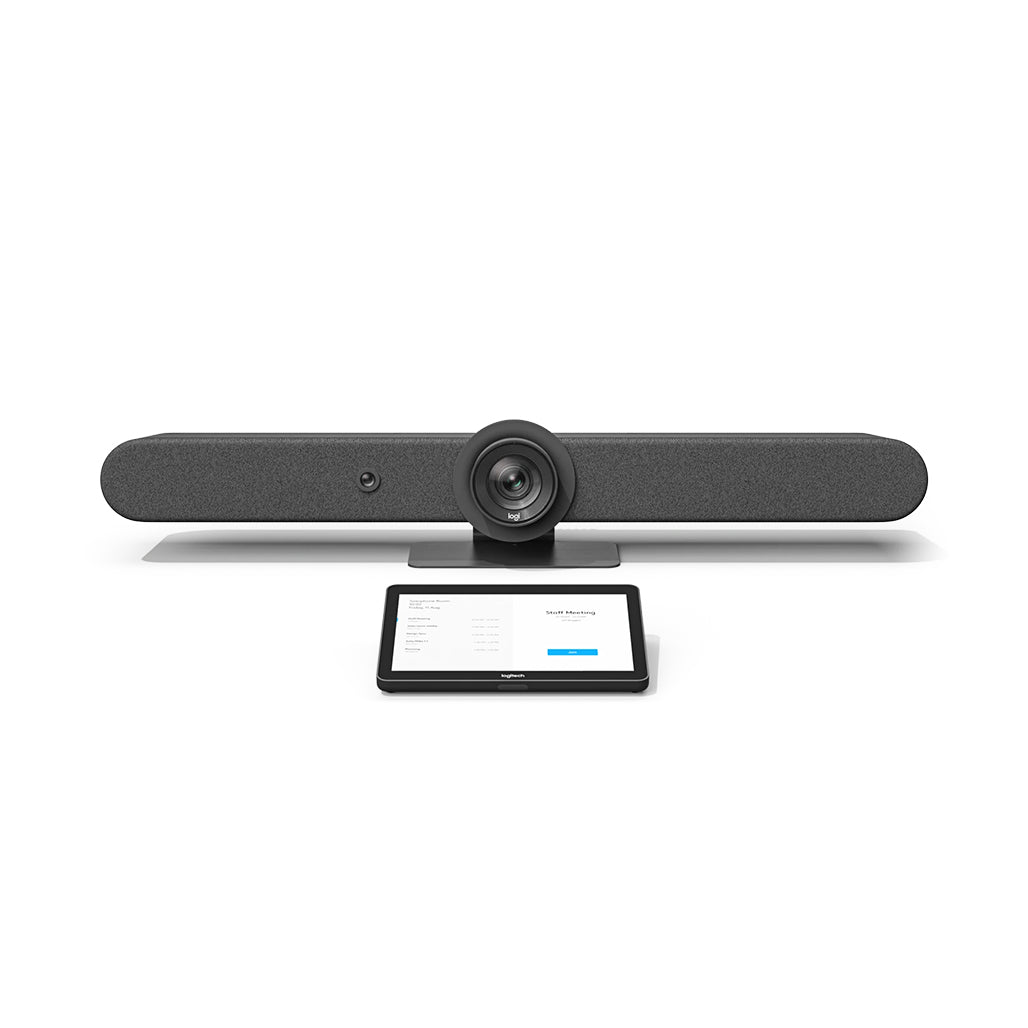

Logitech Rally Bar - All-in-One Video Bar for Medium to Large Meeting Rooms

The Logitech Rally Bar delivers powerful, scalable video conferencing in an elegantly integrated form factor. Engineered for medium to large meeting spaces, Rally Bar combines advanced optics, AI-driven audio, and remote management via Logitech Sync to provide premium video collaboration that’s incredibly simple to deploy and use.

KEY FEATURES

Effortless All-in-One Setup
Camera, speakers, microphones, and compute—all built into a sleek, unified enclosure designed to simplify your conference room install.

Crystal-Clear Optics & Intelligent Framing
Enjoy ultra-sharp video with a motorized PTZ camera supporting up to 4K resolution, enhanced by RightSight™ auto-framing and an AI Viewfinder that keeps participants in view.

AI-Enhanced Audio
Six beamforming microphones with advanced noise suppression and acoustic echo cancellation capture voices with exceptional clarity. Add up to four Rally Mic Pods to extend audio coverage.

Remote Management with Logitech Sync
Manage updates, monitor device health, and configure settings across multiple rooms via a single cloud dashboard.

Secure by Design
Built with enterprise-grade encryption, secure boot, and Arm TrustZone for robust data protection and authenticated device access.

TECHNICAL SPECIFICATIONS

GENERAL

• Device Type: All-in-one video bar

• Components: PTZ camera, 2 speakers, 6 beamforming mics, AI Viewfinder

• Platform: Logitech CollabOS

• Display Support: Dual displays (up to 1080p)

• Device Management: Logitech Sync

• Mounting Options: Wall Mount, TV Mount

• Network Support: IPv4, IPv6

• Proxy Support: IP/FQDN/PAC

CAMERA

• Resolutions: 4K, 1440p, 1080p, 900p, 720p, SD (30fps)

• Pan: ±25° motorized

• Tilt: ±15° motorized

• Zoom: 15x HD zoom (5x optical, 3x digital)

• Field of View:

  • Diagonal: 90°

  • Horizontal: 82.1° (132.1° with pan)

  • Vertical: 52.2° (82.2° with tilt)

AUDIO

Speakers

• Drivers: 2 x 70mm

• Rated Power: 8W

• Max SPL: 99 dB @ 8W

• THD: <2% at 1W

• Impedance: 4 Ohms

• Sampling Rate: 48 kHz

Microphones

• Beamforming: 6 MEMS mics forming 5 adaptive beams

• Pickup Range: Up to 23 ft (7 m)

• Response: 90Hz–16kHz

• Noise Suppression: AI-based

• Audio Processing: AEC, VAD

• Expansion: Supports up to 4 Rally Mic Pods and 2 Rally Mic Pod Hubs

RIGHTSENSE™ TECHNOLOGIES

• RightLight: Natural skin tones and balanced lighting

• RightSight: Auto-frames speaker and group shots

• RightSound: Levels voices and reduces ambient noise

• Grid View: Frames all participants equally for hybrid meetings

INTERFACES

• HDMI Out: 2x (up to 1080p)

• HDMI In: 1x

• USB: 3x USB-A, 1x USB-C

• Ethernet: 10/100/1G

• Mic Input: Proprietary for Rally Mic Pod/Hubs

• Remote Control: Bluetooth® LE (not available on Rally Bar No-Radio variant)

POWER & ENVIRONMENT

• Power Supply: 100–240V, 19V/4.74A

• Idle Power (BTU/hr): 57

• In-Meeting Power (BTU/hr): 64

• Operating Temp: 0–40°C

• Storage Temp: -40–70°C

• Humidity: 10–95%

SECURITY

• Encryption: AES-128 full disk, symmetric keys

• Trusted Platform: Arm TrustZone, RPMP

• API Authentication

• Device Attestation and Key Protection

COMPATIBILITY

• USB Mode: Windows 10/11, latest macOS versions

• Appliance Mode: Microsoft Teams Rooms, Zoom Rooms (license required)

• Internet Connectivity: Wired or Wi-Fi (No-Radio model excludes wireless)

IN THE BOX

• Rally Bar

• Power Supply & AC Cord

• HDMI Cable

• USB A-to-C Cable

• Remote Control (excluded on No-Radio variant)

• Lens Caps

• Documentation
