MSI GeForce RTX 5070 12G VENTUS 3X OC - G5070-12V3C

MSI GeForce RTX 5070 12G VENTUS 3X OC (Model G5070-12V3C) is a GeForce RTX 5070 graphics card built with the NVIDIA Blackwell architecture and DLSS 4. Designed for an enthusiast setup with a PCI Express Gen 5 interface, it’s intended for systems that support high-performance graphics upgrades. The card delivers Core Clocks with Extreme Performance: 2557 MHz (MSI Center) and Boost: 2542 MHz, supporting performance-focused use. You can connect up to 4 displays, with DisplayPort x 3 (v2.1b) and HDMI x 1 as specified in HDMI 2.1b. It also includes MSI Center for software control and monitoring. For enhanced control, the description also references MSI Afterburner as a widely used graphics card overclocking software with real-time system monitoring. MSI APP Player is developed under an exclusive partnership with BlueStacks, referenced as providing a seamless gaming experience between mobile gaming and the PC. Hardware details called out include a nickel-plated copper baseplate, a metal backplate, TORX Fan 5.0 with ring-arc linked fan blades, and a core pipe square design for thermal management. The card lists a power consumption of 250 W and a recommended PSU of 650W, with power connectors of 16-pin x 1 (ATX 3.1 PSU recommended). These explicitly stated features make this model a strong fit when you want a specific RTX 5070 configuration with documented display connectivity and performance clock targets.
Key Features
• MSI GeForce RTX 5070 12G VENTUS 3X OC - G5070-12V3C
Specifications
• MSI GeForce RTX™ 5070 12G VENTUS 3X OC is a GeForce RTX 5070 graphics card built with the NVIDIA Blackwell architecture and DLSS 4. It’s a PCI Express® Gen 5 interface card designed for an enthusiast setup, and it supports DisplayPort x 3 (v2.1b) plus HDMI™ x 1 as specified in HDMI™ 2.1b. With Core Clocks featuring Extreme Performance: 2557 MHz (MSI Center) and Boost: 2542 MHz, it’s positioned for performance-focused use. The card supports up to 4 displays and has Digital Maximum Resolution of 7680 x 4320. For software control and monitoring, MSI Center is included to let you monitor, tweak, and optimize MSI products in real-time. MSI Afterburner is listed as a widely used graphics card overclocking software with real-time system monitoring. The product description also references MSI APP Player developed under an exclusive partnership with BlueStacks for a seamless gaming experience between mobile gaming and PC. Additional hardware details called out include a nickel-plated copper baseplate, a metal backplate, TORX Fan 5.0 with ring-arc linked fan blades, and core pipe square design for thermal management.
• Additional metal structure inside the graphics card enhances stability and durability.
• High-quality clay-based thermal pads offer additional heat dissipation for critical board components.
• Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
• MSI Center software lets you monitor, tweak, and optimize MSI products in real-time, including AI Tuning for AI-oriented requirements.
• MSI Afterburner provides complete control and real-time system monitoring and is described as compatible with most graphics cards.
• Developed under an exclusive partnership with BlueStacks, MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
• Powered by the NVIDIA Blackwell architecture and DLSS 4.
• SFF-Ready Enthusiast GeForce Card.
• TORX Fan 5.0: fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Nickel-plated Copper Baseplate captures heat from the GPU and memory and transfers it.
• Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

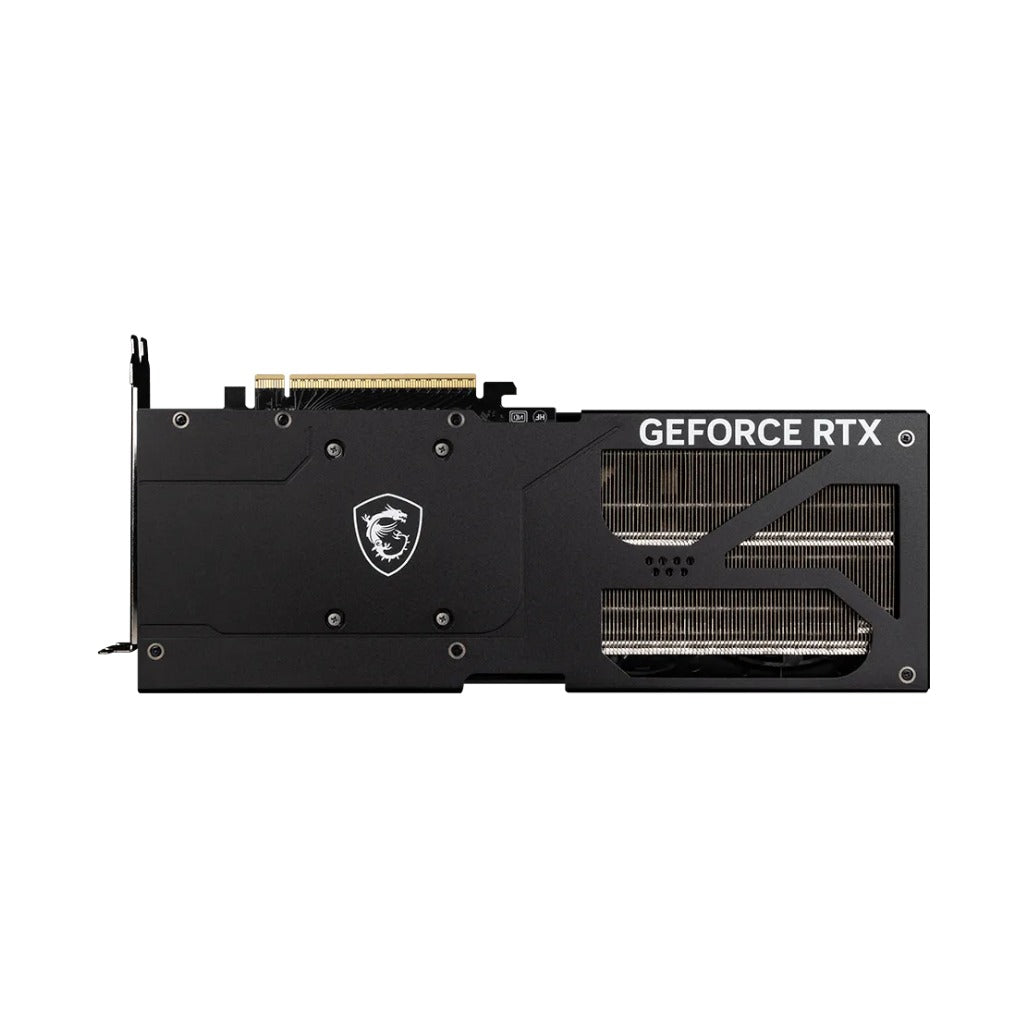

• Metal Backplate strengthens the graphics card while the airflow vent design reduces excess heat.
• DrMOS power stage solutions are described as providing efficiency with low power loss and enhanced voltage controls.
• Specifications
• Marketing Name: GeForce RTX™ 5070 12G VENTUS 3X OC
• Model Name: G5070-12V3C
• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5070
• Interface: PCI Express® Gen 5
• Core Clocks: Extreme Performance: 2557 MHz (MSI Center); Boost: 2542 MHz
• CUDA® CORES: 6144 Units
• Memory Speed: 28 Gbps
• Memory: 12GB GDDR7
• Memory Bus: 192-bit

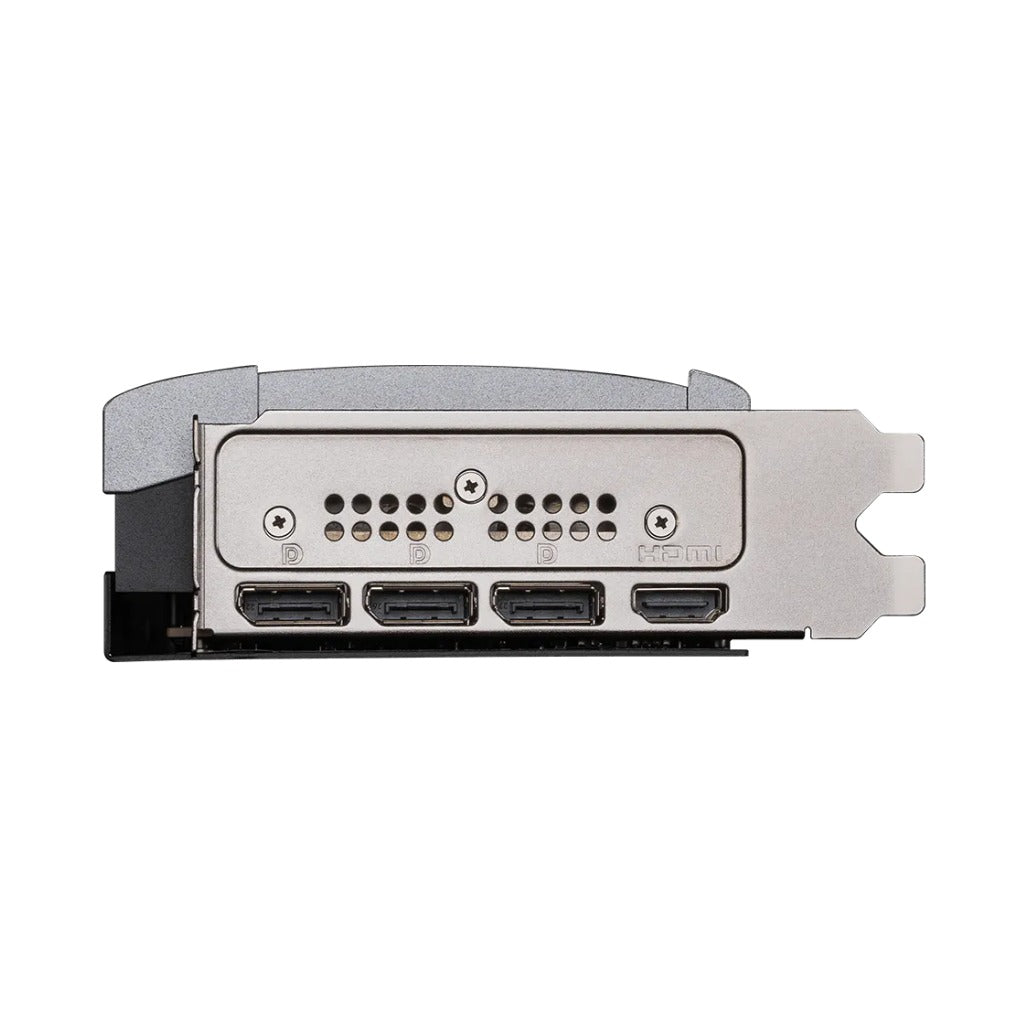

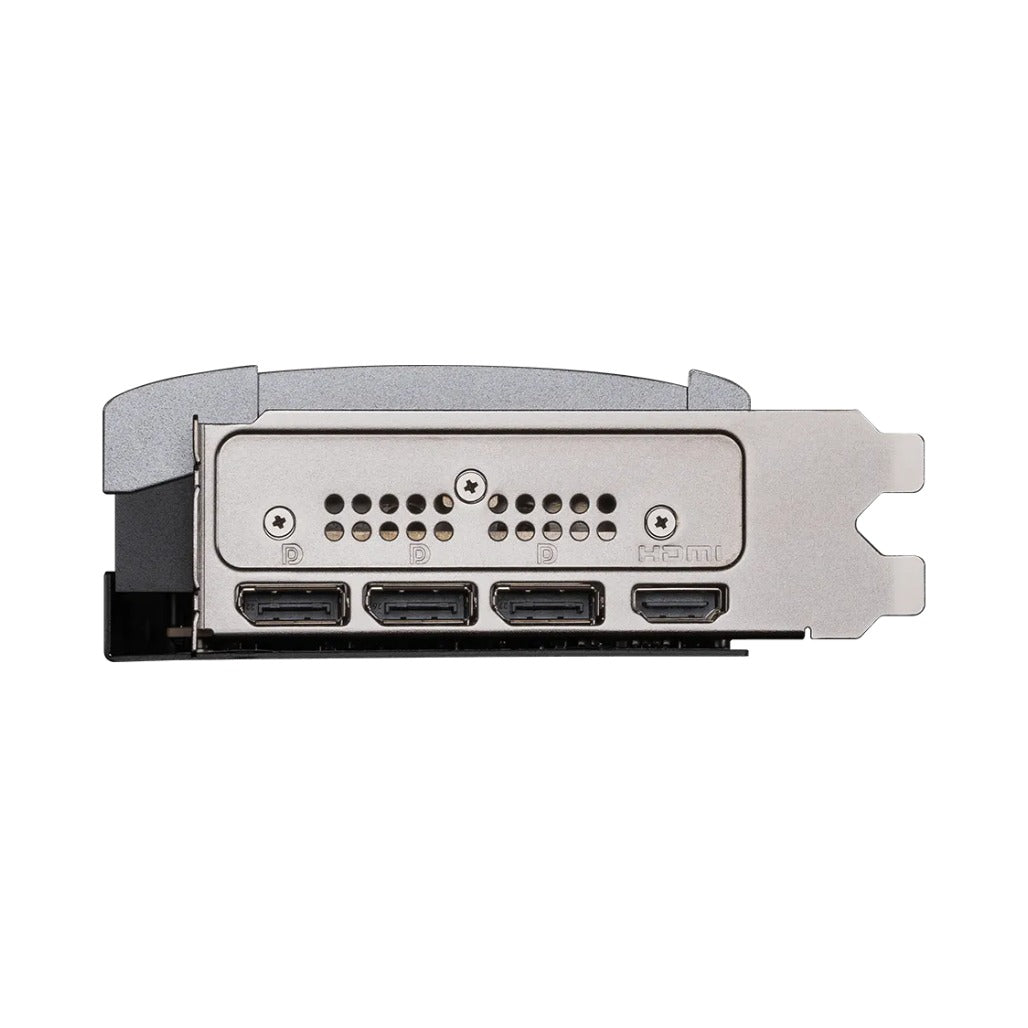

• Output: DisplayPort x 3 (v2.1b); HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Y
• Power consumption: 250 W

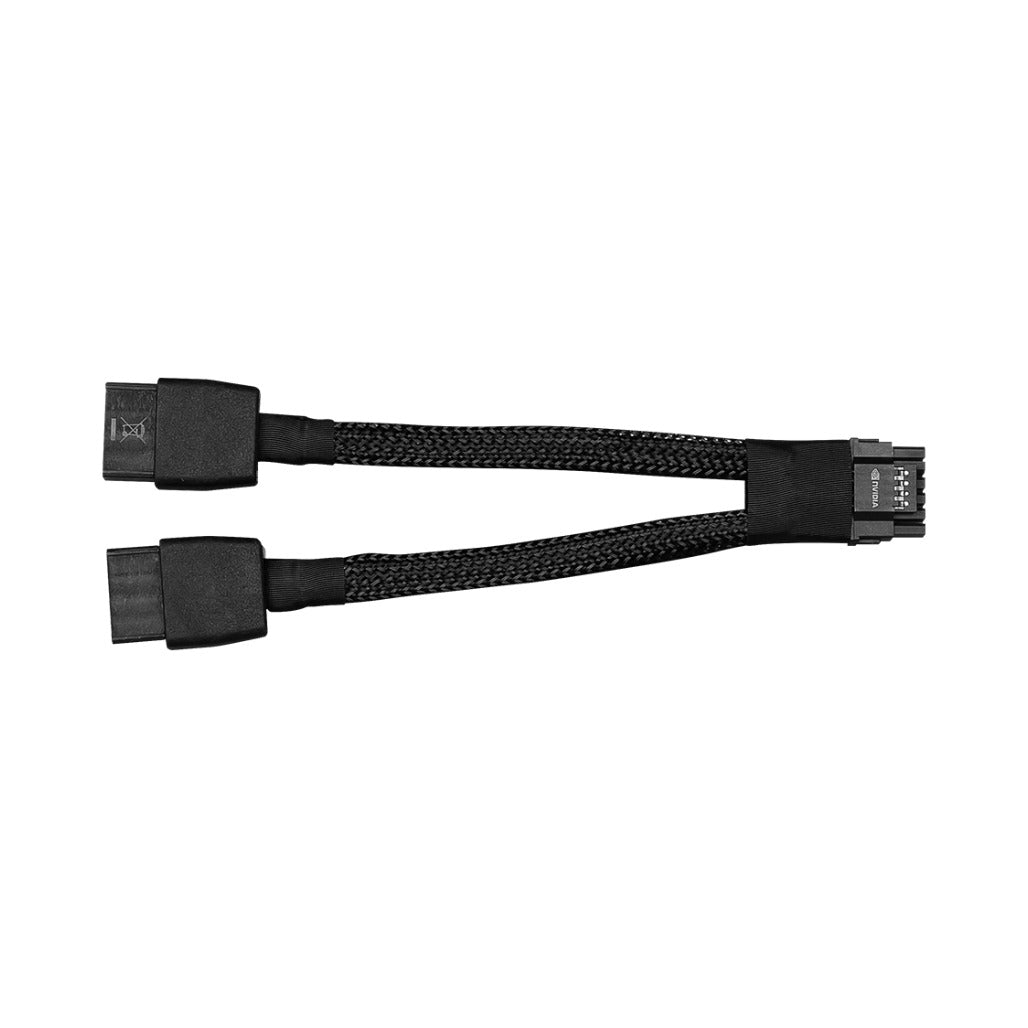

• Power connectors: 16-pin x 1 (ATX 3.1 PSU recommended)
• Recommended PSU: 650W
• Card Dimension (mm): 302 x 121 x 49 mm
• Weight (Card / Package): 1002 g / 1440 g
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320
• Brand: MSI
