MSI GeForce RTX 5060 8G VENTUS 3X OC - G5060-8V3C

Step into high-performance graphics with the MSI GeForce RTX™ 5060 8G VENTUS 3X OC, built on the NVIDIA Blackwell architecture with DLSS 4.5. This graphics card targets a smooth, responsive gaming experience using an NVIDIA® GeForce RTX™ 5060 GPU and a PCI Express® Gen 5 X16 interface (uses x8). With core clock settings of Extreme Performance: 2550 MHz (MSI Center) and Boost: 2535 MHz, it’s designed for performance-oriented use. You can also connect up to 4 displays, with NVIDIA G-SYNC® technology supported. The VENTUS 3X OC includes advanced thermal and design elements to help manage heat during operation, including a nickel-plated copper baseplate and core pipes with a square design for maximizing contact with the baseplate. A reinforcing backplate features an airflow vent that allows exhaust air to pass through. Control and optimization are supported through MSI Center for real-time monitoring, tweaking, and optimization, and MSI Afterburner for graphics card overclocking and real-time system monitoring. For display outputs, it provides DisplayPort x 3 (v2.1b) and HDMI™ x 1 (as specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR), supporting a digital maximum resolution of 7680 x 4320.
Key Features
• BRINGING IT ALL TOGETHER
• MSI's exclusive MSI Center software empowers you to maximize your MSI products
• Monitor, tweak, and optimize in real-time with just a few clicks
• One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements
• MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring
• It’s free and compatible with most graphics cards
• SEAMLESS GAMING EXPERIENCE
• Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC
• High-quality clay-based thermal pads offer additional heat dissipation for critical board components
• Additional fuses built into the custom PCB provide additional safeguards against electrical damage
Specifications
• Powered by the NVIDIA Blackwell architecture and DLSS 4.5
• Core Clock: Extreme Performance: 2550 MHz (MSI Center) Boost: 2535 MHz

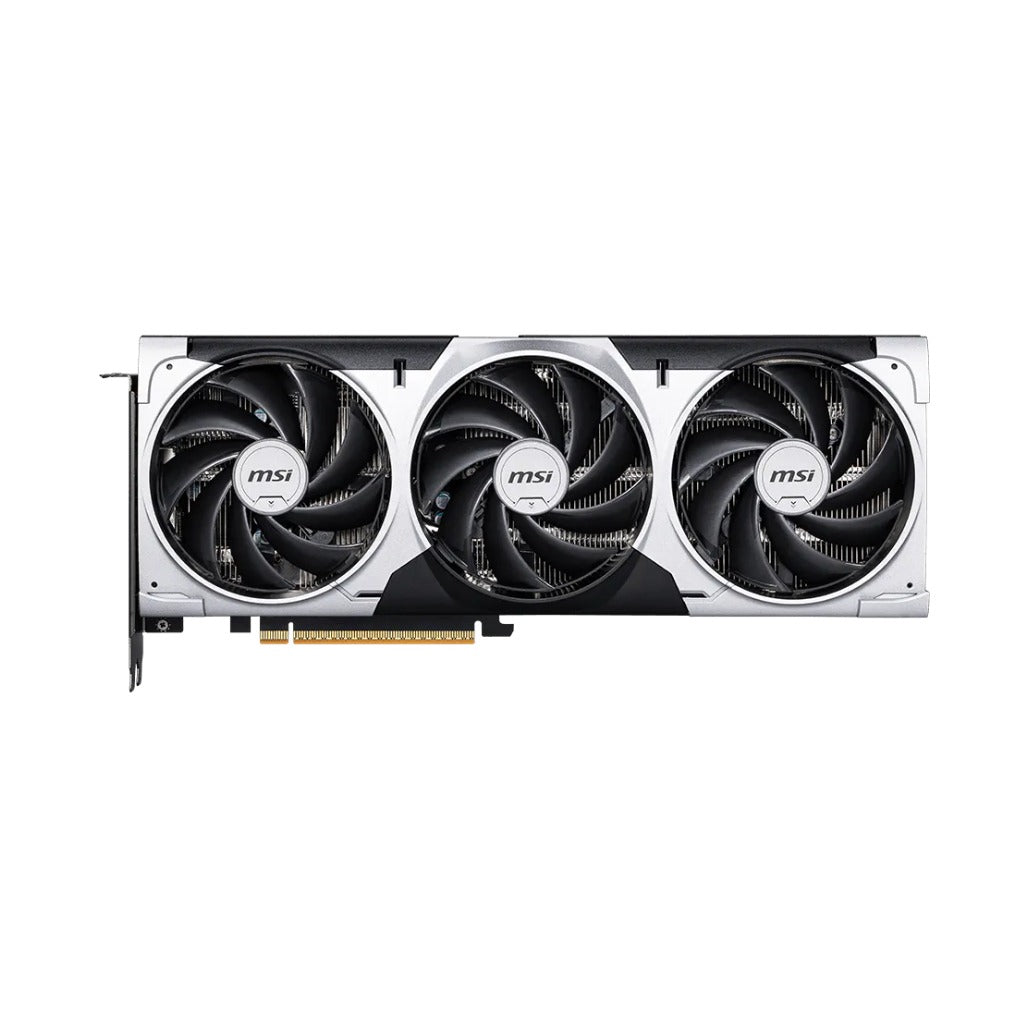

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

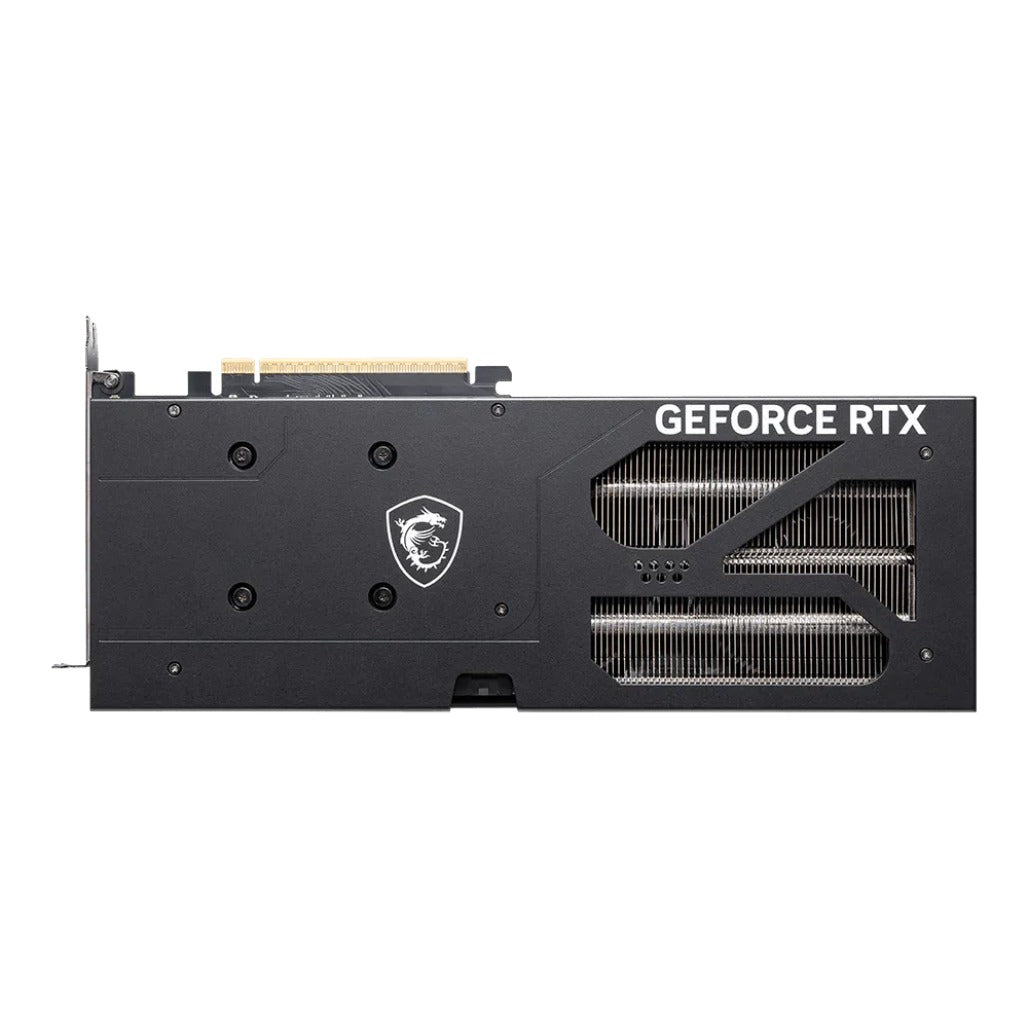

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
• UNLIMITED POWER
• DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
• Specifications
• Marketing Name: GeForce RTX™ 5060 8G VENTUS 3X OC
• Model Name: G5060-8V3C
• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060
• Interface: PCI Express® Gen 5 X16 (uses x8)
• Core Clocks: Extreme Performance: 2550 MHz (MSI Center); Boost: 2535 MHz
• CUDA® CORES: 3840 Units
• Memory Speed: 28 Gbps
• Memory: 8GB GDDR7
• Memory Bus: 128-bit

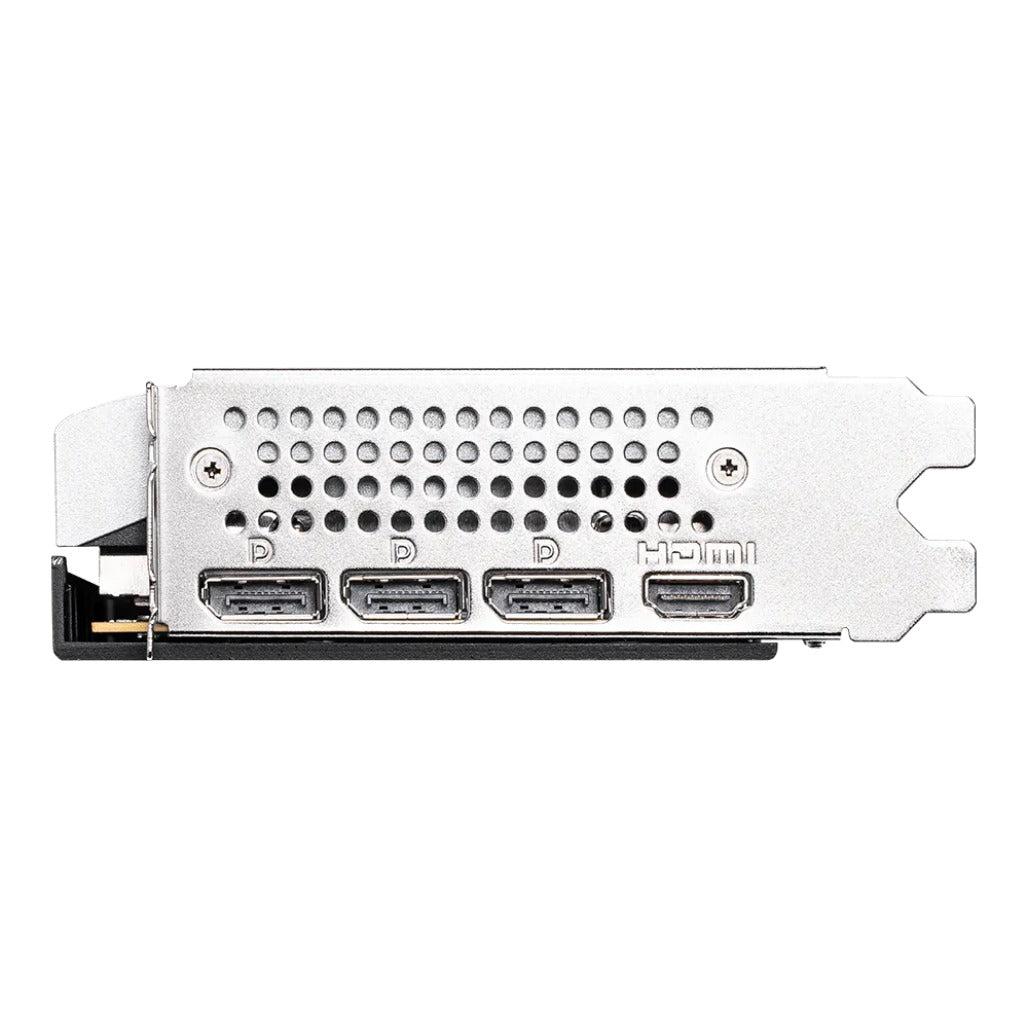

• Output: DisplayPort x 3 (v2.1b); HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Y
• Power consumption: 145W
• Power connectors: 8-pin x1
• Recommended PSU: 550 W
• Card Dimension (mm): 303 x 121 x 41 mm
• Weight (Card / Package): 684 g / 1042 g
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320
• Brand: MSI
