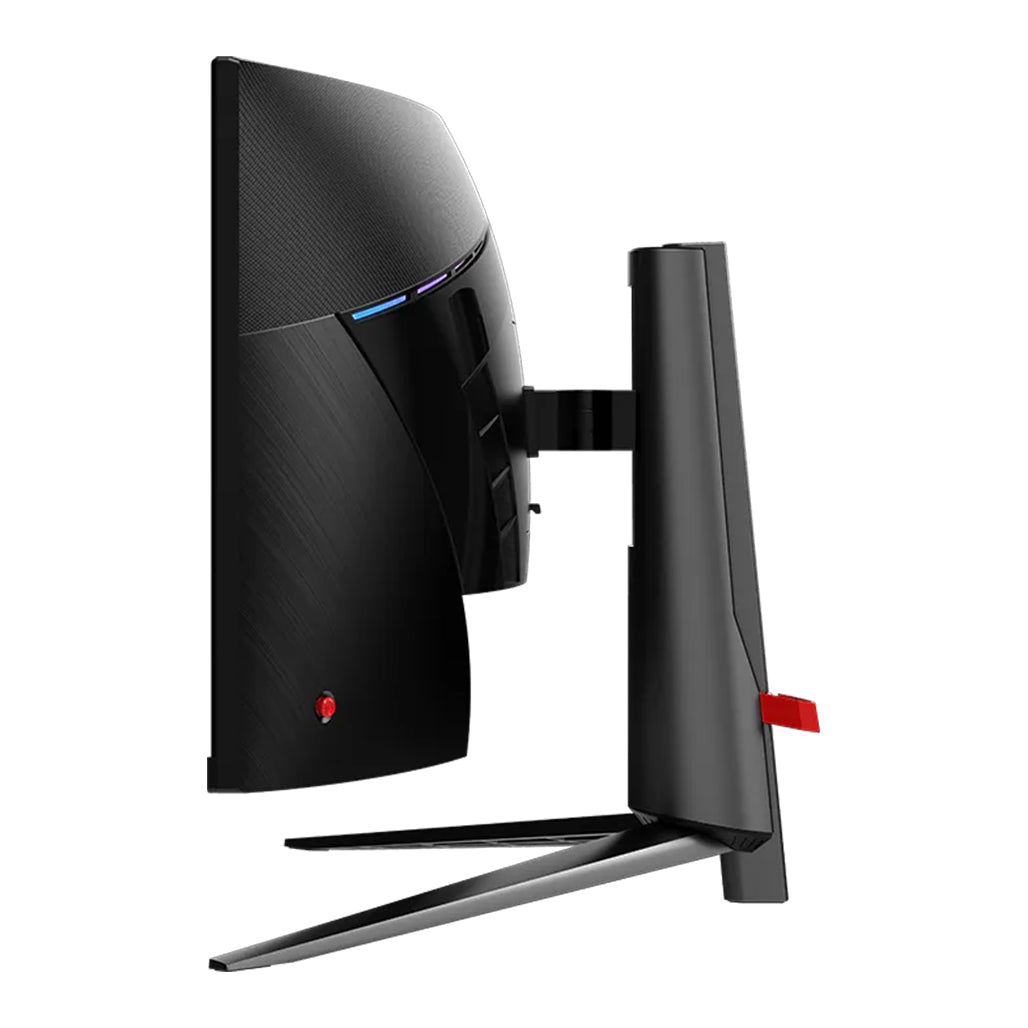

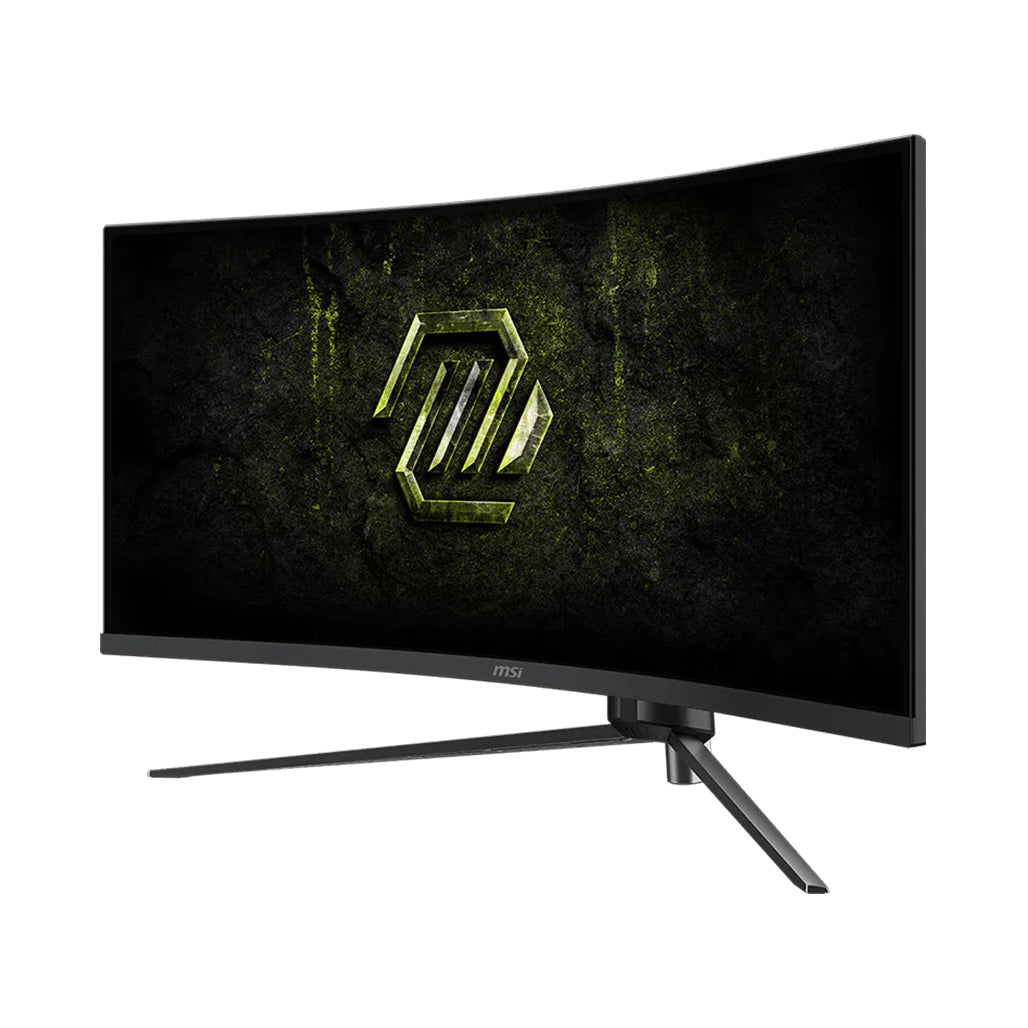

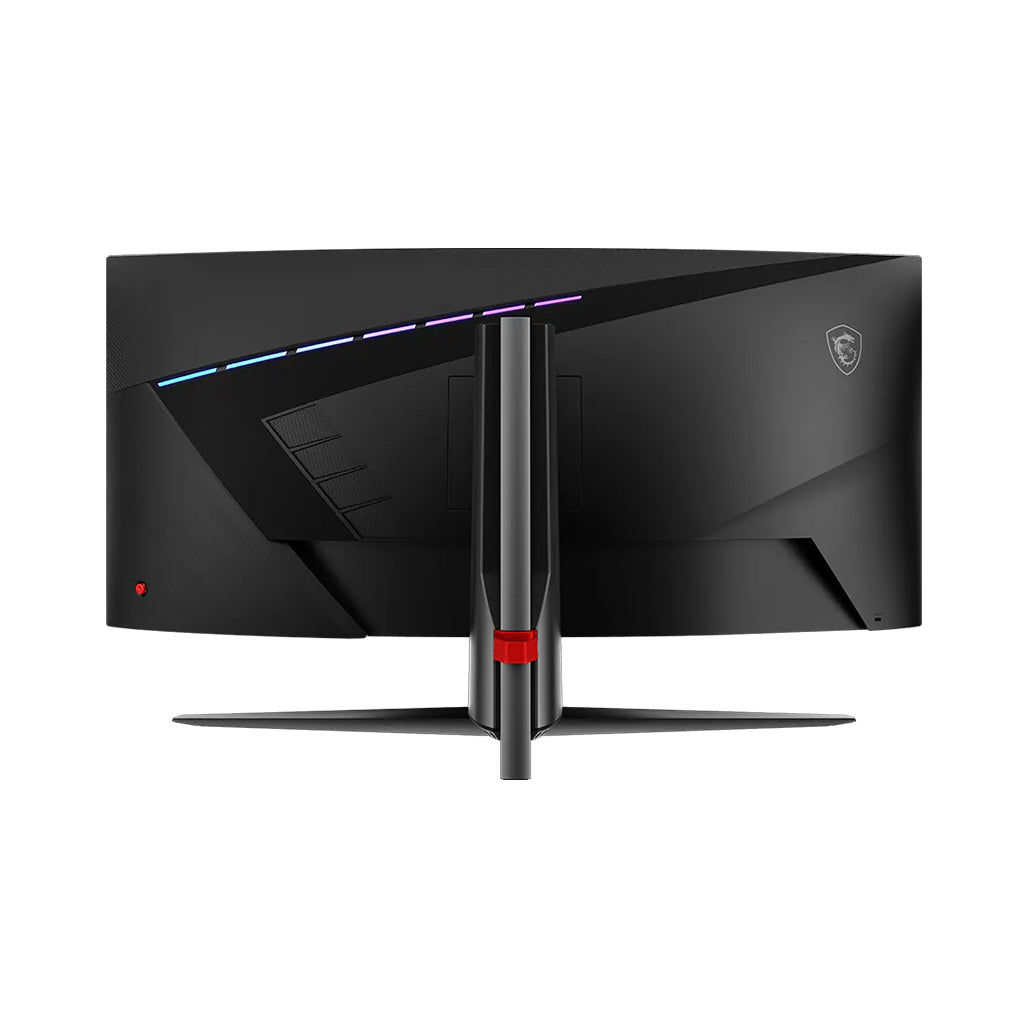

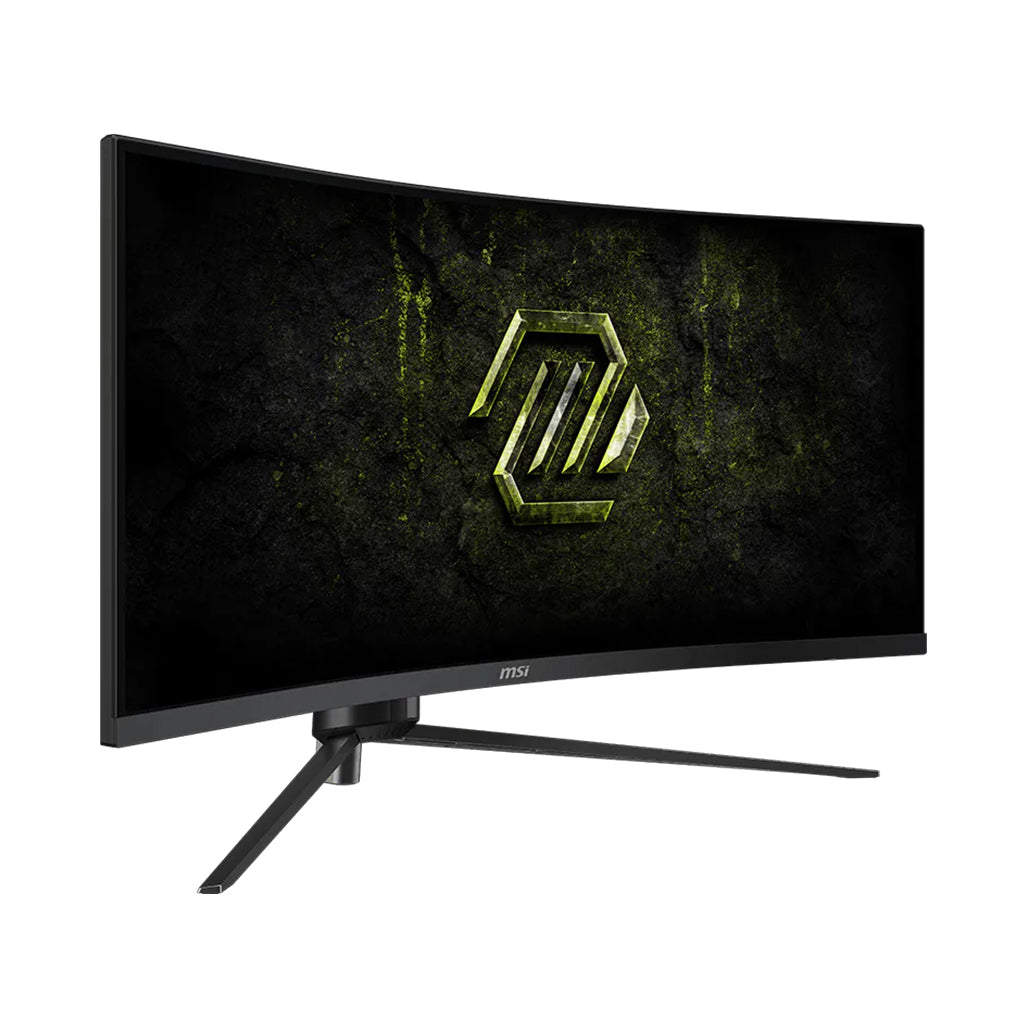

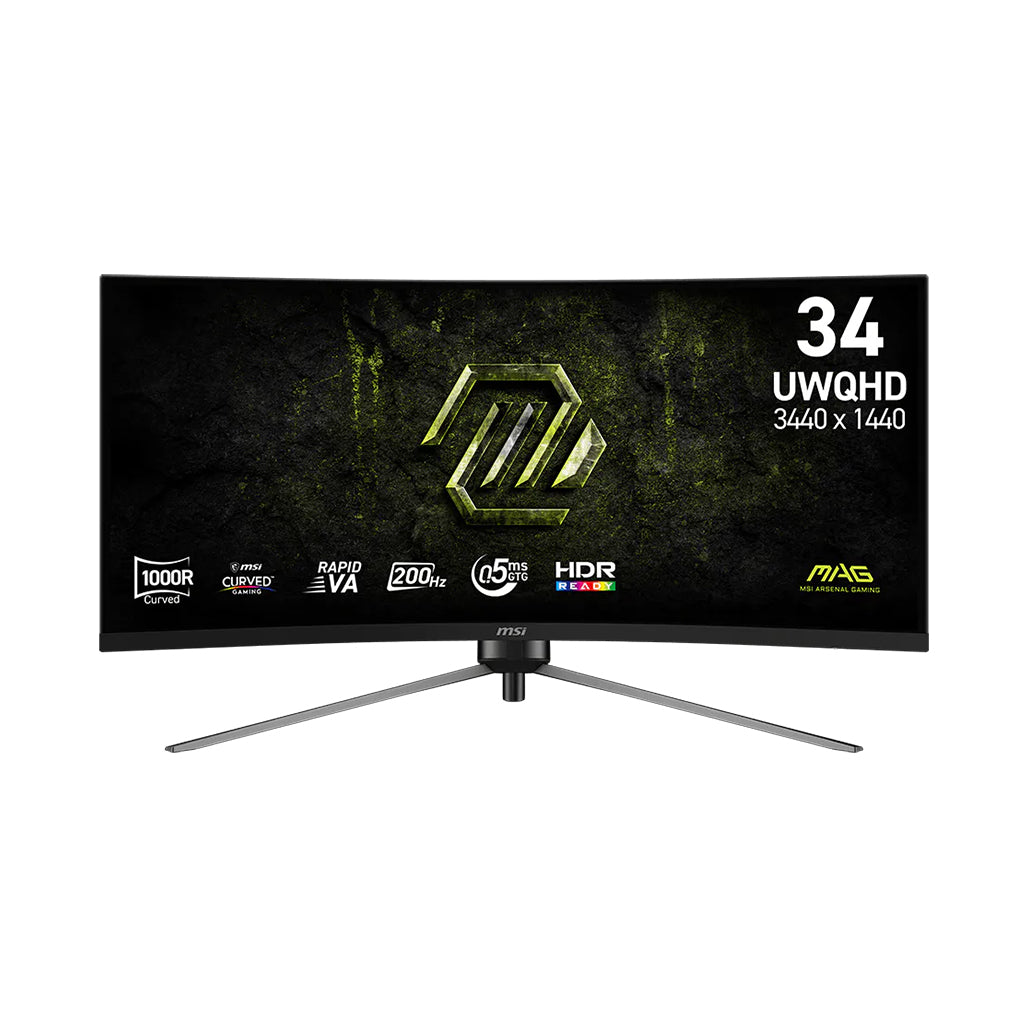

MSI MAG 345CQRF E20 - 34” Curved Ultrawide Gaming Monitor

An immersive ultrawide gaming experience is delivered through the MSI MAG 345CQRF E20, designed with a 34-inch 1000R curved Rapid VA panel that enhances field of view and depth perception. A UWQHD resolution of 3440×1440 is paired with a 21:9 aspect ratio, allowing expanded gameplay visibility that is especially suited for competitive FPS titles, RPGs, MMORPGs, and simulation genres. Smooth motion clarity is maintained through a 200Hz refresh rate, while ultra-fast 0.5ms (GtG, Min.) response time ensures that motion blur and ghosting are significantly reduced.

Visual performance is further enhanced through HDR Ready support, allowing improved contrast handling and more detailed shadow rendering. Color accuracy and vibrancy are expanded with wide color coverage including DCI-P3 90%, Adobe RGB 88%, and sRGB 110%. Gaming stability is reinforced through Adaptive-Sync technology, while console compatibility is ensured with VRR support for PS5 and Xbox. A balance of performance and comfort is maintained with features such as AI Vision for improved dark scene visibility and Less Blue Light technology for reduced eye strain during extended sessions.

Key Features

• Ultra-Wide UWQHD Display: Expanded 3440×1440 resolution delivers wider gameplay visibility and improved multitasking space.
• 200Hz High Refresh Rate: Ultra-smooth motion rendering is provided for competitive and fast-paced gaming scenarios.
• 0.5ms Response Time (GtG, Min.): Extremely fast pixel transitions are enabled to minimize motion blur and ghosting.
• 1000R Curved Screen Design: Deep curvature is applied to enhance immersion and match natural human field of view.
• HDR Ready Visual Enhancement: Contrast and shadow detail are improved for more realistic image depth.
• Wide Color Gamut Coverage: Rich and accurate color reproduction is achieved with high DCI-P3, Adobe RGB, and sRGB ranges.
• AI Vision Technology: Dark scene clarity and overall brightness are intelligently enhanced.
• Adaptive-Sync & VRR Support: Screen tearing is reduced and smooth synchronization is maintained across GPU and console platforms.
• Eye Comfort Features: Reduced blue-violet light emission is applied for long-session viewing comfort.
• Gaming-Oriented Build Quality: Stability and durability are ensured through MSI MAG series construction standards.

Specifications

• Panel Size: 34"
• Active Display Area (mm): 797.22 (H) x 333.72 (V)
• Curvature: Curve 1000R
• Panel Type: Rapid VA
• Panel Resolution: 3440 x 1440 (UWQHD)
• Pixel Pitch (H x V): 0.23175(H) x 0.23175(V)
• Aspect Ratio: 21:9
• Brightness (nits): SDR: 300 cd/m²
• Contrast Ratio: 3500:1
• DCR: 100000000:1
• Signal Frequency: 71.51~285.31KHz(H) / 48~200 Hz(V)
• ACTIVATED RANGE: 48~200Hz
• Refresh Rate: 200Hz
• Response Time: 0.5ms (GtG, Min.)
• Dynamic Refresh Rate Technology: Adaptive-Sync
• HDR Support: HDR Ready
• Video Ports: 1x DisplayPort 1.4a (HBR3), 2x HDMI™ 2.0b (UWQHD@100Hz)
• Audio Ports: 1x Headphone-out
• Viewing Angle: 178° (H) / 178° (V)
• Color Gamut: Adobe RGB 88% / DCI-P3 90% / sRGB 110% (CIE1976 Standard)
• Surface Treatment: Anti-glare
• Display Colors: 1.07B, 10 bits (8 bits + FRC)
• Console Mode:
  • 1080p: 60Hz and 120Hz
  • 1440p: 60Hz and 120Hz
• HDMI™ CEC: Supported
• VRR: PS5 and Xbox Supported
• Power Type: External Adaptor
• Power Input: 19V 3.42A / 100~240V, 50/60Hz
• Adjustment (Tilt): -5° ~ 20°
• Adjustment (Swivel): -30° ~ 30°
• Adjustment (Pivot): -1.5° ~ 1.5°
• Adjustment (Height): 0 ~ 100 mm
• Kensington Lock: Yes
• VESA Mounting: 100 x 100 mm
• Dimensions with Stand (W x D x H): 797.53 x 332.32 x 418.9 mm (31.3 x 13.08 x 16.4 inch)
• Dimensions without Stand (W x D x H): 797.53 x 158.18 x 363.02 mm (31.3 x 6.2 x 14.2 inch)
• Weight (NW / GW): 7.75 kg (17 lbs) / 11.3 kg (24.9 lbs)
• Carton Dimension (W x D x H): 985 x 228 x 510 mm (38.7 x 8.9 x 20 inch)
• Accessories: 1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x Power Adaptor, 1x Quick Guide, 4x VESA Screw
• Note:
  • HDMI™: 3440 x 1440 (Up to 100Hz)
  • DisplayPort: 3440 x 1440 (Up to 200Hz)
  • Support: HDMI™ CEC; PIP/PBP
  • Non Support: KVM

Conclusion

A highly immersive ultrawide gaming display is delivered through the MSI MAG 345CQRF E20, where speed, clarity, and curvature are combined into a performance-driven monitor built for competitive and cinematic gaming experiences. Strong motion handling, wide color reproduction, and adaptive synchronization are integrated to ensure smooth and visually rich gameplay across both PC and console platforms.
