MSI Spatium M570 HS 2TB PCIe 5.0 NVMe M.2 SSD - Ultra-Fast Storage with Advanced Cooling

Experience unprecedented storage speed with the MSI Spatium M570 HS 2TB PCIe 5.0 NVMe M.2 SSD. Designed for next-generation performance, this SSD leverages PCIe Gen 5 technology to deliver read and write speeds of up to 10,000 MB/s. With 1.5 times faster performance than previous-generation SSDs, it ensures rapid data transfer and significantly reduced load times for both gaming and productivity applications.

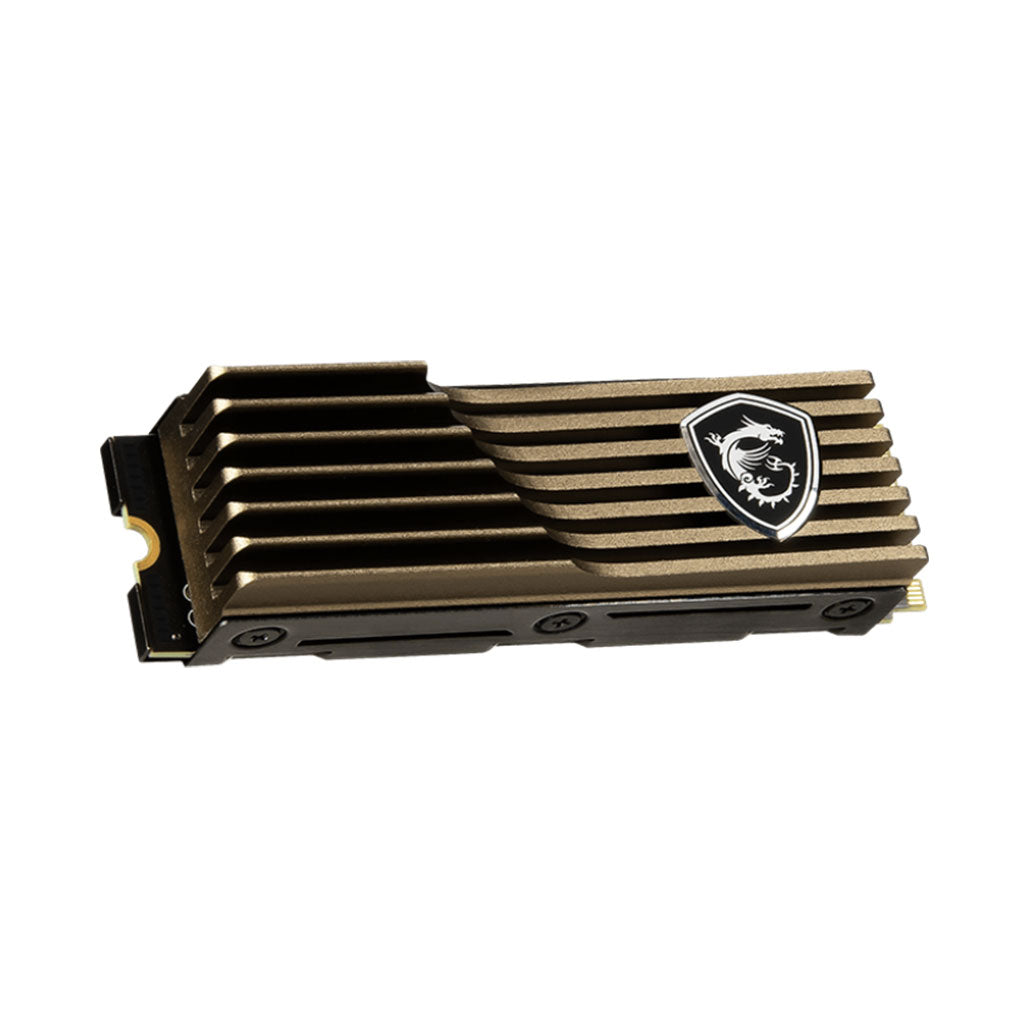

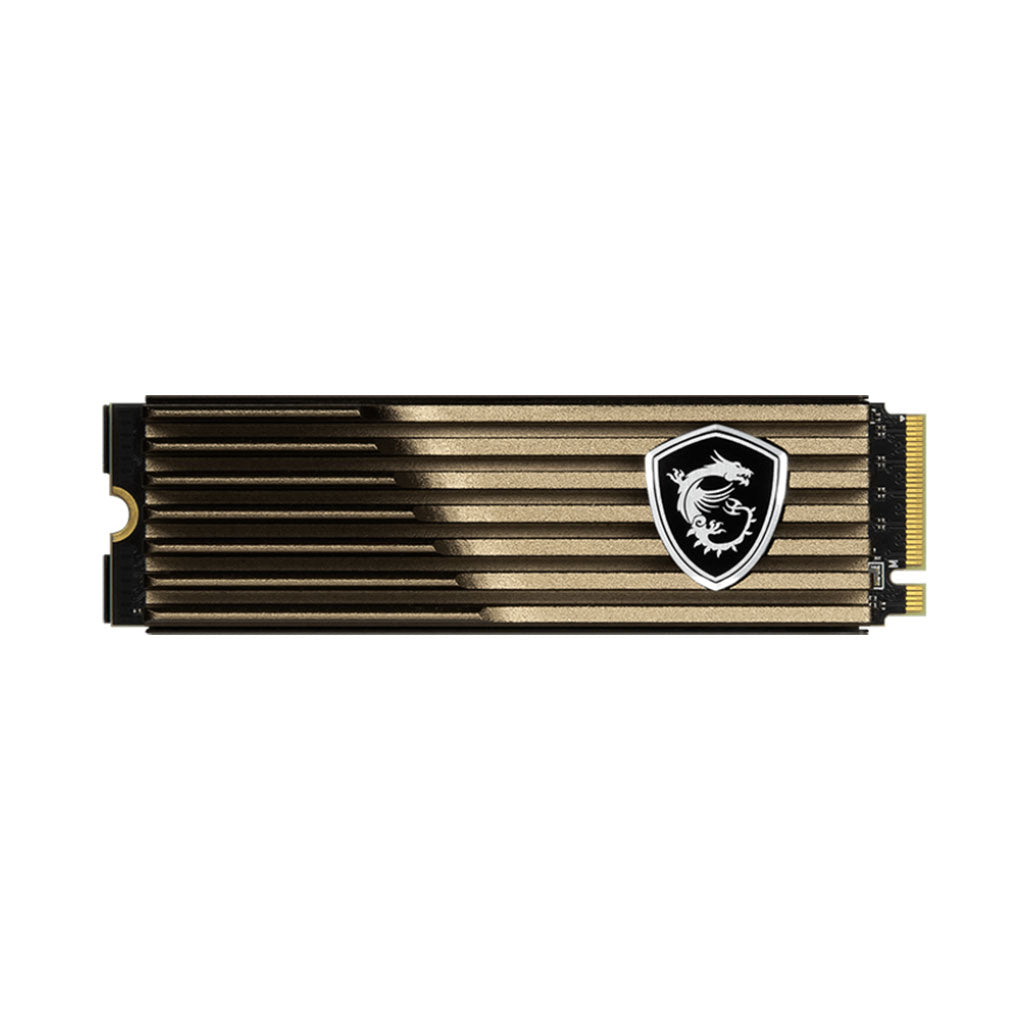

The M570 HS features a sophisticated bronze-colored aluminum heatsink with a stacked fin design, ensuring efficient heat dissipation and maintaining peak performance even under intensive workloads. Equipped with cutting-edge 3D NAND flash and an advanced PHISON E26 controller, this SSD offers remarkable speed and reliability, making it an ideal choice for high-performance computing tasks and demanding gaming scenarios.

Key Features:

• Exceptional Speed: Achieves sequential read speeds up to 10,000 MB/s and write speeds up to 10,000 MB/s, providing ultra-fast data transfer and reduced load times.
• Advanced Cooling: Includes a bronze-colored aluminum heatsink with a stacked fin structure for effective thermal management and sustained performance.
• High Capacity: Available in 1TB and 2TB capacities with state-of-the-art 3D NAND flash technology for expanded storage in a compact form.
• Robust Data Integrity: Features TRIM, SMART, LDPC ECC, and end-to-end data path protection for enhanced data security and drive longevity.
• Power Efficiency: Maximum operating power of 10W (1TB model) and 11W (2TB model), designed for efficient power use.

Full Specifications:

• Model Name: SPATIUM M570 PCIe 5.0 NVMe M.2 HS
• Capacity: 1TB / 2TB
• Controller: PHISON E26
• Flash Memory: 3D NAND
• DRAM Cache: 2GB LPDDR4 (1TB model), 4GB LPDDR4 (2TB model)
• Form Factor: M.2 2280
• Interface: PCIe Gen5 x4, NVMe 2.0
• Compatibility: PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
• Dimensions:
  • 80.00mm (L) x 22.00mm (W) x 3.5mm (H) (without heatsink)
  • 80.40mm (L) x 23.00mm (W) x 20.40mm (H) (with heatsink)
• Sequential Read Up To (MB/S): 9,500 (1TB model), 10,000 (2TB model)
• Sequential Write Up To (MB/S): 8,500 (1TB model), 10,000 (2TB model)
• Random Read 4KB Up To (IOPS): 1,300,000 (1TB model), 1,400,000 (2TB model)
• Random Write 4KB Up To (IOPS): 1,500,000
• Maximum Operating Power (W): 10 (1TB model), 11 (2TB model)
• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C
• Terabytes Written (TBW): 700 (1TB model), 1400 (2TB model)
• Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
• Advanced Features:
  • TRIM: Performance optimization (OS support required)
  • SMART: Self-Monitoring, Analysis, and Reporting Technology
  • LDPC ECC: Low-Density Parity Check Error Correction Algorithm
  • End-to-End Data Path Protection
  • APST: Autonomous Power State Transition

Conclusion:

The MSI Spatium M570 HS 2TB PCIe 5.0 NVMe M.2 SSD is engineered for peak performance with next-generation PCIe Gen 5 speeds and advanced cooling solutions. Designed for high-capacity and high-speed data handling, this SSD is well-suited for both intensive gaming and demanding productivity tasks.
