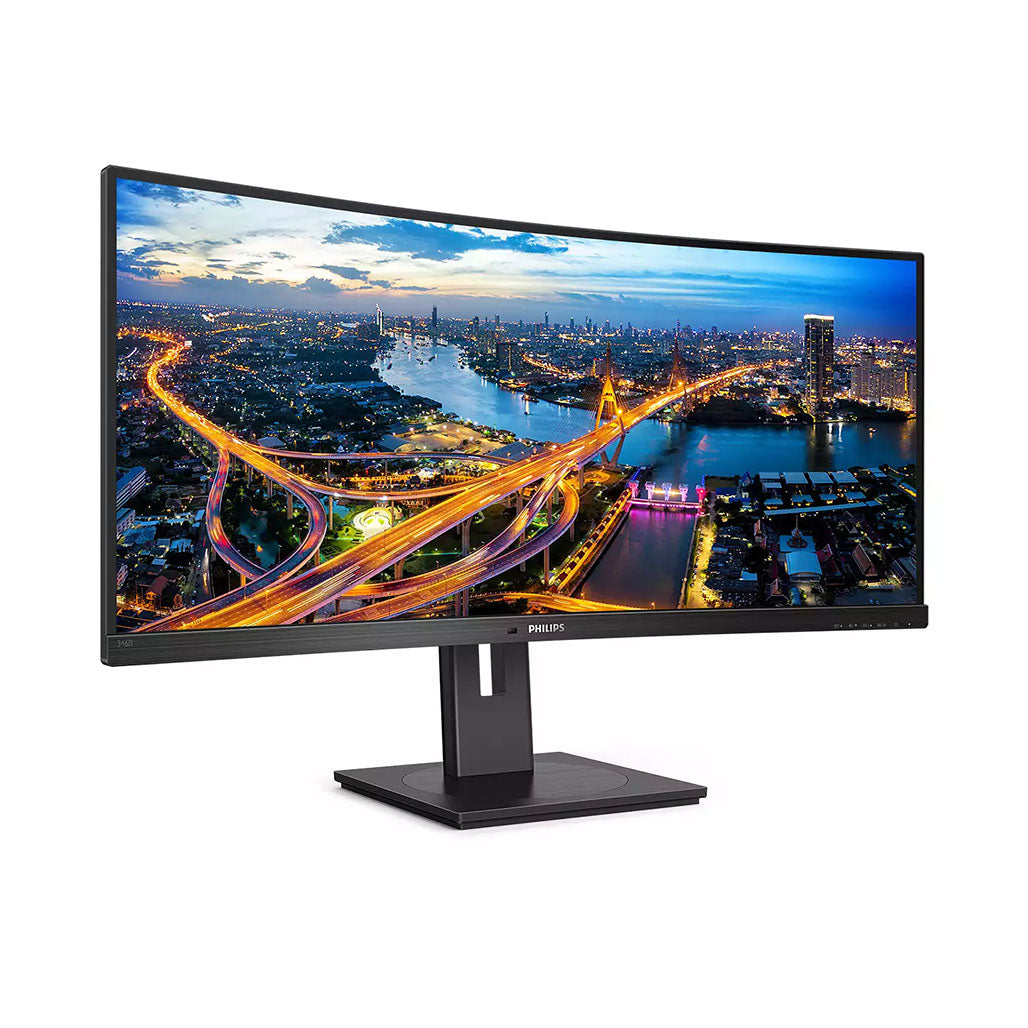

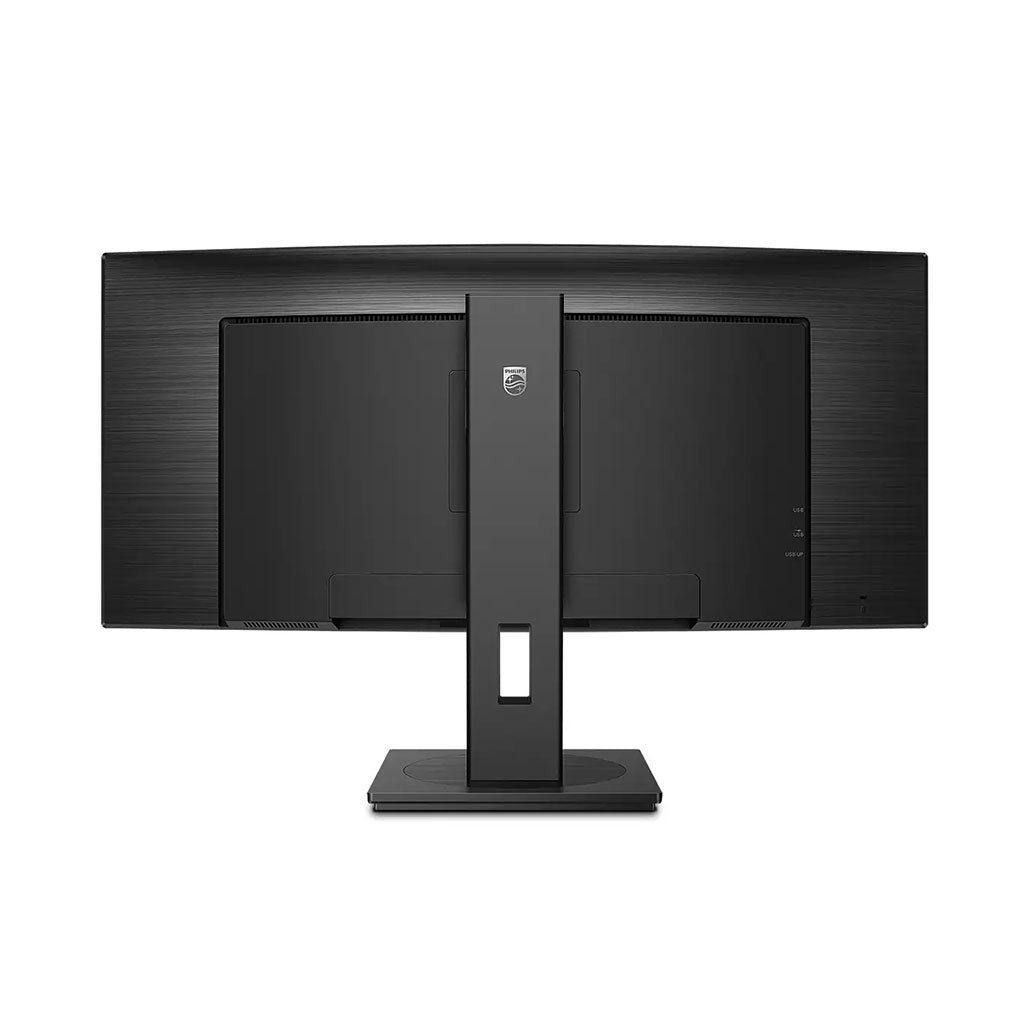

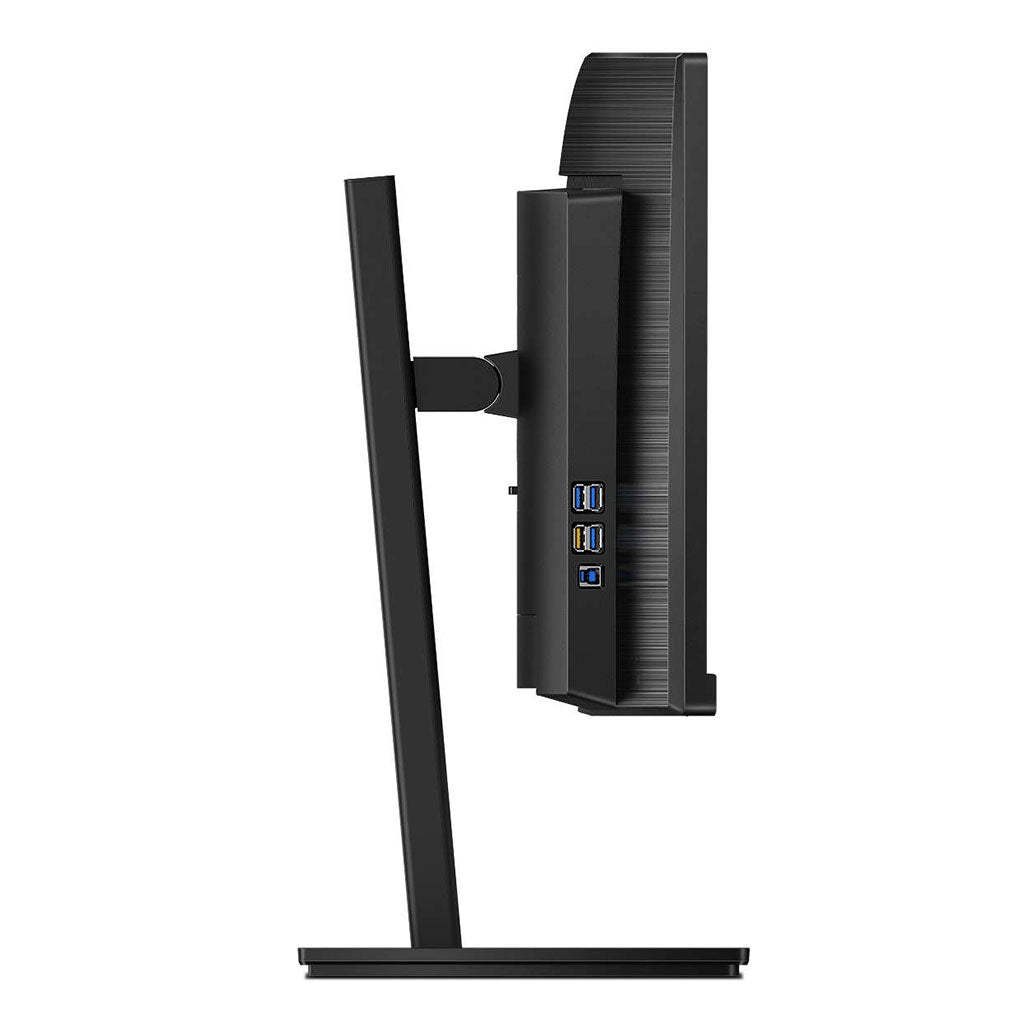

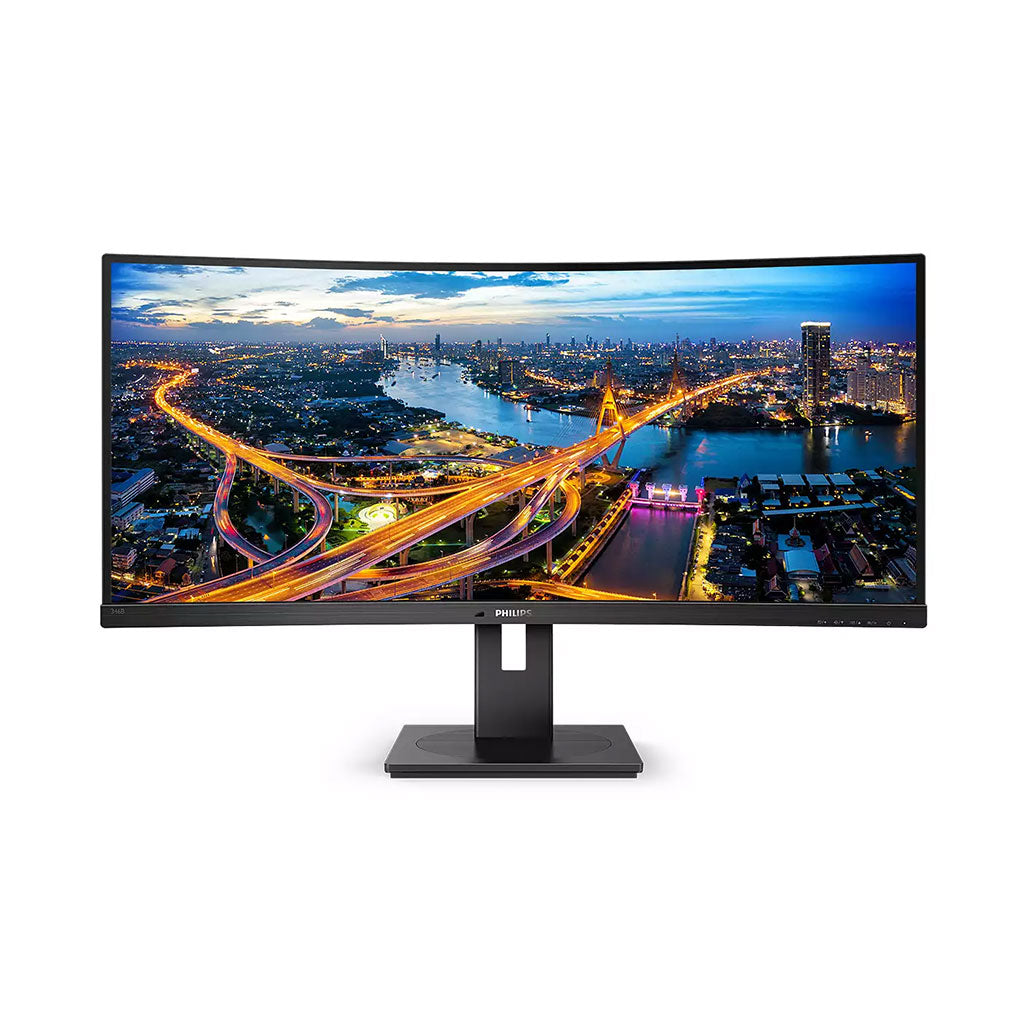

Philips 346B1C - 34" WQHD Curved UltraWide LCD Monitor

See more. Do more.

The Philips B line 34" curved UltraWide display gives wrap-around view of your work. All-in-one USB-C and ergonomic stand design make for optimal working conditions. Eye comfort features with TUV certified to reduce eye fatigue.

Technical Specifications:

Picture/Display:

• LCD panel type: VA LCD
• Adaptive sync: Yes
• Backlight type: W-LED system
• Panel Size: 34 inch / 86.36 cm
• Display Screen Coating: Anti-Glare, 2H, Haze 25%
• Effective viewing area: 797.2 (H) x 333.7 (V) - at a 1500 R curvature*
• Aspect ratio: 21:9
• Maximum resolution: 3440 x 1440 @ 100 Hz*
• Pixel Density: 110 PPI
• Response time (typical): 4 ms (Gray to Gray)*
• Brightness: 300  cd/m²
• Contrast ratio (typical): 3,000:1
• SmartContrast: 80,000,000 :1
• Pixel pitch: 0.23175 x 0.23175 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Flicker-free: Yes
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Color gamut (typical): NTSC 100%*, sRGB 119%*, Adobe RGB 90%*
• Scanning Frequency: 30 - 160 kHz (H) / 48 - 100 Hz (V)
• SmartUniformity: 93 ~ 105%
• Delta E: < 2 (sRGB)
• sRGB: Yes
• LowBlue Mode: Yes
• EasyRead: Yes

Connectivity:

• Signal Input: DisplayPort 1.2 x 1, HDMI 2.0 x 1, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 90 W)
• HDCP: HDCP 1.4 (DP / USB-C), HDCP 2.2 (HDMI)
• USB: USB-C x 1, USB-B x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
• Audio (In/Out): Headphone out
• RJ45: Ethernet LAN up to 1G*, Wake On Lan
• Sync Input: Separate Sync

USB:

• USB-C: Reversible plug connector, Super speed, Data and Video transfer, DP, Built-in Display Port Alt mode, Power delivery, USB PD version 3.0, USB-C max. power delivery, Up to 90W (5V/3A; 7V/3A; 9V/3A; 10V/3A;12V/3A; 15V/3A; 20V/4.5A)

Convenience:

• Built-in Speakers: 5 W x 2
• MultiView: PIP/PBP mode, 2x devices

User convenience:

• SmartImage
• Input
• User
• Menu
• Power On/Off
• Control software: SmartControl

OSD Languages:

• Brazil Portuguese
• Czech
• Dutch
• English
• French
• Finnish
• German
• Greek
• Hungarian
• Italian
• Japanese
• Korean
• Portuguese
• Polish
• Russian
• Simplified Chinese
• Spanish
• Swedish
• Traditional Chinese
• Turkish
• Ukrainian

Other convenience:

• Kensington lock
• VESA mount (100x100mm)
• Plug & Play Compatibility:
• DDC/CI
• Mac OS X
• sRGB
• Windows 10 / 8.1 / 8 / 7

Stand:

• Height adjustment: 180  mm
• Swivel: -180/180  degree
• Tilt: -5/30  degree

Power:

• ECO mode: 34 W (typ.)
• On mode: 28.36 W (typ.) (EnergyStar test method)
• Standby mode: 0.3 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation – White, Standby mode- White (blinking)

Power supply:

Built-in: 100-240VAC, 50-60Hz

Dimensions:

• Product with stand(max height): 807 x 601 x 250  mm
• Product with stand(max height): 31.8 x 23.7 x 9.8  inch
• Product without stand (mm): 807 x 367 x 110  mm
• Product without stand in inch: 31.8 x 14.4 x 4.3  inch
• Packaging in mm (WxHxD): 904 x 525 x 282  mm
• Packaging in inch (WxHxD): 35.6 x 20.7 x 11.1  inch

Weight:

• Product with stand (kg): 11.49  kg
• Product with stand (lb): 25.28  lb
• Product without stand (kg): 7.79  kg
• Product without stand (lb): 17.14  lb
• Product with packaging (kg): 15.32  kg
• Product with packaging (lb): 33.70  lb

Operating conditions:

• Temperature range (operation): 0°C to 40  °C
• Temperature range (storage): -20°C to 60  °C
• Relative humidity: 20%-80  %
• Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
• MTBF (demonstrated): 70,000 hrs (excluded backlight)

Sustainability:

• Environmental and energy: PowerSensor, LightSensor, EnergyStar 8.0, TCO Certified, RoHS
• Recyclable packaging material: 100  %
• Specific Substances: Mercury free
• PVC / BFR free housing

Compliance and standards:

• Regulatory Approvals:
  • CB
  • cETLus
  • FCC Class B
  • ICES-003
  • CE Mark
  • TUV/GS
  • TUV Ergo
  • CU-EAC
  • UKRAINIAN
  • TUV Eye Comfort certified

Cabinet:

• Foot: Black
• Rear cover: Black
• Front bezel: Black
• Finish: Texture

What's in the box?

• Monitor with stand: Yes
• Cables: HDMI cable, DP cable, USB-C/A Y cable, Power cable
• User Documentation: Yes
