Smarter surveillance
Combine the comprehensive video management features in Synology Surveillance Station with advanced analytics to speed up incident response and collect better business intelligence.
Combine the comprehensive video management features in Synology Surveillance Station with advanced analytics to speed up incident response and collect better business intelligence.
Bolster the security of your premises while increasing efficiency.
Watch over your deployment in the way that works best for you.
Quickly set up your surveillance system with minimal effort.
Monitor and secure your premises more effectively with locally processed analytics, ensuring security and confidentiality.
Locate intruders that may take advantage of scarcely monitored areas, discourage loitering in sensitive spots such as driveways or parking lot entrances, and strengthen access control to your premises without maintaining dedicated staff on site.
People & Vehicle Detection
Trigger immediate or threshold-based alerts using idle times within defined zones for people or vehicles.
License Plate Recognition
Identify license plates and set up accompanying triggers based on configurable allow or blocklists.
Intrusion Detection
Set up bidirectional or one-way virtual borders to issue alerts when people or vehicles cross into an area.
People & Vehicle Counting
Gauge occupancy levels with aggregated counting of people and vehicles entering and leaving your premises, with automatic alerts when capacity is reached.
Congestion Alerts
Avoid overcrowding in sensitive spots by detecting when the number of people transiting a predefined zone crosses a set threshold.
Face Recognition
Manage access to your premises easily with detection support of up to 10,000 personnel profiles with >97% accuracy.
Face Covering Detection
Identify whether your visitors comply with local rules or policies and alert personnel on site to take appropriate action.
Leverage highly configurable options and automation features to act quickly when potentially dangerous situations arise.
Display real-time previews of detected events on interactive multi-floor and multi-site maps supported by Google Maps and OpenStreetMap
Reduce workloads by triggering responses to specific situations, such as activating recording when a microswitch detects a door is opened.
Specify which events should trigger a notification, and whether to receive alerts by SMS, email, or push notification on mobile devices.
Enjoy a uniform monitoring experience wherever you are and adapt your surveillance system to your needs — not the other way around.
<hr size=0 width="100%" align=center>

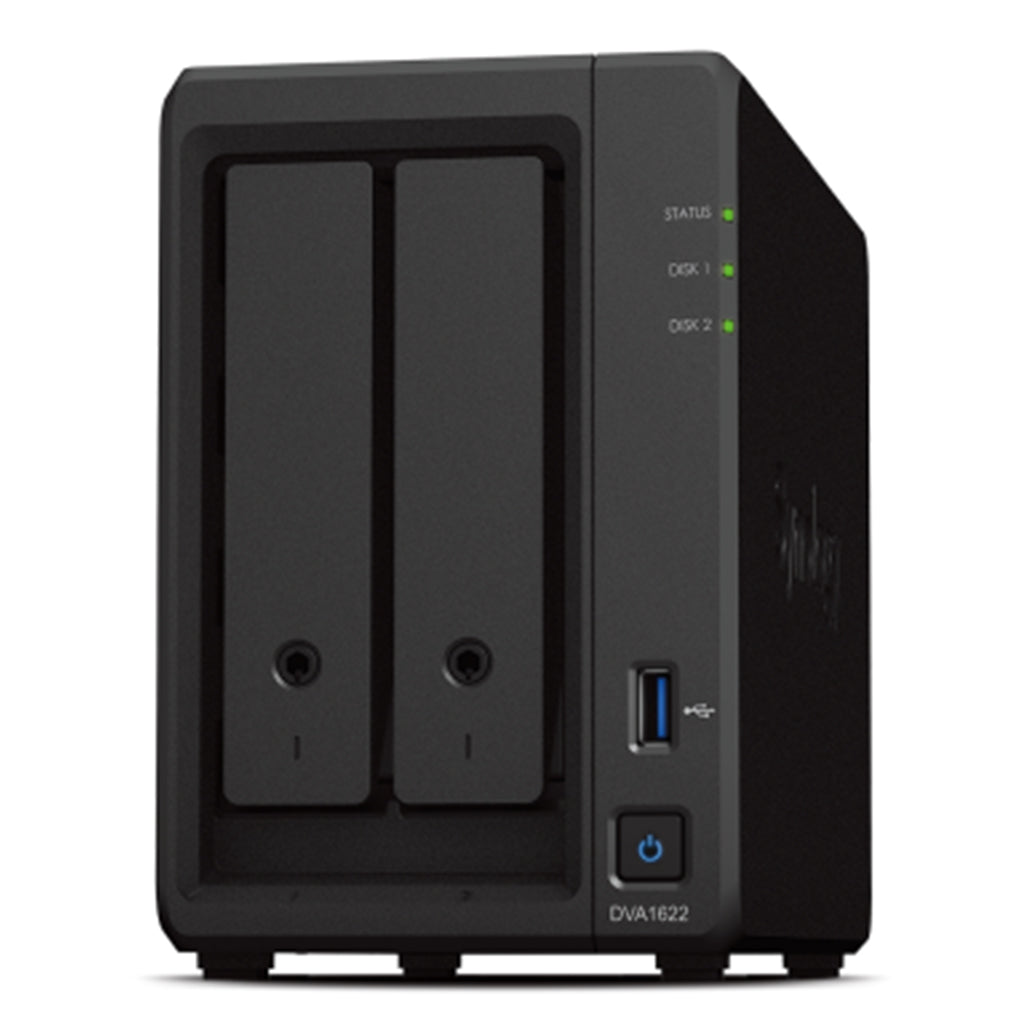

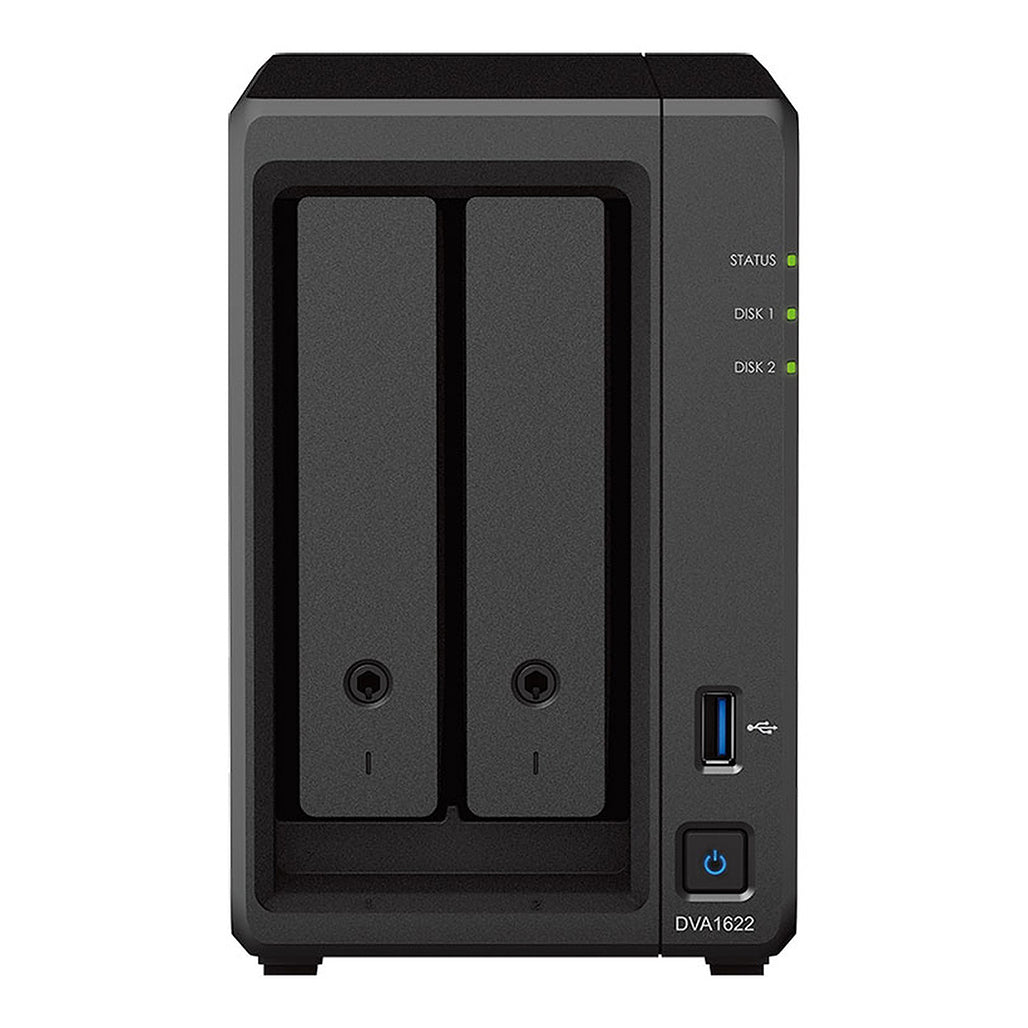

Minimize the footprint of your monitoring setup. The DVA1622’s local management capabilities make it an ideal solution for compact home surveillance systems and security kiosks when available space is limited.

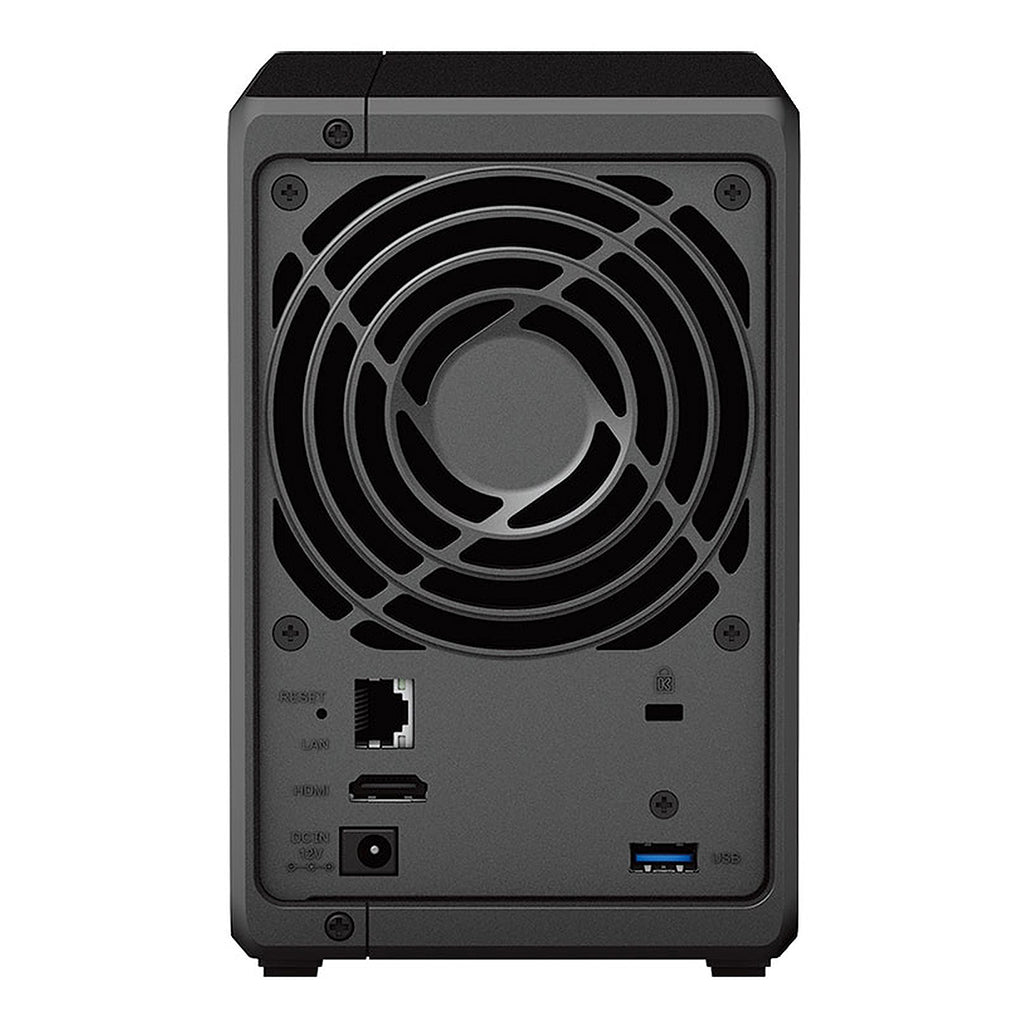

Connect an external display directly to the built-in HDMI port to start monitoring your premises in minutes.
Control your Surveillance Station installation without setting up a dedicated PC by attaching a mouse and keyboard directly to the DVA1622.
Anytime, anywhere surveillance
Investigate incidents from anywhere to minimize reaction times and take appropriate action faster.
Multi-platform support
Monitor streams in real time or browse recorded footage seamlessly from browsers, desktop clients, and mobile apps.
Monitoring on the go
Install the DS cam app on your iOS and Android mobile devices to always have a monitoring option on hand.
Deploy and protect with ease
Get large or multi-site surveillance systems up and running easily while keeping recordings safe from malfunctions and third-party attacks.
Wide compatibility
Pick from 8,300+ Synology-validated models or leverage ONVIF support for even more flexibility.
Multi-site management
Manage fleets of recording servers from a single interface.
Granular delegation
Distribute monitoring and managing privileges flexibly.
Hardware Specifications
Models |
DVA1622 |
|
CPU |
CPU Model |
Intel Celeron J4125 |
CPU Architecture |
64-bit |
|
CPU Frequency |
Quad Core 2.0 (base) / 2.7 (burst) GHz |
|
Hardware Encryption Engine (AES-NI) |
Yes | |
GPU |
GPU Model |
Intel UHD Graphics 600 |
Video Outputs |
Video Outputs |
HDMI X 1 |
Supported Video Resolution |
1080p 60Hz |
|
Memory |
System Memory |
6 GB DDR4 non-ECC |
Memory Module Pre-installed |
6 GB (2 GB + 4 GB) |
|
Total Memory Slots |
- |
|
Maximum Memory Capacity |
- |
|
Notes |
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
|
Storage |
Drive Bays |
2 |
Maximum Drive Bays with Expansion Unit |
- |
|
Compatible Drive Type* (See all supported drives) |
3.5" SATA HDD |
|
Hot Swappable Drive* |
Yes | |
Notes |
Yes |
|
External Ports |
RJ-45 1GbE LAN Port |
1 |
USB 3.0 Port |
2 |
|
eSATA Port |
- |
|
Appearance |
Size (Height x Width x Depth) |
166 mm x 106 mm x 223 mm |
Weight |
1.51 kg |
|
Others |
Wake on LAN / WAN |
Yes |
System Fan |
92 mm x 92 mm x 1 pcs |
|
Fan Speed Mode |
· Cool Mode · Quiet Mode · Full-Speed Mode |
|
Power Recovery |
Yes | |
Noise Level* |
18.4 dB(A) |
|
Scheduled Power On / Off |
Yes | |
Power Supply Unit / Adapter |
60 W |
|
AC Input Power Voltage |
100 V to 240 V AC |
|
Power Frequency |
50/60 Hz, Single Phase |
|
Power Consumption |
19.93 W (Access) |
|
British Thermal Unit |
67.96 BTU/hr (Access) |
|
Temperature |
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
|
Relative Humidity |
5% to 95% RH |
|
Certification |
· FCC · CE · BSMI · VCCI · RCM · UKCA · EAC · KC |
|
Environment |
RoHS Compliant |
|
Packaging Content |
· Main Unit X 1 · Accessory Pack X 1 · AC Power Adapter X 1 · AC Power Cord X 1 · RJ-45 LAN Cable X 1 · Quick Installation Guide X 1 |
|
Optional Accessories |
· 3.5" SATA HDD: HAT5300 · Surveillance Device License Pack |
|
Notes |
- |
Surveillance Station |
DVA1622 |
|
Video Analysis |
Deep Video Analytics Features |
· People and vehicle detection (with license plate recognition) · People counting · Vehicle counting · Intrusion detection · Face recognition |
Deep Video Analytics Tasks |
· People and vehicle detection (with license plate recognition): up to 2 tasks · People counting: up to 2 tasks · Vehicle counting: up to 2 tasks · Intrusion detection (detecting specific objects): up to 2 tasks · Face recognition: up to 1 task |
|
Maximum Number of Registrations Supported by Face Database |
10,000 |
|
Notes |
DVA1622 is only capable of recognizing license plates on vehicles that are stationary. |
|
General Specifications |
Maximum IP cam (Licenses required) |
16 (including 8 free licenses) |
Total FPS (H.264) |
480 FPS @ 720p (1280x720), 16 Channels |
|
Total FPS (H.265) |
480 FPS @ 720p (1280x720), 16 Channels |
|
Video Codecs |
· H.264 · H.264+ · H.265 · H.265+ · MJPEG · MPEG-4 · MxPEG (not supported by Deep Video Analytics tasks) |
|
Audio Codecs |
· AMR · G711 · G726 · PCM |
|
Notes |
|
|
File System |
Internal Drives |
· Btrfs · EXT4 |
External Drives |
· Btrfs · EXT4 · EXT3 · FAT · NTFS · HFS+ · exFAT |
|
Notes |
- |
|
Storage Management |
Maximum Single Volume Size |
108 TB |
Maximum Internal Volume Number |
64 |
|
Supported RAID Type |
· Synology Hybrid RAID · Basic · JBOD · RAID 0 · RAID 1 |
|
RAID Migration |
Basic to RAID 1 |
|
Volume Expansion with Larger HDDs |
· Synology Hybrid RAID · RAID 1 |
|
Volume Expansion by Adding a HDD |
Synology Hybrid RAID |
|
Global Hot Spare Supported RAID Type |
- |
|
Notes |
· Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. · Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. |
|
File Services |
File Protocol |
SMB/AFP/NFS/FTP/WebDAV |
Account & Shared Folder |
Maximum Local User Accounts |
2,048 |
Maximum Local Groups |
256 |
|
Maximum Shared Folder |
512 |
|
General Specifications |
Networking Protocols |
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
Supported Browsers |
Google Chrome |
|
Supported Language |
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
|
VPN Server |
Maximum Connections |
40 |
