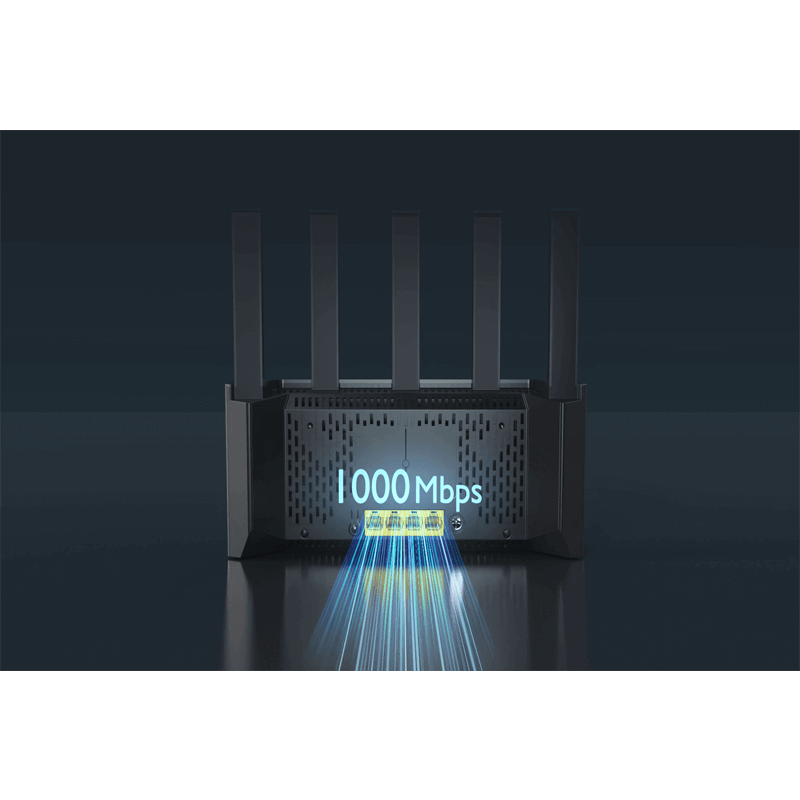

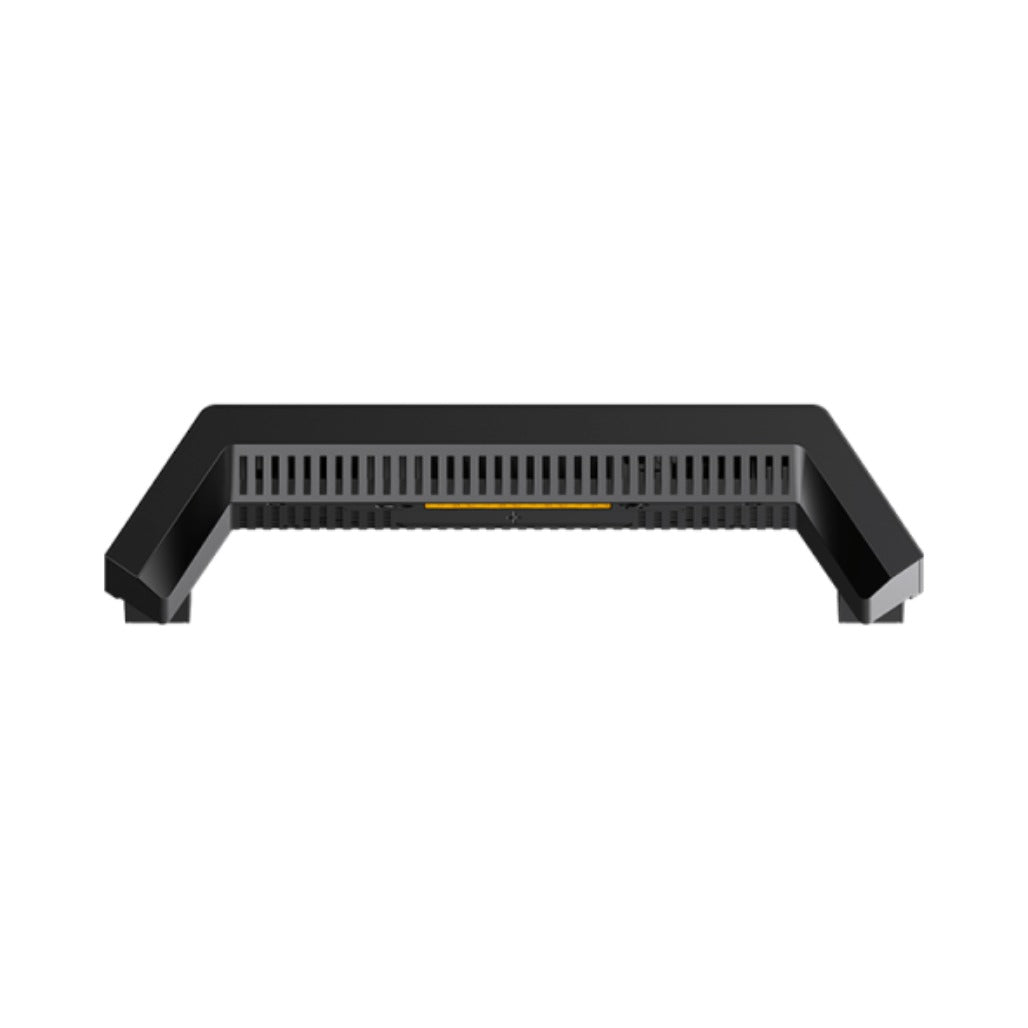

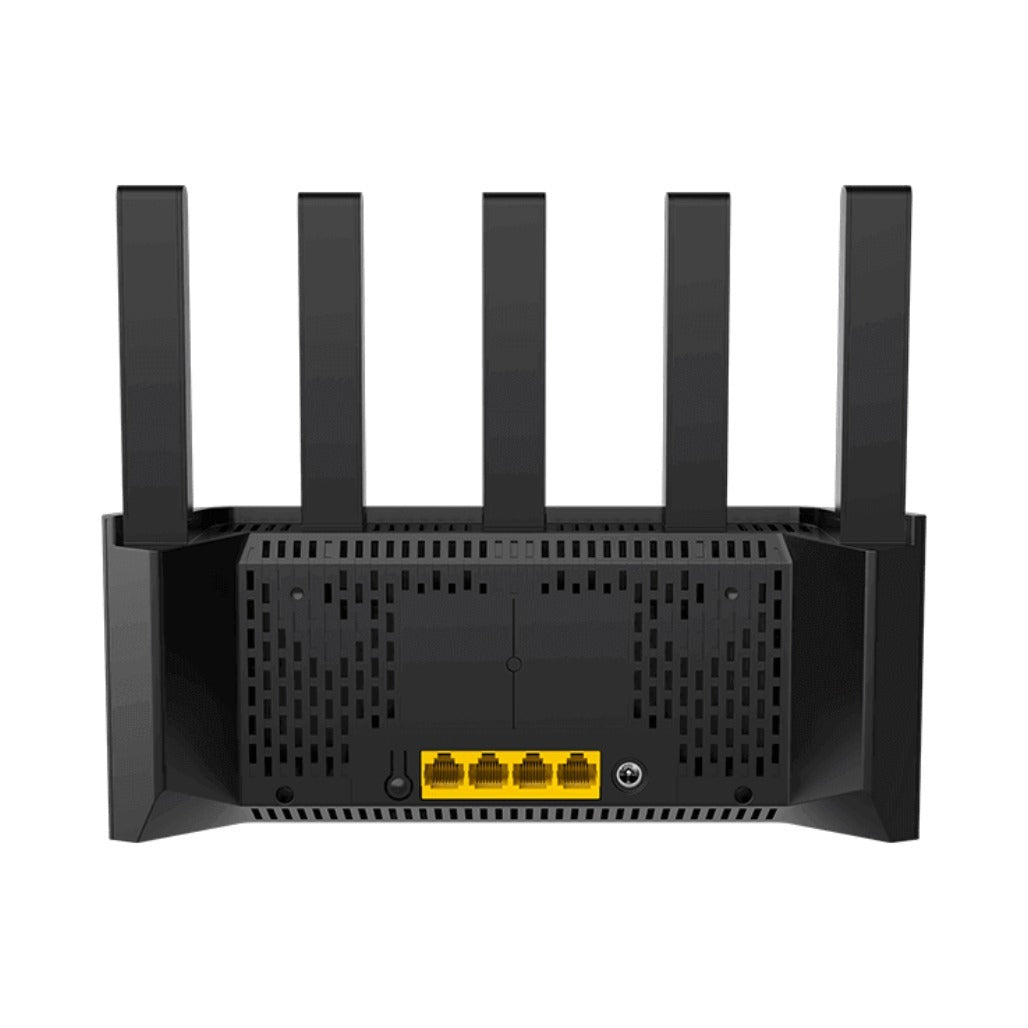

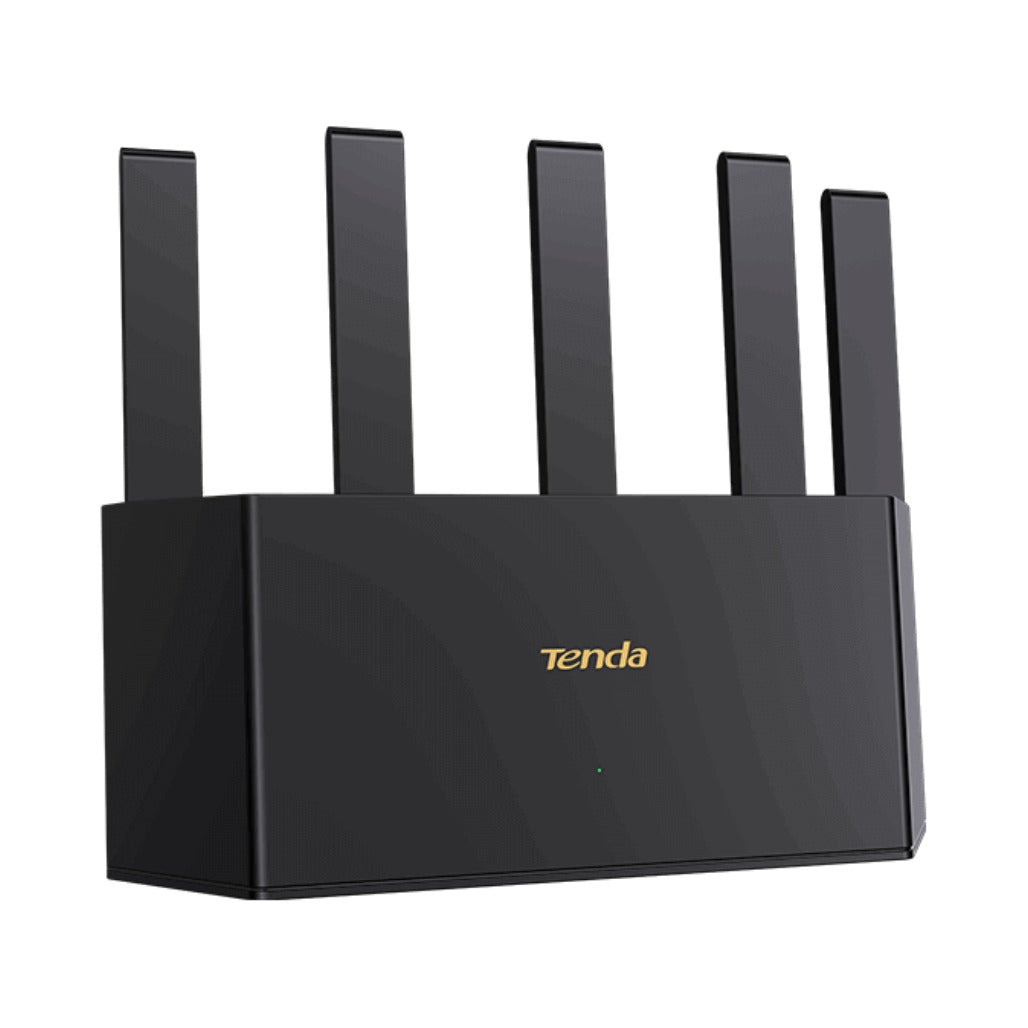

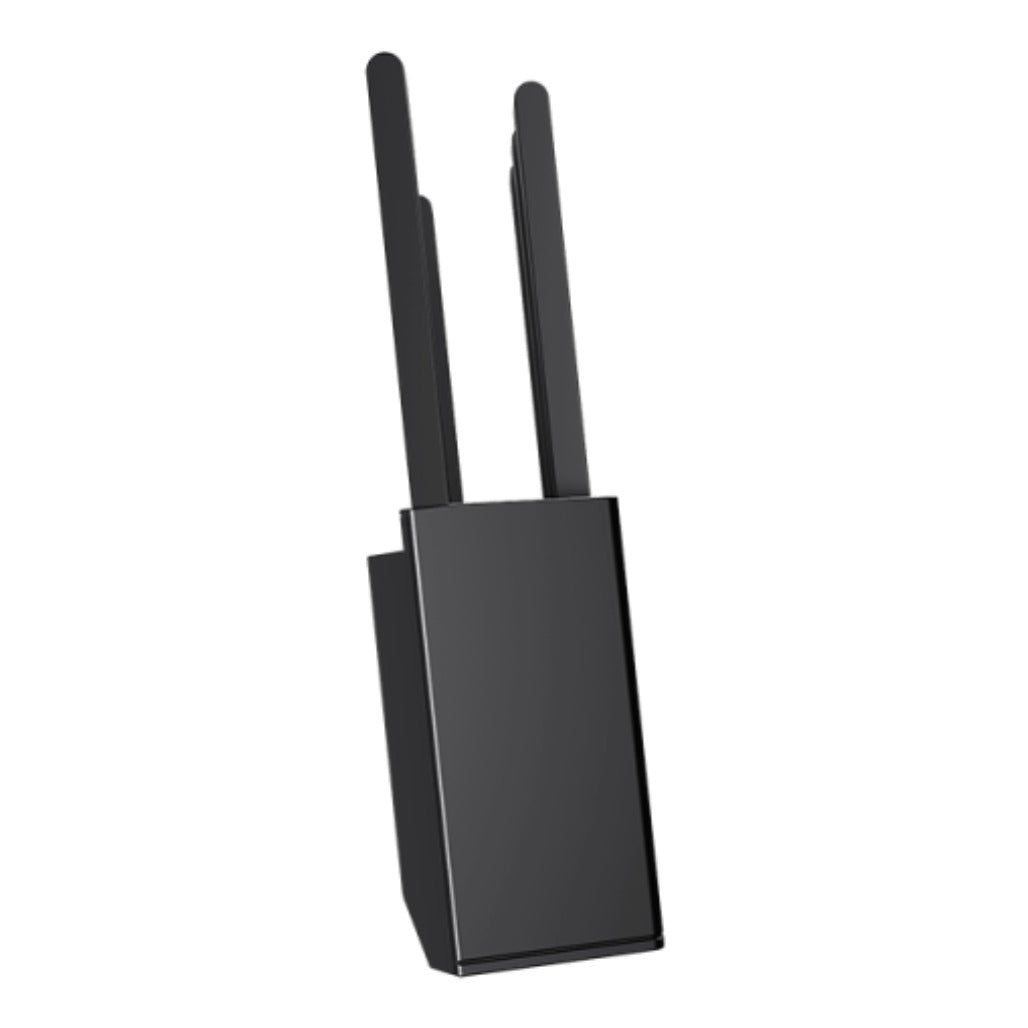

Tenda Wi-Fi 6 Router Tx12L Pro - Ax3000 2.4 & 5Ghz - 5 Antennas

Bring fast, feature-rich Wi-Fi 6 to your home or office with the Tenda TX12L Pro AX3000 router. Designed for both 2.4 GHz and 5 GHz wireless networks, it supports IEEE 802.11ax/ac/n/a at 5 GHz and IEEE 802.11ax/n/b/g at 2.4 GHz. The router includes 5 external antennas and delivers data rates up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. You can use it in Router Mode, AP Mode, or Universal Repeater Mode (Client+AP, WISP), depending on how you want to set up your network. For setup and ongoing management, the TX12L Pro supports app and web management, along with remote web management and online firmware upgrade. It also includes features such as SSID broadcasting and hiding, MU-MIMO, Beamforming signal directional transmission technology, 160MHz, OFDMA, and 1024-QAM for supported wireless operation. Security options include WPA2-PSK and WPA3-SAE/WPA2-PSK, along with WPS fast encryption via the WPS/Reset button. For internet connection flexibility, it supports PPPoE, Dynamic IP, and Static IP, and it includes DHCP, port forwarding, DMZ Host, UPnP, and DDNS options such as DynDNS, no-ip, oray, or 88ip.
Key Features
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• 5 GHz data rate: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz data rate: 574 Mbps (802.11ax)
• SSID broadcasting and hiding
• MU-MIMO
• Beamforming signal directional transmission technology
• 160MHz
• OFDMA
• 1024-QAM
• WPA2-PSK
• WPA3-SAE/WPA2-PSK
• Internet Connection Type: PPPoE, Dynamic IP, Static IP
• PPPoE(Russia), PPTP(Russia), L2TP(Russia)
• Network Protocol: IPv4&IPv6
• Operating Mode: Router Mode, AP Mode, Universal Repeater Mode（Client+AP,WISP）
• Parental Control
• Client Filter
• URL Filter
• Time Limit
• DHCP
• DHCP Server
• DHCP Client List
• DHCP Static IP Address Reservation and Allocation
• Virtual Server
• Port Forwarding, DMZ Host, UPnP
• Firewall
• ICMP Flood Attack Defense
• TCP Flood Attack Defense
• UDP Flood Attack Defense
• Block Ping From WAN
• DDNS (DynDNS, no-ip, oray, 88ip)
• VPN
• IPSec Transparent Transmission
• PPTP Transparent Transmission
• L2TP Transparent Transmission
• PPTP VPN Server
• PPTP VPN Client
• L2TP VPN Client
• Smart diagnosis
• IPTV
• IPv6
• Smart LED on/off
• Support App and web management
• Bandwidth Control
• Guest Network
• MAC Address Clone
• Supports black list and white list
• Unify 2.4 GHz & 5 GHz
• Static Routing
• Remote Web Management
• Backup & Restore configurations
• Firmware upgrade online
Specifications
• Standard/Protocol: IEEE802.3, IEEE802.3u, IEEE802.3ab
• Interfaces: 1*10/100/1000Mbps WAN port
• Interfaces: 3*10/100/1000Mbps LAN ports
• Antenna: 5*external antennas
• Button: 1*WPS/Reset button
• LED Indicator: 1* LED
• Wireless Standard: Wifi 6
• Data Rate: Ax3000
• Transmission Power: CE: 5725-5850MHz(CH149-CH165)
• Transmission Power: <20 dBm (2.4 GHz)
• Transmission Power: <23 dBm (5 GHz)
• Transmission Power: <30 dBm (2.4 GHz)
• Transmission Power: <30 dBm (5 GHz)
• Frequency: 2.4G: 2412-2472MHz(CH1-CH13)
• Frequency: 5G: 5150-5350MHz(CH36-CH64)
• Frequency: 2.4G: 2412-2462MHz(CH1-CH11)
• Wireless: 2.4GHz & 5GHz
• Working Modes: Router, AP, Universal Repeater Mode（Client+AP,WISP）
• Power Input: AC 100-240V~50/60Hz
• Power Output: DC 12V⎓1A
• Dimension: 244*56*200mm(L*W*H)
• Operating Temperature: 0℃~40℃
• Storage Temperature: -40C ~70℃
• Operating Humidity: 10 %~90% RH non-condensing
• Storage Humidity: 5 %~ 90%RH non-condensing
• Certification: CE, FCC, RoHS
• Package Contents: Wi-Fi Router *1
• Package Contents: Power Adapter*1
• Package Contents: RJ45 Ethernet Cable*1
• Package Contents: Quick Installation Guide*1
• Reference: NETWORK L25
• Mobile App: Yes
• Antenna: 5
• Ax3000
• Speed: Gigabit
• Wi-Fi+(Mesh System)
• Unify 2.4 GHz & 5 GHz
• Static Routing
• Backup & Restore configurations
• Firmware upgrade online
• Operating Modes: Router Mode, AP Mode, Universal Repeater Mode（Client+AP,WISP）
