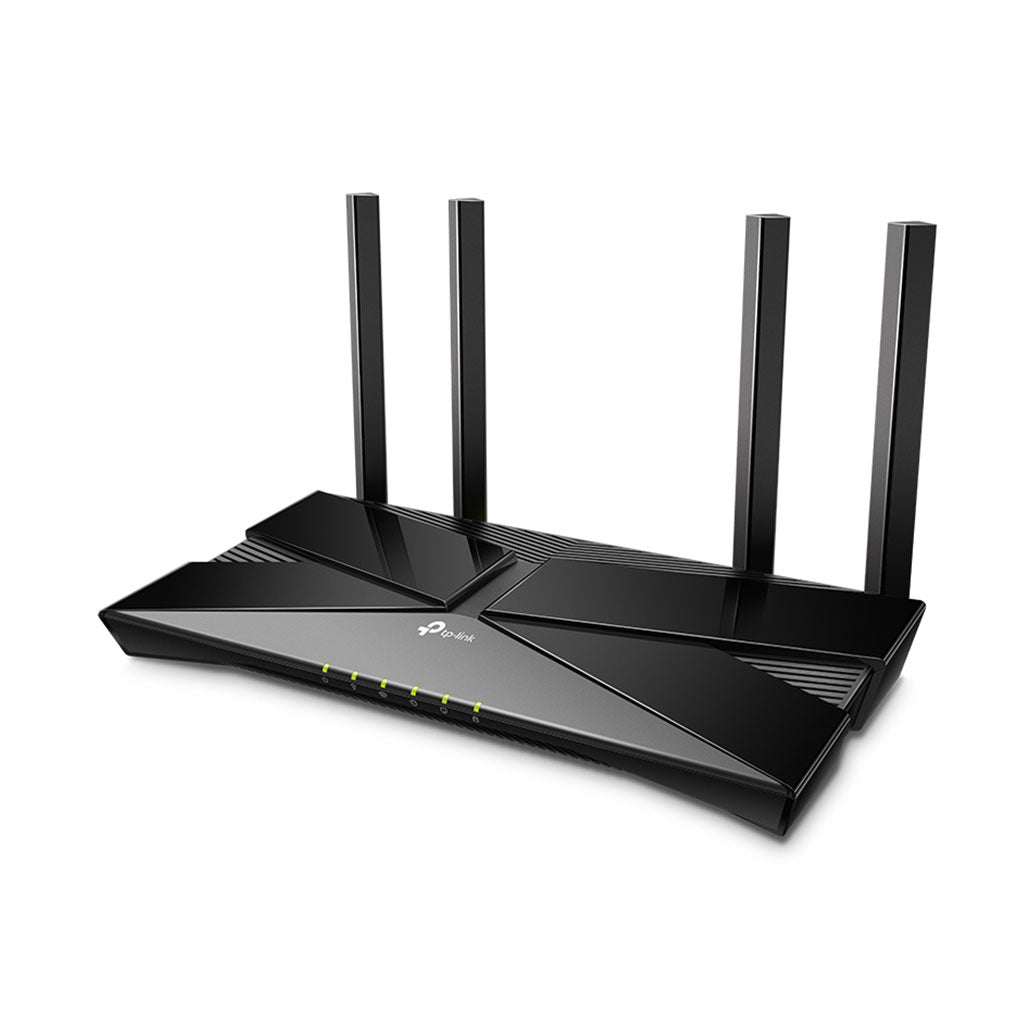

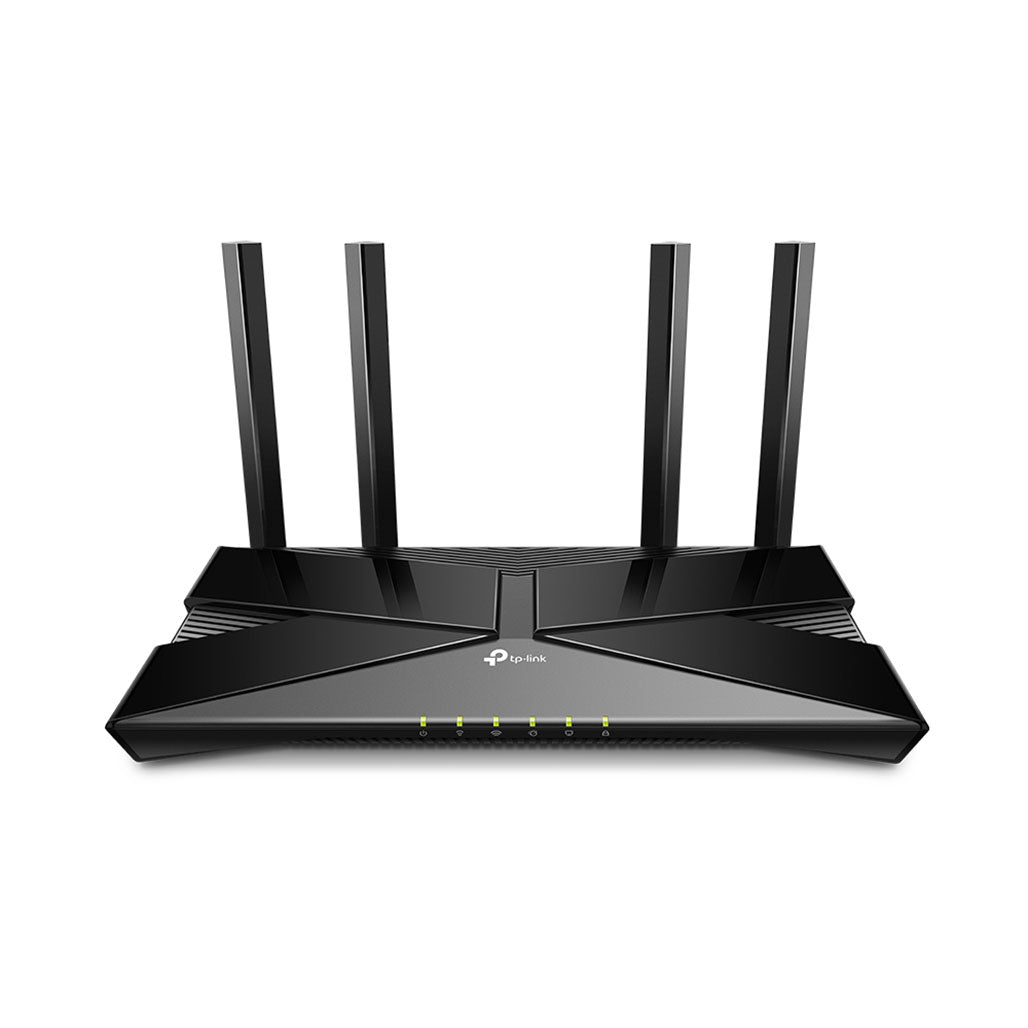

TP-Link Archer AX10 - AX1500 Wi-Fi 6 Router

The TP-Link AX1500 Wi-Fi 6 Router, also known as Archer AX10, delivers cutting-edge connectivity with its Wi-Fi 6 technology. Offering speeds up to 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, this router is engineered to provide high-speed internet throughout your home. It is ideal for handling multiple devices simultaneously, thanks to its advanced features that include beamforming, high-power FEM, and four fixed antennas.

The Archer AX10 is designed to enhance your network's performance with its dual-band functionality and support for OFDMA and Airtime Fairness, which optimize data transmission and improve overall efficiency. With its ability to manage network congestion through DFS and allocate bandwidth effectively with 4 streams, this router ensures a robust and reliable internet experience for both work and play.

Key Features

• Wi-Fi 6 Technology: Provides faster speeds and greater efficiency with up to 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
• Advanced Signal Enhancement: Utilizes beamforming, high-power FEM, and four fixed antennas to extend signal range and coverage.
• Optimized Network Performance: Features OFDMA and Airtime Fairness to handle multiple devices and reduce latency, ensuring a smooth and efficient network experience.
• Dual-Band Operation: Distributes devices between 2.4 GHz and 5 GHz bands for improved performance and reduced interference.
• Flexible Operating Modes: Can be used in Router Mode or Access Point Mode, offering versatility to suit different networking needs.

Specifications

Wireless

• Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AX1500, 5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: Suitable for 3-bedroom houses
• Antennas: 4× Fixed Antennas
• Beamforming: Concentrates signal strength towards clients
• High-Power FEM: Enhances transmission power for better signal coverage
• WiFi Capacity: High
• Dual-Band: Allocates devices across different bands
• OFDMA: Communicates with multiple Wi-Fi 6 clients simultaneously
• Airtime Fairness: Reduces excessive occupation to improve network efficiency
• DFS: Accesses additional bands to lessen congestion
• Streams: 4

Hardware

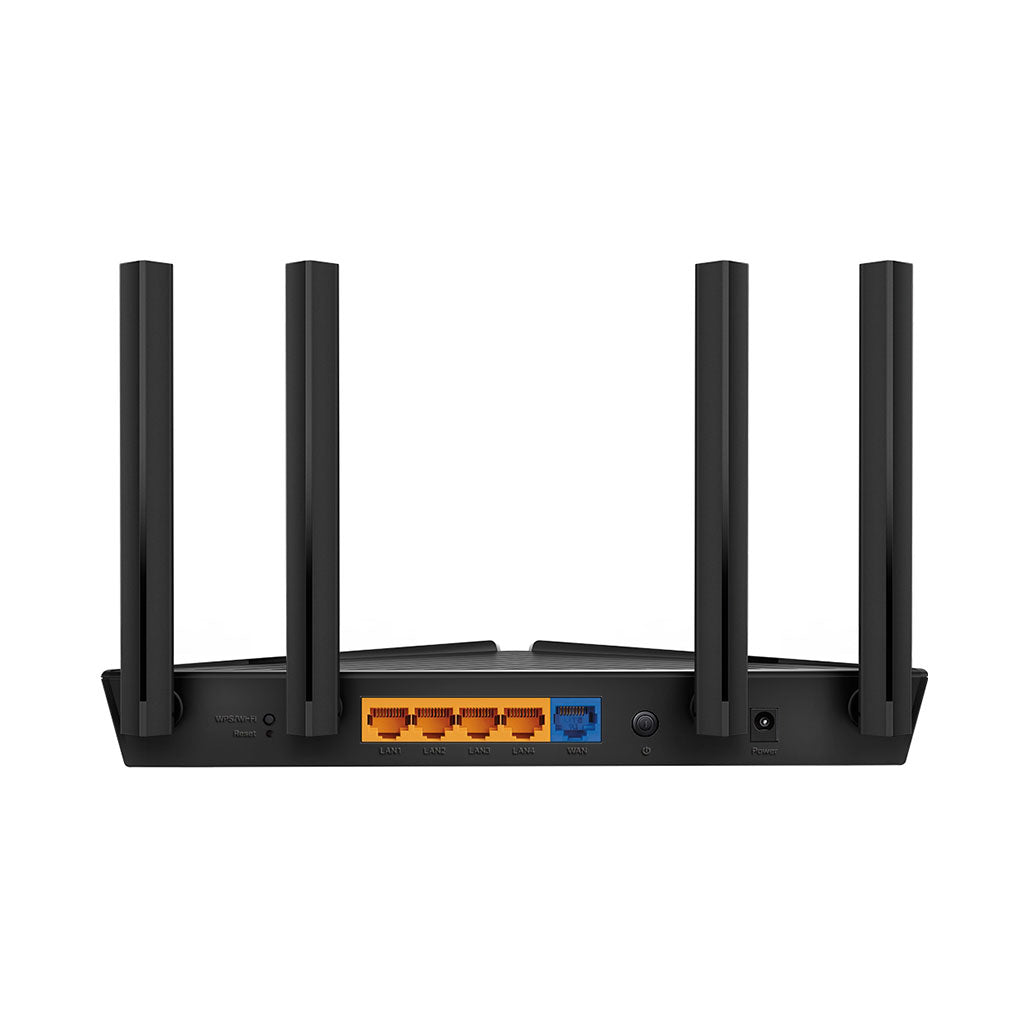

• Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports
• Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button
• Power: 12 V ⎓ 1 A

Security

• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• VPN Server: OpenVPN, PPTP

Software

• Protocols: IPv4, IPv6
• OneMesh™: Supports OneMesh™ for seamless network expansion
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID
• DDNS: TP-Link, NO-IP, DynDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server

Management

• Interface: Tether App, Webpage

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)
• Certifications: FCC, CE, RoHS
• Environment: Operating Temperature: 0°C40°C (32°F104°F), Storage Temperature: -40°C70°C (-40°F158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Test Data

• WiFi Transmission Power: CE: <20dBm (2.4 GHz), <23dBm (5.15 GHz5.25 GHz); FCC: <30dBm (2.4 GHz & 5.15 GHz5.825 GHz)
• WiFi Reception Sensitivity: Various sensitivities provided for different standards and bands

Physical

• Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm)
• Package Contents: Wi-Fi Router Archer AX10, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

Conclusion

The TP-Link AX1500 Wi-Fi 6 Router (Archer AX10) is designed to enhance your home network with its high-speed capabilities and advanced Wi-Fi 6 technology. Its robust feature set, including beamforming and high-power FEM, ensures strong and reliable coverage across your home. With flexible operating modes and comprehensive security options, it meets the needs of modern households requiring efficient and secure internet connectivity.
