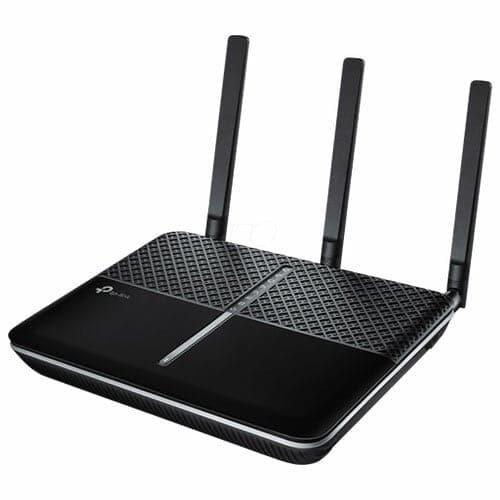

TP-Link Archer VR600 - AC1600 Wireless VDSL/ADSL Router

The TP-Link Archer VR600 AC1600 Wireless VDSL/ADSL Router is designed to deliver high-speed internet connectivity with dual-band support. It offers impressive speeds of up to 1733 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, providing a seamless and stable connection for various online activities. The Archer VR600 is ideal for demanding environments where fast and reliable internet is essential, such as in homes with multiple users or small offices.

This router features robust hardware and software capabilities to ensure a secure and efficient network. It includes advanced security features such as NAT firewall, SPI firewall, and support for various encryption protocols. The device also supports multiple operating modes, including VDSL/ADSL modem router, 3G/4G router, and wireless router, providing flexibility to meet different networking needs. With its comprehensive management options and support for IPv6, the Archer VR600 is a reliable choice for enhancing your network performance.

Key Features

• High-Speed Dual-Band Connectivity: Achieves up to 1733 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, ensuring smooth and high-speed internet access.
• Comprehensive Security: Equipped with NAT firewall, SPI firewall, and multiple encryption protocols including WPA/WPA2 to safeguard your network from potential threats.
• Flexible Operating Modes: Functions as a VDSL/ADSL modem router, 3G/4G router, and wireless router, offering versatility for various networking setups.
• Advanced Management: Provides web-based configuration, remote management, and support for multiple protocols including IPv6, enhancing network management and flexibility.
• Guest Network Support: Allows separate network access for guests on both 2.4 GHz and 5 GHz bands, maintaining security and performance for the primary network.

Specifications

Hardware

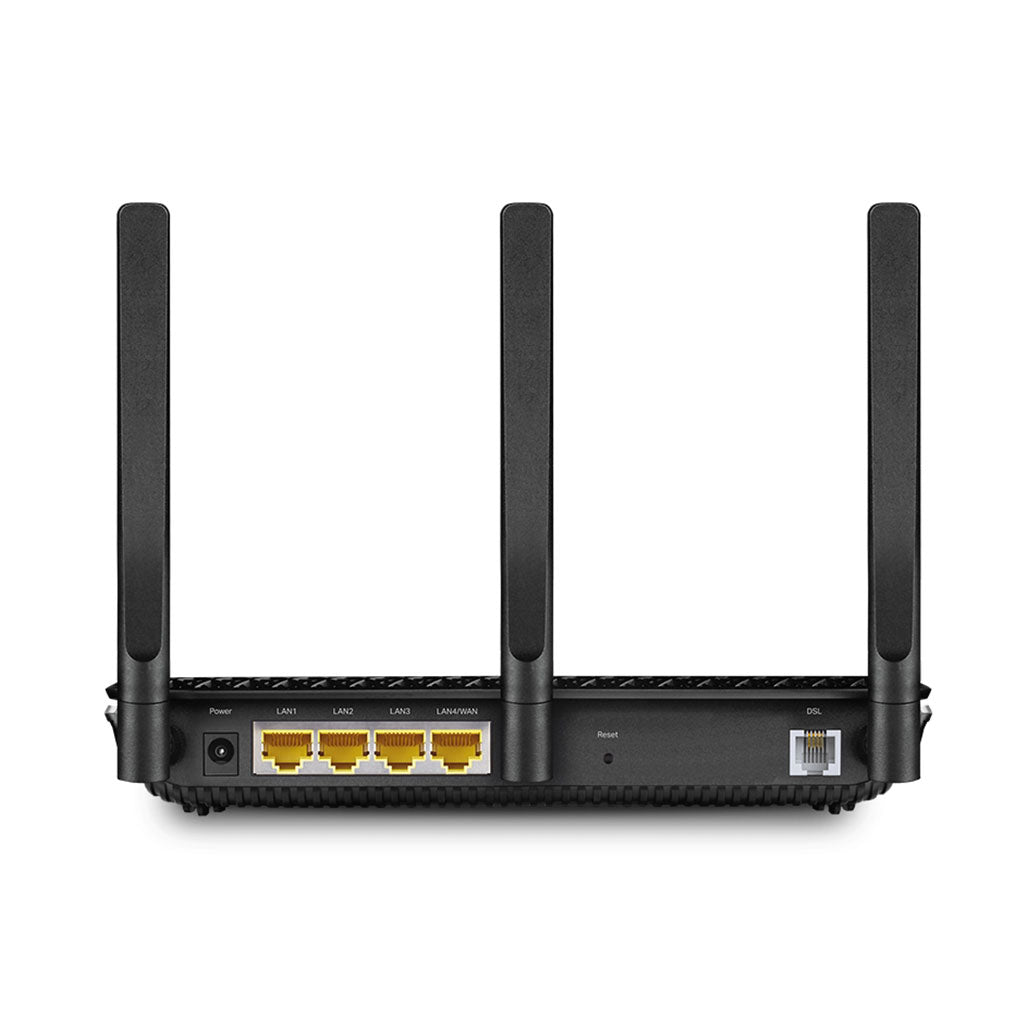

• Ports: 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port, 1 USB Port
• Button: WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED On/Off Button
• External Power Supply: 12V/1.5A
• IEEE Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• VDSL2 Standards: ITU G.993.2, Up to 35b profile (POTS), ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite)
• ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Dimensions (W x D x H): 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm)
• Antenna Type: 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna

Wireless

• Standards: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 1733 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
• Transmit Power: 2.4 GHz <20 dBm, 5 GHz <23 dBm
• Functions: Enable/Disable Wireless Radio, Wireless Statistics
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
• Wireless Schedule: Supports 2.4 GHz and 5 GHz Wireless Schedule

Software

• Security: NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
• Operating Modes: VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router
• Management: Web-Based Configuration (HTTP / HTTPS), Remote management, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
• DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
• Dynamic DNS: DynDns, NO-IP, TP-Link
• VPN: OpenVPN, PPTP VPN, IPSec VPN
• Protocols: Supports IPv4 and IPv6
• ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER/IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
• Advanced Features: Parental Controls, Network Address Translation (NAT), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
• Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
• IPSec VPN: Supports up to 10 IPSec VPN tunnels

Other

• Certification: CE, RCM, RoHS
• Package Contents: DSL Modem Router, External Splitter, RJ11 DSL Cable, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser; Subscription with an internet service provider (for internet access)
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link Archer VR600 AC1600 Wireless VDSL/ADSL Router stands out for its high-speed performance and comprehensive features. With dual-band wireless capabilities, it supports demanding applications and multiple devices simultaneously. Its robust security features and versatile operating modes make it a reliable choice for enhancing home or small office networks. The inclusion of advanced management tools and support for modern protocols further ensures its effectiveness in providing a secure and efficient networking experience.
