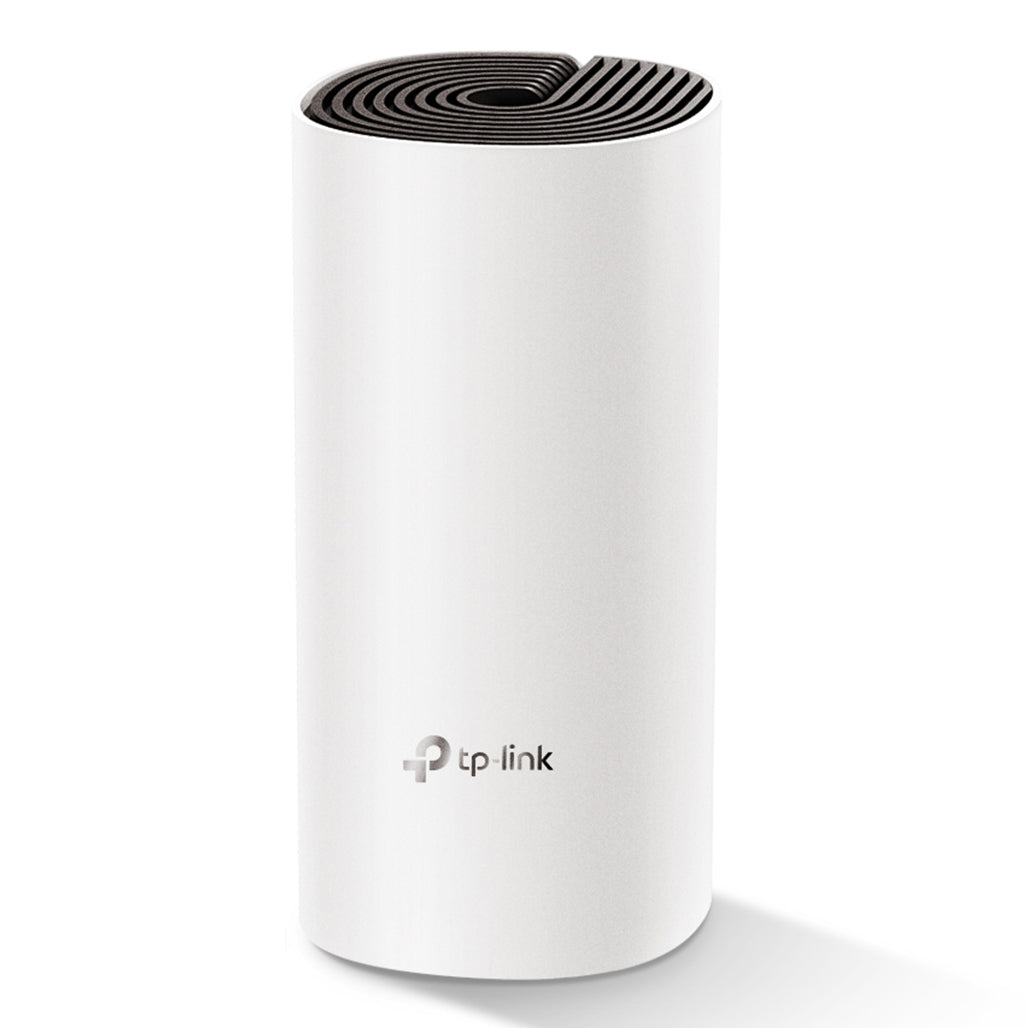

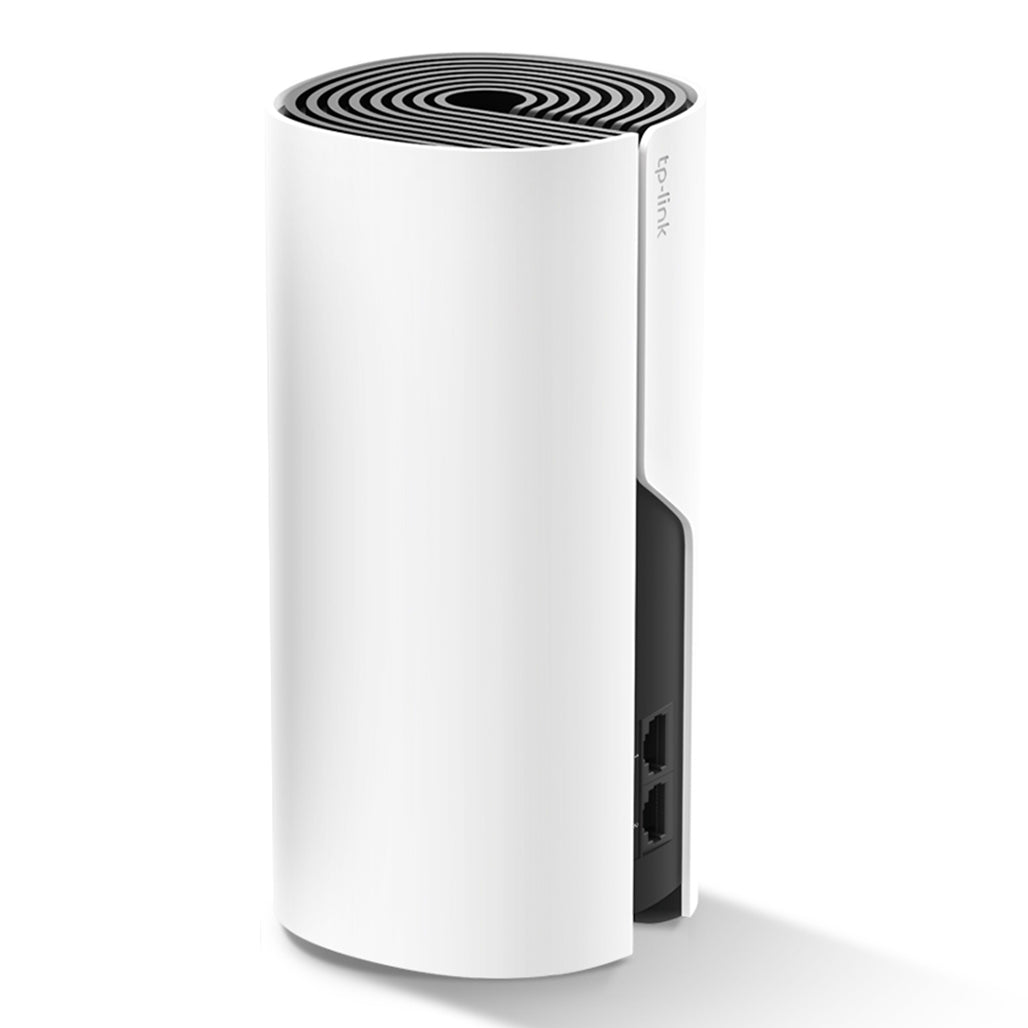

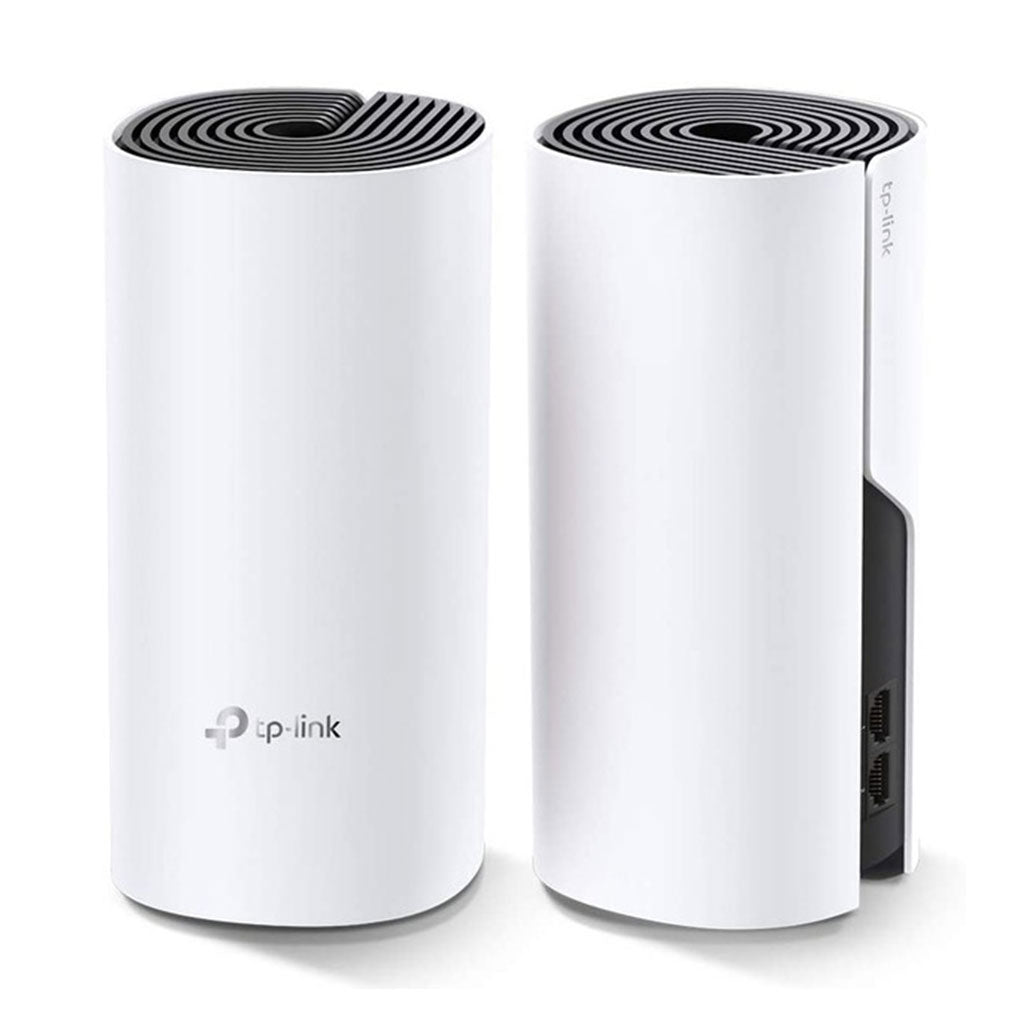

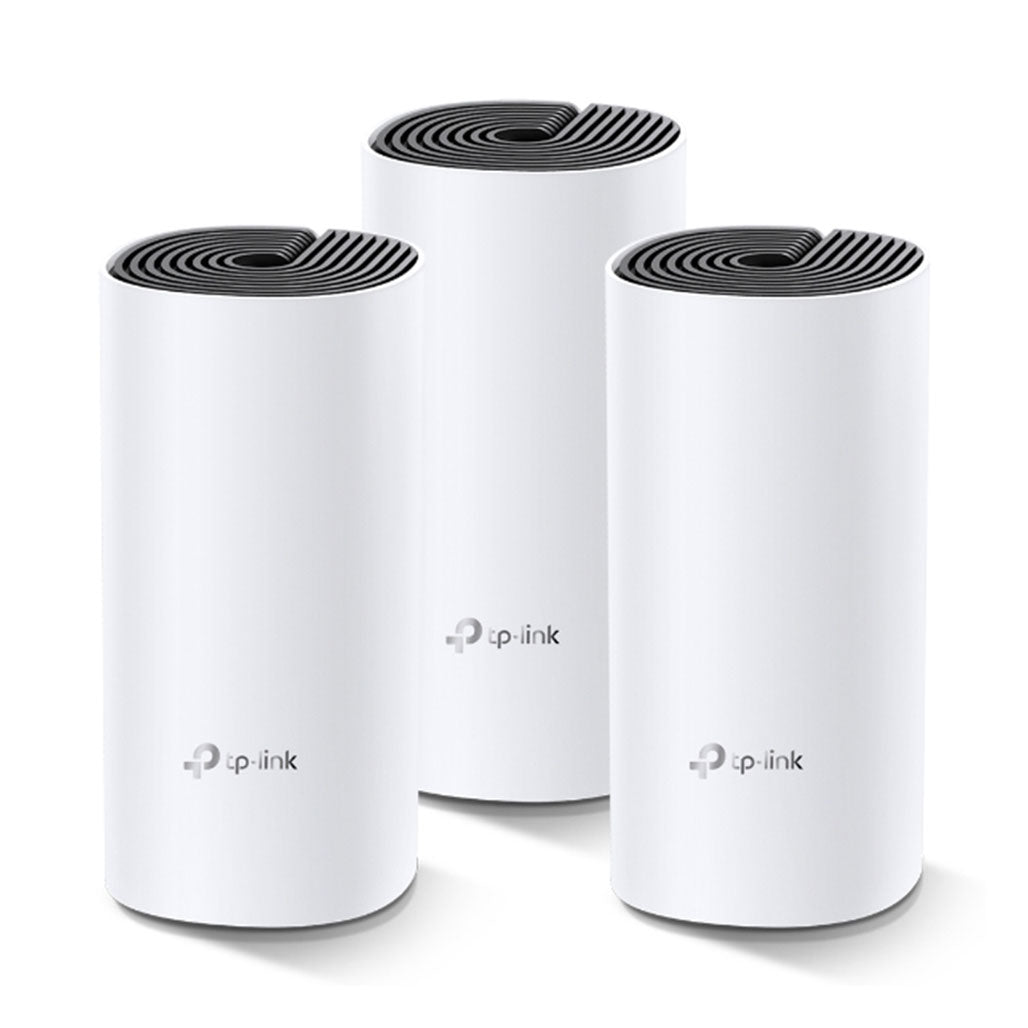

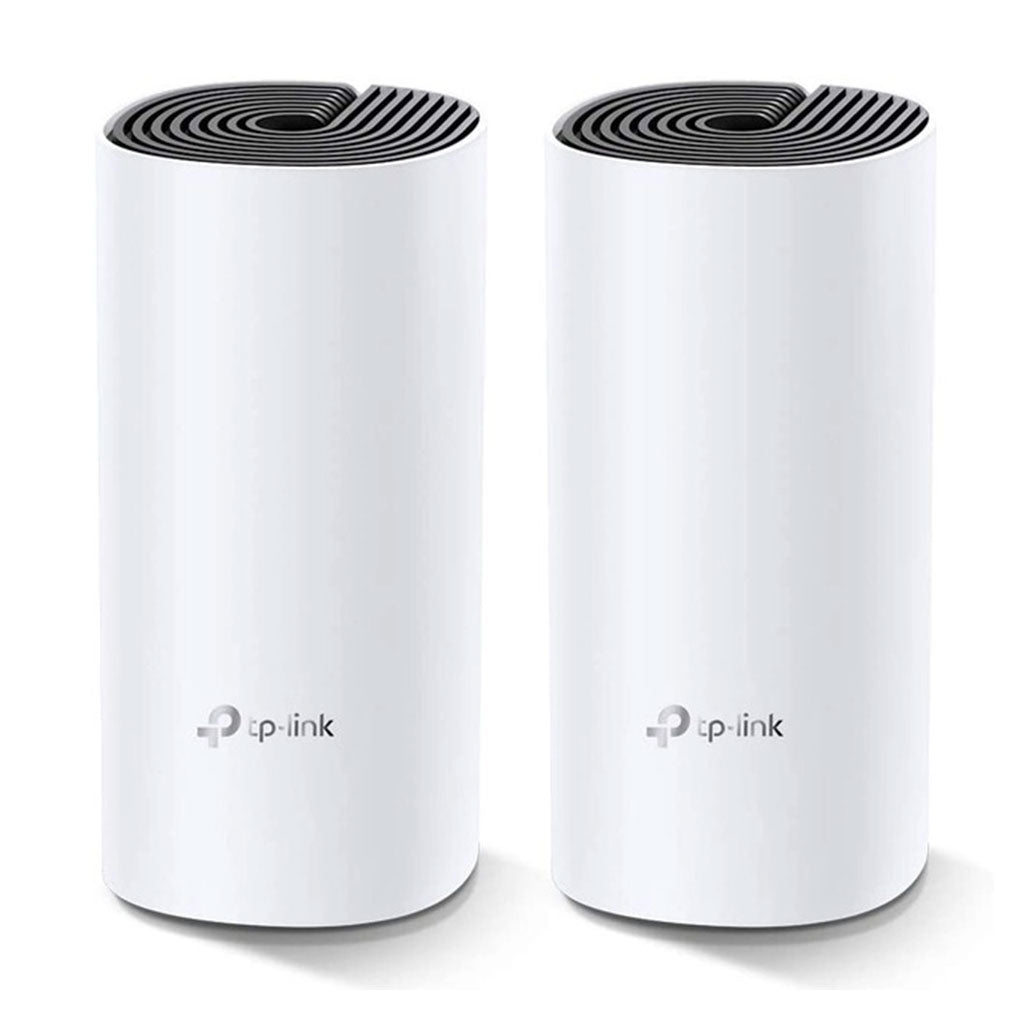

TP-Link Deco M4 - AC1200 Whole Home Mesh Wi-Fi System | 1/2/3 Pack Options

The TP-Link Deco M4 AC1200 Whole Home Mesh Wi-Fi System is designed to provide seamless and reliable internet coverage throughout your home. Available in 1, 2, or 3-pack options, the Deco M4 utilizes Wi-Fi 5 technology to deliver speeds up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. Ideal for 3 to 5-bedroom homes, this system ensures strong connectivity with its advanced mesh technology and internal antennas that enhance signal coverage.

With TP-Link Mesh Technology, the Deco units work together to create a unified network, eliminating dead zones and providing consistent coverage. Optional Ethernet backhaul further optimizes the network, and the dual-band design helps distribute devices efficiently across both frequency bands. Features such as beamforming and MU-MIMO ensure that the Wi-Fi signal is directed towards devices for improved performance.

Key Features

• Advanced Mesh Technology: Provides seamless coverage and eliminates dead zones by linking multiple Deco units.
• Dual-Band Wi-Fi: Supports speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, ideal for handling various home networking needs.
• Internal Antennas: Two internal antennas per unit create a signal-boosting array that covers large areas.
• Beamforming: Focuses the Wi-Fi signal towards connected devices, enhancing range and performance.
• MU-MIMO: Communicates with multiple devices simultaneously, improving overall network efficiency.

Specifications

Wireless

• Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AC1200, 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: Suitable for 3-5 bedroom houses (3-pack)
• Antennas: 2× Internal Antennas
• Beamforming: Concentrates signal strength towards clients
• WiFi Capacity: Medium
• Dual-Band: Distributes devices across 2.4 GHz and 5 GHz bands
• MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients

Hardware

• Ethernet Ports: 2× Gigabit Ports (per Deco unit), supports WAN/LAN auto-sensing
• Buttons: Reset Button
• Power: 12 V ⎓ 1 A

Security

• WiFi Encryption: WPA-Personal, WPA2-Personal
• Network Security: SPI Firewall, Access Control
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network

Software

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: OTA Firmware Upgrade, TP-Link ID
• DDNS: TP-Link
• NAT Forwarding: Port Forwarding, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server

Management

• Interface: Deco App

Test Data

• WiFi Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <30 dBm

Physical

• Dimensions (W×D×H): 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm)
• Package Contents:
  • Deco M4 (3-pack): 3 Deco M4R Units, 1 RJ45 Ethernet Cable, 3 Power Adapters, 1 Quick Installation Guide
  • Deco M4 (2-pack): 2 Deco M4R Units, 1 RJ45 Ethernet Cable, 2 Power Adapters, 1 Quick Installation Guide

Other

• System Requirements: Android 5.0 or later, iOS 9.0 or later
• Certifications: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
• Environment: Operating Temperature: 0°C40°C (32°F104°F), Storage Temperature: -40°C70°C (-40°F158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link Deco M4 AC1200 Whole Home Mesh Wi-Fi System offers a reliable and efficient solution for comprehensive home coverage. With its mesh technology, dual-band support, and advanced features like MU-MIMO and beamforming, this system is designed to deliver consistent and high-speed internet throughout your home. Choose from the 1, 2, or 3-pack options to match your coverage needs and enjoy seamless connectivity with TP-Link's innovative technology.
