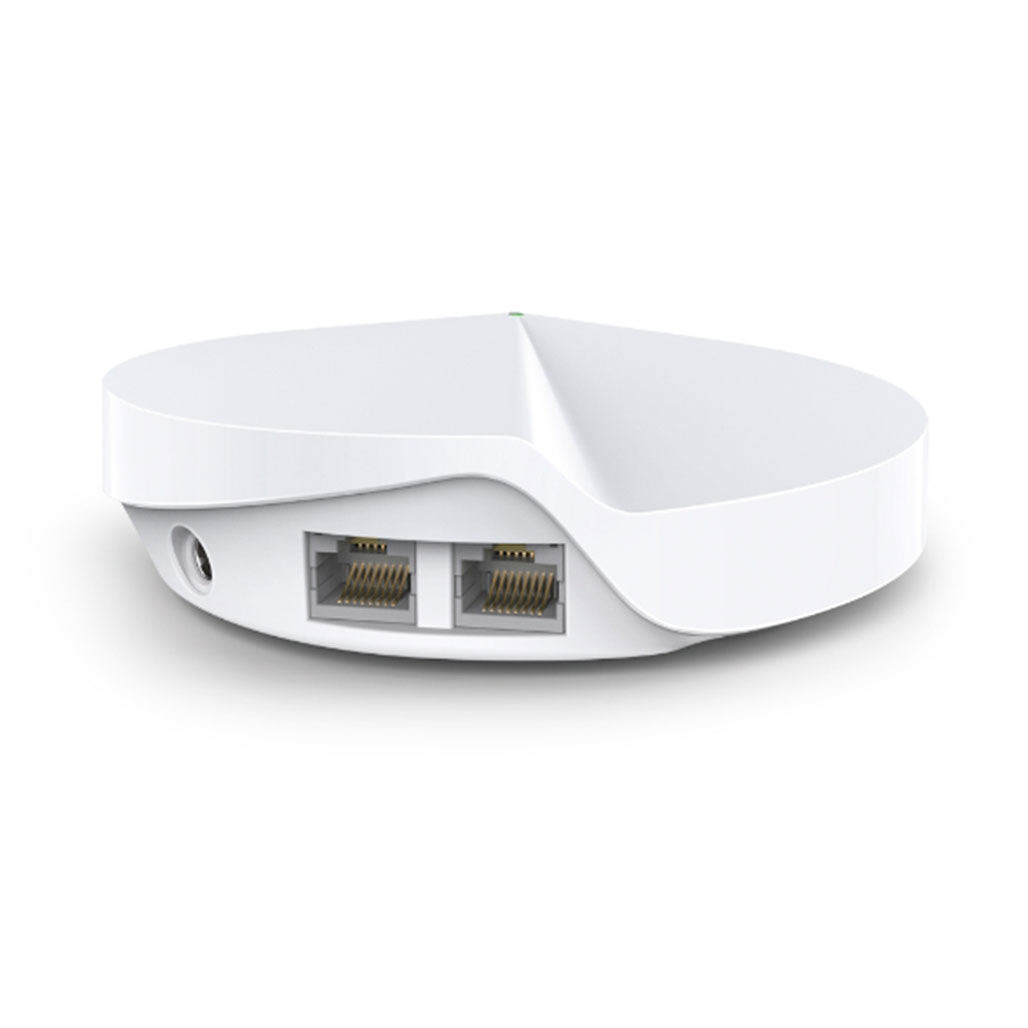

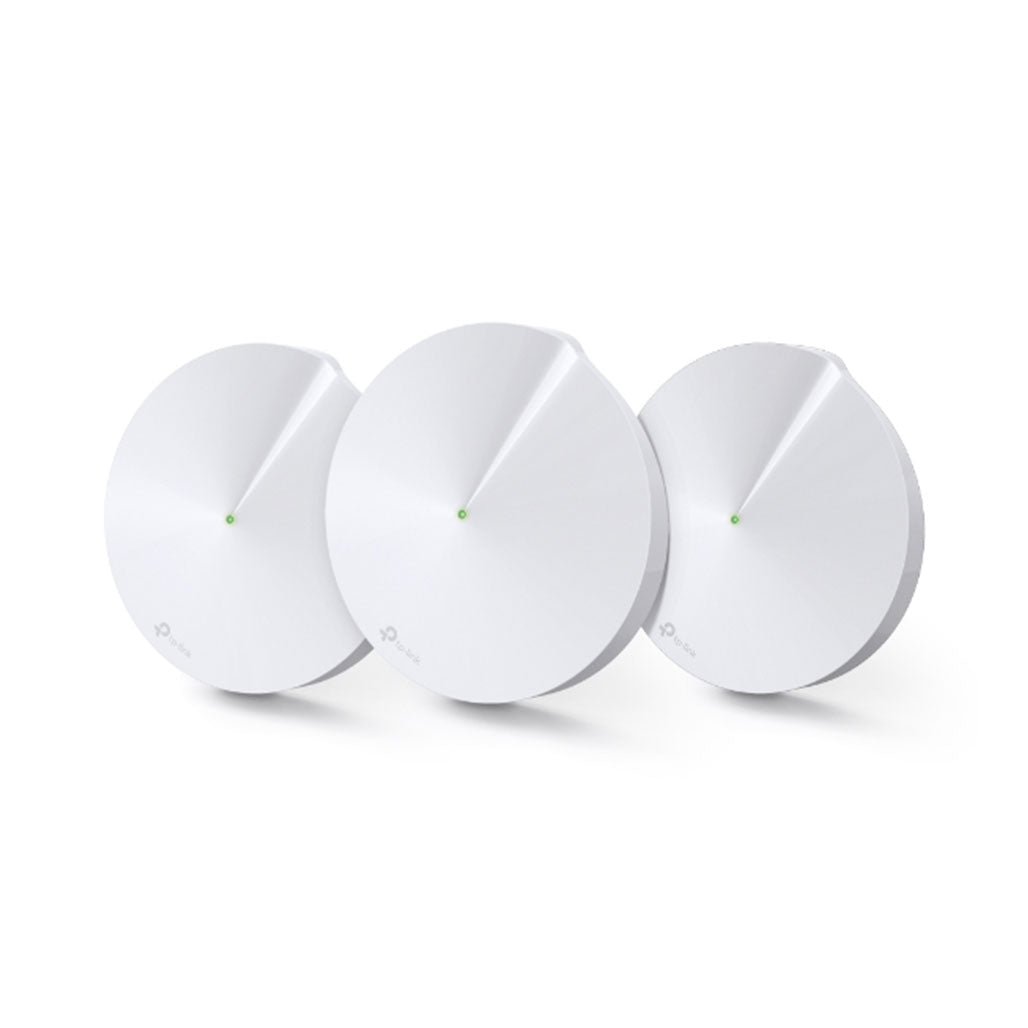

TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System | Tri-Band Wireless, Seamless Coverage, and Advanced Security

The TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System provides robust and reliable wireless coverage across your entire home. Designed with cutting-edge mesh technology, this system ensures seamless connectivity, high performance, and enhanced security.

High-Speed Tri-Band Connectivity
The Deco M5 system supports dual-band Wi-Fi with speeds of up to 400 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, making it perfect for streaming, gaming, and other high-bandwidth activities. The quad-core processor ensures smooth operation and handles multiple devices efficiently.

Comprehensive Mesh Coverage
With the Deco M5, you can eliminate dead zones and extend your Wi-Fi coverage seamlessly. The system uses advanced TP-Link Mesh Technology, including features like Auto Path Selection, Self-Healing, and MU-MIMO, to provide consistent and high-quality performance throughout your home.

Robust Security Features
The Deco M5 offers advanced security features to protect your network. With built-in antivirus protection, parental controls, and a firewall, you can ensure that your devices and data remain secure. The system also supports WPA-PSK/WPA2-PSK wireless security protocols for robust encryption.

Flexible Installation and Management
Easy to set up with the Deco App, the M5 system allows for straightforward installation and management. You can control and monitor your network from anywhere, and the app also supports guest network management and monthly usage reports.

Versatile and Efficient Performance
The Deco M5 operates efficiently in various environments, offering compatibility with both IPv4 and IPv6 protocols. It supports optional Ethernet backhaul for improved performance and flexibility in network setup. The system is also designed to be user-friendly with features like Beamforming, Band Steering, and AP Steering for optimized performance.

Key Features

• High-Speed Tri-Band Connectivity: Delivers up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz bands.
• Advanced Mesh Technology: Includes MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, and Beamforming.
• Robust Security: Features built-in antivirus, parental controls, and a firewall with WPA-PSK/WPA2-PSK security.
• Easy Setup and Management: Simple installation through the Deco App with remote management capabilities.
• Flexible Installation: Supports optional Ethernet backhaul for enhanced performance and stability.

Specifications

Power

• AC Adapter Input: 100-240V ~ 50/60Hz 0.4A
• AC Adapter Output: 12V ⎓ 1.2A

Hardware Features

• Processor: Quad-core CPU
• Interface: 2 LAN/WAN Gigabit Ethernet Ports
• Button: 1 Reset button
• External Power Supply: 12V/1.2A
• Dimensions: Φ4.7 in. x 1.5 in. (Φ120 mm x 38 mm)
• Antenna: 4 internal antennas per Deco unit
• Bluetooth Version: 4.2 and above

Wireless Features

• Wireless Standards: IEEE 802.11 ac/n/a (5 GHz), IEEE 802.11 b/g/n (2.4 GHz)
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
• Transmit Power:
  • FCC: ≤30 dBm
  • CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)
• Wireless Security: WPA-PSK/WPA2-PSK
• Advanced Functions: Router/Access Point Mode, Optional Ethernet Backhaul, TP-Link Mesh Technology (MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming)

Software Features

• Quality of Service: WMM
• IPv6: Support
• WAN Type: Dynamic IP/Static IP/PPPoE
• Management: Local and Remote Management
• DHCP: Server, Client
• Port Forwarding: Support
• Access Control: Blacklist
• Firewall Security: SPI Firewall
• Protocols: Supports IPv4 and IPv6
• Advanced Features: Homecare (Antivirus, Parental Controls, Quality of Service), Speedtest, Monthly Usage Reports, Auto FW Update
• Guest Network: 2.4 GHz guest network * 1, 5 GHz guest network * 1
• Beamforming: Support
• App: Easy setup by Deco App

Others

• Certification: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
• Package Contents:

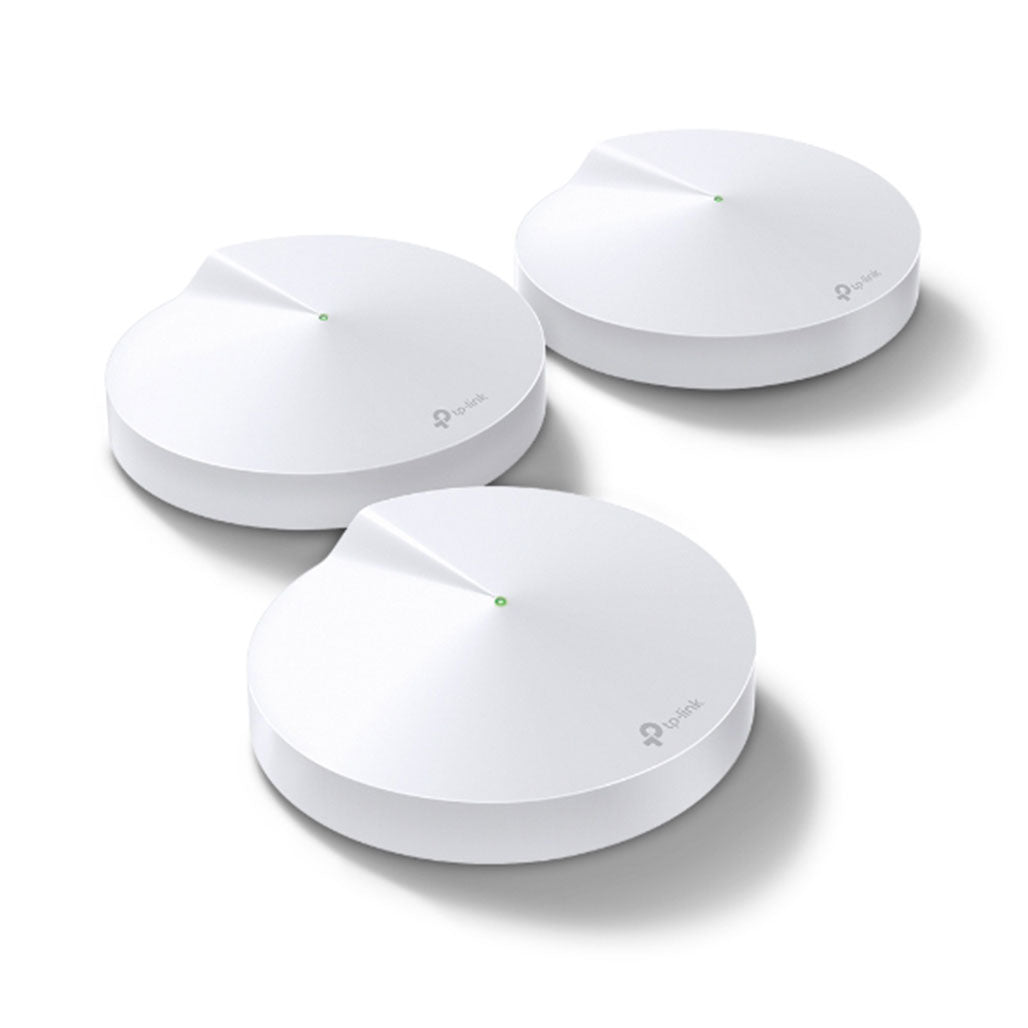

  • Deco M5 (3-pack): 3 Deco units, 1 RJ45 Ethernet Cable, 3 Power Adapters

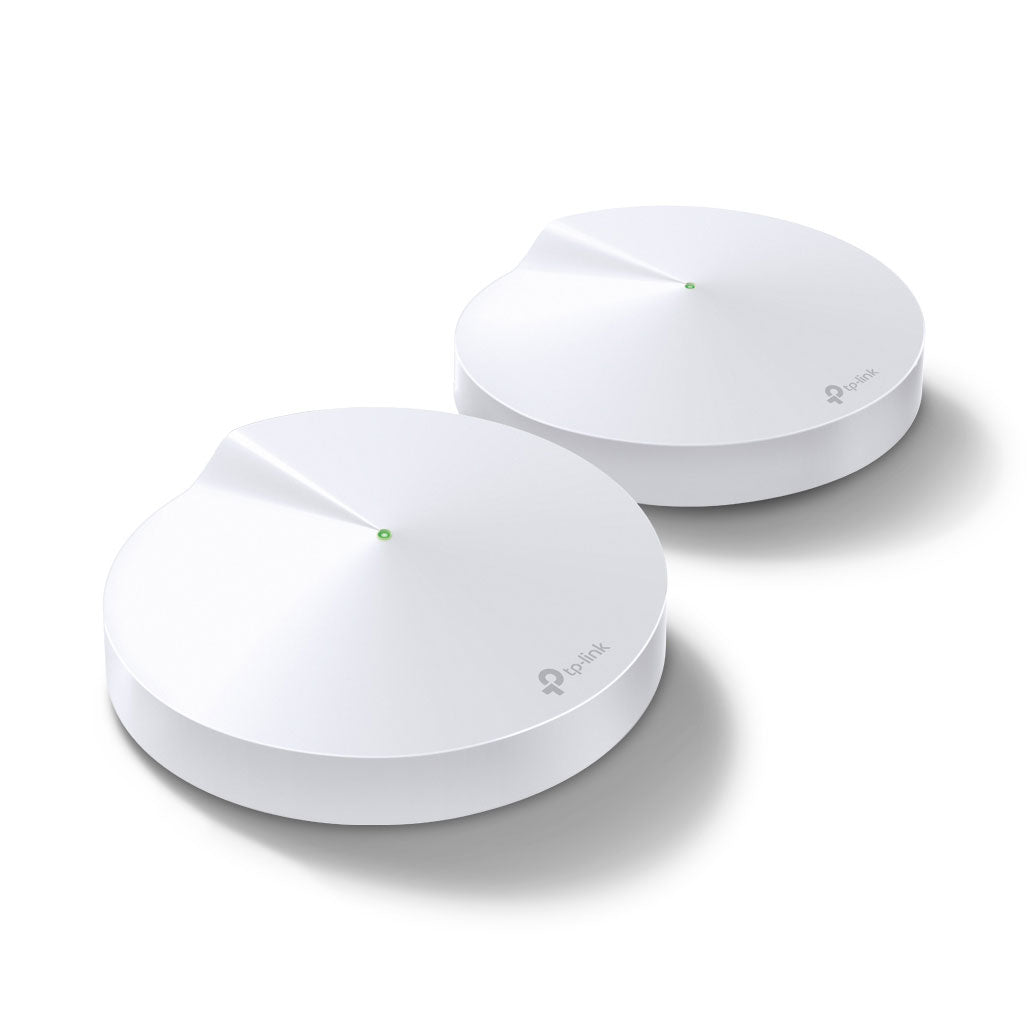

  • Deco M5 (2-pack): 2 Deco units, 1 RJ45 Ethernet Cable, 2 Power Adapters
• Smartphone/Tablet Requirements: iOS 9.0 or later, Android 4.4 or later, Bluetooth 4.0 or later
• Environment: Operating Temperature: 0°C40°C (32°F104°F), Storage Temperature: -40°C70°C (-40°F158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System offers comprehensive wireless coverage and high-speed performance, ideal for maintaining a stable and secure network throughout your home. With its advanced mesh technology, robust security features, and user-friendly management through the Deco App, this system ensures reliable connectivity and ease of use in various environments.
