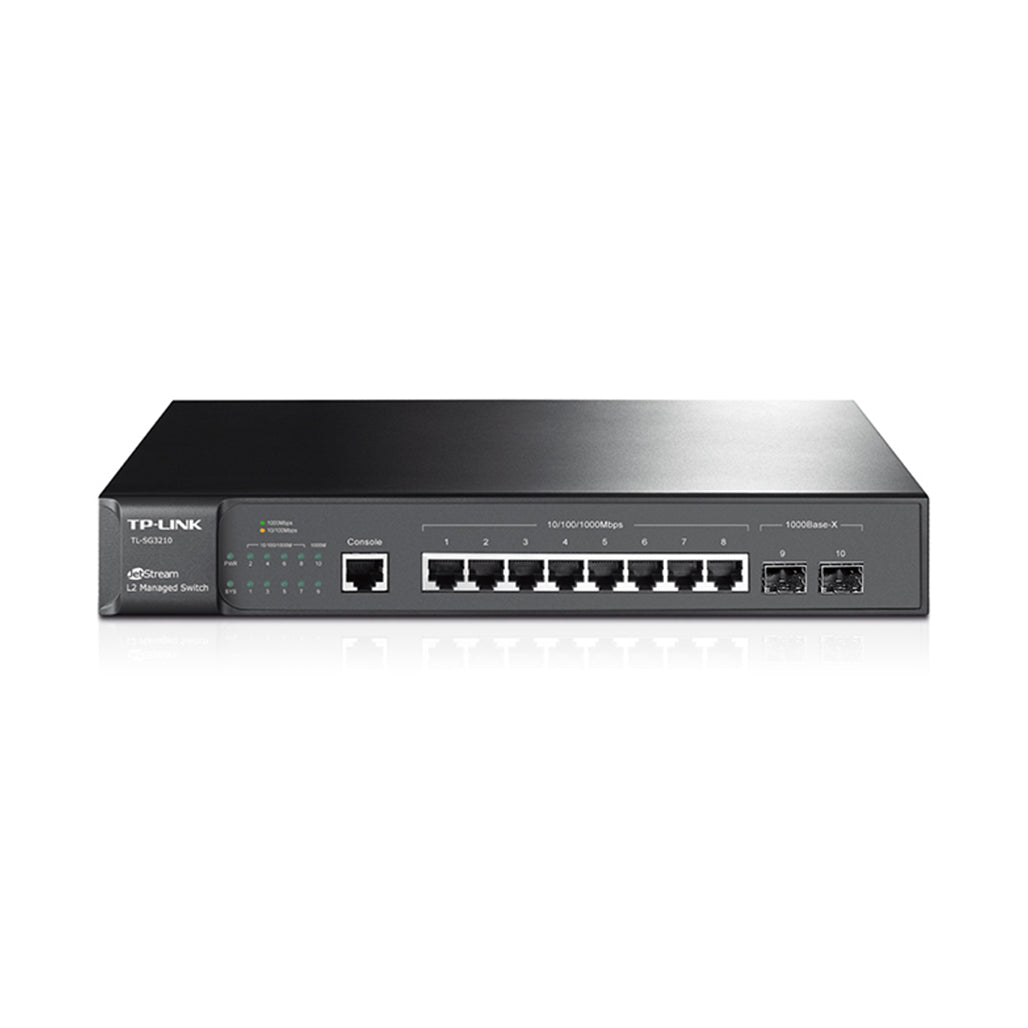

TP-Link TL-SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots – High Performance, Advanced Security, and Flexible Networking

The TP-Link TL-SG3210 JetStream 8-Port Gigabit L2 Managed Switch offers a robust solution for high-performance networking with its 8 gigabit Ethernet ports and 2 SFP slots. Designed to meet the demands of small to medium-sized businesses, this switch provides seamless connectivity and advanced management features. The switch ensures high-speed data transfer and efficient network management with support for 10/100/1000Mbps ports and a bandwidth of 20Gbps.

Advanced security features are integral to the TL-SG3210, which includes IP-MAC-Port-VID Binding and Access Control Lists (ACLs) to safeguard the network against potential threats like broadcast storms, ARP attacks, and denial-of-service (DoS) attacks. With support for Quality of Service (QoS), network traffic is prioritized effectively, ensuring smooth performance for voice and video applications. The switch’s Layer 2 capabilities include VLAN support, port mirroring, and advanced spanning tree protocols, making it a versatile choice for managing complex network environments.

Key Features:

• High Performance: Equipped with 8 gigabit Ethernet ports and 2 SFP slots, the TL-SG3210 supports high-speed data transmission. It features a switching capacity of 20Gbps and a packet forwarding rate of 14.9Mpps, ensuring efficient network traffic handling.

• Advanced Security: The switch includes features such as IP-MAC-Port-VID Binding, port security, and storm control to defend against network threats. ACLs allow for granular control over traffic based on MAC addresses, IP addresses, and VLAN IDs.

• Quality of Service (QoS): QoS features support 802.1p CoS/DSCP priority, 4 priority queues, and various queue scheduling methods to enhance the performance of voice and video applications.

• Comprehensive Layer 2 Features: Supports 802.1Q VLAN tagging, port isolation, and advanced spanning tree protocols (STP/RSTP/MSTP). Additional features include IGMP snooping and loopback detection for effective multicast management and network maintenance.

• Enterprise-Level Management: Management is facilitated through a web-based GUI and CLI, with support for SNMP v1/v2c/v3 and RMON. Features such as SNTP, DHCP snooping, and integrated NDP/NTDP enhance network management and diagnostics.

• IPv6 Support: The switch supports a dual IPv4/IPv6 stack, MLD snooping, and various IPv6 applications including DHCPv6, ping6, and IPv6 SNMP.

Specifications:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
• Interface: 8× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2× 1000 Mbps SFP Slots, 1 Console Port
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m), 1000BASE-X: MMF, SMF
• Fan Quantity: Fanless
• Power Supply: 100–240VAC, 50/60Hz
• Power Consumption: Maximum: 10.7W (220V/50Hz)
• Dimensions (W x D x H): 11.6 × 7.9 × 1.7 in (294 × 200 × 44 mm)

Performance:

• Bandwidth/Backplane: 20Gbps
• Packet Forwarding Rate: 14.9 Mpps
• MAC Address Table: 8k
• Packet Buffer Memory: 4Mb
• Jumbo Frame: 10240 Bytes

Software Features:

• Quality of Service: Support for 802.1p CoS/DSCP priority, 4 priority queues, queue scheduling (SP, WRR, SP+WRR), port/flow-based rate limiting, voice VLAN
• Layer 2 Features: IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 8 aggregation groups), STP/RSTP/MSTP, Port isolation, BPDU filtering/guard, Loop back detection, 802.3x Flow Control
• VLAN: Supports up to 4K VLANs, port/MAC/protocol-based VLAN, GARP/GVRP, Management VLAN configuration
• Access Control List: L2–L4 packet filtering, time range based filtering
• Security: IP-MAC-Port-VID Binding, IEEE 802.1X, DoS Defense, Dynamic ARP Inspection (DAI), SSH v1/v2, SSL/TLS, Port Security, Storm Control
• IPv6: Dual IPv4/IPv6 stack, MLD Snooping, IPv6 neighbor discovery, Path MTU discovery, ICMPv6, TCPv6/UDPv6
• IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP
• Management: Web-based GUI, CLI management, SNMP v1/v2c/v3, RMON, DHCP/BOOTP Client, CPU Monitoring, Port Mirroring, SNTP, Firmware Upgrade, System Diagnostics

Others:

• Certification: FCC, RoHS
• Package Contents: Switch, Power Cord, Quick Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
• System Requirements: Microsoft® Windows® 8, 7, Vista™, XP, MAC® OS, NetWare®, UNIX® or Linux
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

The TP-Link TL-SG3210 JetStream switch provides a robust and efficient solution for small to medium-sized businesses, offering a blend of high performance, comprehensive security, and advanced management features. With its extensive Layer 2 capabilities and user-friendly management interfaces, this switch is well-suited to meet the evolving needs of modern network environments.
