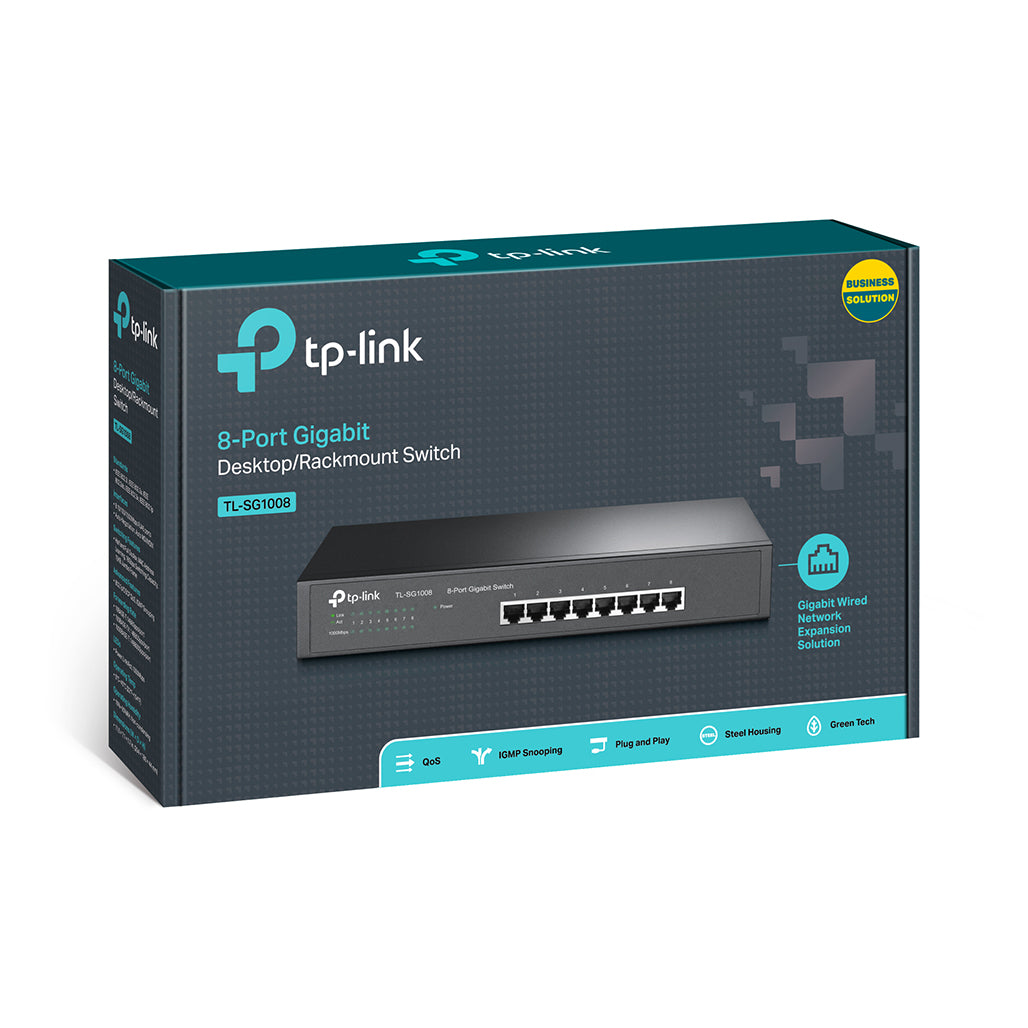

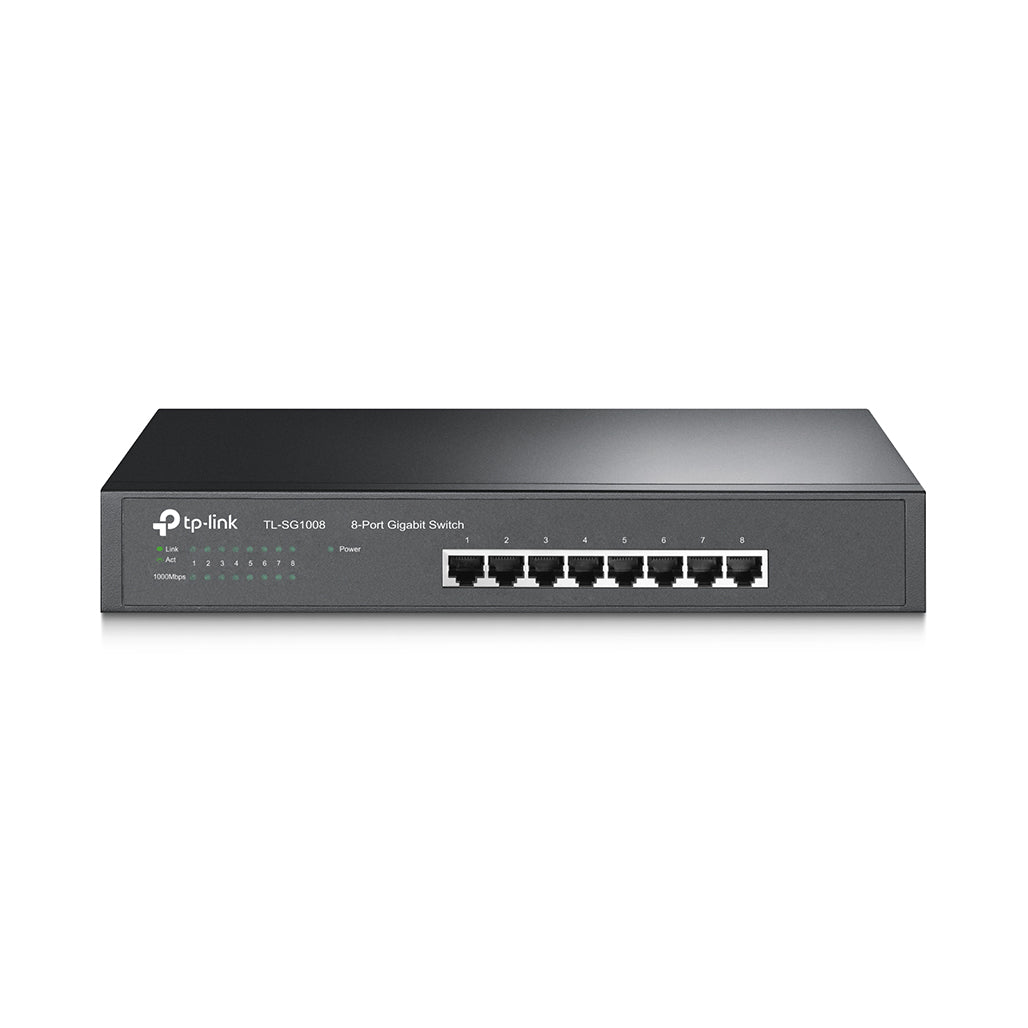

TP-Link TL-SG1008 - 8-Port Gigabit Desktop/Rackmount Switch

The TP-Link TL-SG1008 is an 8-port Gigabit switch designed for both desktop and rackmount installations, offering flexibility and high performance for various networking needs. This switch supports all 8 ports with auto MDI/MDIX, eliminating the need for special crossover cables and ensuring a straightforward plug-and-play setup.

Equipped with innovative energy-efficient technology, the TL-SG1008 automatically adjusts power consumption based on the link status and cable length. This not only reduces the overall carbon footprint but also complies with RoHS regulations, making it an eco-friendly choice for expanding network capacity. Additionally, the switch features a compact design with a standard 13-inch rackmount steel case, and a 19-inch rackmount bracket is included for versatile mounting options.

Key Features

• 8 Gigabit Ports: Provides 8× 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, facilitating easy network connections without needing special cables.
• Energy Efficiency: Utilizes Green Technology to lower power consumption by adjusting based on link status and cable length, aligning with environmental standards.
• High Performance: Offers a 16Gbps switching capacity and supports a 4K MAC address table, accommodating extensive network growth and ensuring smooth data transfer.
• Rackmount and Desktop Options: Designed for both desktop use and rackmount installations with a standard 13-inch rackmount steel case and an included 19-inch rackmount bracket.
• Ease of Use: Features plug-and-play installation with no configuration required, and dynamic LED indicators for real-time status updates and basic fault diagnosis.

Specifications

Hardware Features

• Standards and Protocols:
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
• Interface:
  • 8× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: 100-240VAC, 50/60Hz
• Power Consumption: Maximum: 4.1W
• Dimensions (W x D x H): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
• Mounting: 13" or 19" Rack Mountable
• Max Power Consumption: 4.3W
• Max Heat Dissipation: 14.67 BTU/h

Performance

• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K
• Jumbo Frame: 16KB
• Transfer Method: Store-and-Forward

Software Features

• Advanced Functions:
  • MAC address auto-learning and auto-aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS

Others

• Certification: FCC, RoHS
• Package Contents:
  • 8-Port Gigabit Desktop Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% RH non-condensing
  • Storage Humidity: 5%~90% RH non-condensing

Conclusion

The TP-Link TL-SG1008 8-Port Gigabit Desktop/Rackmount Switch is an efficient and versatile networking solution designed for both small and large-scale deployments. Its energy-efficient features, high performance, and flexibility in installation make it ideal for a wide range of environments, from office setups to data centers. With easy installation and reliable performance, this switch is a valuable addition to any network infrastructure.
