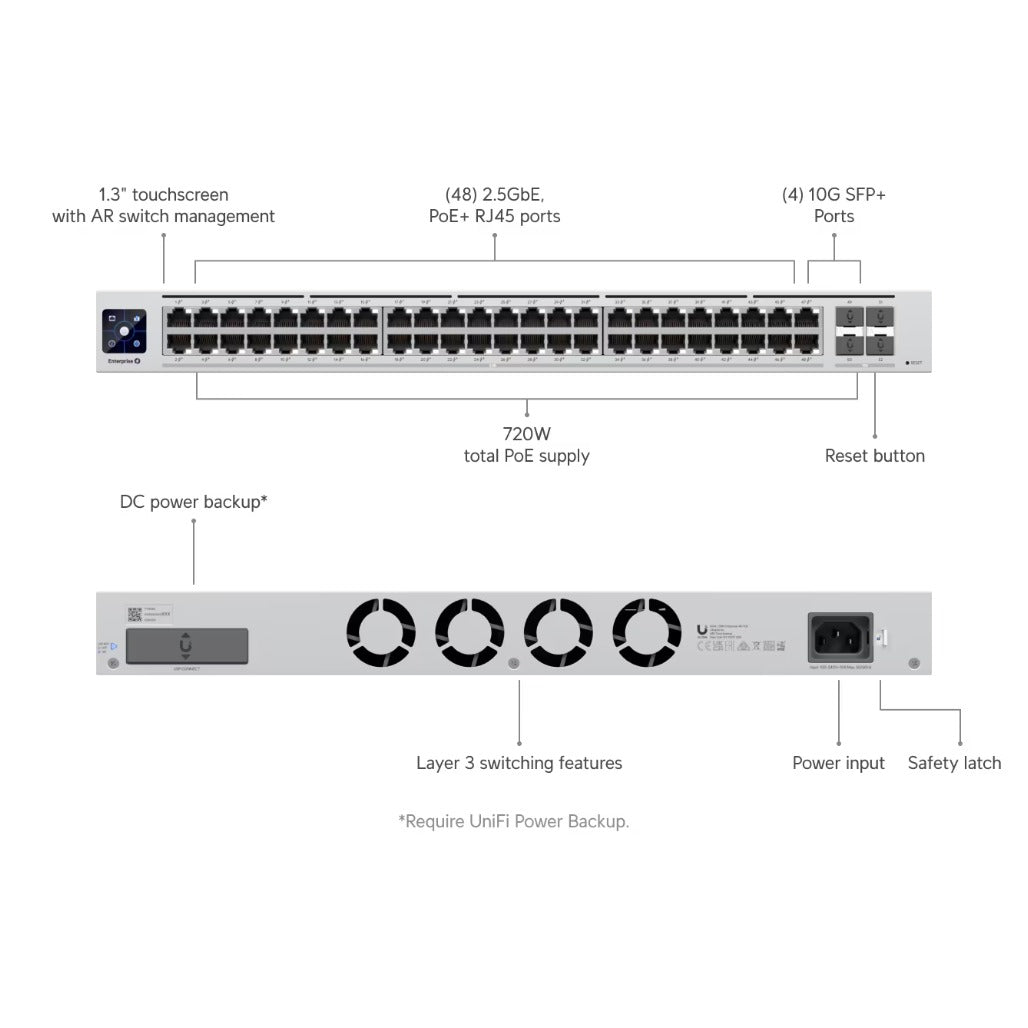

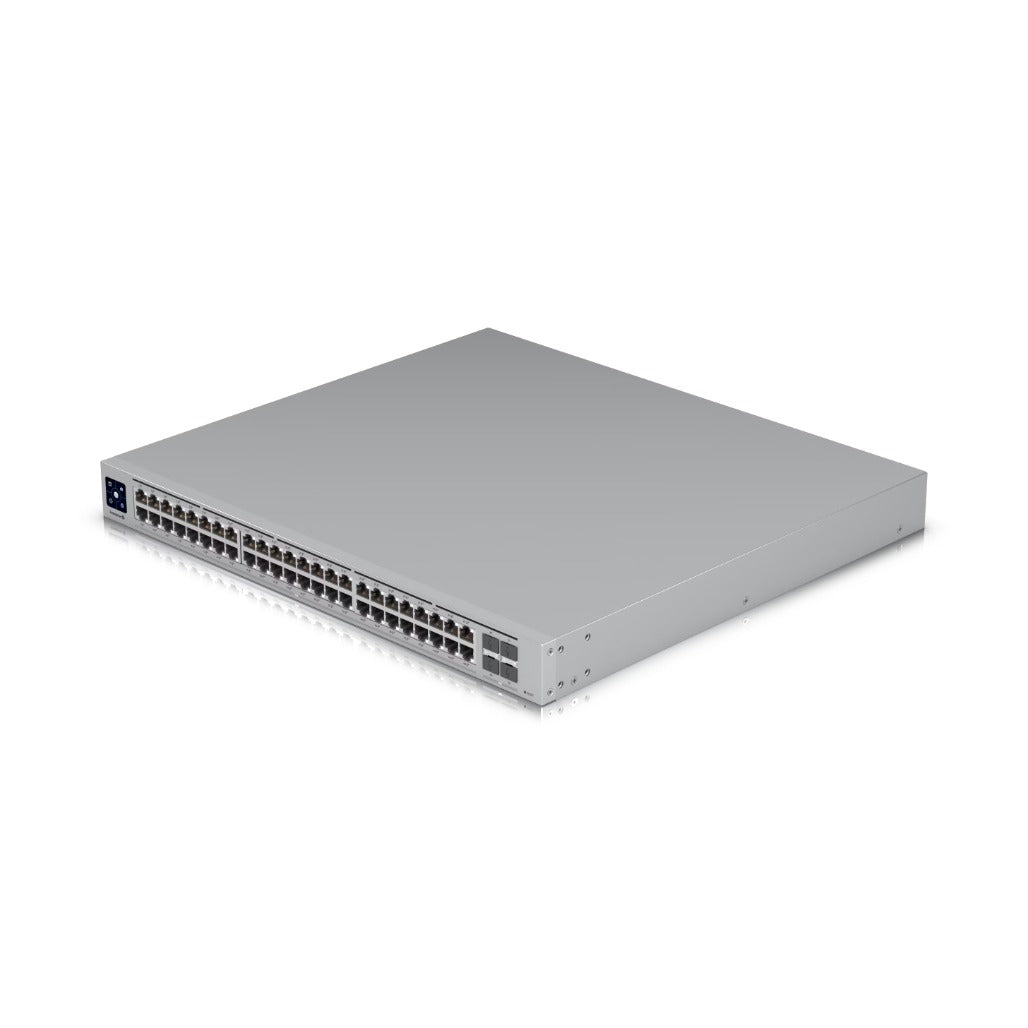

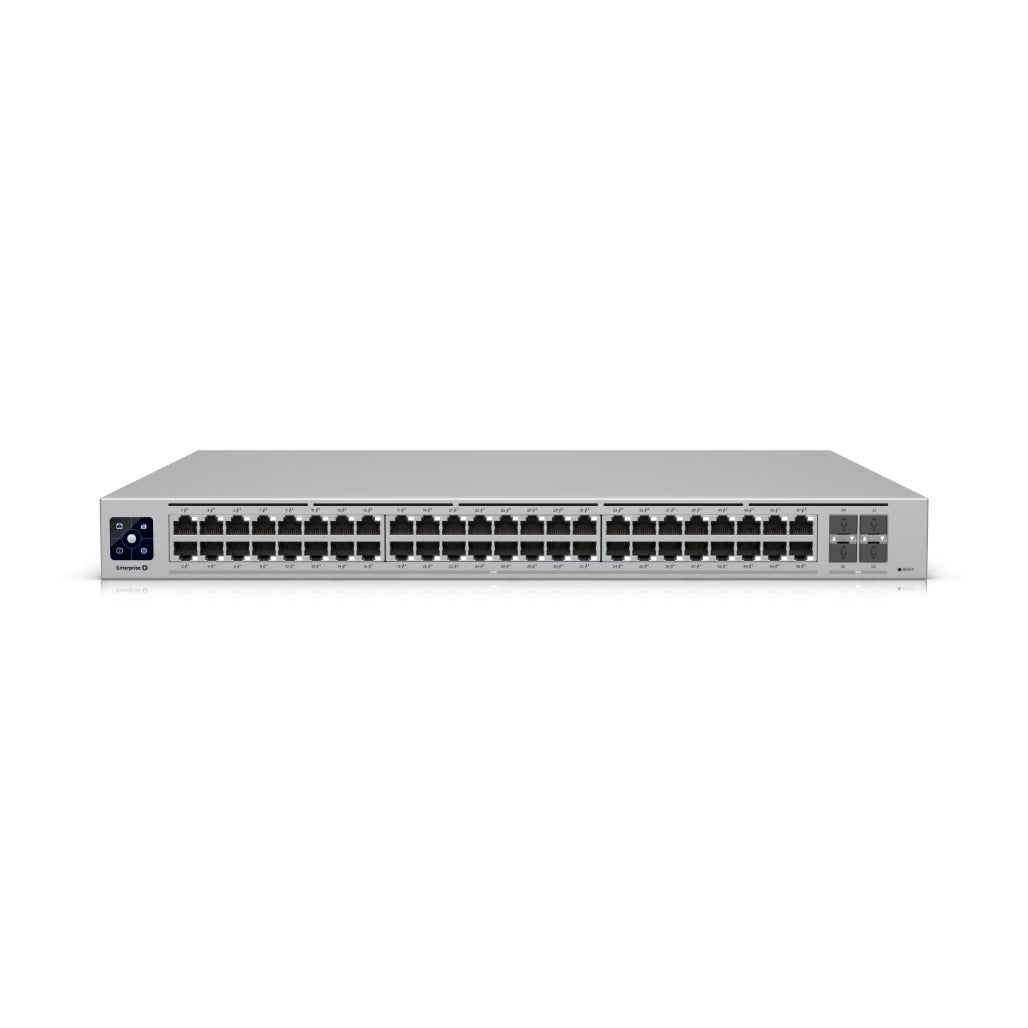

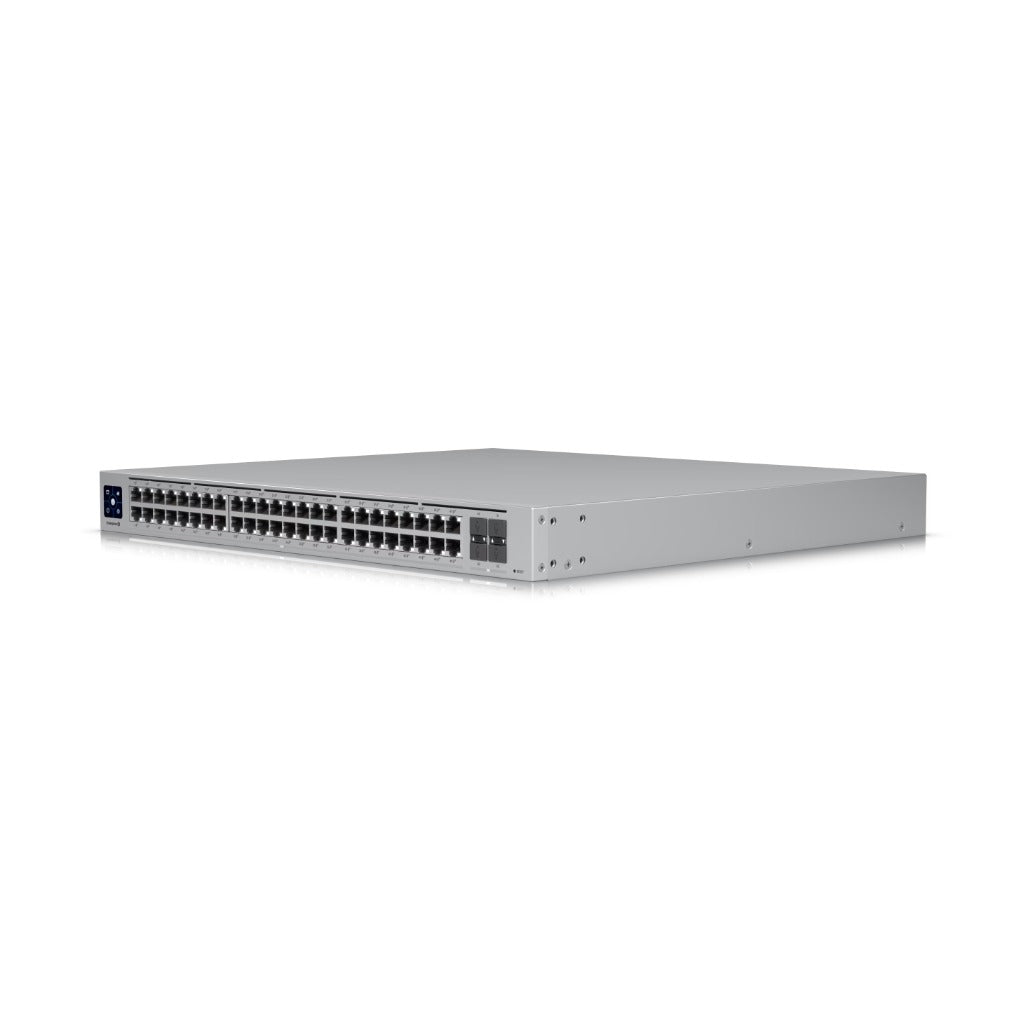

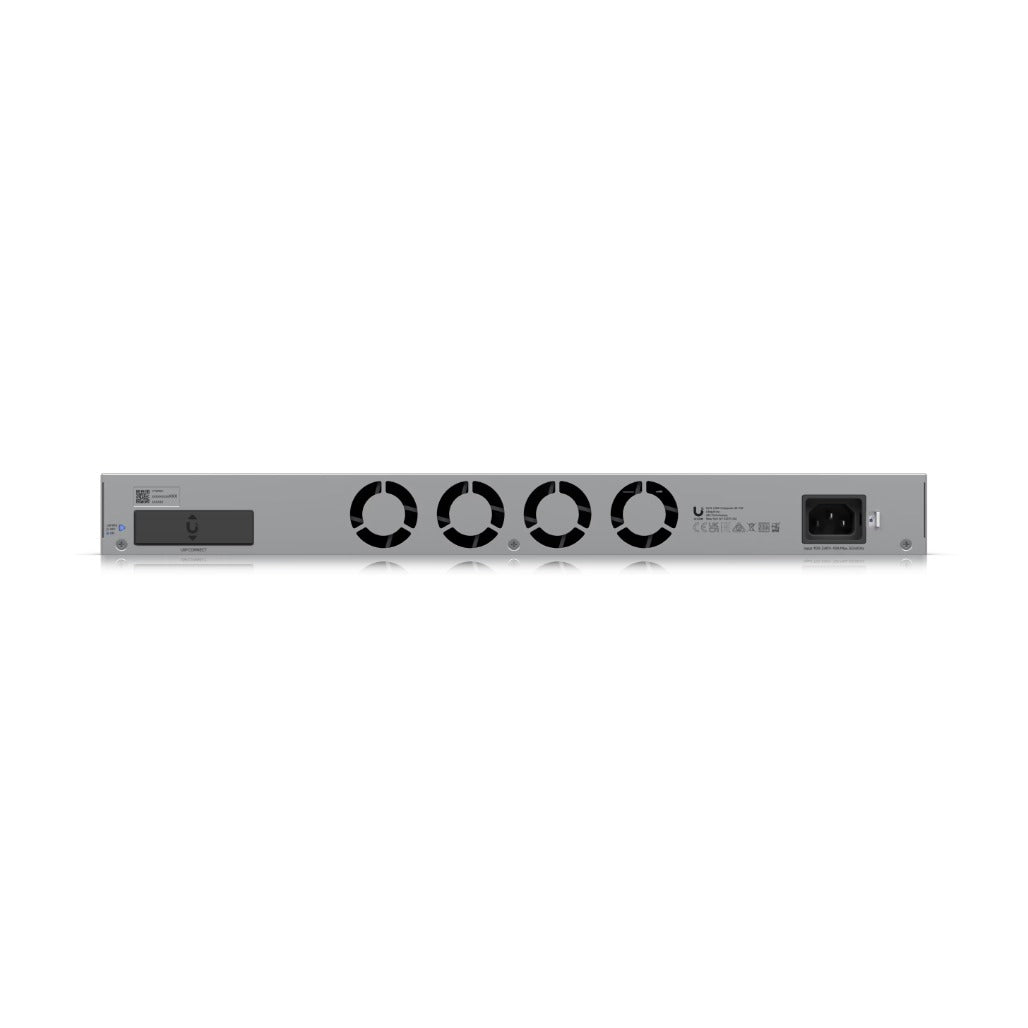

Ubiquiti Enterprise 48 PoE - 48-port, Layer 3 switch with 2.5 GbE PoE+ output (720W)

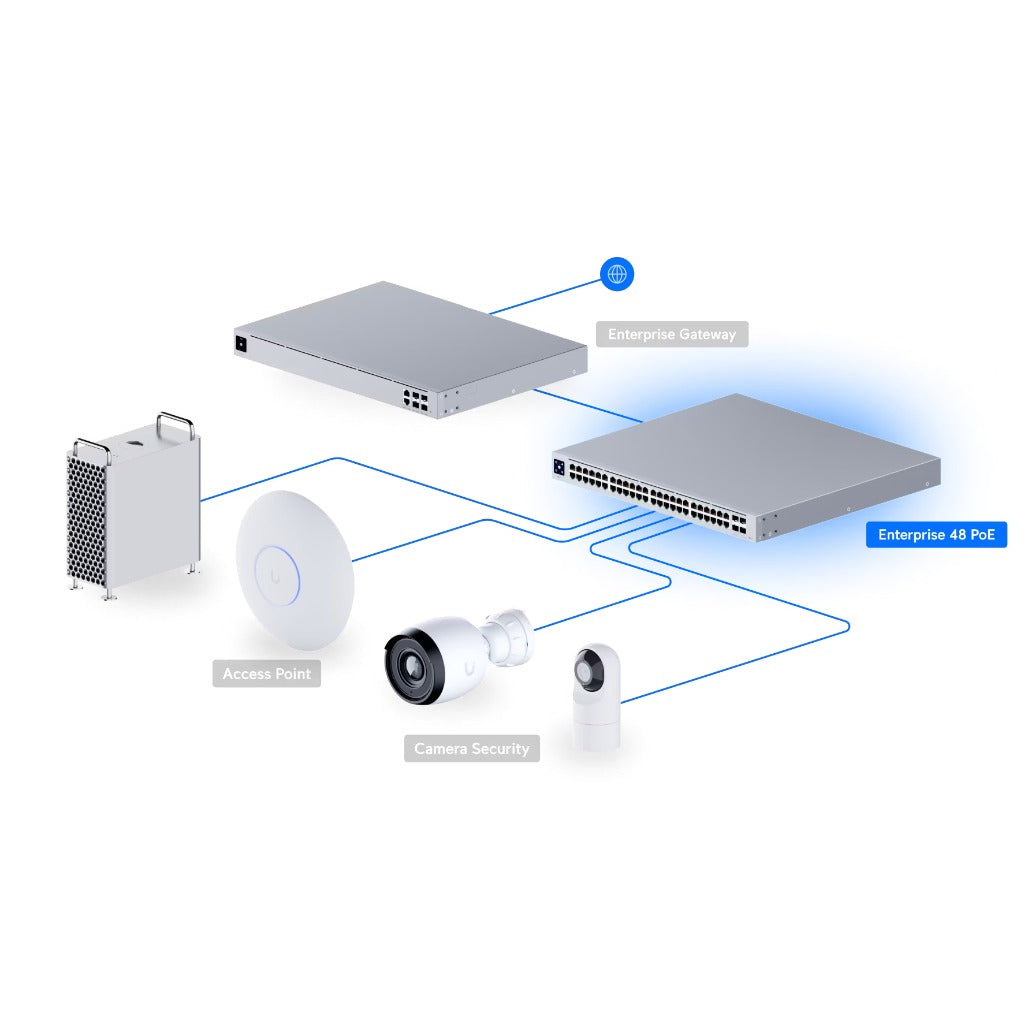

Build an efficient enterprise network with the Ubiquiti Enterprise 48 PoE. This 48-port Layer 3 switch is designed for 2.5 GbE RJ45 connectivity and includes 48 PoE+ ports for powering compatible devices. With a rack mount (1U) form factor and a maximum PoE output of 720W, it supports demanding deployments where both routing and PoE delivery are needed. Performance features include a 160 Gbps total non-blocking throughput and a forwarding rate of 238 Mpps. The switch supports up to 1,000 supported VLANs and includes Layer 3 capabilities such as DHCP server (local networks), DHCP relay, inter-VLAN routing (local networks), and static routing (local networks). It also provides Layer 2 technologies including LACP port aggregation, STP & RSTP, QoS (DSCP), IGMP snooping and advanced IGMP configuration, plus security features like 802.1X control and MAC-based ACLs and device isolation.
Key Features
• 2.5 GbE RJ45
• 48 (All PoE+)
• 4
• Up to PoE+
• Redundancy
• Layer 3
• ✓
• Rack mount (1U)
• Performance: 160 Gbps
• Total Non-Blocking Throughput
• Forwarding Rate: 238 Mpps
• Supported VLANs: 1,000
• 32,000
• IPv4 Static Routes: 256
• 4 MB
• Access Lists: IPv4
• 128
• MAC
• Layer 3 Features: DHCP Server (Local Networks)
• Layer 3 Features: DHCP Relay
• Layer 3 Features: Inter-VLAN Routing (Local Networks)
• Layer 3 Features: Static Routing (Local Networks)
• Layer 2 Features: LACP Port Aggregation
• Layer 2 Features: STP & RSTP
• Layer 2 Features: QoS (DSCP)
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• IGMP Snooping
• 802.1X Control
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Egress Rate Limit
• Flow Control
• Storm Control
• Multicast & Broadcast Rate Limiting
• MAC Address Blocking
• IP-Based ACLs & Network Isolation
• MAC-Based Port Restriction
• Port Isolation
• Port Mirroring
• Jumbo Frames
• LLDP-MED
• Voice VLAN
• Loop Protection
• Virtual Network Override
• PoE Ports: PoE+
• PoE Ports: 48
• Max. PoE Wattage per Port by PSE
• Management: Ethernet
• Heat Dissipation: SGCC steel
• Supported Rack Depth: (23.6- 47.2" )
• LCM Display: 1.3" touchscreen
• ESD Protection
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 05485-22-08356
• Software: Application Requirements
• Software: UniFi Network
• Software: Version 6.2.26 and later
• DC Power Backup
• PoE Output: 720W
• Switching Capacity
• MAC Address Table Size
• Packet Buffer Size
• Max. Power Consumption: 150W (Excluding PoE Output)
• Max. Power Consumption: 870W (Including PoE Output)
• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
• Power Method: (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 870W
• Supported Voltage Range: 100–240V AC
• 511.8 BTU/hr (Excluding PoE Output)
• Weight: Without mounting brackets: 6.2 kg (13.7 lb)
• Weight: With mounting brackets: 6.3 kg (13.9 lb)
• Enclosure Material
• Mount Material
• 600 - 1,200 mm
• Air: ± 16kV, contact: ± 12kV
Specifications
• Ubiquiti Enterprise 48 PoE - 48-port, Layer 3 switch with 2.5 GbE PoE+ output (720W)
• Dimensions

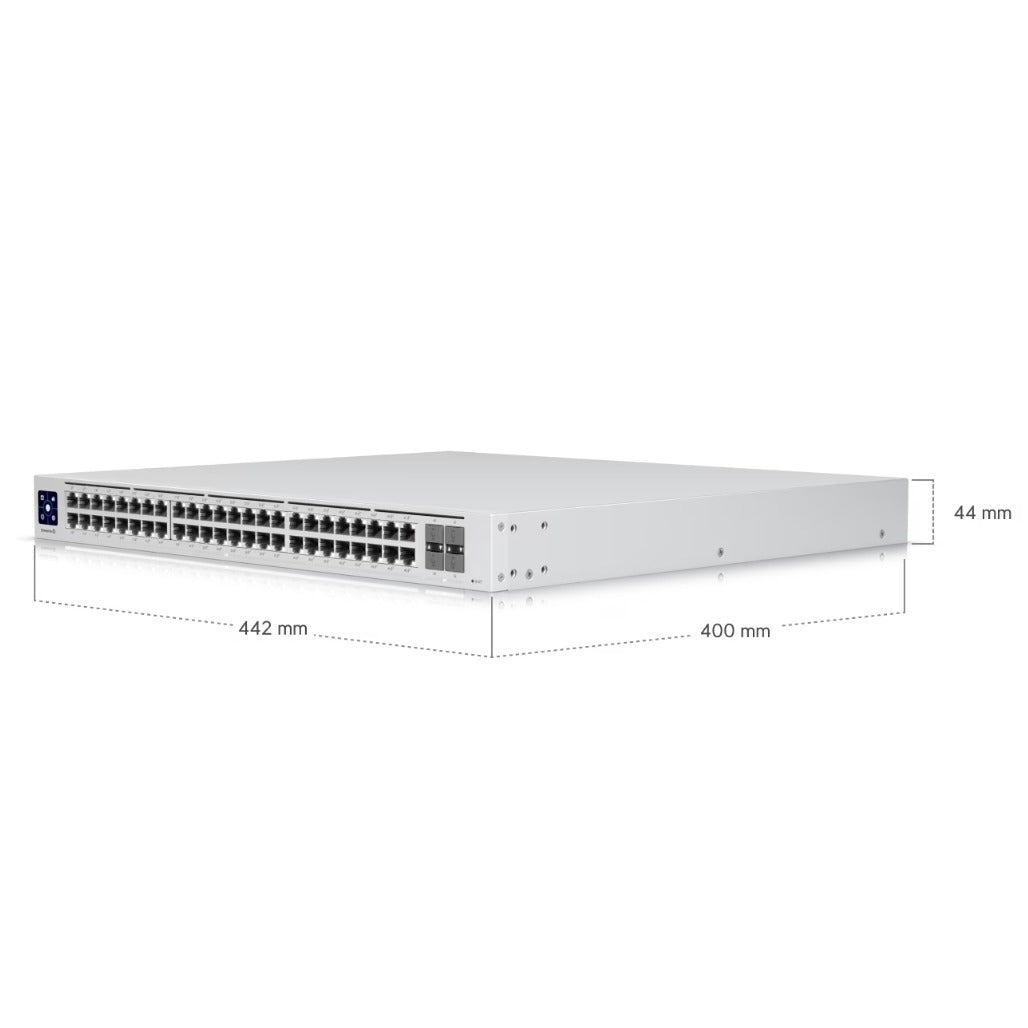

• 442 x 400 x 44 mm
• (2.5G/1G/100M/10M)
• 10G SFP+
• (10G/1G)
• Max. PoE Output
• 720W
• DC Power Backup
• Switching Capacity
• MAC Address Table Size
• Packet Buffer Size
• 32W
• Max. Power Consumption
• 150W (Excluding PoE Output)
• 870W (Including PoE Output)
• Power Method
• (1) Universal input, 100–240V AC, 50/60 Hz
• (1) USP RPS DC input
• Power Input Method
• AC input
• Power Supply
• AC/DC, internal, 870W
• Supported Voltage Range
• 100–240V AC
• 511.8 BTU/hr (Excluding PoE Output)
• Weight
• Without mounting brackets: 6.2 kg (13.7 lb)
• With mounting brackets: 6.3 kg (13.9 lb)
• Enclosure Material
• Mount Material
• 600 - 1,200 mm
• Air: ± 16kV, contact: ± 12kV
• Brand: Ubiquiti
