Ubiquiti Pro HD 24 PoE - USW-PRO-HD-24-PoE (600W)

Built for professional networks, the Ubiquiti Pro HD 24 PoE (USW-PRO-HD-24-PoE) is a rack mount (1U) Layer 3 Etherlighting™ switch. It features (2) 10 GbE RJ45 ports with PoE++, (22) 2.5 GbE RJ45 ports with PoE++, and (4) 10G SFP+ ports. With a switching capacity of 230 Gbps and total non-blocking throughput of 115 Gbps, it’s designed to support demanding routing and switching needs in enterprise environments. This switch supports a range of Layer 3 and Layer 2 capabilities, including Layer 3 Features such as DHCP Server (Local Networks), DHCP Relay, and Inter-VLAN Routing (Local Networks), plus extensive Layer 2 feature support. It also includes management via a 1.3" touchscreen LCM display and uses UniFi Network software version 9.0.114 and later. Power is specified as PoE++ with a max PoE output of 600W and a power supply of AC/DC, internal, 660W.
Key Features
• Professional-grade, Layer 3 Etherlighting™ switch
• (2) 10 GbE PoE++ RJ45 ports
• (22) 2.5 GbE PoE++ RJ45 ports
• (4) 10G SFP+ ports
• PoE++
• Redundancy
• Layer 3
• Form Factor: Rack mount (1U)
• Performance: 230 Gbps switching capacity
• Total Non-Blocking Throughput: 115 Gbps
• Forwarding Rate: 171 Mpps
• Supported VLANs: 1,000
• Supported VLANs (additional value): 32,000
• IPv4 Static Routes: 256
• Access Lists: IPv4
• Access Lists (additional value): 128
• MAC
• Layer 3 Features: DHCP Server (Local Networks)
• Layer 3 Features: DHCP Relay
• Layer 3 Features: Inter-VLAN Routing (Local Networks)
• Layer 3 Features: Static Routing (Local Networks)
• Layer 2 Features: LACP Port Aggregation
• Layer 2 Features: STP & RSTP
• Layer 2 Features: QoS (DSCP)
• Layer 2 Features: Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
• Layer 2 Features: Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• Layer 2 Features: IGMP Snooping
• Layer 2 Features: 802.1X Control
• Layer 2 Features: MAC-Based ACLs & Device Isolation
• Layer 2 Features: DHCP Snooping & Guarding
• Layer 2 Features: Egress Rate Limit
• Layer 2 Features: Flow Control
• Layer 2 Features: Storm Control
• Layer 2 Features: Multicast & Broadcast Rate Limiting
• Layer 2 Features: MAC Address Blocking
• Layer 2 Features: IP-Based ACLs & Network Isolation
• Layer 2 Features: MAC-Based Port Restriction
• Layer 2 Features: Port Isolation
• Layer 2 Features: Port Mirroring
• Layer 2 Features: Jumbo Frames
• Layer 2 Features: LLDP-MED
• Layer 2 Features: Voice VLAN
• Layer 2 Features: Loop Protection
• Layer 2 Features: Virtual Network Override
• Hardware: PoE Ports: PoE++
• Hardware: PoE Ports: 24
• Hardware: Max. PoE Wattage per Port by PSE
• Hardware: PoE+
• Management: Ethernet
• AR
• Enclosure Material: SGCC steel
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• SFP+
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 03853-25-08356
• Application Requirements: UniFi Network
• Application Requirements Version: 9.0.114 and later

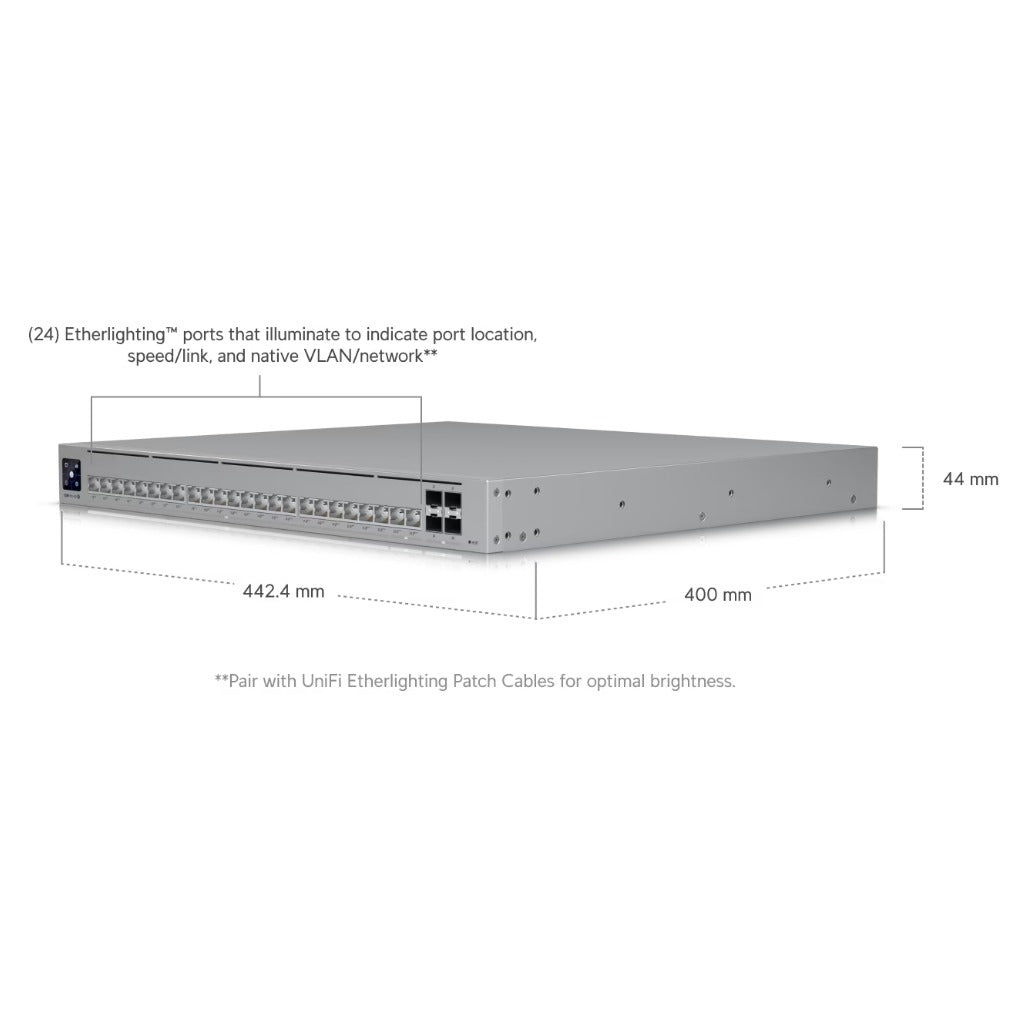

• Dimensions: 442 x 400 x 44 mm
• Max. PoE Output: 600W
• DC Power Backup
• Switching Capacity
• MAC Address Table Size
• Packet Buffer Size

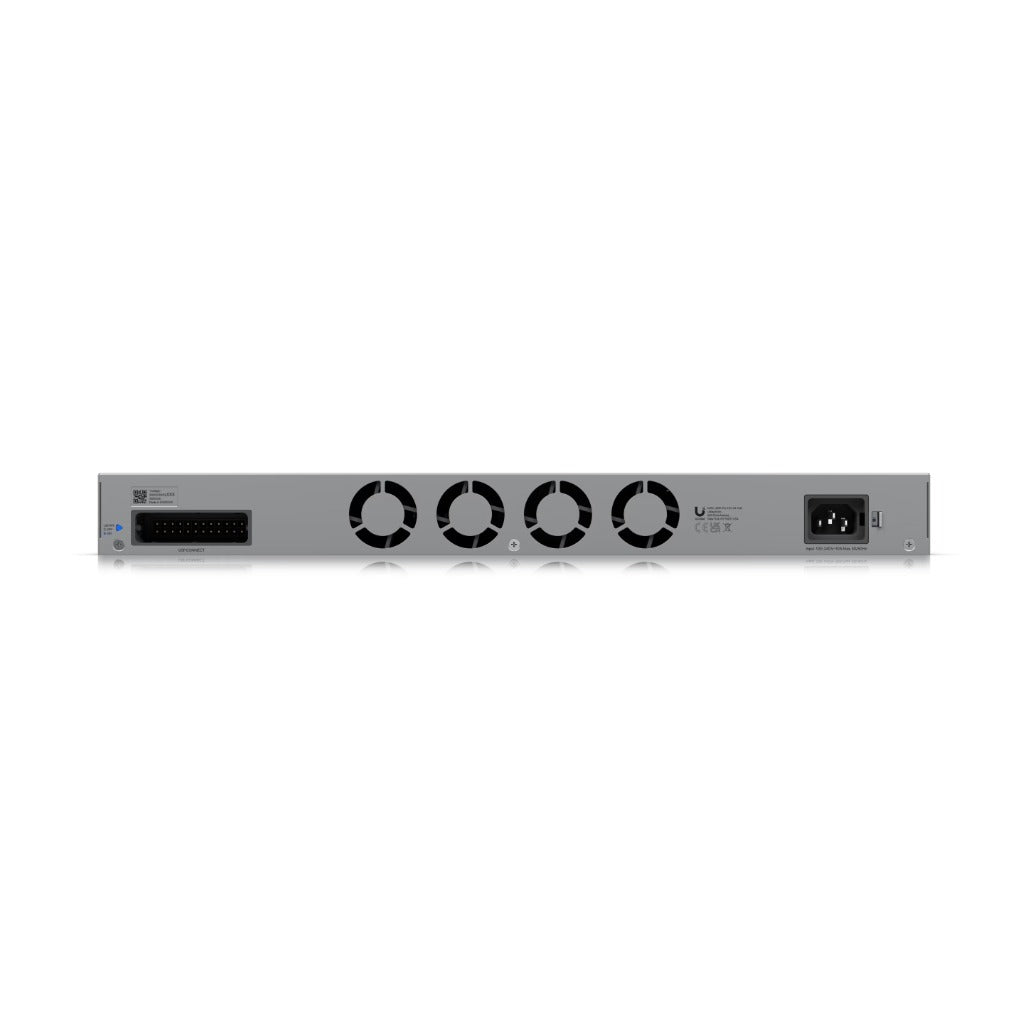

• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
• Power Method: (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 660W
• Supported Voltage Range: 100–240V AC
• Weight: Without mounting brackets: 6.2 kg (13.7 lb)
• Weight: With mounting brackets: 6.3 kg (13.9 lb)
• Mount Material
• Supported Rack Depth: (23.6- 47.2" )
• (2.5G/1G/100M/10M)
• (10G/5G/2.5G/1G/100M)
• (10G/1G)
• (10G SFP+)
• (600 - 1,200 mm)
Specifications
• Brand: Ubiquiti
• Product: Ubiquiti Pro HD 24 PoE - USW-PRO-HD-24-PoE (600W)
• Overview dimensions: (17.4 x 15.7 x 1.7")

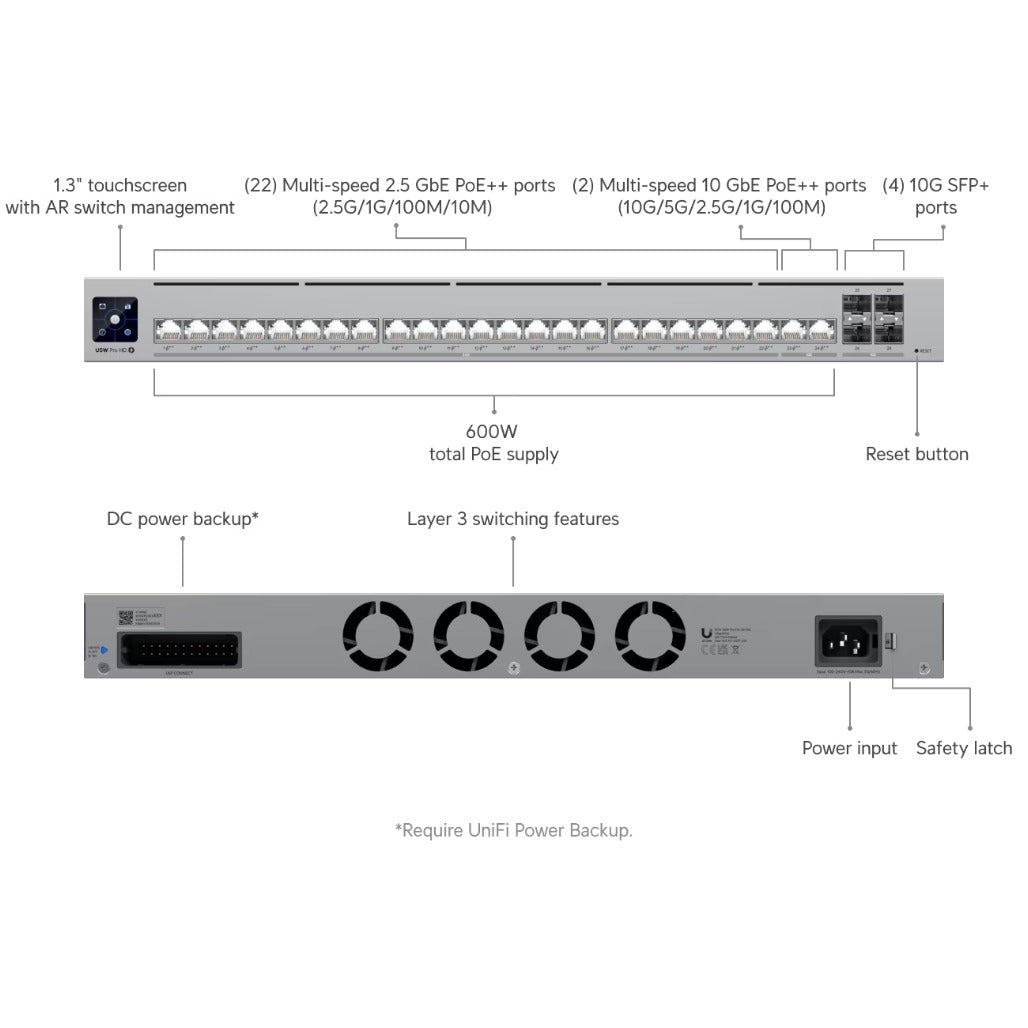

• Port Layout: 2.5 GbE RJ45: 22 (All PoE++)
• Port Layout: 10 GbE RJ45: 2 (All PoE++)
• Port Layout: 10G SFP+: 4
• Form Factor: Rack mount (1U)
• Etherlighting™
• Performance: Switching Capacity: 230 Gbps
• Total Non-Blocking Throughput: 115 Gbps
• Forwarding Rate: 171 Mpps
• Supported VLANs: 1,000
• Supported VLANs (additional value): 32,000
• IPv4 Static Routes: 256
• Access Lists: IPv4
• Access Lists (additional value): 128
• MAC
• Layer 3 Features: DHCP Server (Local Networks)
• Layer 3 Features: DHCP Relay
• Layer 3 Features: Inter-VLAN Routing (Local Networks)
• Layer 3 Features: Static Routing (Local Networks)
• Layer 2 Features: LACP Port Aggregation
• Layer 2 Features: STP & RSTP
• Layer 2 Features: QoS (DSCP)
• Layer 2 Features: Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
• Layer 2 Features: Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• Layer 2 Features: IGMP Snooping
• Layer 2 Features: 802.1X Control
• Layer 2 Features: MAC-Based ACLs & Device Isolation
• Layer 2 Features: DHCP Snooping & Guarding
• Layer 2 Features: Egress Rate Limit
• Layer 2 Features: Flow Control
• Layer 2 Features: Storm Control
• Layer 2 Features: Multicast & Broadcast Rate Limiting
• Layer 2 Features: MAC Address Blocking
• Layer 2 Features: IP-Based ACLs & Network Isolation
• Layer 2 Features: MAC-Based Port Restriction
• Layer 2 Features: Port Isolation
• Layer 2 Features: Port Mirroring
• Layer 2 Features: Jumbo Frames
• Layer 2 Features: LLDP-MED
• Layer 2 Features: Voice VLAN
• Layer 2 Features: Loop Protection
• Layer 2 Features: Virtual Network Override
• PoE Ports: PoE++: 24
• Max. PoE Wattage per Port by PSE
• PoE++
• PoE+
• PoE++ max power (listed values): 15.4W, 30W, 64W
• Max. Power Consumption: 60W (Excluding PoE Output)
• Max. Power Consumption (including PoE output): 660W (Including PoE Output)
• Max. PoE Output: 600W
• Switching Capacity
• MAC Address Table Size
• Packet Buffer Size
• DC Power Backup
• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
• Power Method: (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 660W
• Supported Voltage Range: 100–240V AC
• Supported Rack Depth: (23.6- 47.2" )
• Dimensions: 442 x 400 x 44 mm
• Weight: Without mounting brackets: 6.2 kg (13.7 lb)
• Weight: With mounting brackets: 6.3 kg (13.9 lb)
• Enclosure Material: SGCC steel
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• SFP+
• NDAA Compliant
• Certifications: CE, FCC, IC, Anatel: 03853-25-08356
• Application Requirements: UniFi Network
• Application Requirements version: 9.0.114 and later
• Supported voltage/port speed values listed: (2.5G/1G/100M/10M), (10G/5G/2.5G/1G/100M), (10G SFP+), (10G/1G)
• Mount Material
• Supported rack depth value: 600 - 1,200 mm
