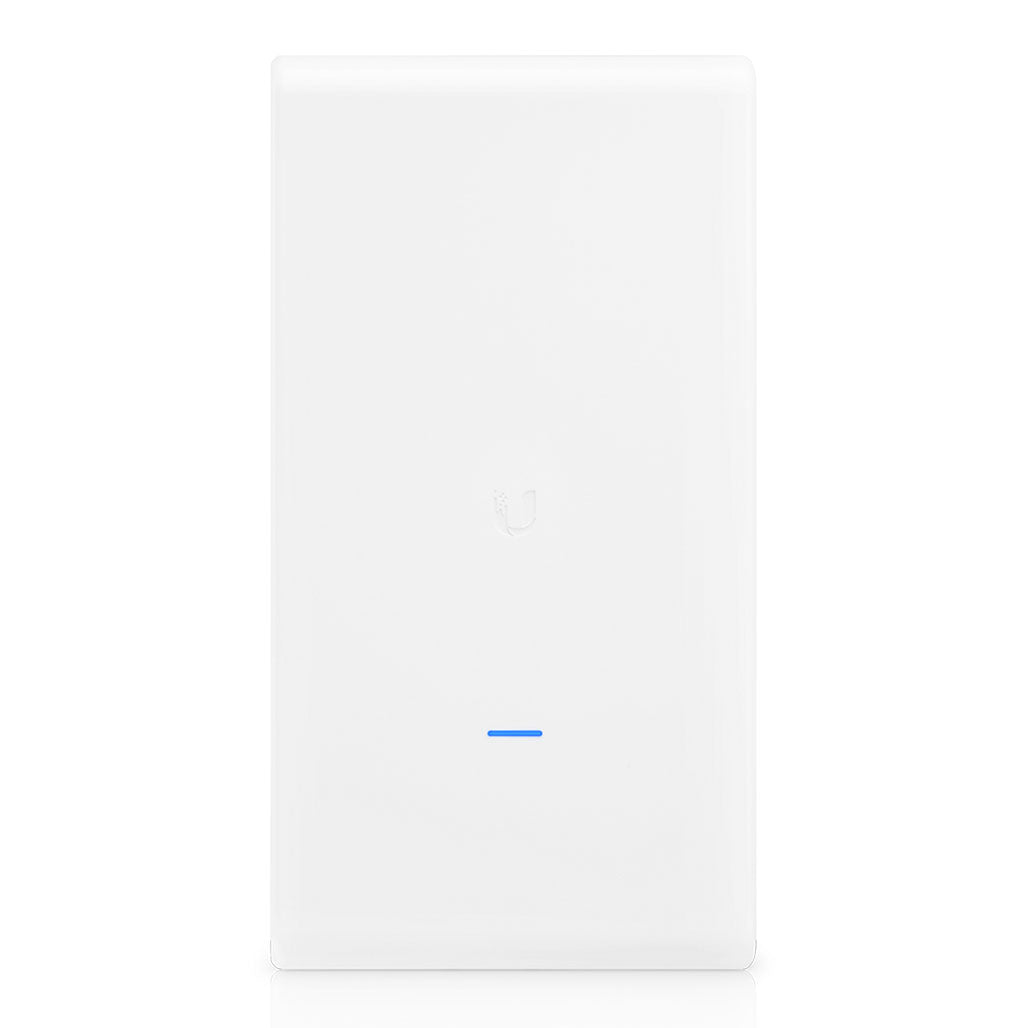

Ubiquiti UAP-AC-M-PRO Access Point | AC Mesh Pro, Dual-Band, 802.11ac Wi-Fi

The Ubiquiti UAP-AC-M-PRO Access Point, also known as the AC Mesh Pro, is a robust solution for enhancing wireless network coverage in challenging environments. Designed for both indoor and outdoor use, this access point supports high-speed, dual-band Wi-Fi 802.11ac, delivering reliable and fast connectivity. With its sleek, weather-resistant design and powerful performance, it is ideal for extending coverage across large areas or complex layouts.

Equipped with two Gigabit Ethernet ports, the UAP-AC-M-PRO supports Power over Ethernet (PoE) for flexible installation. It provides an aggregate throughput rate of 450 Mbps on the 2.4 GHz band and 1300 Mbps on the 5 GHz band, ensuring optimal performance for a wide range of devices. The access point features MIMO technology with three spatial streams on both bands, enhancing signal quality and network efficiency.

The UAP-AC-M-PRO is designed to withstand extreme temperatures, with an operating range from -40°C to 70°C (-40°F to 158°F), making it suitable for a variety of deployment scenarios. Its versatile mounting options allow for wall or pole installation, with the pole kit included.

Key Features:

1. High-Performance Dual-Band Wi-Fi:

   • Standards: Supports 802.11a/b/g/n/ac.
   • Throughput Rate: Up to 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz.

2. Robust Hardware:

   • Networking Interface: (2) Gigabit Ethernet ports.
   • Power Method: PoE with a Gigabit PoE adapter (48V DC, 0.5A; not included in 5-packs).
   • Maximum Power Consumption: 9W.

3. Durable and Flexible Design:

   • Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4").
   • Weight: 633 g (1.4 lb).
   • Operating Temperature: -40 to 70°C (-40 to 158°F).

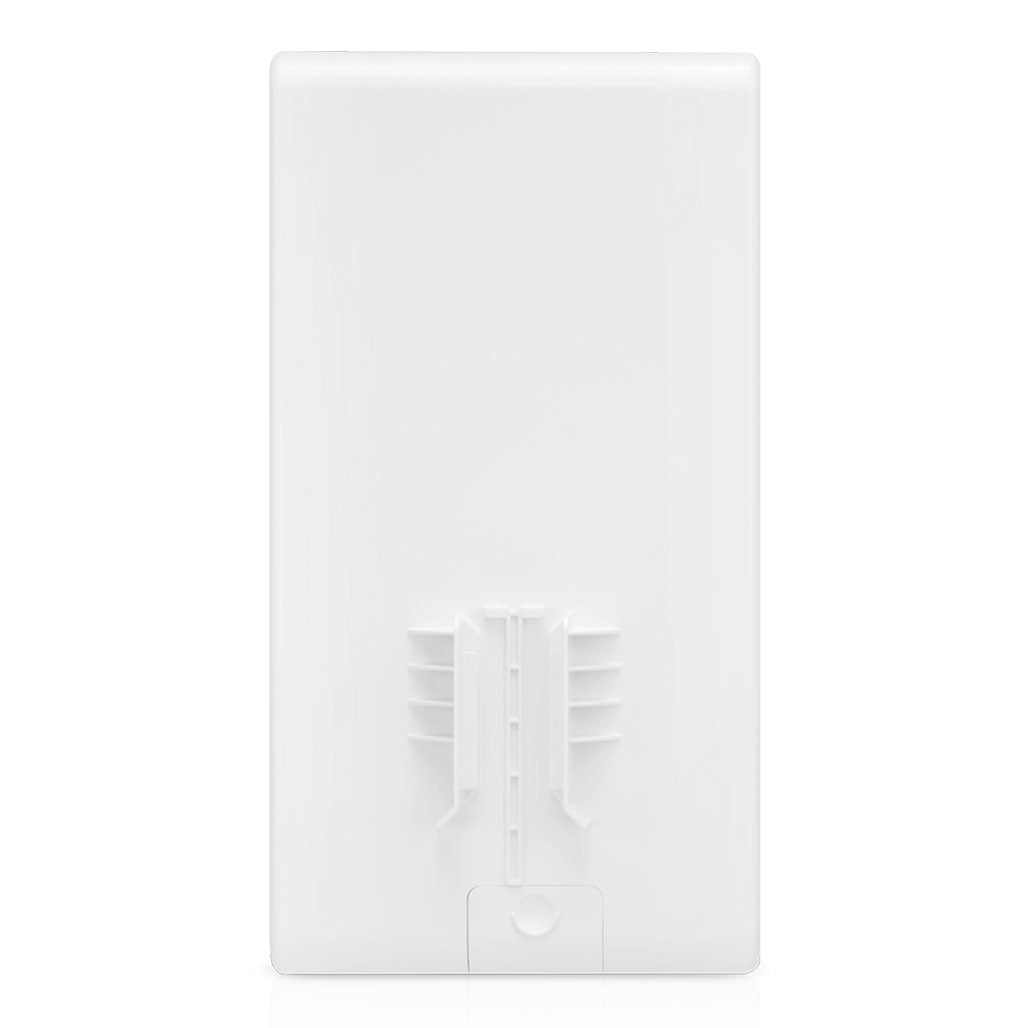

   • Mounting Options: Wall or pole (pole kit included).

4. Advanced Features:

   • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES).
   • VLAN Support: 802.1Q.
   • Concurrent Clients: Supports 100+ devices.
   • Guest Traffic Isolation: Supported.
   • Advanced QoS: Per-user rate limiting.

Specifications:

• Manufacturer / Model: Ubiquiti Networks / UAP-AC-M-PRO
• Wi-Fi Standards: 802.11a/b/g/n/ac
• Maximum Speed: 450 Mbps (2.4 GHz), 1300 Mbps (5 GHz)
• Antenna Gain: 3 dBi (2.4 GHz), 4 dBi (5 GHz)
• MIMO: 3 x 3 (both bands)
• Power Supply: 48V PoE Adapter (not included in 5-packs)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

Conclusion: The Ubiquiti UAP-AC-M-PRO Access Point offers high-speed, reliable Wi-Fi connectivity in both indoor and outdoor environments. Its advanced features, durable design, and high throughput make it an excellent choice for extending network coverage and supporting a large number of connected devices. Whether for enterprise or complex home networks, the UAP-AC-M-PRO provides the performance and flexibility needed to meet demanding connectivity requirements.
