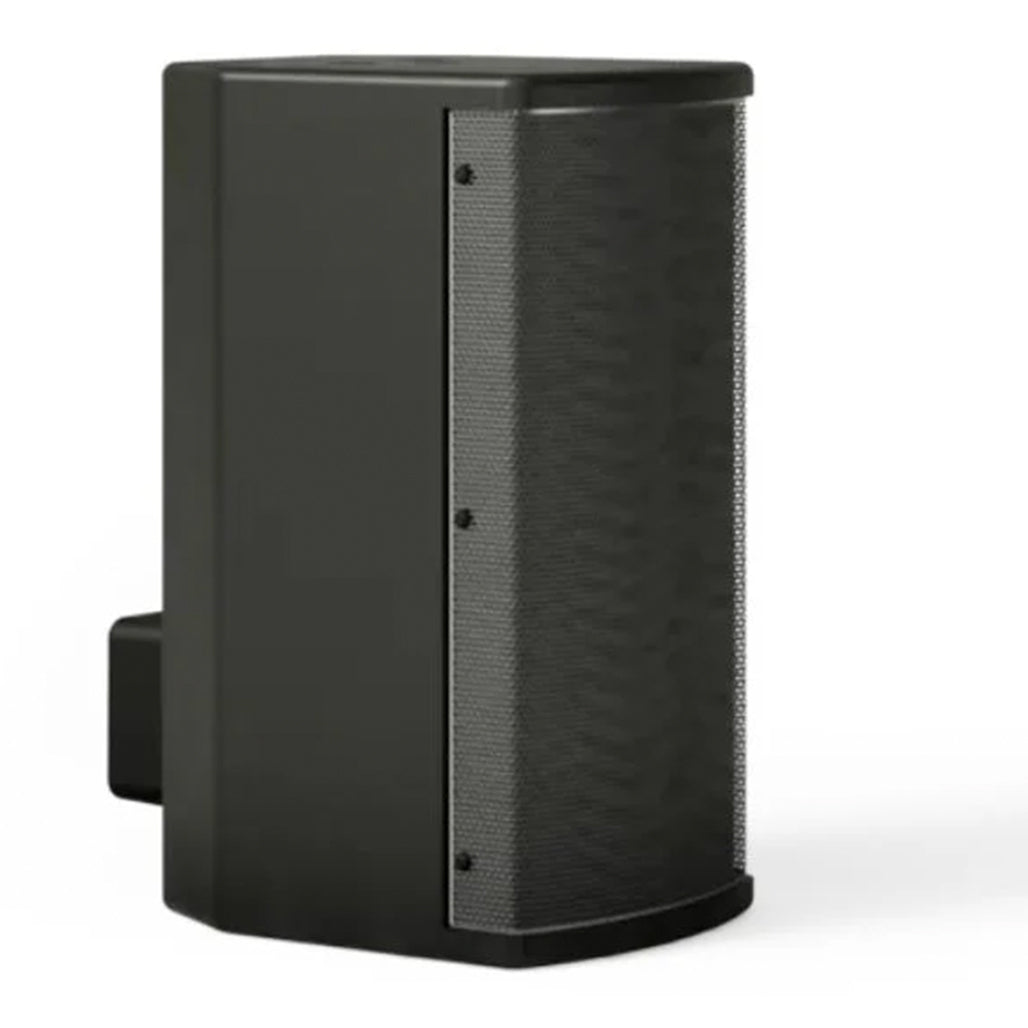

The Bose Professional ArenaMatch AMU105 compact loudspeaker is designed for outdoor and indoor installations where powerful, intelligible sound is required from a discreet enclosure. High-performance audio is delivered through a two-way transducer design that supports clear vocals and balanced music reproduction, even in challenging environments. Wide and consistent 100° × 100° coverage is provided, making the loudspeaker well suited for distributed sound systems and smaller venues that demand uniform listening experiences.
Installation flexibility is supported through weather-rated construction, multiple mounting options, and integrated 70/100V transformer functionality with an 8-ohm bypass. Reliable performance is maintained across hospitality, commercial, and public venues, while compatibility with Bose Professional electronics allows simplified system design and consistent sound quality. The AMU105 is positioned as a compact solution where durability, clarity, and system scalability are required.
Key Features

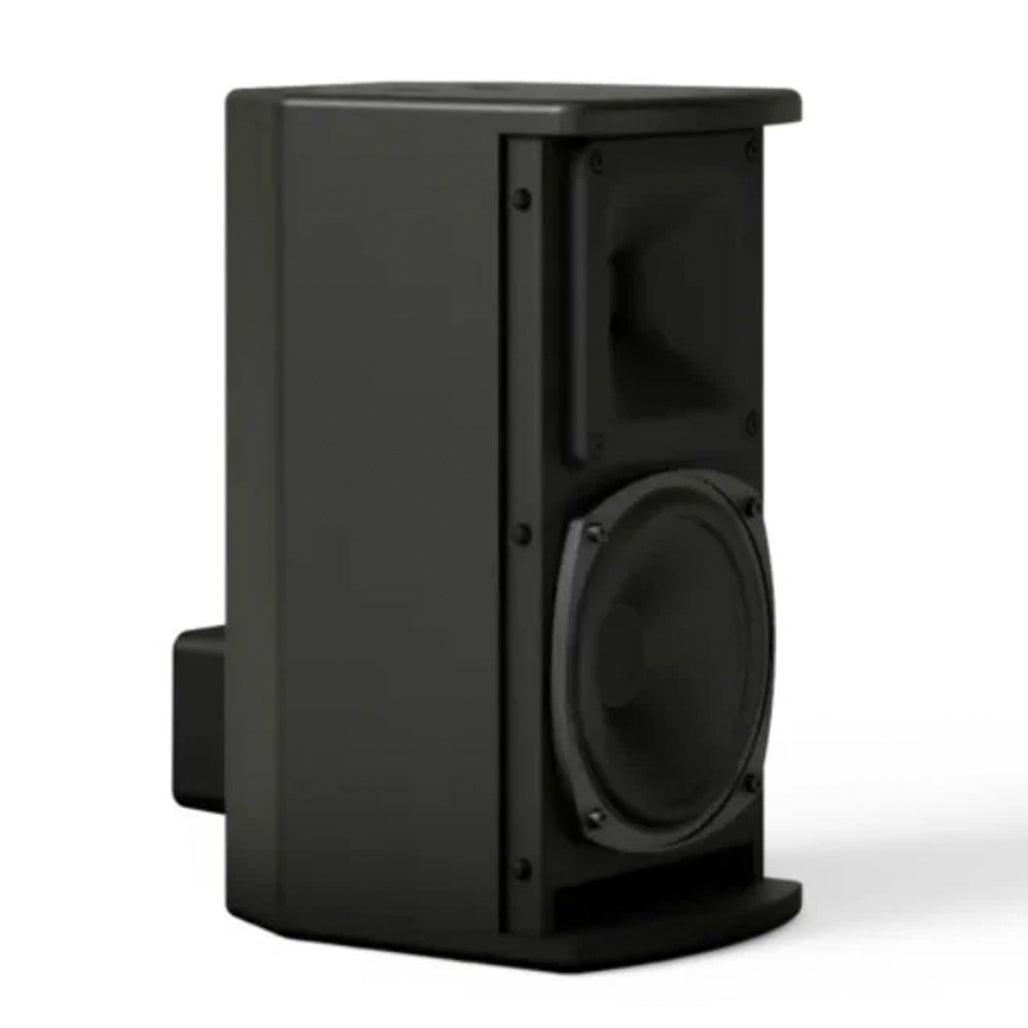

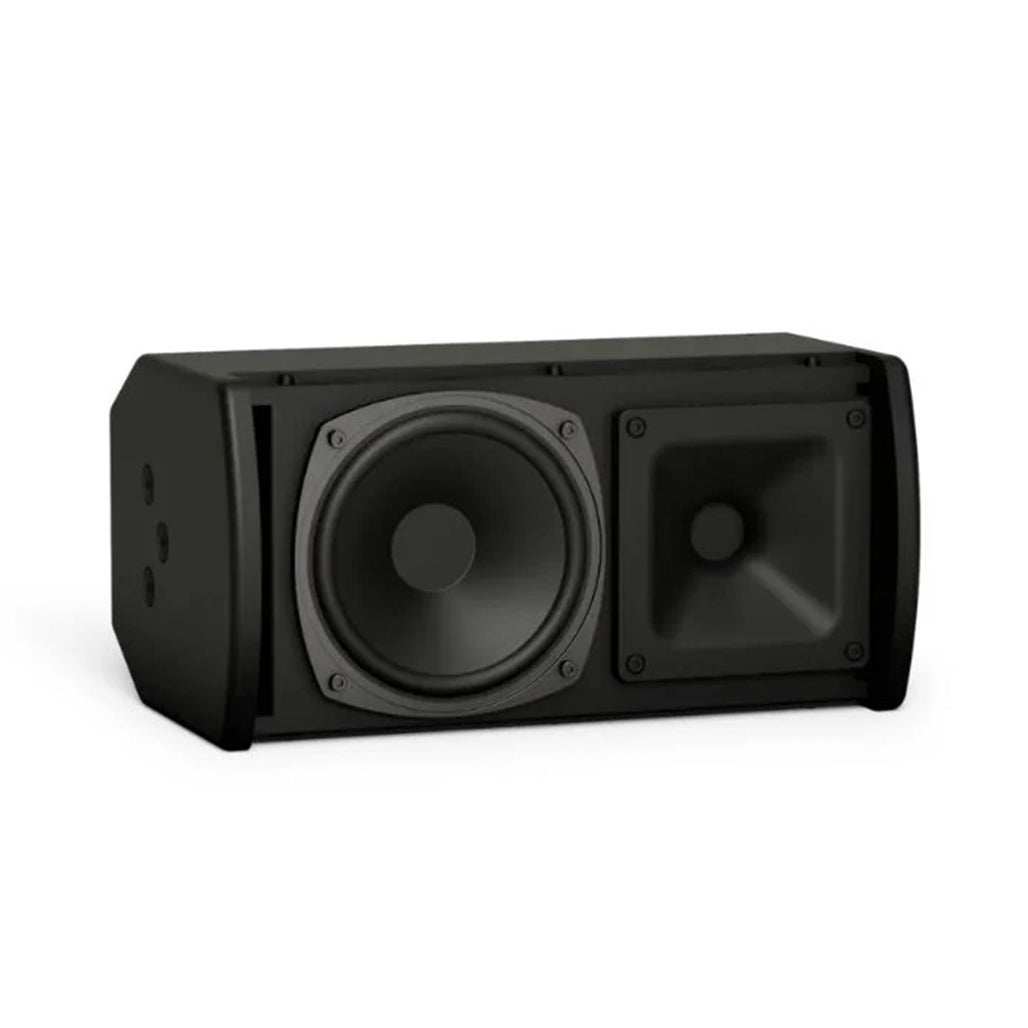

Two-way transducer design
A high-excursion low-frequency woofer and a high-frequency compression driver are combined through a passive crossover with optimized filters. Balanced frequency response and consistent clarity are achieved across speech and music applications.
Wide and even sound coverage
A constant-directivity high-frequency horn delivers 100° horizontal and vertical coverage. Sound distribution is maintained evenly across listening areas, reducing hot spots and drop-offs.
Outdoor-ready weather protection
An IP55-rated enclosure is used, supported by a three-layer stainless steel grille, water-resistant woofer, industrial polyurethane coating, and a molded input-panel cover. Long-term reliability is supported in exposed outdoor environments.
Integrated 70/100V transformer with bypass
A weather-sealed internal transformer is included with selectable tap settings. An 8-ohm bypass allows use in low-impedance live sound systems without additional hardware.

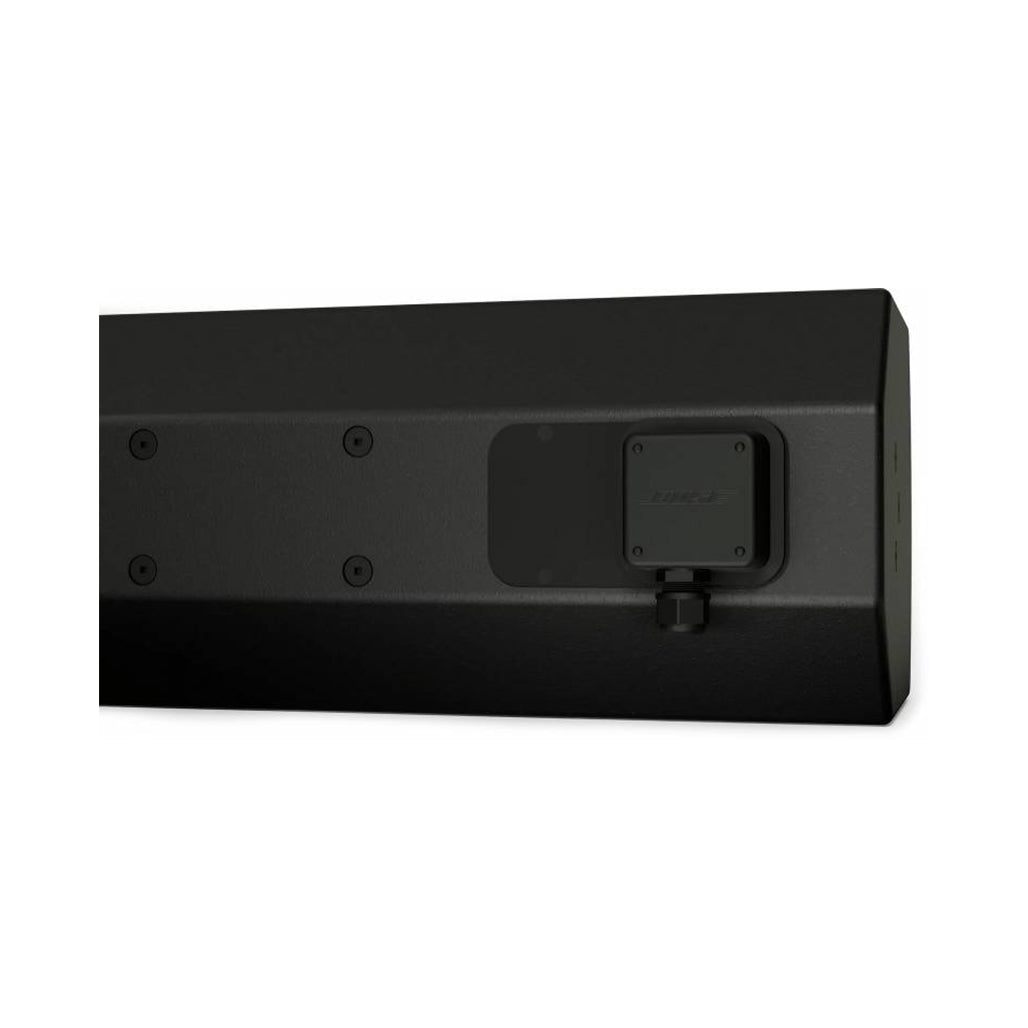

Flexible mounting and suspension options
Stainless-steel U-bracket mounting is supported through M8 threaded inserts. Compatibility is provided for surface-mount, pan-and-tilt, single-point suspension, and pole-mount accessories.
Compact and durable cabinet design
Exterior-grade plywood construction is used, along with rust-resistant suspension points. Structural integrity is maintained while keeping the enclosure unobtrusive.
Optimized system integration
Factory-tuned loudspeaker presets are available when paired with Bose Professional amplifiers and processors. Faster configuration and predictable performance are supported across installations.
Stocked availability and design flexibility
The AMU105 is offered as a stocked product with no custom-order requirements and is available in black or white finishes to suit architectural aesthetics.
Specifications
Compliance
EN 54-24 certified for voice alarm systems in fire detection and alarm installations
Physical
Black finish
Exterior-grade plywood enclosure
Indoor or outdoor use with IP55 environmental rating
Three-layer powder-coated stainless steel grille system
IP55 ingress protection per EN60529; IP33C per EN 54-24

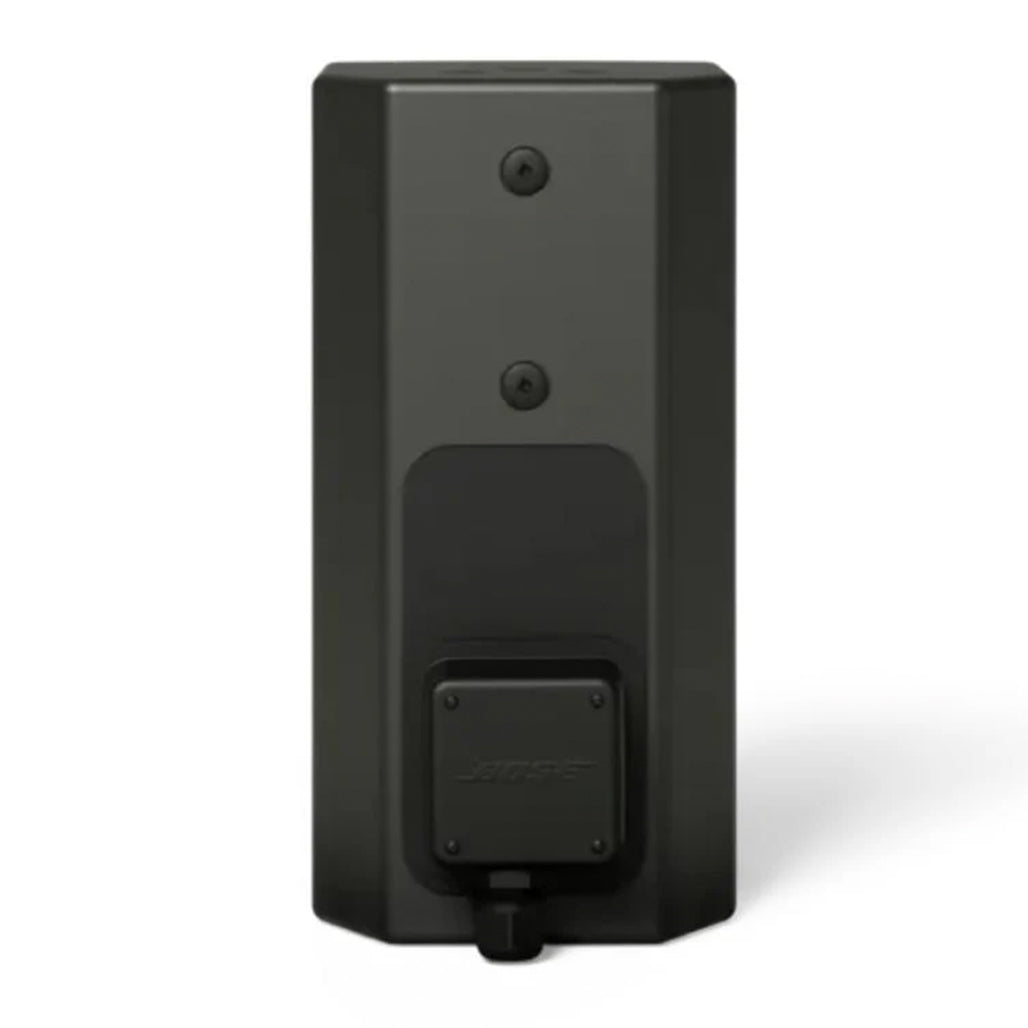

Mounting via 2 × M8 threaded inserts for U-bracket and 2 × rear M8 threaded inserts (75 mm spacing)
Dimensions: 6.0 in × 12.0 in × 9.0 in (152 mm × 304 mm × 229 mm) with input cover
Net weight: 14.4 lb (6.5 kg); 16.5 lb (7.5 kg) with U-bracket
Shipping weight: 21.0 lb (9.5 kg)
Performance
Frequency range (-10 dB): 90 Hz – 18,000 Hz
Horizontal coverage: 100°
Vertical coverage: 100°
Calculated maximum SPL @ 1 m: 116 dB free field, 118 dB wall/ceiling
Nominal impedance: 8 Ω
Long-term continuous power handling: 100 W
Peak power handling: 400 W
Sensitivity: 90 dB free field, 92 dB wall/ceiling
Transformer taps (100V): 10 W, 20 W, 40 W, 80 W
Transformer taps (70V): 5 W, 10 W, 20 W, 40 W, 80 W
Transducers
Passive crossover at 2.0 kHz
High-frequency: 1 × Bose Professional EMB2S compression driver with 2 in (51 mm) voice coil
Low-frequency: 1 × Bose Professional LF5 5.25 in (133 mm) high-excursion woofer with 1.5 in (38 mm) voice coil
Conclusion
The ArenaMatch AMU105 compact loudspeaker is engineered to deliver consistent, high-quality sound in demanding indoor and outdoor environments. Wide coverage, weather-rated durability, and flexible system integration are combined in a discreet form factor, making it a dependable choice for professional installations where clarity, reliability, and design adaptability are required.
