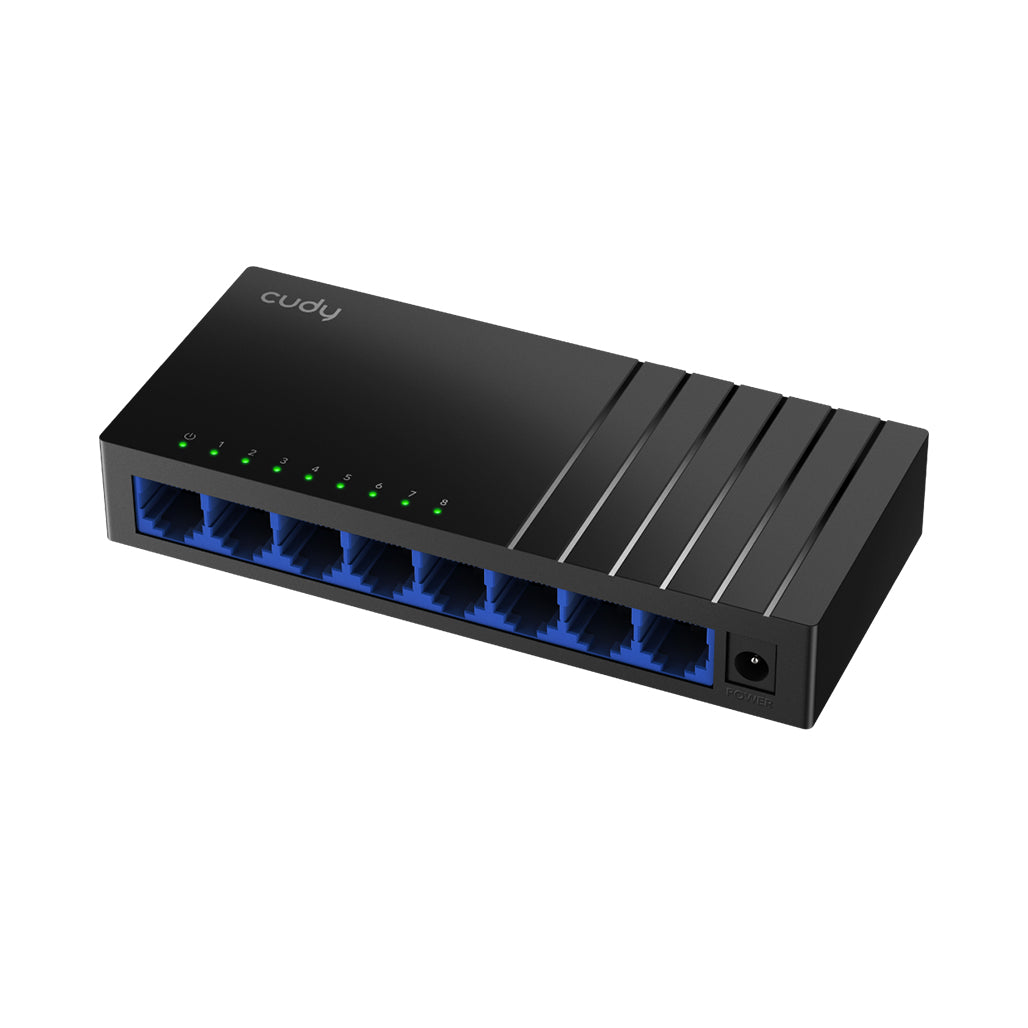

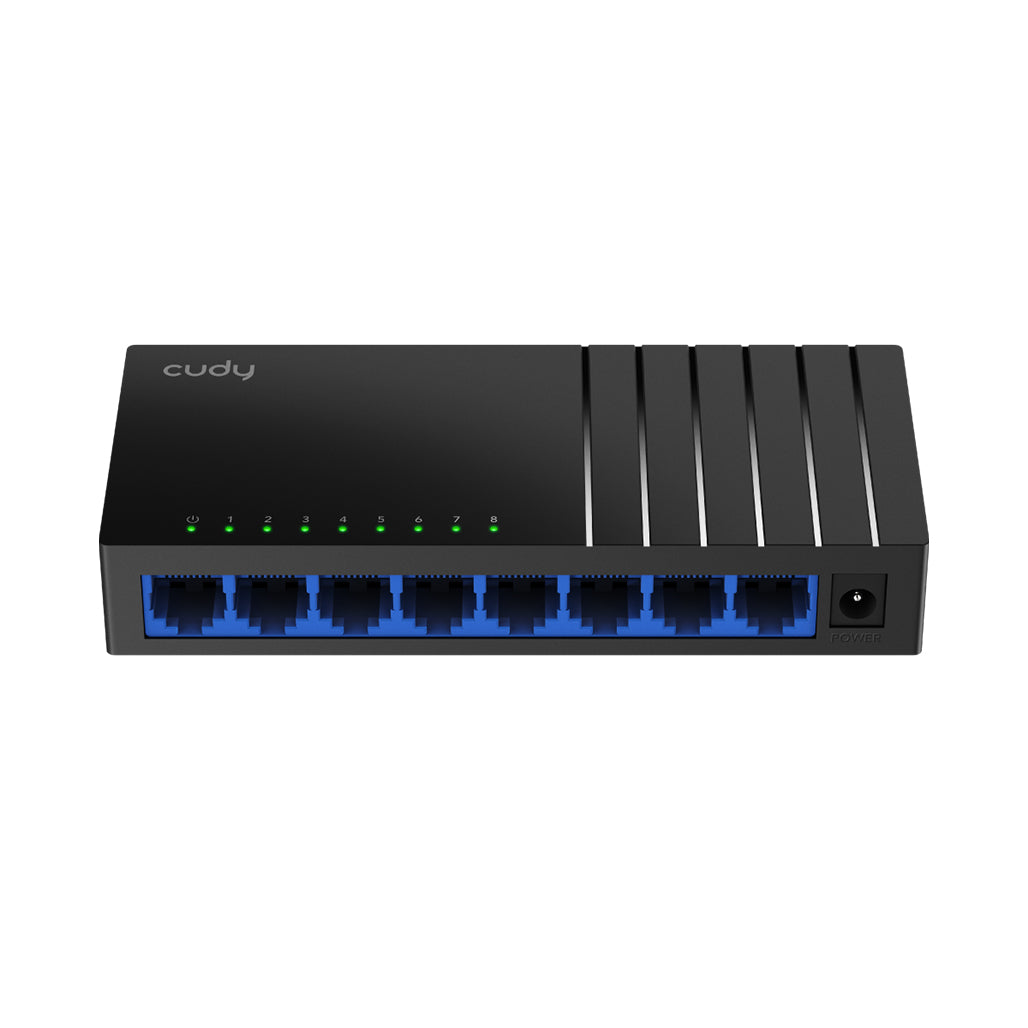

Cudy 8-Port Gigabit Switch - GS108D

Reliable high-speed network connectivity is provided through an 8-port Gigabit unmanaged switch designed for stable and efficient data transmission in both home and office environments. Seamless network expansion is enabled through multiple Gigabit RJ45 ports, allowing wired devices such as PCs, printers, access points, and surveillance systems to be connected without configuration requirements. Enhanced long-distance transmission support is delivered, with stable Gigabit performance maintained up to extended cable runs when high-quality cabling is used.

Efficient operation is achieved through a compact and fanless design, ensuring silent performance and flexible installation options. Low power consumption is maintained while high switching capacity is supported, making the device suitable for continuous 24/7 networking environments. Robust traffic handling is ensured through a large MAC address table and advanced switching capabilities, allowing smooth data flow even under heavy network loads.

Key Features

• 8× Gigabit Ethernet Ports – High-speed wired connectivity is provided for multiple devices simultaneously.
• Long-Distance Transmission (up to 170m) – Extended Gigabit performance is supported with suitable cabling for flexible network layouts.
• High Switching Capacity (16 Gbps) – Fast and stable data distribution is enabled across all connected devices.
• Low Power Consumption (Max 2.75W) – Energy-efficient operation is maintained during continuous usage.
• Compact & Lightweight Design – Easy installation is supported in tight spaces or desktop setups.
• Wall-Mount & Desktop Installation – Flexible placement is allowed for different network environments.
• Advanced Network Stability Features – Loop prevention, loop detection, and IGMP snooping are included for optimized traffic management.
• Silent Operation – Fanless design ensures noise-free performance.

Full Specifications

Model Version: GS108D 4.0

Interfaces

• Gigabit RJ45 Ports: 8
• LED Indicators: Power, Link/ACT of each Ethernet port

Performance

• Max Copper Speed and Distance:
  • Cat. 3 or higher: 100 meters at 10 Mbps
  • Cat. 5 or higher: 100 meters at 100 Mbps
  • Cat. 5e or higher: 170 meters at Gigabit
• MAC Address Table: 8192
• Max Switching Capacity: 16 Gbps
• Max Forwarding Rate: 11.904 Mpps
• Jumbo Frame: 15 KB
• Packet Buffer: 4 Mbit

Power

• Power Input Type: DC Jack
• Power Methods: DC
• Power Input: 5V⎓0.55A
• Power Adapter:
  • Input: 100–240V~, 50/60Hz
  • Output: 5V⎓0.55A
• Max Power Consumption: 2.75W
• Idle Power Consumption: 2.2W
• Basic Power Saving: Supported

Switching Standards

• IEEE 802.3x Flow Control
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T

L2 Features

• IGMP Snooping
• Loop Prevention
• Loop Detection

Reliability

• EMS Standards: IEC/EN 61000-4-2, Level 2 ESD (Contact: 4kV; Air: 8kV)
• IEC/EN 61000-4-5, Level 3 Surge: 2kV

Environment

• Operating Temperature: 0℃ ~ 40℃ (32℉ ~104℉)
• Storage Temperature: -40℃ ~ 70℃ (-40℉ ~158℉)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

Mechanical

• Dimensions: 138 × 61.5 × 24 mm (5.43 × 2.42 × 0.94 inches)
• Product Weight: 89 g (3.14 oz.)
• Casing Material: Plastic
• Installation Methods: Desktop, Wall-mount

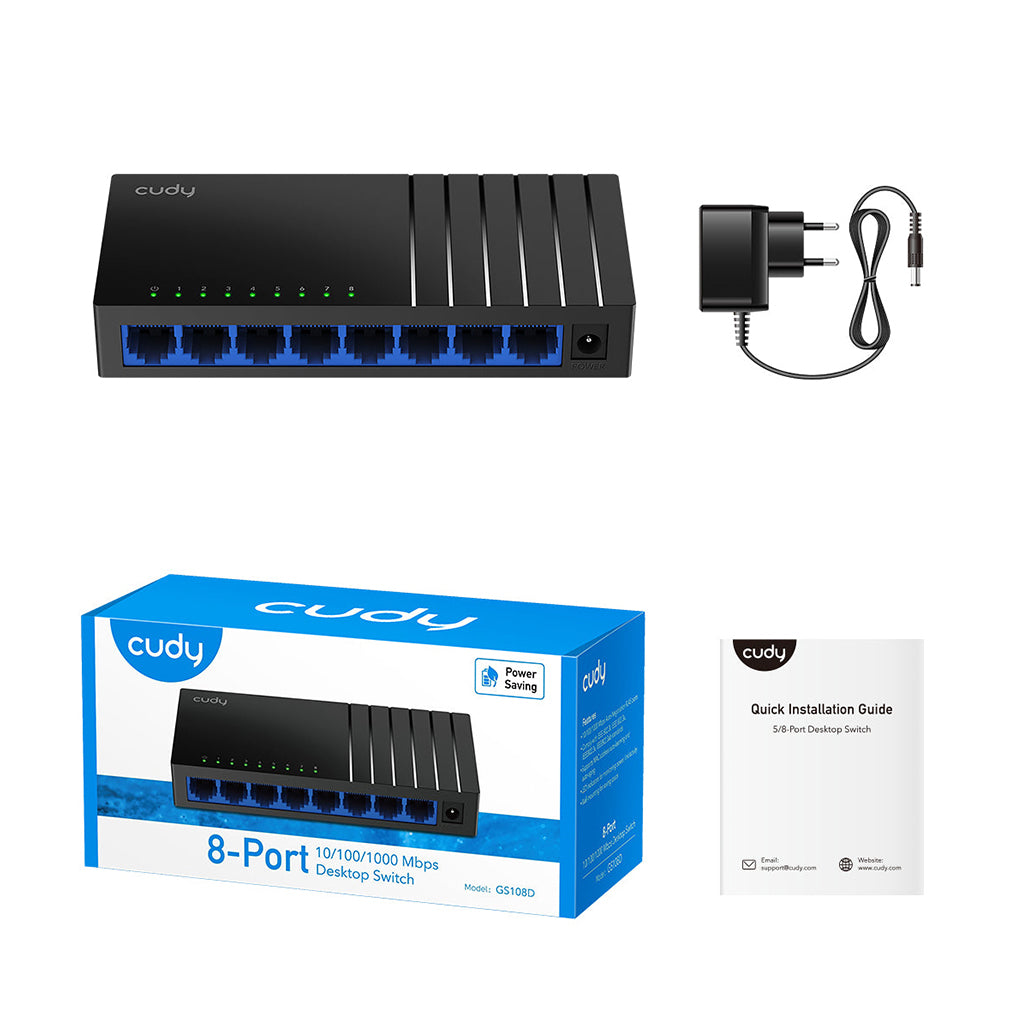

Package Content

• GS108D Switch
• Power Adapter
• Installation Guide

Ordering Information

• Retail Package Dimension (EU/US): 151 × 75 × 63 mm
• Retail Package Dimension (UK): 151 × 75 × 81 mm
• Retail Package Weight:
  • EU: 210 g
  • UK: 239 g
  • US: 195 g
• Units per Carton: 50
• Carton Net Weight:
  • EU: 10.5 kg
  • UK: 11.9 kg
  • US: 9.8 kg
• Carton Gross Weight:
  • EU: 10.7 kg
  • UK: 12.8 kg
  • US: 10.4 kg
• Carton Dimension:
  • EU/US: 33 × 31.7 × 39.5 cm
  • UK: 43 × 32.5 × 40 cm

Conclusion

Stable wired networking performance is delivered through a compact unmanaged switching solution designed for efficient data distribution across multiple devices. Long-distance Gigabit transmission capability, low power usage, and advanced traffic management features are combined to support reliable operation in both residential and professional network environments. Flexible installation options and robust hardware design ensure consistent performance under continuous use conditions.
