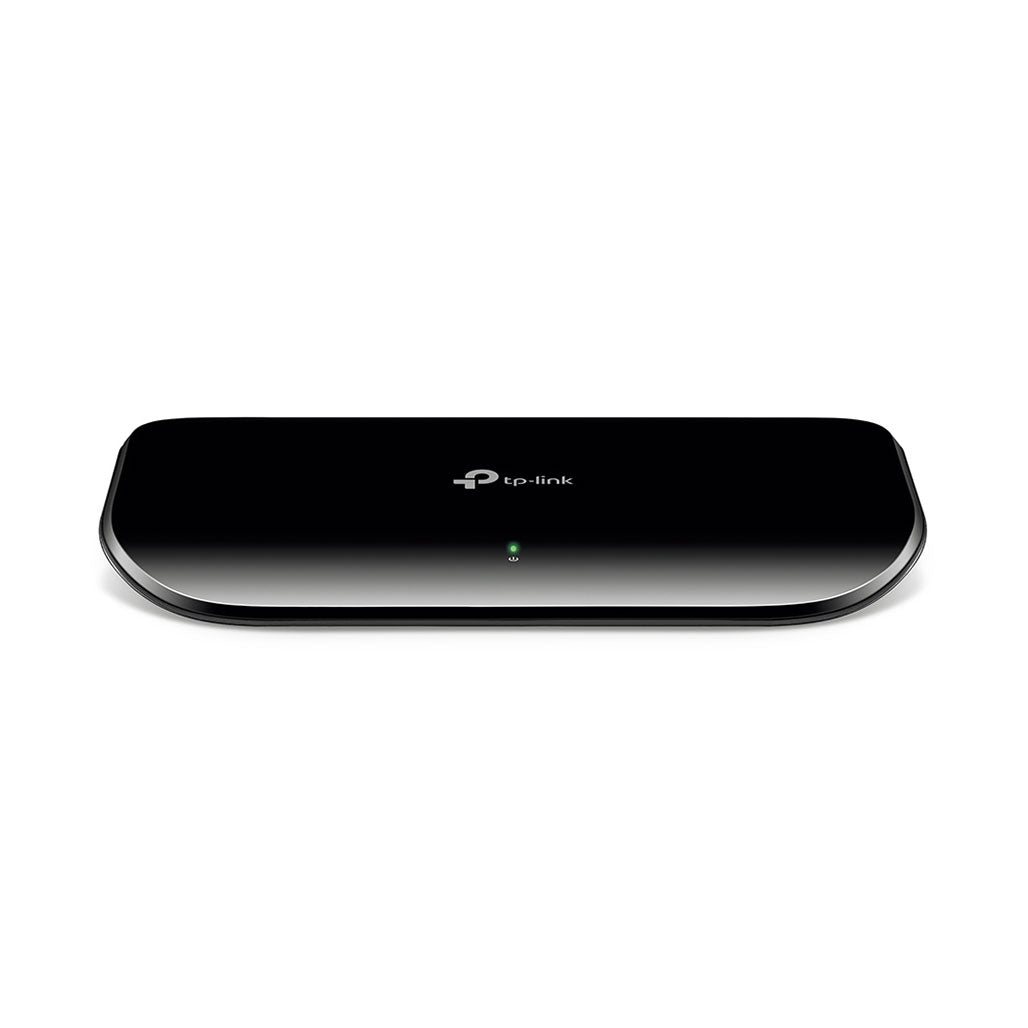

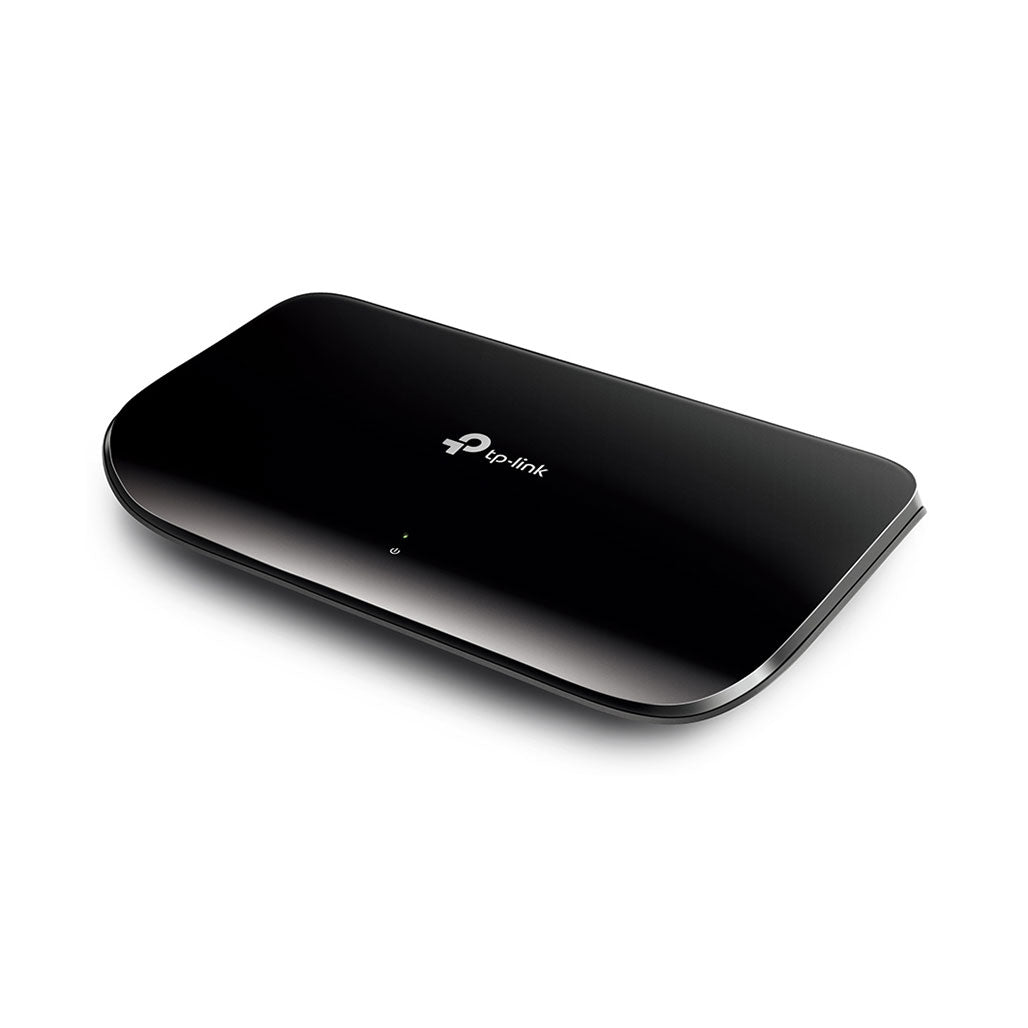

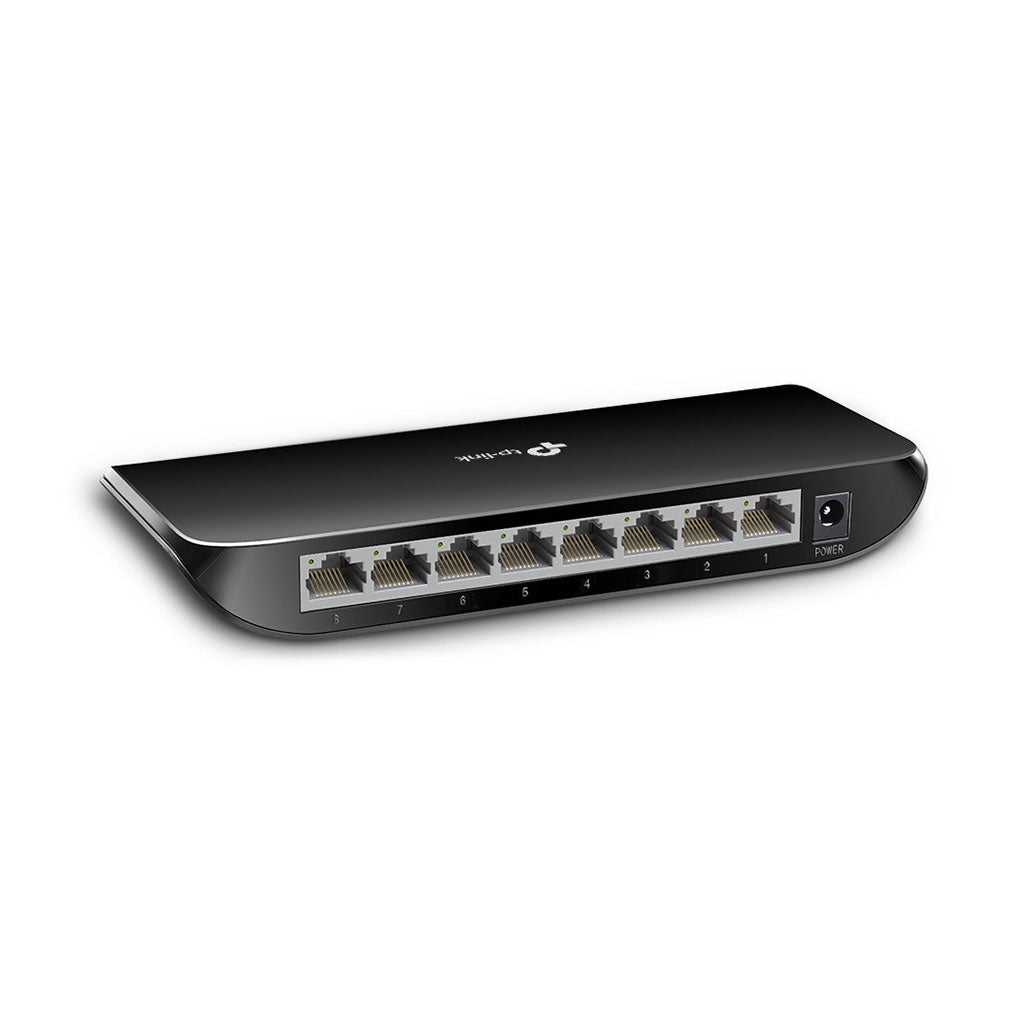

TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch | Energy-Efficient, Plug-and-Play, Wall-Mountable

The TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch is designed to provide high-speed network connectivity with simplicity and efficiency. Featuring 8 Gigabit RJ45 ports that support auto-negotiation and auto MDI/MDIX, this switch ensures effortless setup and seamless network expansion.

Built with Green Ethernet technology, the TL-SG1008D optimizes power usage, saving up to 80% on power consumption. Its fanless design and compact plastic case make it suitable for desktop or wall-mounted installations, providing a versatile solution for home or small office networks.

Key Features

• 8 Gigabit Ports: Includes 8× 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, allowing for straightforward plug-and-play connections.
• Energy Efficiency: Implements Green Ethernet technology to reduce power consumption by up to 80%, aligning with eco-friendly practices.
• High Performance: Provides a switching capacity of 16 Gbps and supports a MAC address table of 4K, facilitating efficient data transfer and network scalability.
• Flexible Installation: Designed for both desktop and wall-mounting use with a compact plastic case that fits well in various environments.
• Reliability: Incorporates IEEE 802.3x flow control for reliable data transfer and back pressure flow control to manage traffic congestion.

Specifications

Hardware Features

• Standards and Protocols:
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
• Interface:
  • 8× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Physical Security Lock: No
• External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
• Jumbo Frame: 15 KB
• Switching Capacity: 16 Gbps
• Dimensions (W x D x H): 7.1 × 3.5 × 1.0 in (180 × 90 × 26 mm)
• Max Power Consumption: 4.6W
• Max Heat Dissipation: 15.8 BTU/h

Software Features

• Transfer Method: Store-and-Forward
• MAC Address Table: 4K
• Advanced Functions:
  • Green Technology (up to 80% power savings)
  • IEEE 802.3x Flow Control
  • Back Pressure

Others

• Certification: FCC, RoHS
• Package Contents:
  • 8-Port Gigabit Desktop Switch TL-SG1008D
  • Power Adapter
  • Installation Guide
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~60℃ (-40℉~140℉)
  • Operating Humidity: 10%~90% RH non-condensing
  • Storage Humidity: 5%~90% RH non-condensing

Conclusion

The TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch combines high-performance networking with energy-efficient technology, offering a cost-effective and eco-friendly solution for expanding network capabilities. Its ease of use, compact design, and versatile mounting options make it an ideal choice for home and small office environments.
