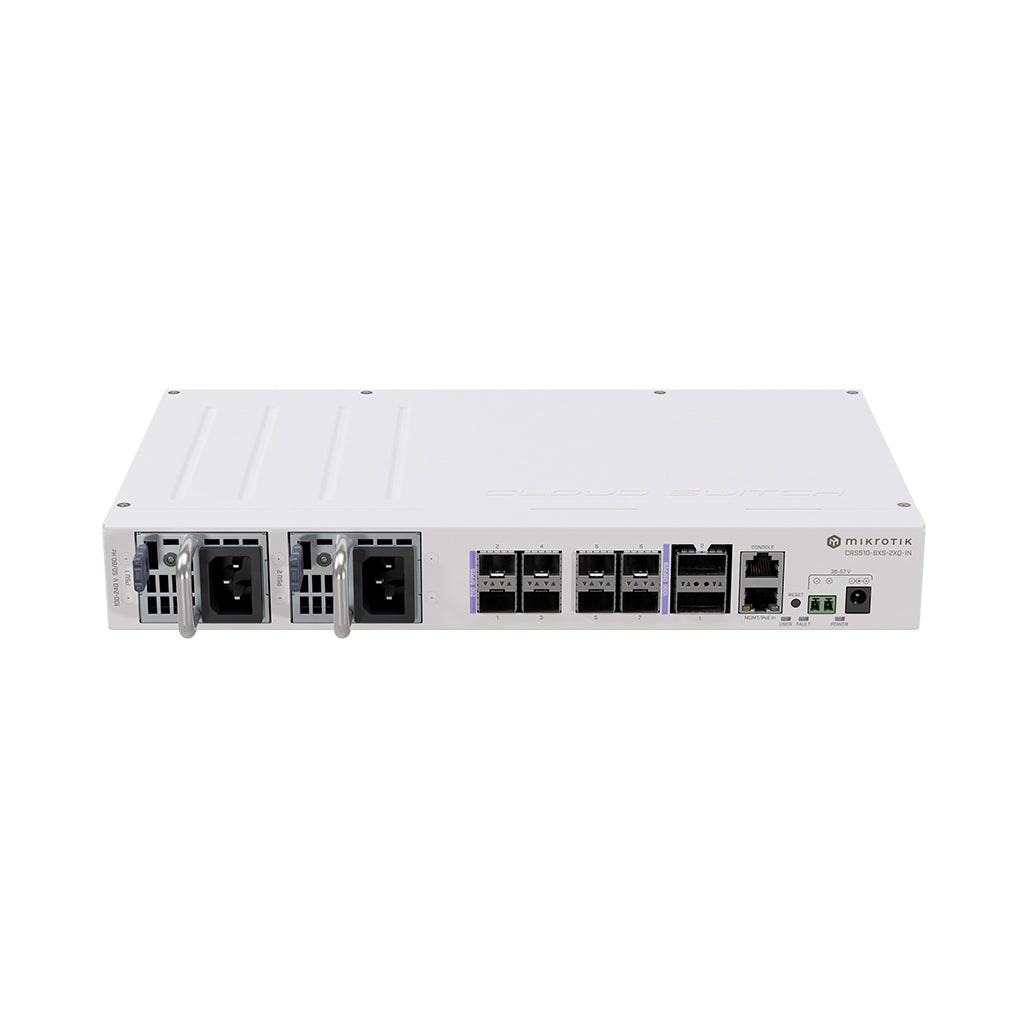

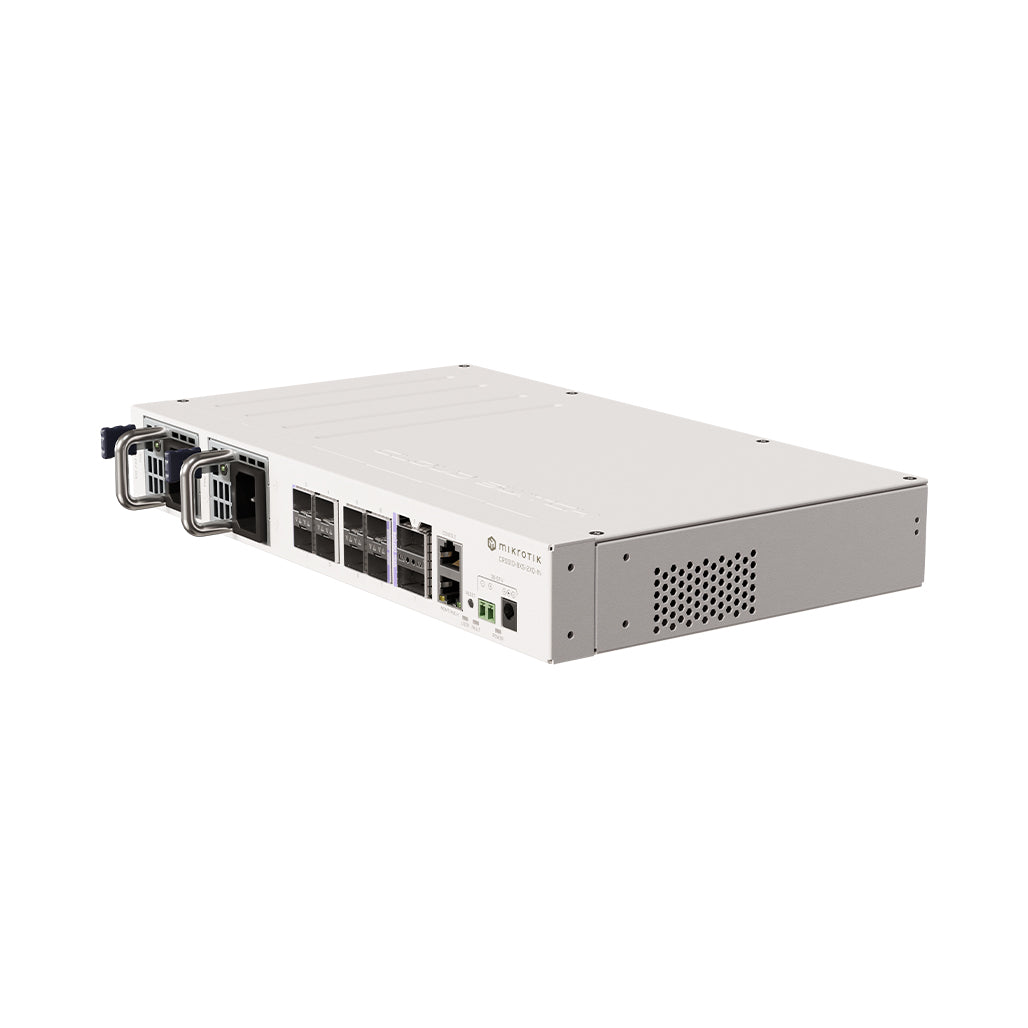

Mikrotik 8x Gigabit Ethernet Ports & 2x 100G QSFP28 Ports Switch | CRS510-8XS-2XQ-IN

The Mikrotik CRS510-8XS-2XQ-IN is an advanced 1U rackmount switch that combines high-speed connectivity with versatile port options, making it a valuable addition to any modern network setup. Featuring two 100 Gigabit QSFP28 ports and eight 25 Gigabit SFP28 ports, this switch delivers exceptional performance for high-bandwidth applications and large data transfers. Its backward compatibility with various connection standards, including 40 Gigabit, 25 Gigabit, 10 Gigabit, and Gigabit Ethernet, ensures seamless integration into existing infrastructure.

Designed for efficiency, the CRS510-8XS-2XQ-IN supports VLANs, ACL, MLAG, and Jumbo frames, with advanced L3 hardware offloading capabilities. Its low power consumption of up to 27W (without attachments) is achieved with the Marvell Prestera switch chip, which optimizes performance while keeping energy use in check. With dual hot-swap power supplies and multiple powering options, including PoE-in, DC jack, and a 2-pin terminal, this switch is engineered for reliability and minimal downtime.

Key Features:

• Dual 100G QSFP28 Ports: Provides ultra-fast connectivity for high-bandwidth demands and future-proofing your network.
• Eight 25G SFP28 Ports: Supports high-speed data transfers with flexibility for various network setups.
• Versatile Compatibility: Accommodates 40G, 25G, 10G, and Gigabit connections, ensuring broad network integration.
• Advanced Switching Capabilities: Handles VLANs, ACLs, MLAG, Jumbo frames, and L3 hardware offloading.
• Efficient Power Management: Consumes up to 27W without attachments, with dual hot-swap power supplies and multiple powering options for reliability.
• Cooling System: Equipped with dual fans to maintain optimal operating temperatures.

Specifications:

• Product Code: CRS510-8XS-2XQ-IN
• Architecture: MIPSBE
• CPU: QCA9531
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• Switch Chip Model: 98DX4310
• RouterOS License: 5
• Operating System: RouterOS v7
• Size of RAM: 128 MB
• Storage Size: 32 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240 V
• Number of DC Inputs: 3 (DC jack, PoE-IN, 2-pin terminal)
• DC Jack Input Voltage: 36-57 V
• 2-Pin Terminal Input Voltage: 36-57 V
• Frequency (Hz): 47-63
• Max Power Consumption: 45 W
• Max Power Consumption Without Attachments: 27 W

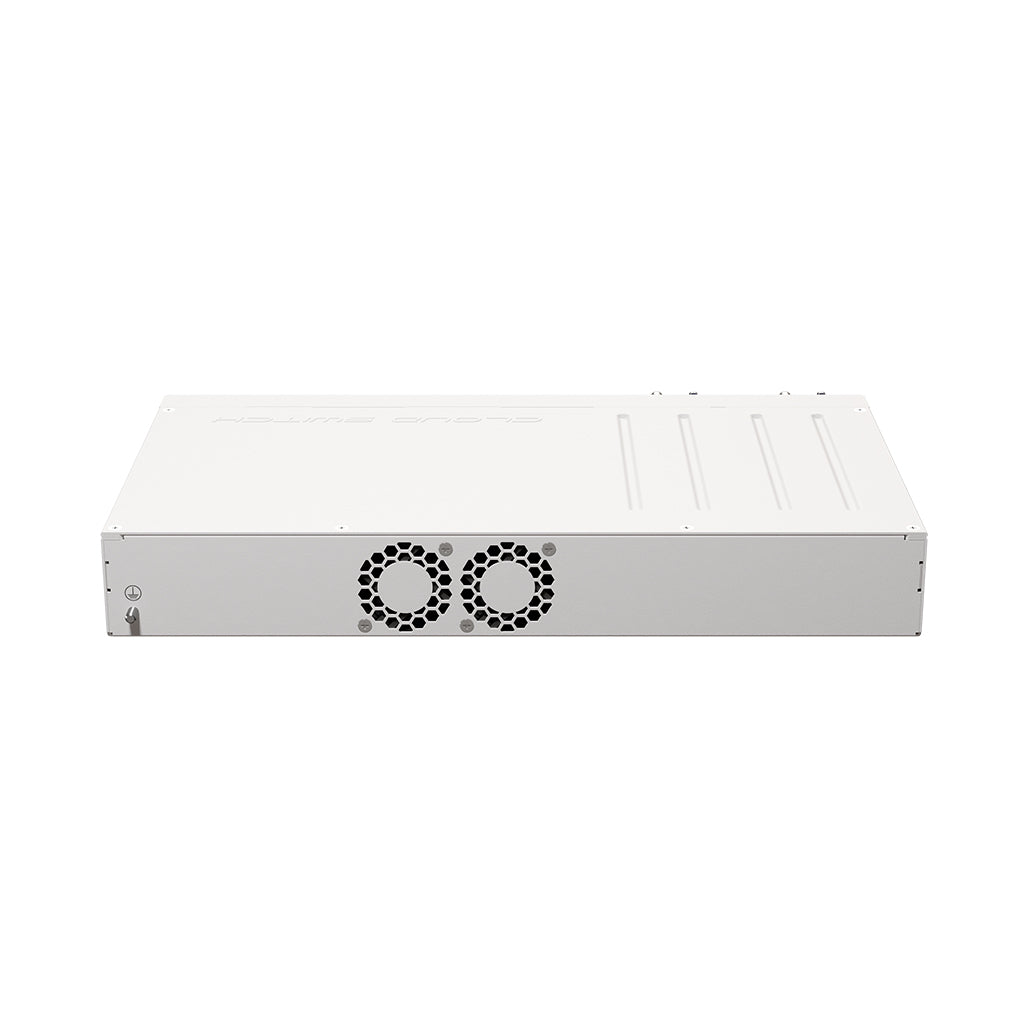

• Cooling Type: 2 Fans
• PoE In: 802.3 bt
• PoE In Input Voltage: 42.5-57 V

Ethernet:

• 10/100 Ethernet Ports: 1

Fiber:

• Number of 25G SFP28 Ports: 8
• Number of 100G QSFP28 Ports: 2

Peripherals:

• Serial Console Port: RJ45

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik CRS510-8XS-2XQ-IN is a high-performance switch that offers a perfect blend of speed, flexibility, and reliability. With its dual 100G QSFP28 ports and eight 25G SFP28 ports, it supports a wide range of networking needs and ensures efficient operation with minimal power consumption. Its advanced features, versatile compatibility, and robust power management make it an excellent choice for modern data centers and enterprise networks.
