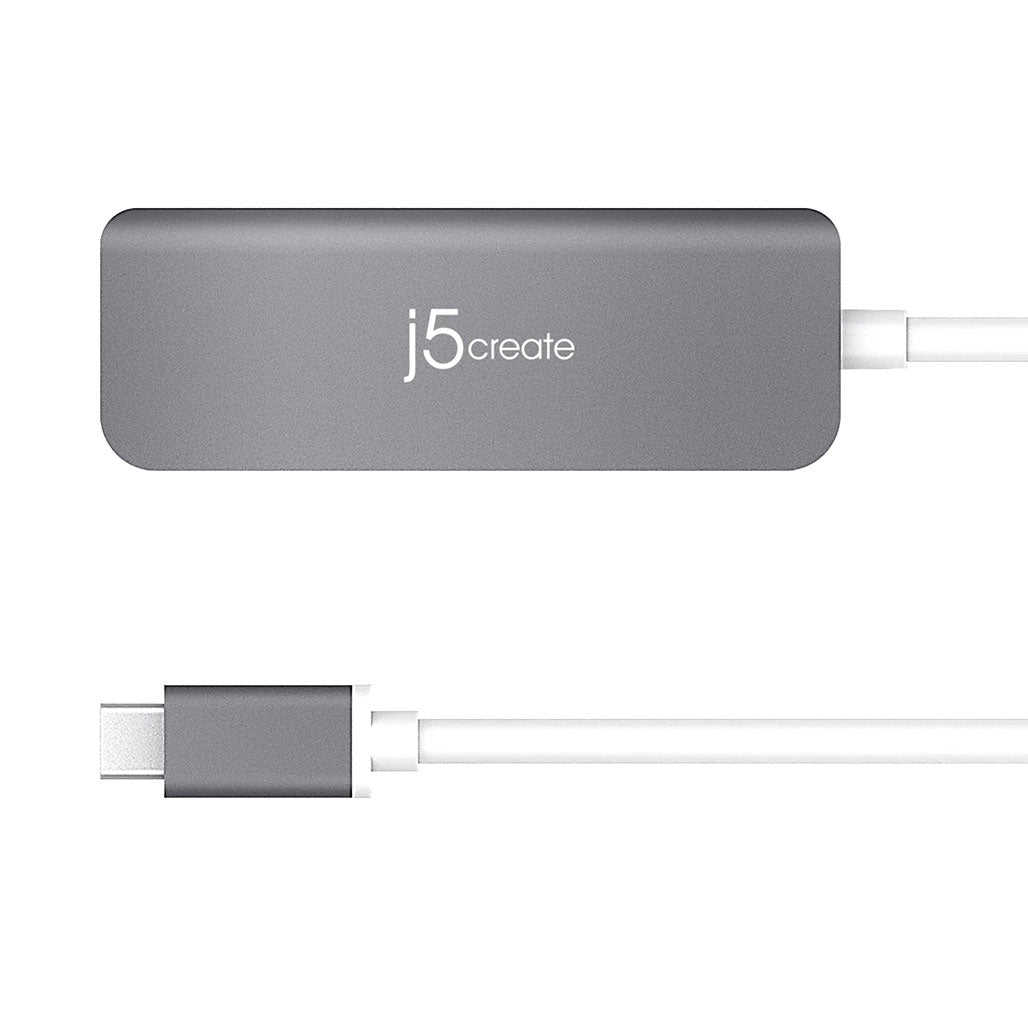

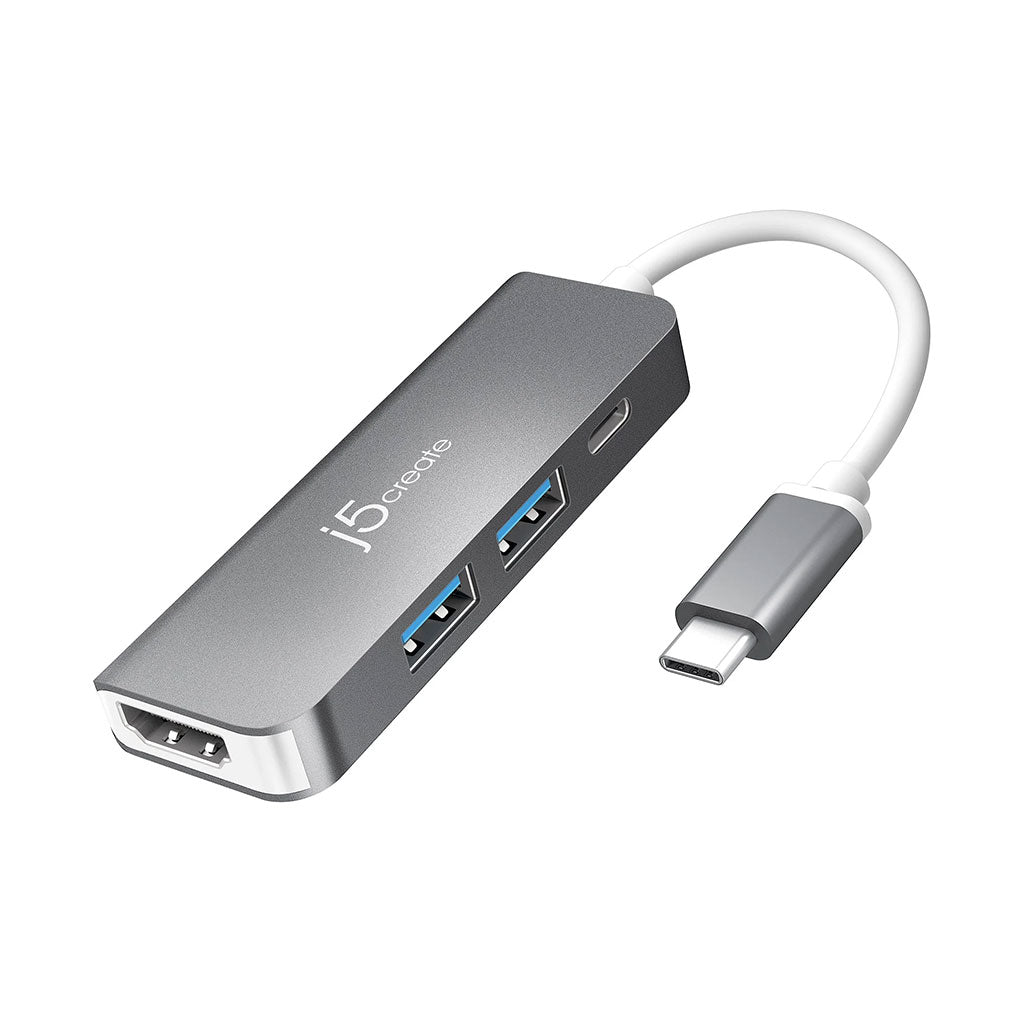

J5 Create USB-C to HDMI & USB 3.1 2-Port Adapter with Power Delivery - JCD371

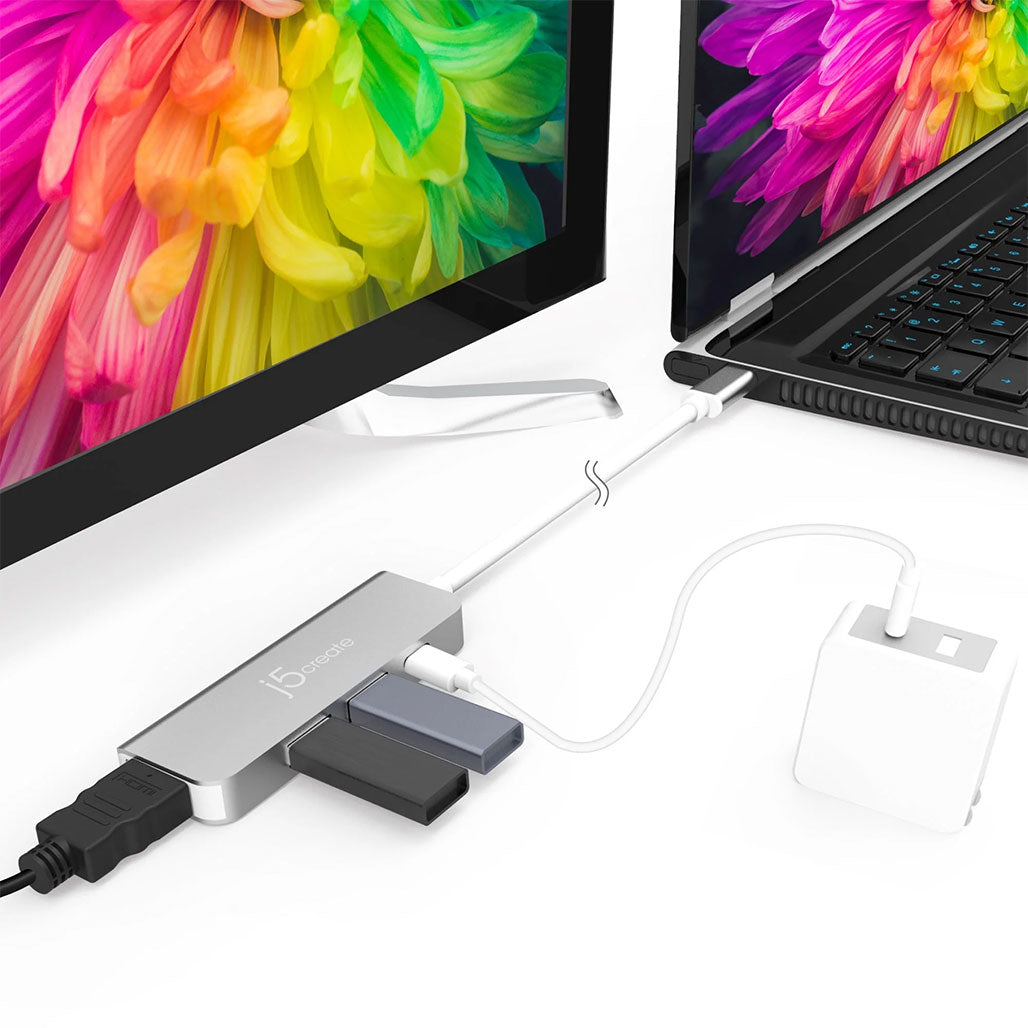

Enhance your USB-C laptop’s versatility with the J5Create USB-C to HDMI & USB 3.1 2-Port Adapter with Power Delivery JCD371. This slim, space-grey dongle delivers two USB 3.1 Gen 2 ports for high-speed 5 Gbps data transfers alongside a 4K-capable HDMI output. Plug into any USB-C port to connect peripherals—like keyboards, mice, and flash drives—while extending or mirroring your screen to HDTVs and monitors. A built-in USB-C PD passthrough up to 60 W keeps your laptop charged, ensuring uninterrupted productivity whether you’re at home, in the office, or on the go.

Key Features

• Dual USB 3.1 Gen 2 Ports
  Two Type-A ports provide up to 5 Gbps for external drives and accessories.

• 4K HDMI Output
  Mirror or extend your desktop at up to 3840 × 2160 @ 30 Hz for crisp video and presentations.

• 60 W USB-C Power Delivery
  Passes through charging power to your laptop, so you never run out of battery mid-task.

• Compact, Durable Build
  Rugged aluminum and ABS enclosure in space-grey finish fits easily in a pocket or bag.

Specifications

Hardware

• Audio Supported: Yes

• Host Connector: 1 × USB-C Male

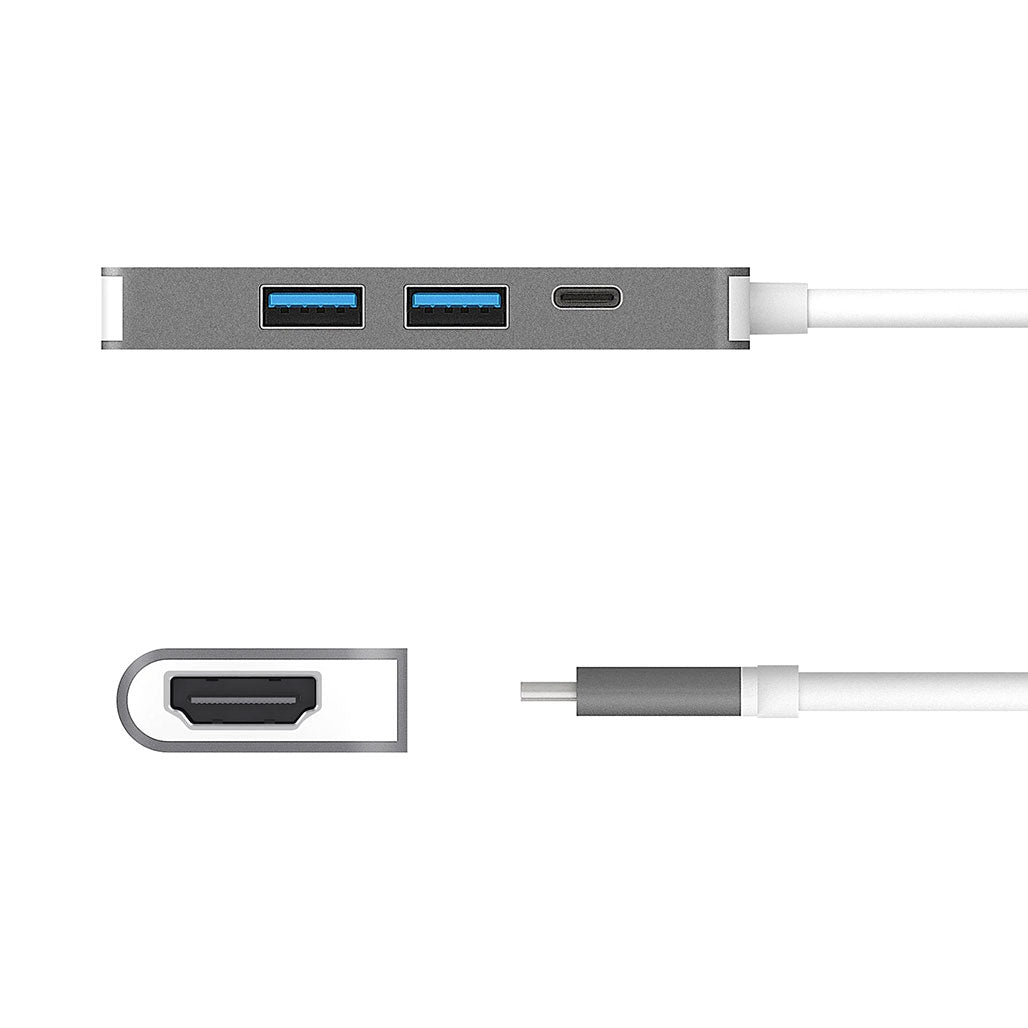

• Ports:

  • 2 × USB-A 3.1 Gen 2 (5 Gbps)

  • 1 × USB-C Power Delivery 2.0 (up to 60 W)

  • 1 × HDMI Female (4K UHD @ 30 Hz)

• Power Source: Bus-powered or self-powered

Performance

• Audio Channel: 2.1 via HDMI

• Displays Supported: 1

• Max Data Transfer Rate: 5 Gbps

• Max Display Refresh Rate: 30 Hz

• Max Display Resolution: 3840 × 2160 @ 30 Hz

Power

• Power Consumption: ≤ 500 mA

• Power Delivery: Up to 60 W via USB-C

Physical Specifications

• Cable Length: 3.94 in. (100 mm)

• Color: Space Grey

• Enclosure Type: Aluminum, ABS Plastic

• Operating Humidity: < 85% non-condensing

• Operating Temperature: 30 – 106 °F (–1 – 41 °C)

• Product Depth: 0.4 in. (10 mm)

• Product Height: 3.11 in. (79 mm)

• Product Weight: 1.13 oz (32 g)

• Product Width: 0.9 in. (23 mm)

• Storage Humidity: < 85% non-condensing

• Storage Temperature: 0 – 155 °F (–17 – 68 °C)

Package Contents

• 1 × JCD371 USB-C to HDMI & USB 3.1 2-Port Adapter with Power Delivery

• 1 × Quick Installation Guide (QIG)
