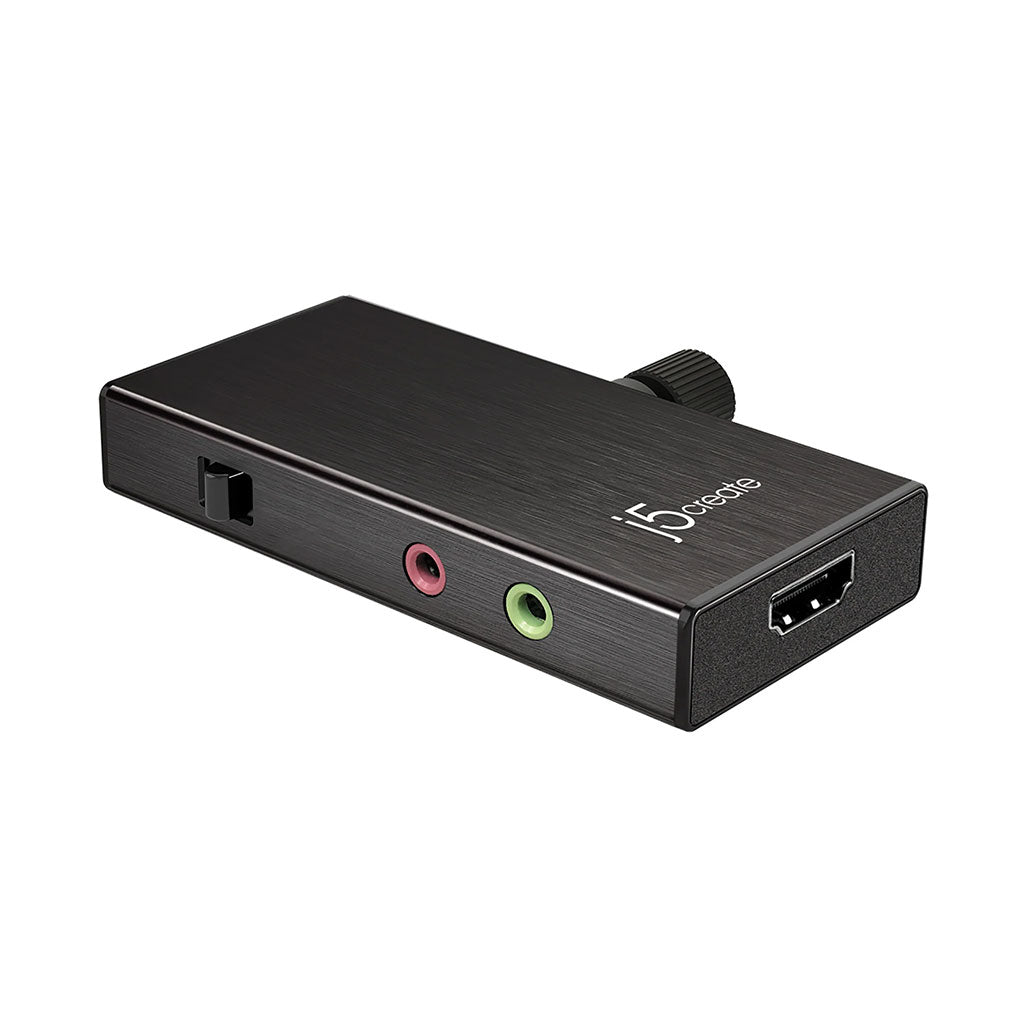

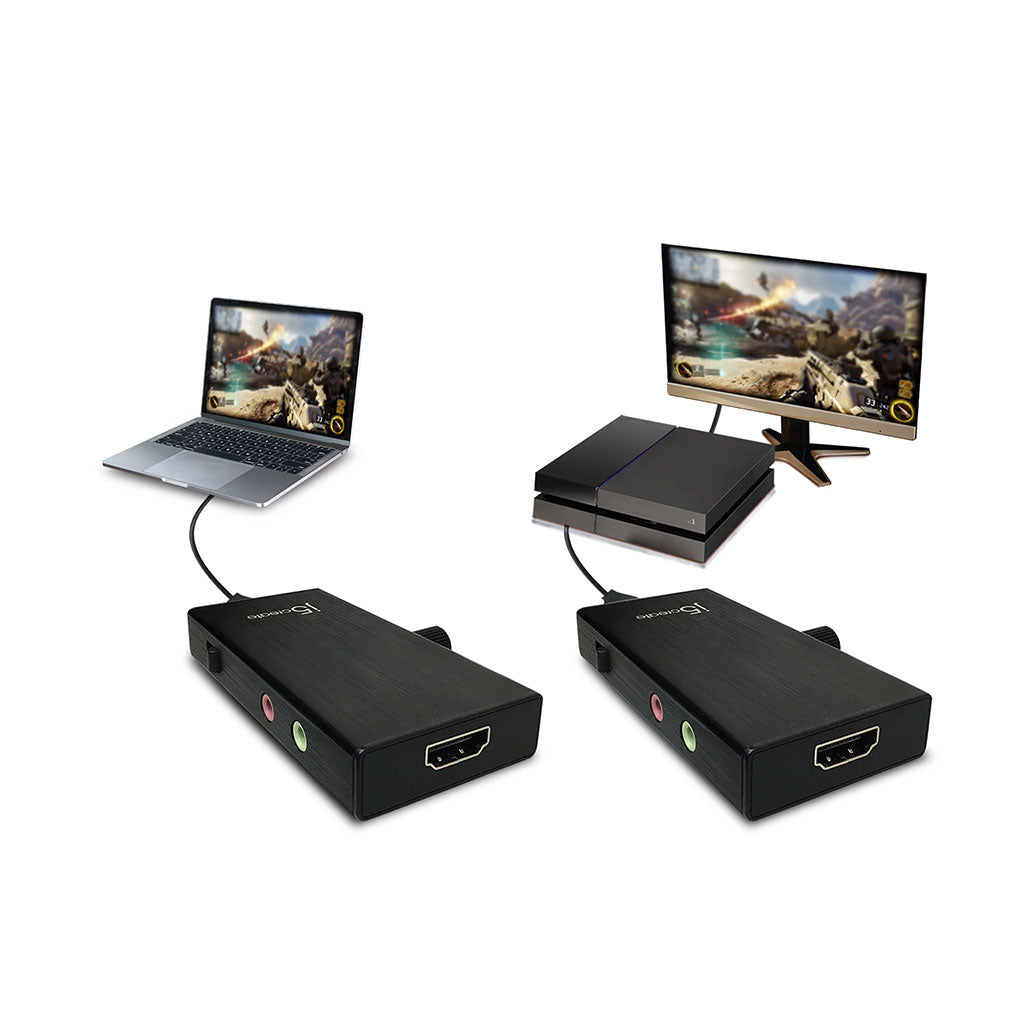

Capture and stream studio-quality video with the J5Create Live Capture Adapter JVA02. This precision-engineered HDMI™ capture card delivers uncompressed 1080p @ 60 fps over USB™ 3.0, while USB-C™ Power Delivery 3.0 keeps your camera and peripherals powered. An onboard audio mixer lets you blend Mic In and HDMI™ audio—or switch between them—without external gear. Housed in lightweight aluminum and complete with dual cold-shoe mounts, the JVA02 is built for content creators and live streamers who demand reliability and portability.
Key Features
-
Full-Motion 1080p @ 60 fps
Uncompressed video capture over USB™ 3.0 for crystal-clear, lag-free streaming. -
USB-C™ Power Delivery 3.0
Simultaneously power your camera or charge USB™ devices up to 60 W PD while broadcasting. -
Integrated Audio Mixer
Toggle between 3.5 mm Mic In, HDMI™ audio, or a combined feed for flexible sound control. -

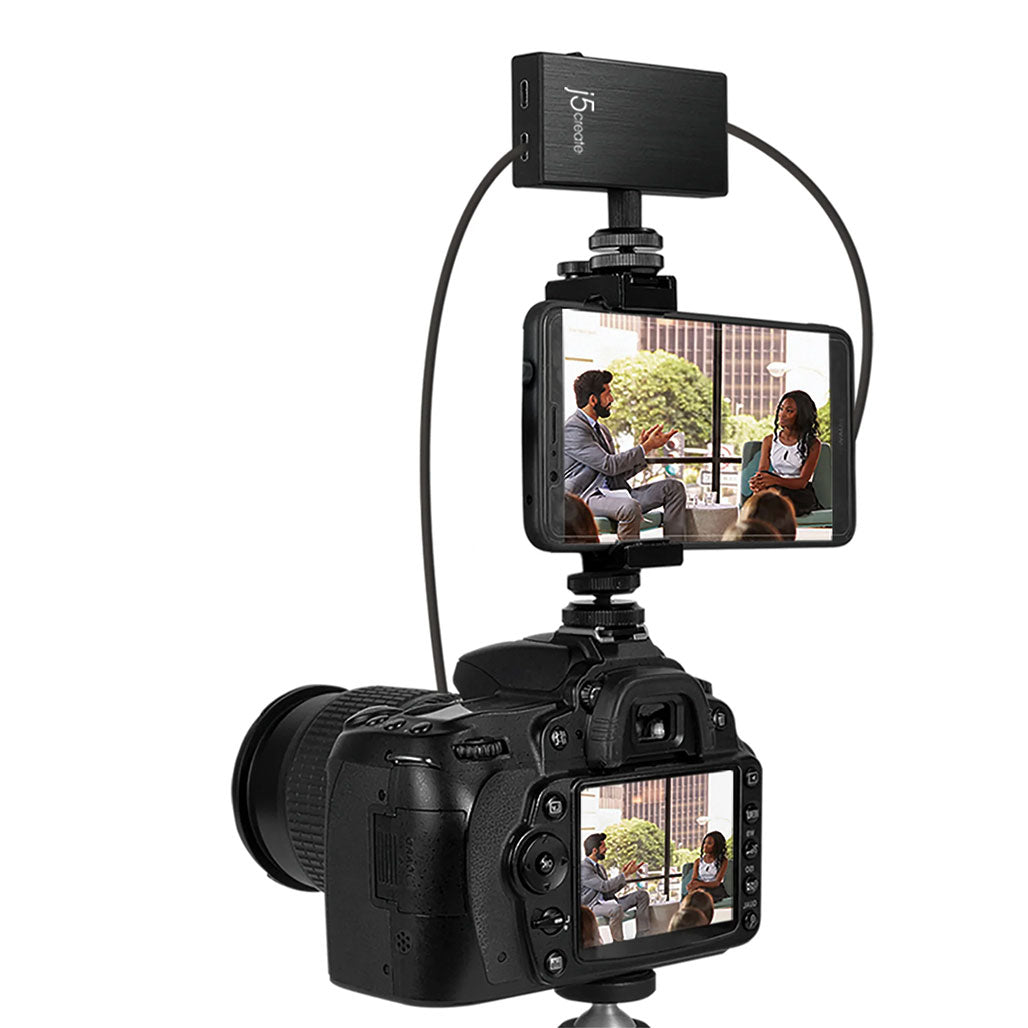

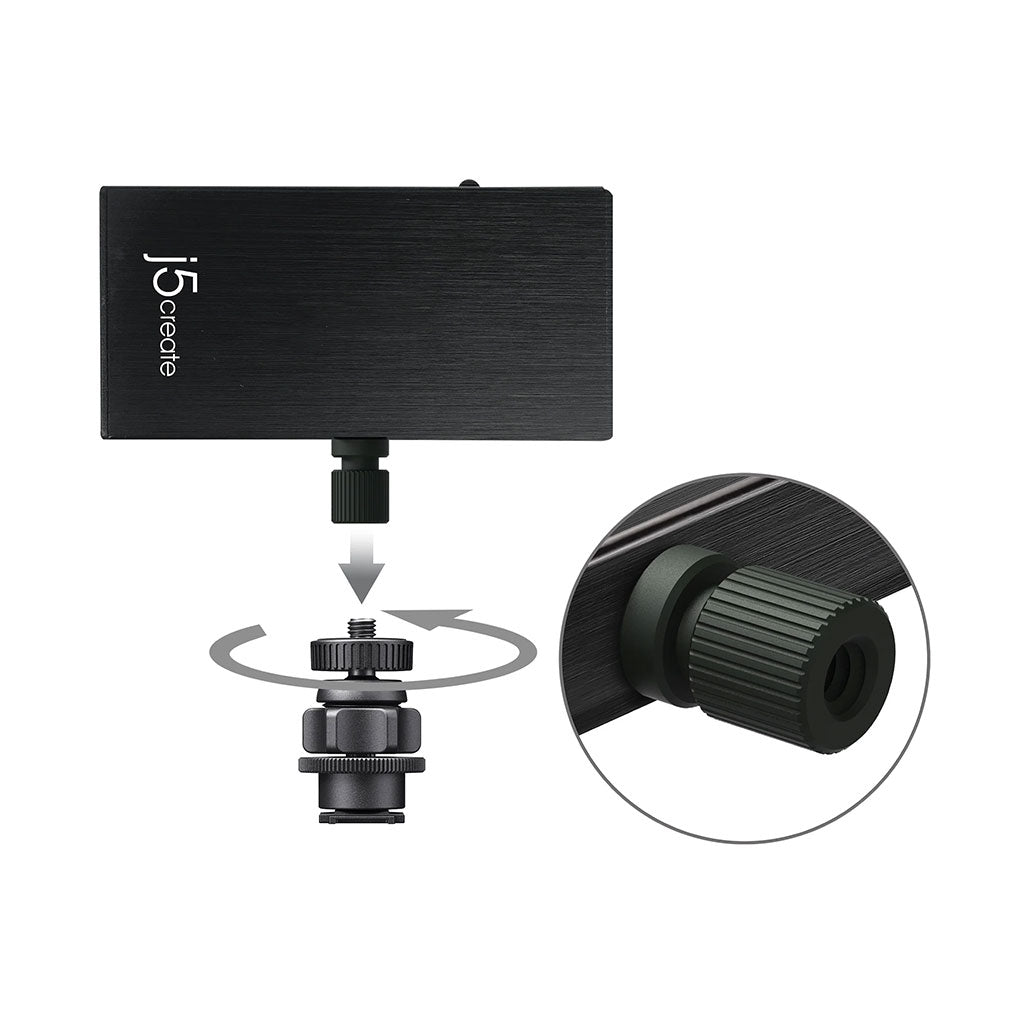

Dual Cold-Shoe Mounts
Securely attach to cameras or rigs for stable, on-the-move capture. -
Compact Aluminum Chassis
Durable, heat-dissipating design keeps the adapter cool during extended recording sessions.
Specifications
Hardware
-
Model: JVA02
-
Host Connector: USB-C® 3.1 Gen 1 Female
-
Audio I/O:
-
1 × 3.5 mm Mic In
-
1 × 3.5 mm Audio Out
-
-

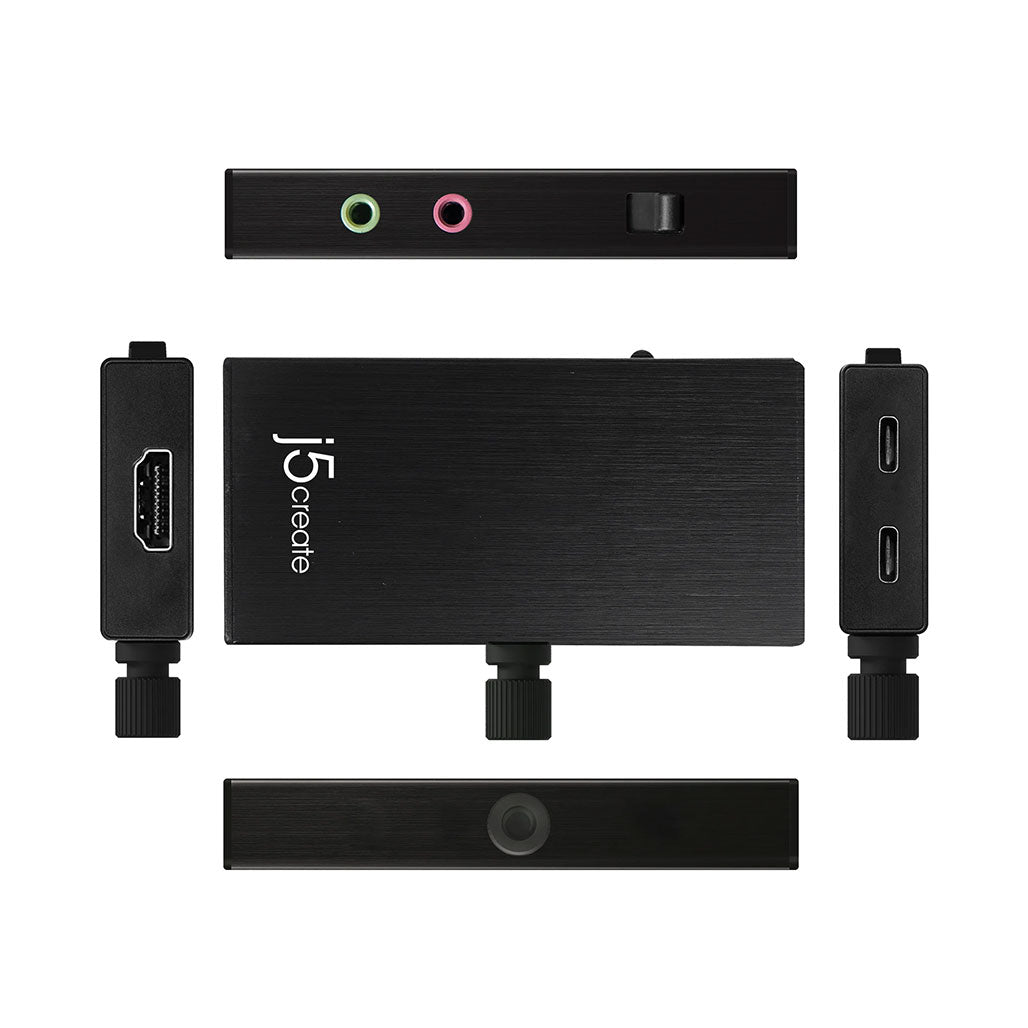

Ports:
-
1 × USB-C® 3.1 Gen 1 (Host)
-
1 × USB-C® PD 3.0 (60 W)
-
1 × HDMI™ Input
-
Performance
-
Video Capture: 1920 × 1080 @ 60 Hz
-
Audio: 2.1-channel via HDMI™, 48 kHz, 24-bit Sigma-Delta ADC
-
Compression: MJPEG/YUV 4:2:2 (USB 3.0); MJPEG (USB 2.0)
-
Encode Formats: MP4, MJPEG, H.264/AVC + AACX
Power
-
Input: 20 V ⎓ 3 A
-
Output: 20 V ⎓ 3 A
-
Consumption: ≤ 280 mA
Physical
-
Cable: 3.3 ft (1 m) USB-C™ and USB 3.0 to Type-A cables included
-
Material: Aluminum enclosure
-
Dimensions: 5.27 × 2.54 × 0.69 in (133.8 × 64.5 × 17.5 mm)
-
Weight: 5.03 oz (142.5 g)
Environmental
-
Operating Temp: 32–104 °F (0–40 °C)
-
Operating Humidity: < 80 % non-condensing
-
Storage Temp: 14–149 °F (−10–65 °C)
-
Storage Humidity: < 85 % non-condensing
Package Contents
-
1 × JVA02 Live Capture Adapter
-
1 × USB-C® 2.0 to USB-C® cable
-
1 × USB-C® 3.0 to USB™ Type-A cable
-
2 × Cold-Shoe Adapters
-
1 × Quick Installation Guide
