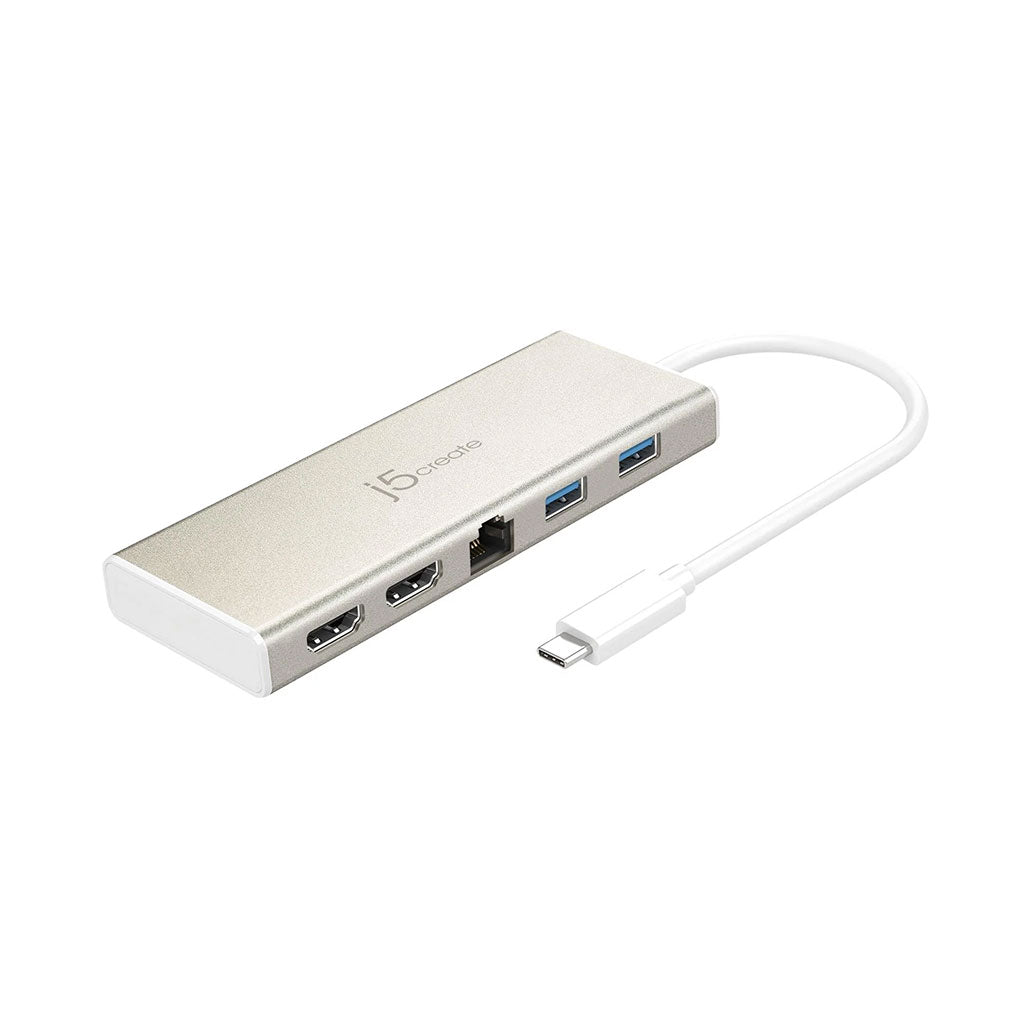

J5 Create USB-C Dual HDMI Mini Dock JCD381 - Compact, High-Speed Connectivity with 4K Support

Transform a single USB-C port into a full-fledged docking station with the J5Create USB-C Dual HDMI Mini Dock JCD381. Perfect for MacBook® and Windows® laptops, this sleek champagne-metallic hub delivers two 4K@30 Hz HDMI outputs for extended or mirrored displays, two USB 3.0 Type-A ports for peripherals, gigabit Ethernet for rock-solid networking, and a USB-C Power Delivery pass-through up to 60 W. With its compact aluminum design and integrated cable, the JCD381 keeps you productive at your desk or on the move—no extra power bricks required.

Key Features

• Dual 4K HDMI Outputs
  Connect two monitors at 3840 × 2160@30 Hz or mix resolutions for multi-display workflows.

• 60 W USB-C Power Delivery
  Keep your laptop or smartphone charged through the dock while in use.

• High-Speed USB 3.0 Ports
  Two Type-A ports deliver up to 5 Gbps for external drives, keyboards, and other accessories.

• Gigabit Ethernet
  Reliable wired networking with 10/100/1000 Mbps support.

• Portable Aluminum Build
  Champagne-metallic housing and 7.8 in cable slip easily into any bag for travel.

Specifications

Connection & Power

• Host Connector: 1 × USB-C® Male

• USB-C Power Delivery: Up to 60 W via USB-C®

• Power Source: Bus-powered or self-powered

• Input Voltage/Current: 20 V/3 A

• Output Voltage/Current: 20 V/3 A

• Power Consumption: ≤ 450 mA

Ports

• 2 × HDMI™ Female (4K@30 Hz / 2K@60 Hz)

• 2 × USB™ Type-A 3.0 (5 Gbps)

• 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps)

• 1 × USB-C® PD 2.0 (60 W)

Video & Audio

• Displays Supported: 2

• Max Display Resolution: Dual: 3840 × 2160 & 2048 × 1152 / 1920 × 1080; Single: 3840 × 2160

• Audio Channel: 2.1 via HDMI™

Physical

• Enclosure: Aluminum

• Cable Length: 7.8 in (198 mm)

• Dimensions (W × H × D): 5.1 × 2.1 × 0.6 in (130 × 54 × 15 mm)

• Weight: 4.00 oz (113.5 g)

Environmental

• Operating Temp: 32 – 98 °F (0 – 37 °C)

• Operating Humidity: < 85 % non-condensing

• Storage Temp: 14 – 140 °F (–10 – 65 °C)

• Storage Humidity: < 85 % non-condensing

Package Contents

• 1 × JCD381 USB-C® Dual HDMI™ Mini Dock

• 1 × Quick Installation Guide
