J5Create Dual HDMI™ Video Capture with Power Delivery 60W – JVA06 | 1080p Video Capture and Streaming Device

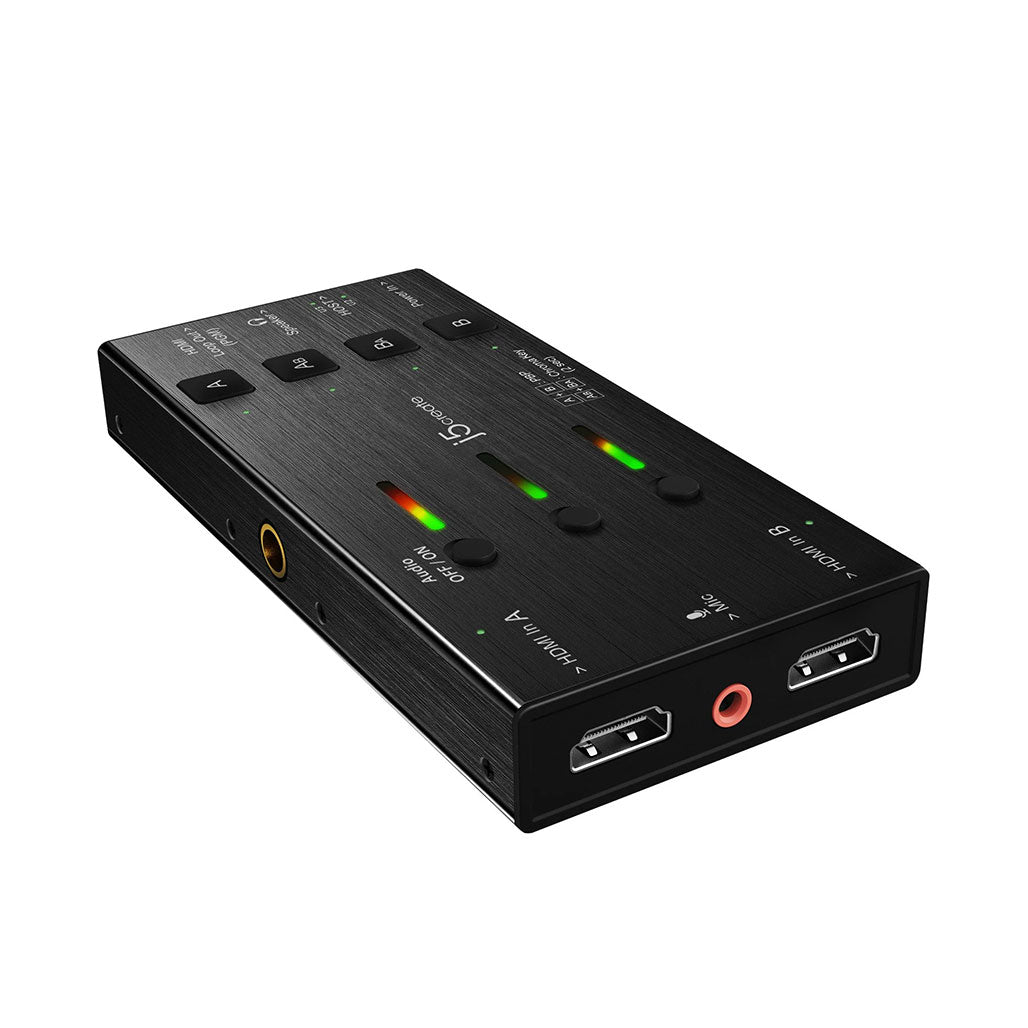

Capture professional-grade video from two HDMI™ sources with the J5Create Dual HDMI™ Video Capture Adapter JVA06. This compact aluminum capture card supports uncompressed 1080p @ 60 fps over USB™ 3.0 and offers six versatile screen layouts—Picture-in-Picture, Picture-by-Picture, and more—controlled via onboard buttons. A built-in Chroma Key feature lets you replace backgrounds in real time, while the integrated audio mixer switches between Mic In, HDMI™ A, and HDMI™ B inputs. Power Delivery 3.0 up to 60 W keeps your USB-C™ devices charged as you stream. Complete with dual cold-shoe mounts and a streamlined form factor, the JVA06 is the all-in-one streaming solution for creators on the move.

Key Features

• Dual Uncompressed 1080p @ 60 fps
  Record or stream two HDMI™ feeds simultaneously with zero frame loss.

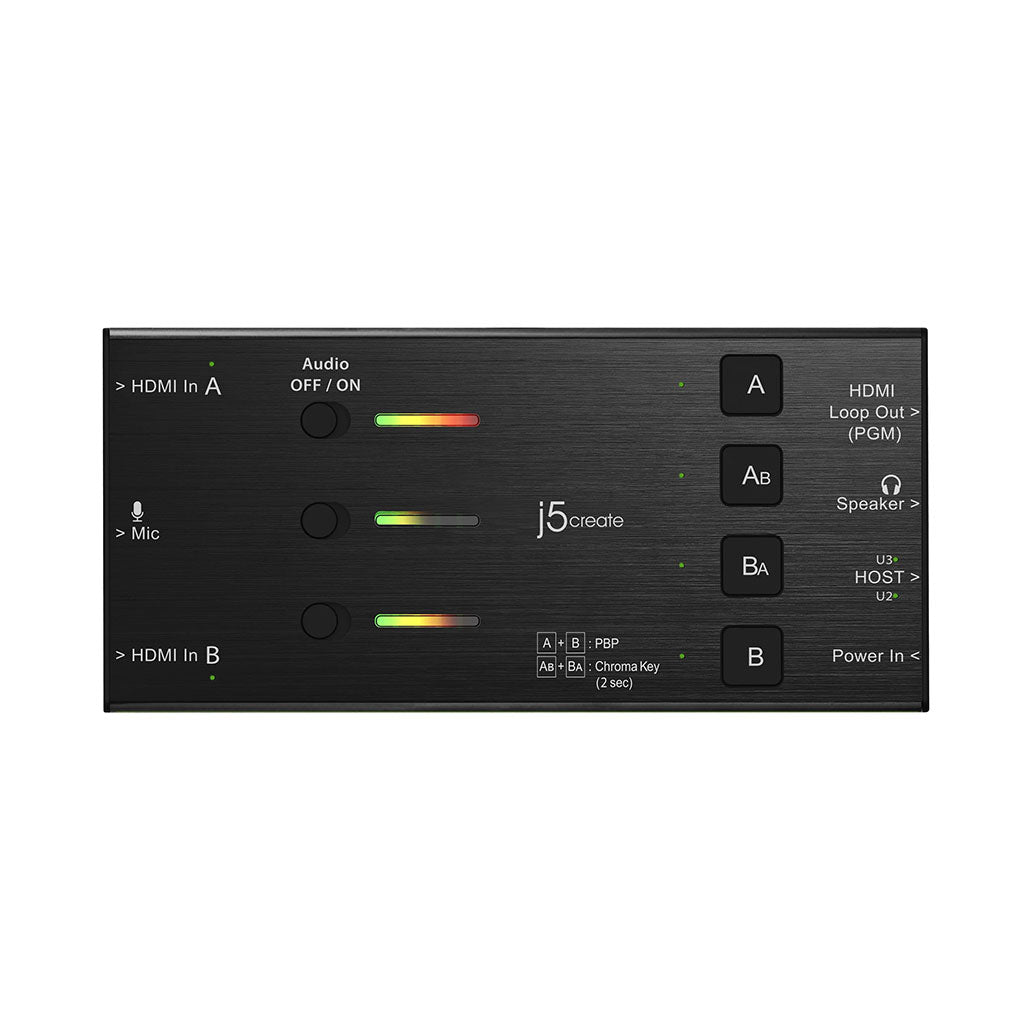

• Six Screen Modes
  Choose from Picture-in-Picture, Picture-by-Picture, full-screen, and more with tactile controls.

• Real-Time Chroma Key
  Swap live backgrounds for professional green-screen effects without additional software.

• Integrated Audio Mixer
  Blend or switch between HDMI™ channels and 3.5 mm Mic In for a seamless audio mix.

• 60 W Power Delivery
  USB-C™ PD charge your camera or USB devices while capturing video.

Specifications

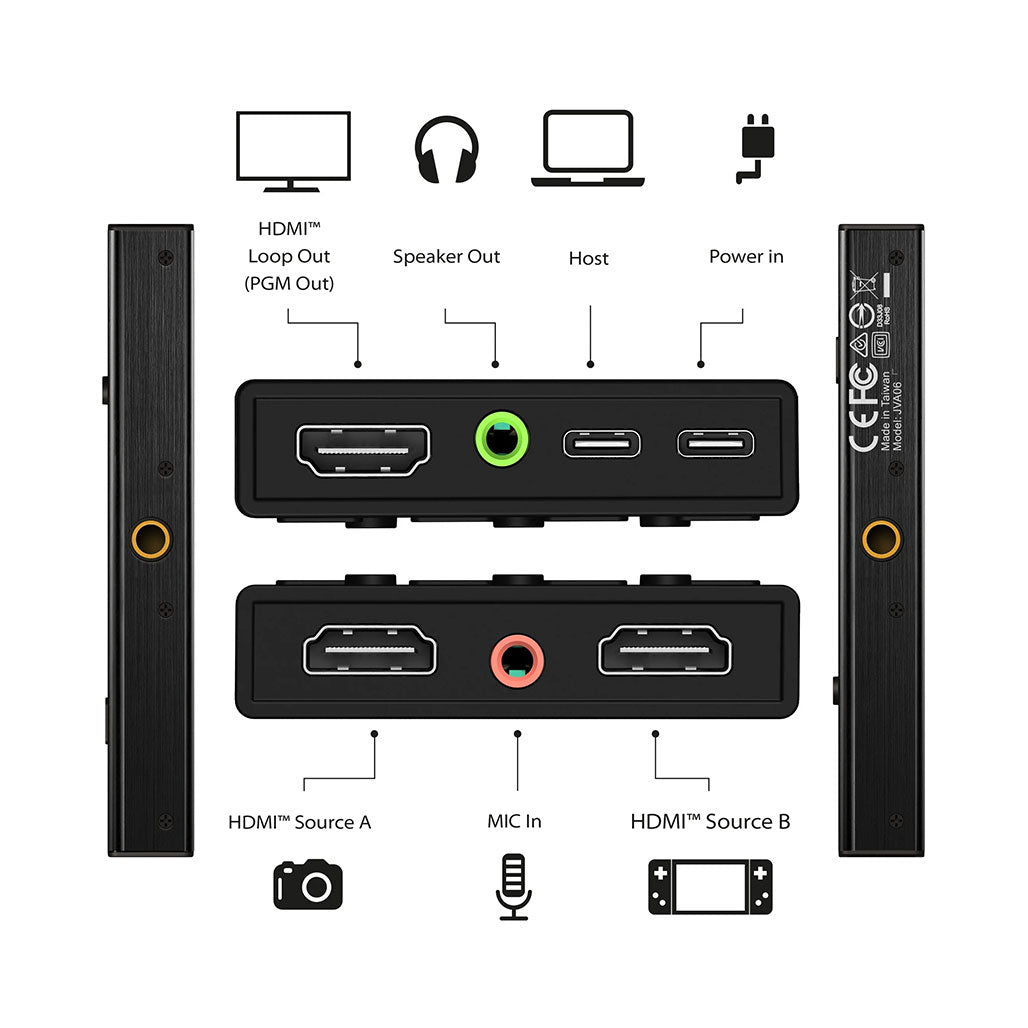

Hardware

• Model: JVA06

• Host Connector: USB-C™ 3.1 Gen 1 Male

• Video Inputs: 2 × HDMI™ Female

• Video Output: 1 × HDMI™ Female (monitor pass-through)

• Audio I/O:

  • 1 × 3.5 mm Mic In

  • 1 × 3.5 mm Speaker Out

• Power Port: 1 × USB-C™ PD 3.0

Performance

• Capture Resolutions: 1920 × 1080 @ 24/25/30/50/60 fps

• Output Resolutions: 1920 × 1080 @ 60 Hz; 1280 × 720 @ 60 Hz; 720 × 576 @ 50 Hz; 720 × 480 @ 60 Hz; 640 × 480 @ 60 Hz

• Compression: YUV 4:2:2 (USB 3.0); MJPEG (USB 2.0)

• Audio: 2.1-channel over HDMI™; 48 kHz, 24-bit ADC

Power

• Input: 20 V ⎓ 3 A

• Output: 20 V ⎓ 3 A

• PD Capacity: Up to 60 W

• Consumption: ≤ 1000 mA

Physical

• Material: Aluminum enclosure

• Dimensions: 5.3 × 2.5 × 0.7 in (134.6 × 63.7 × 18.4 mm)

• Weight: 6 oz (172 g)

• Cables Included:

  • USB-C™ 2.0 to USB-C™ (60 cm)

  • USB-C™ 3.0 to USB™ Type-A (60 cm)

  • HDMI™ (100 cm)

• Operating Temperature: 32–118 °F (0–45 °C)

• Operating Humidity: < 85 % non-condensing

Package Contents

• 1 × JVA06 Dual HDMI™ Video Capture Adapter

• 2 × Cold-Shoe Adapters

• 1 × USB-C™ 2.0 to USB-C™ Cable

• 1 × USB-C™ 3.0 to USB™ Type-A Cable

• 1 × HDMI™ Cable (39.4 in/100 cm)

• 1 × Quick Installation Guide
