J5Create Ultradrive Kit USB-C Multi-Display Modular Dock JCD389 - 12 Configurations, 4K HDMI, Gigabit Ethernet

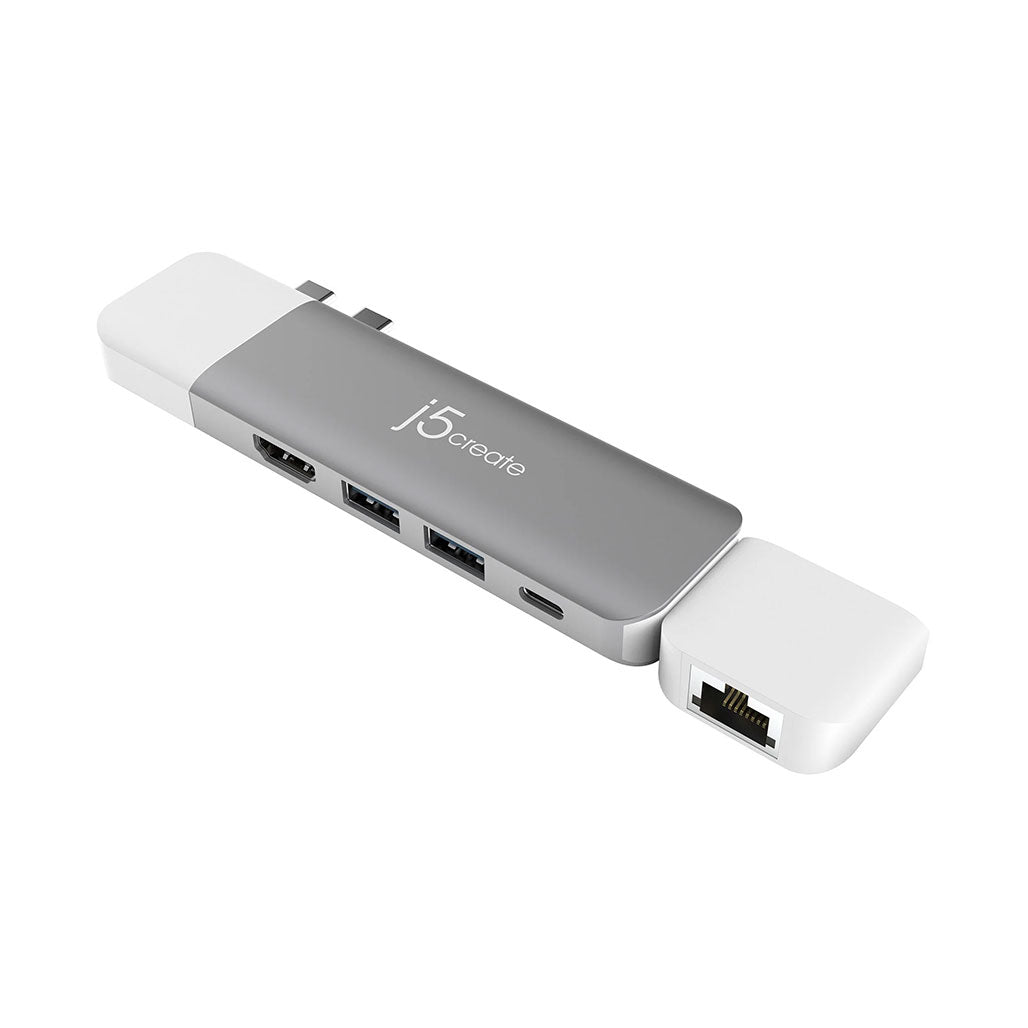

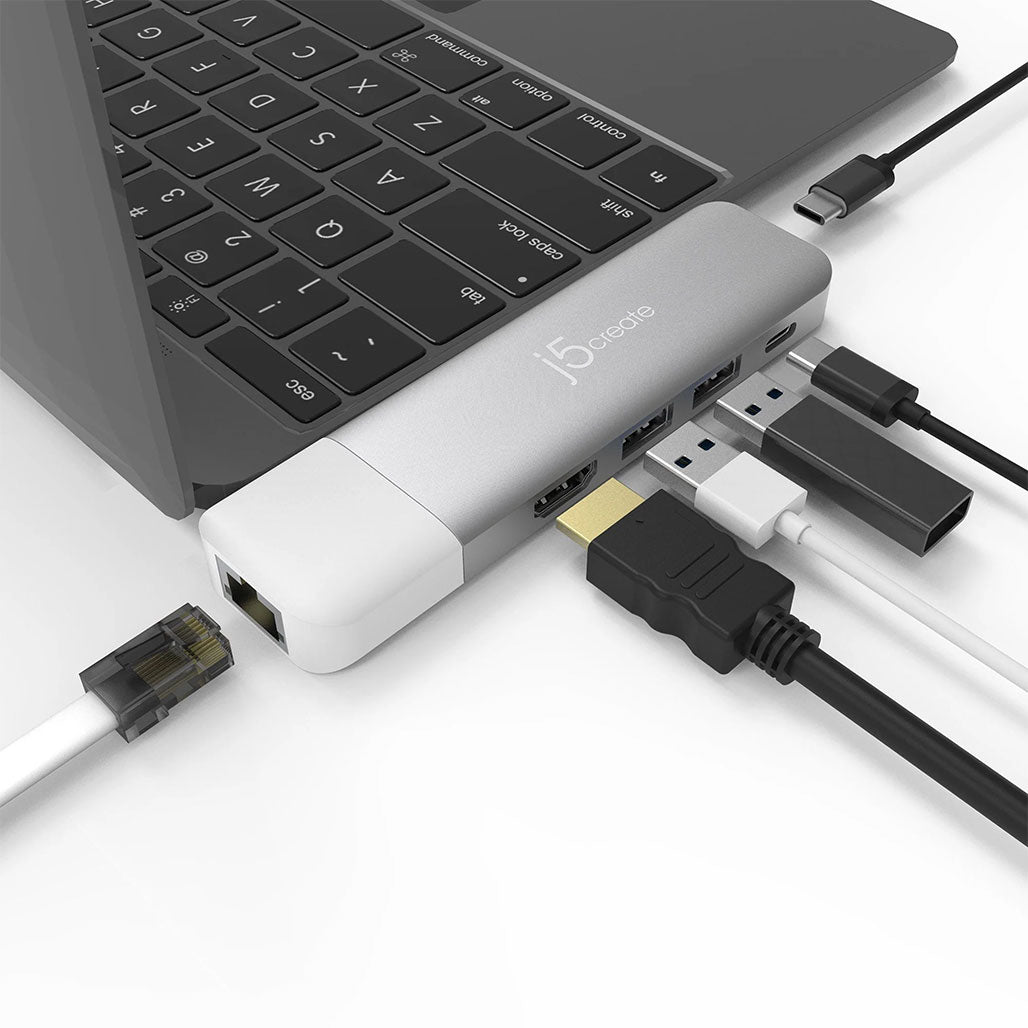

Boost your USB-C workstation with the J5Create Ultradrive Kit USB-C Multi-Display Modular Dock JCD389. This award-winning dock pairs a sturdy aluminum main unit with five magnetic plug-in modules—HDMI™, mini DisplayPort™, VGA, Gigabit Ethernet™, and SD™/microSD™ reader—to create up to 12 unique port combinations. Drive up to three high-resolution displays, connect wired networking, plug in USB peripherals, and access memory cards—all from one USB-C port. A rugged hard-shell case keeps every piece protected when you’re on the move.

Key Features

• Modular Flexibility

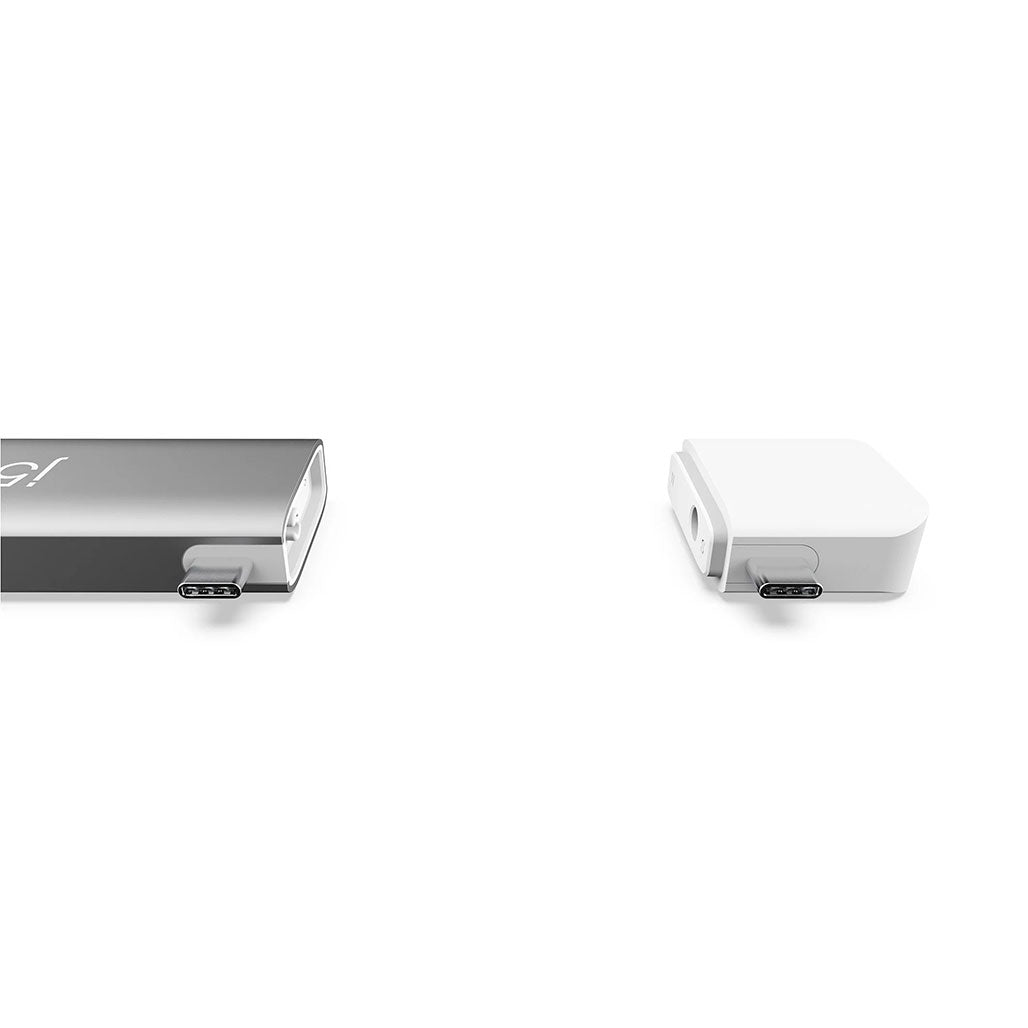

  Five detachable magnetic kits attach to the main body to unlock 12 different port setups.

• Multi-Display Support

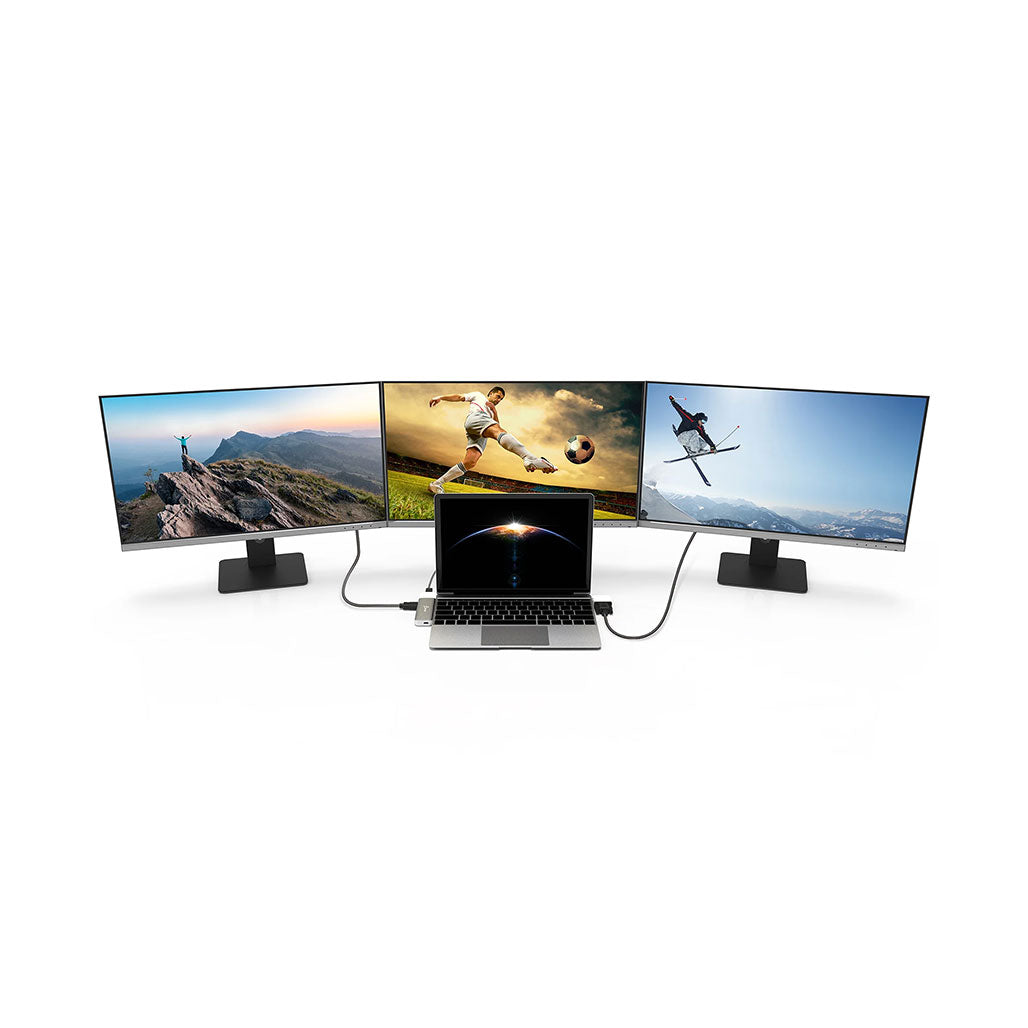

  Simultaneously run three monitors: two at 3840 × 2160 @ 60 Hz (via kits) and one at 3840 × 2160 @ 30 Hz (main dock).

• All-In-One Connectivity
  Main body includes USB-C PD 3.0, USB-C 3.1 Gen 1, two USB 3.1 Gen 1 Type-A ports, and HDMI™; kits add mini-DP, VGA, Ethernet, and card reading.

• Powerful Performance
  Up to 100 W USB-C Power Delivery, 5 Gbps data transfer, and Gigabit Ethernet for stable, high-speed networking.

• Travel-Ready Design
  Durable aluminum and ABS construction with a dedicated carrying case for easy organization.

Specifications

Model: JCD389

Hardware

• Host Connector: USB-C™ Male

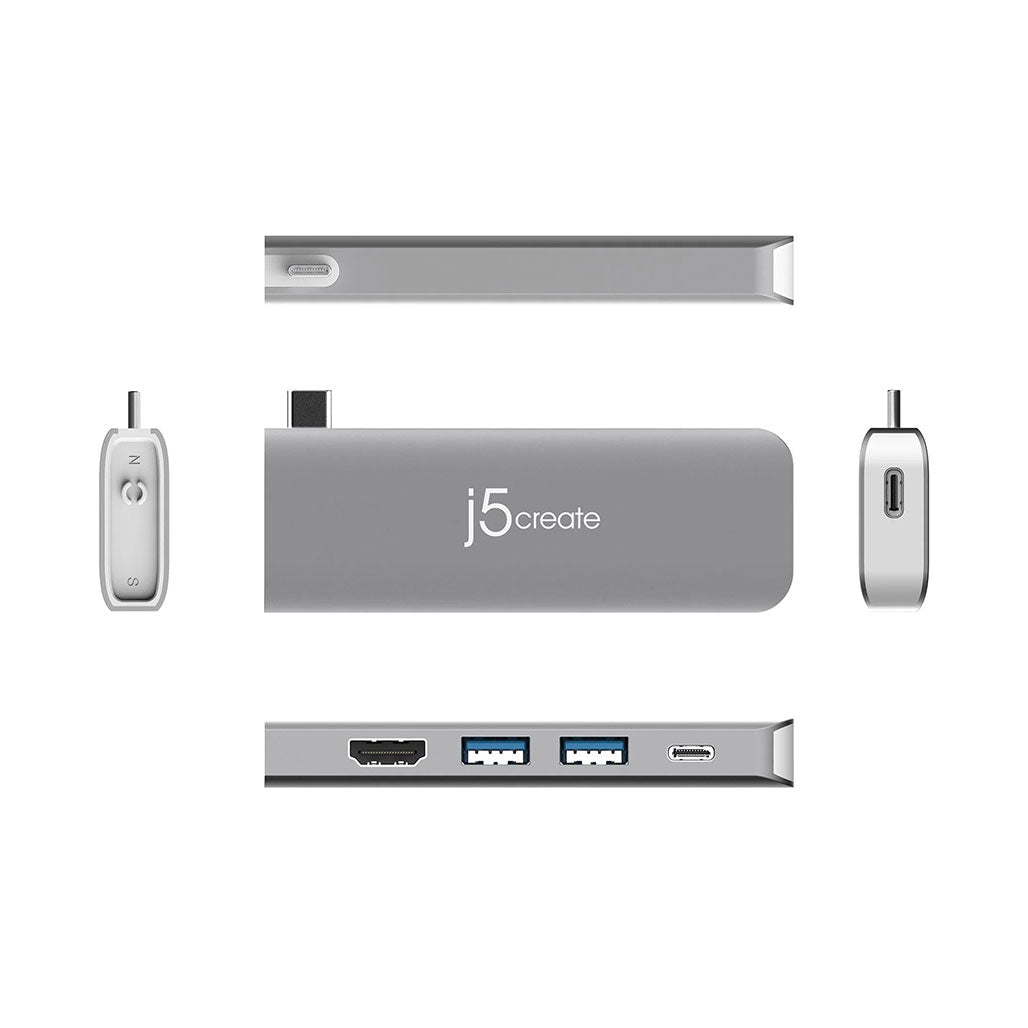

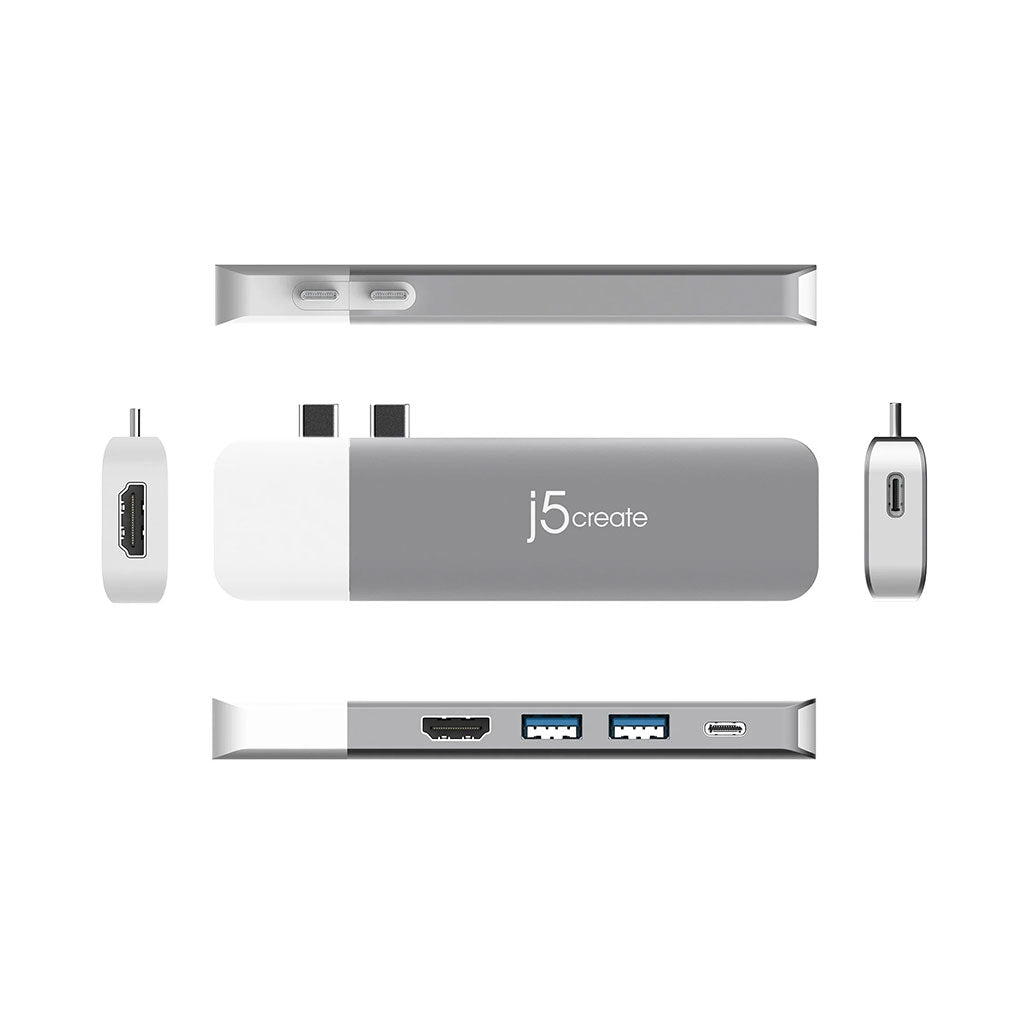

• Main Body Ports:

  • 1 × USB-C™ PD 3.0 (100 W)

  • 1 × USB-C™ 3.1 Gen 1 (5 Gbps)

  • 2 × USB 3.1 Gen 1 Type-A (5 Gbps)

  • 1 × HDMI™ Female (4K @ 30 Hz)

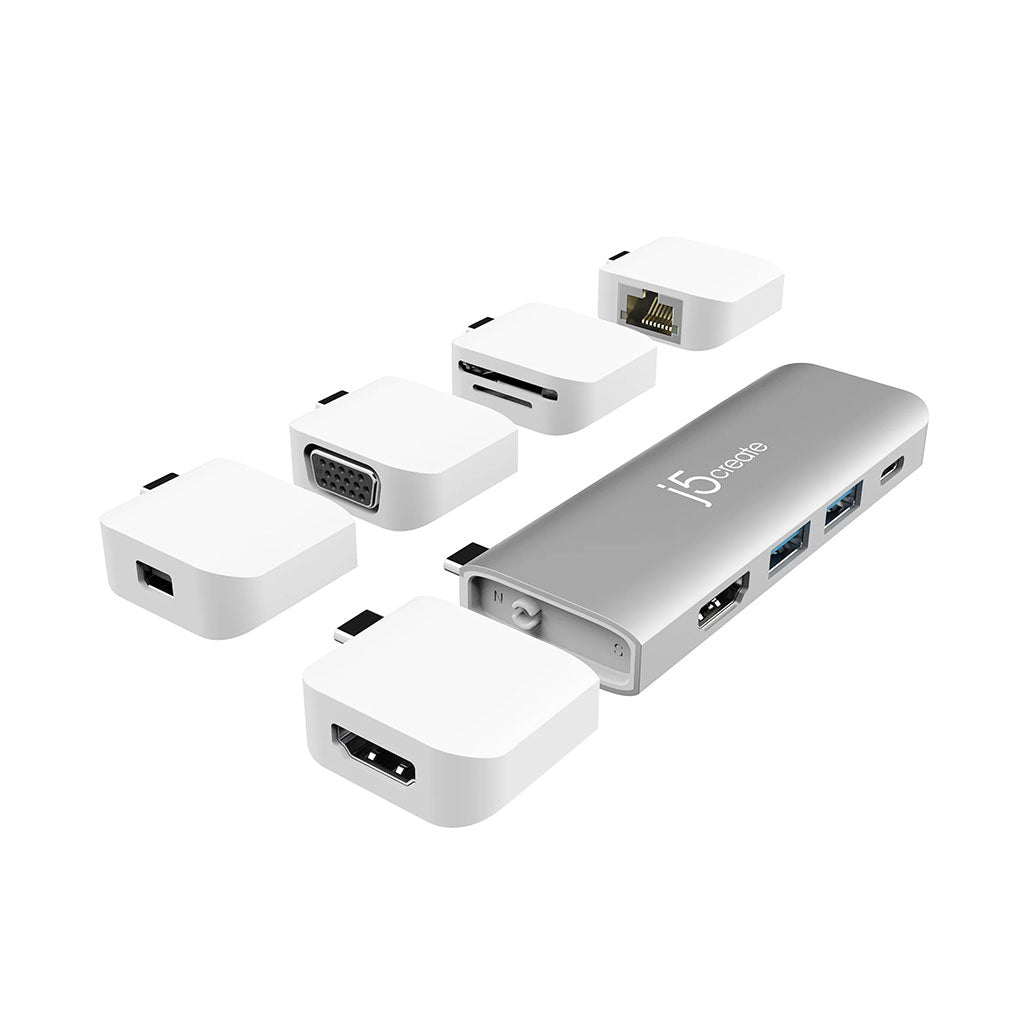

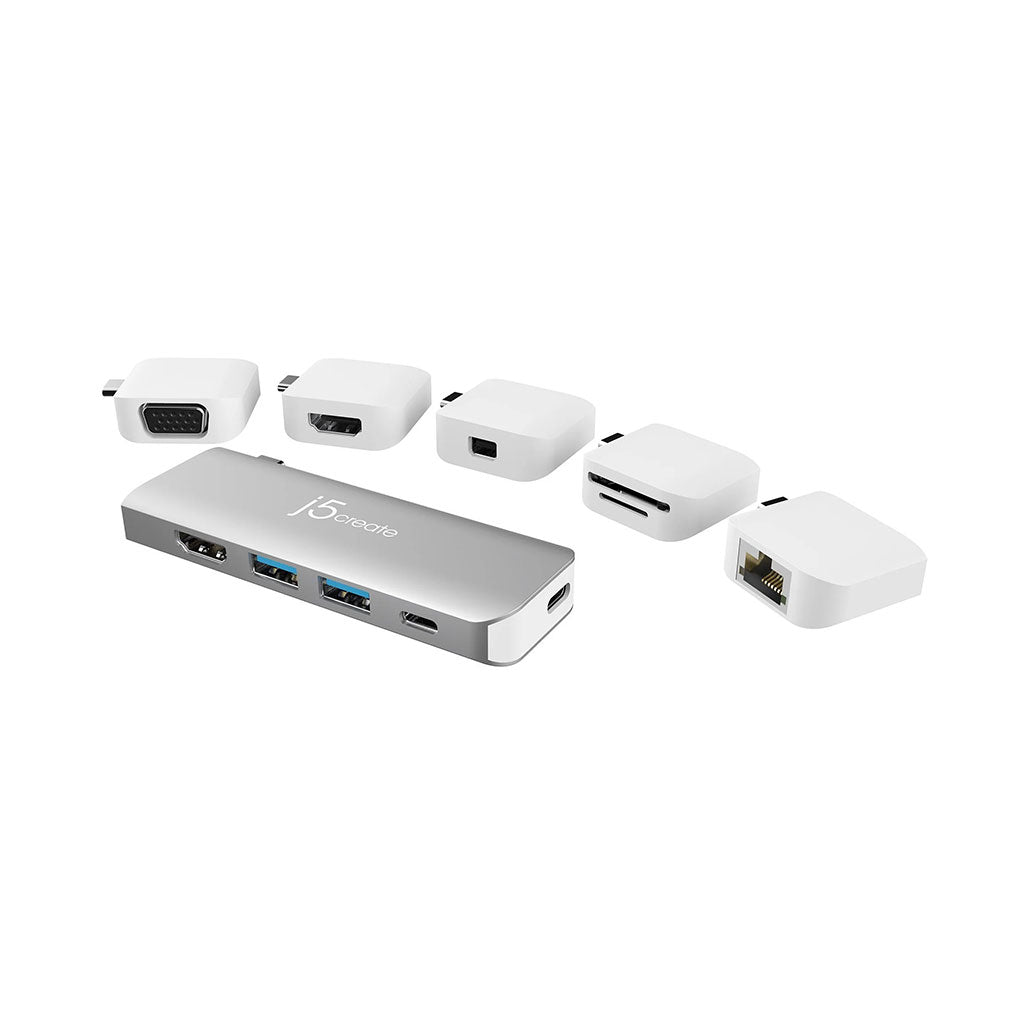

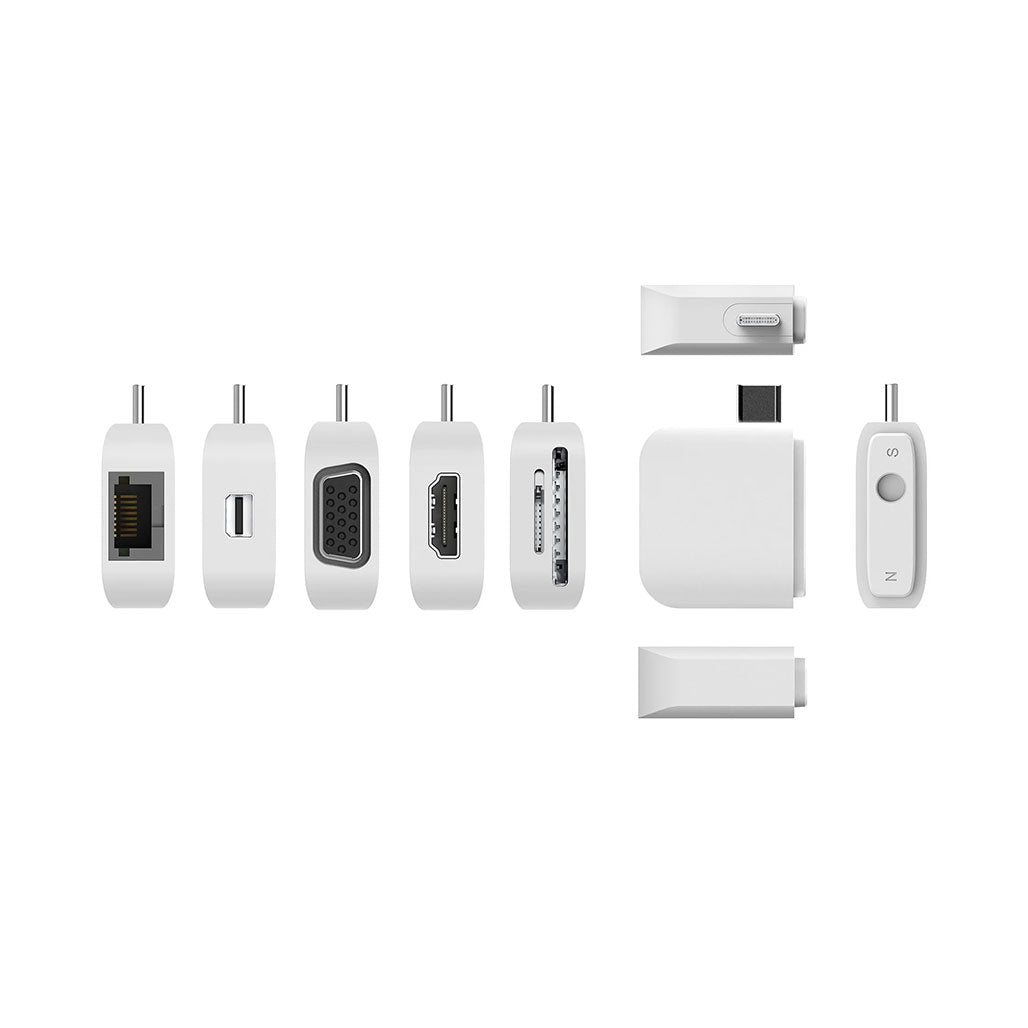

• Magnetic Kits:

  • USB-C™ → 4K HDMI™ (60 Hz)

  • USB-C™ → 4K mini DisplayPort™ (60 Hz)

  • USB-C™ → VGA

  • USB-C™ → Gigabit Ethernet™ (10/100/1000 Mbps)

  • USB-C™ → SD™/microSD™ 3.0 Reader

Performance

• Displays Supported: Up to 3 concurrent

• Max Resolution: 3840 × 2160 (via kits), 3840 × 2160 @ 30 Hz (main body)

• Audio: 2.1-channel over HDMI™/mini DP

• Data Rate: 5 Gbps (USB 3.1)

• Network Speed: 10/100/1000 Mbps

Power

• Input: 20 V ⎓ 5 A

• Output: 20 V ⎓ 4.75 A

• Power Consumption: ≤ 600 mA

Physical

• Main Body Dimensions: 3.86 × 1.34 × 0.51 in (98 × 34 × 13 mm)

• Kit Dimensions: 0.83 × 1.34 × 0.51 in (21 × 34 × 13 mm)

• Materials: Aluminum (main), ABS plastic (kits)

• Weight: 1.69 oz (48 g) main + 0.42 oz (12 g) per kit

Environmental

• Operating Temp: 32–118 °F (0–48 °C)

• Operating Humidity: < 85 % non-condensing

• Storage Temp: 14–149 °F (−10–65 °C)

• Storage Humidity: < 85 % non-condensing

Package Contents

• 1 × JCD389 Ultradrive Kit USB-C Multi-Display Modular Dock

• 1 × Hard-Shell Carrying Case

• 1 × Quick Installation Guide
