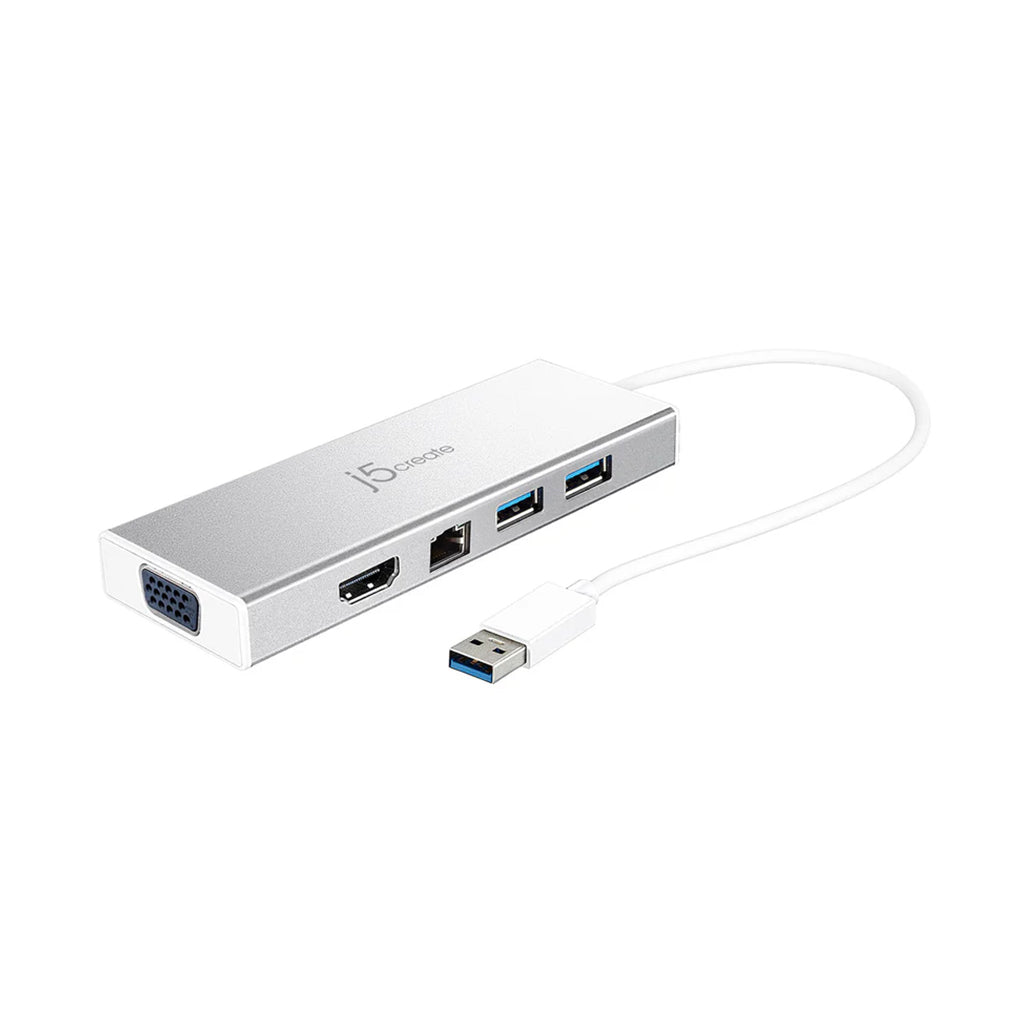

J5Create USB™ 3.0 Mini Dock JUD380 - Dual Display HDMI™ & VGA, Gigabit Ethernet, USB™ Hub for Mac & Windows

The J5Create USB™ 3.0 Mini Dock JUD380 is designed to provide a versatile and efficient dual-monitor setup for both Mac and Windows laptops. It allows seamless connectivity with two USB™ 3.0 Type-A ports for external peripherals and HDMI™ and VGA output ports, supporting resolutions of up to 2048 x 1152. This mini dock includes an integrated RJ45 Gigabit Ethernet port for reliable and fast network connections, ensuring consistent internet access in both home and office environments.

This compact and lightweight dock is compatible with USB™-enabled laptops, supporting various display modes such as Mirror, Extended, Primary, and Rotation. With USB™ 3.0 technology, it offers data transfer rates of up to 5 Gbps, which is significantly faster than USB™ 2.0. The dock is also backward-compatible with USB™ 2.0 and 1.1 devices, making it a flexible choice for users with various devices. Its bus-powered design ensures ease of use without the need for an external power source, offering both portability and functionality in one sleek package.

Key Features:

• Dual Display Output: Features HDMI™ and VGA ports that support resolutions up to 2048 x 1152, enabling dual-monitor setups for increased productivity.
• USB™ 3.0 Connectivity: Two USB™ 3.0 Type-A ports provide fast data transfer speeds of up to 5 Gbps, allowing quick access to connected peripherals.
• Gigabit Ethernet Port: Integrated RJ45 Ethernet port offers a stable, wired network connection with speeds of 10/100/1000 Mbps.
• Compact & Portable: The lightweight aluminum design ensures maximum portability, making it easy to carry between home and office.
• Four Display Modes: Supports multiple display configurations, including Mirror, Extended, Primary, and Rotation modes for customizable setups.
• Mac & Windows Compatibility: Works seamlessly with USB™-enabled macOS® and Windows® laptops, enhancing versatility across operating systems.
• Bus-Powered Operation: Functions without the need for an additional power source, offering convenience on the go.

Specifications:

• Hardware:

  • Host Connector: 1 x USB™ Type-A 3.0 Male
  • Ports:
    • 2 x USB™ 3.1 Gen 1 Type-A
    • 1 x RJ45 Gigabit Ethernet
    • 1 x HDMI™ Female
    • 1 x VGA Female
    • 1 x USB™ Micro-B
  • Power Source: Bus-powered and self-powered
  • Audio Supported: Yes (2.1 via HDMI™)
  • Network Interface: RJ45 (Gigabit Ethernet)

• Performance:

  • Displays Supported: 2
  • Max Display Resolution: 1920 x 1080
  • Max Display Refresh Rate: 60 Hz
  • Max Data Transfer Rate: 5 Gbps
  • Compatible Networks: 10/100/1000 Mbps

• Power:

  • Power Consumption: ≤ 450 mA
  • Power Delivery: No

• Physical Specifications:

  • Product Dimensions:
    • Depth: 1.69 in. (42.8 mm)
    • Height: 0.56 in. (14.15 mm)
    • Width: 4.71 in. (119.6 mm)
    • Weight: 2.91 oz (82.6g)
  • Cable Length: 7.87 in. (200 mm)
  • Enclosure Type: Aluminum
  • Color: Black or Silver
  • Operating Temperature: 30 to 116°F (-1 to 47°C)
  • Operating Humidity: < 85% non-condensing
  • Storage Temperature: 0 to 155°F (-17 to 68°C)
  • Storage Humidity: < 85% non-condensing

Package Contents:

• JUD380 USB™ 3.0 Mini Dock
• 1 x Quick Installation Guide

Conclusion:
The J5Create USB™ 3.0 Mini Dock JUD380 offers an efficient and versatile solution for users seeking dual-monitor capabilities, fast data transfer, and reliable wired network access. Its compatibility with both Mac and Windows systems makes it a convenient and portable option for any professional or personal setup.
