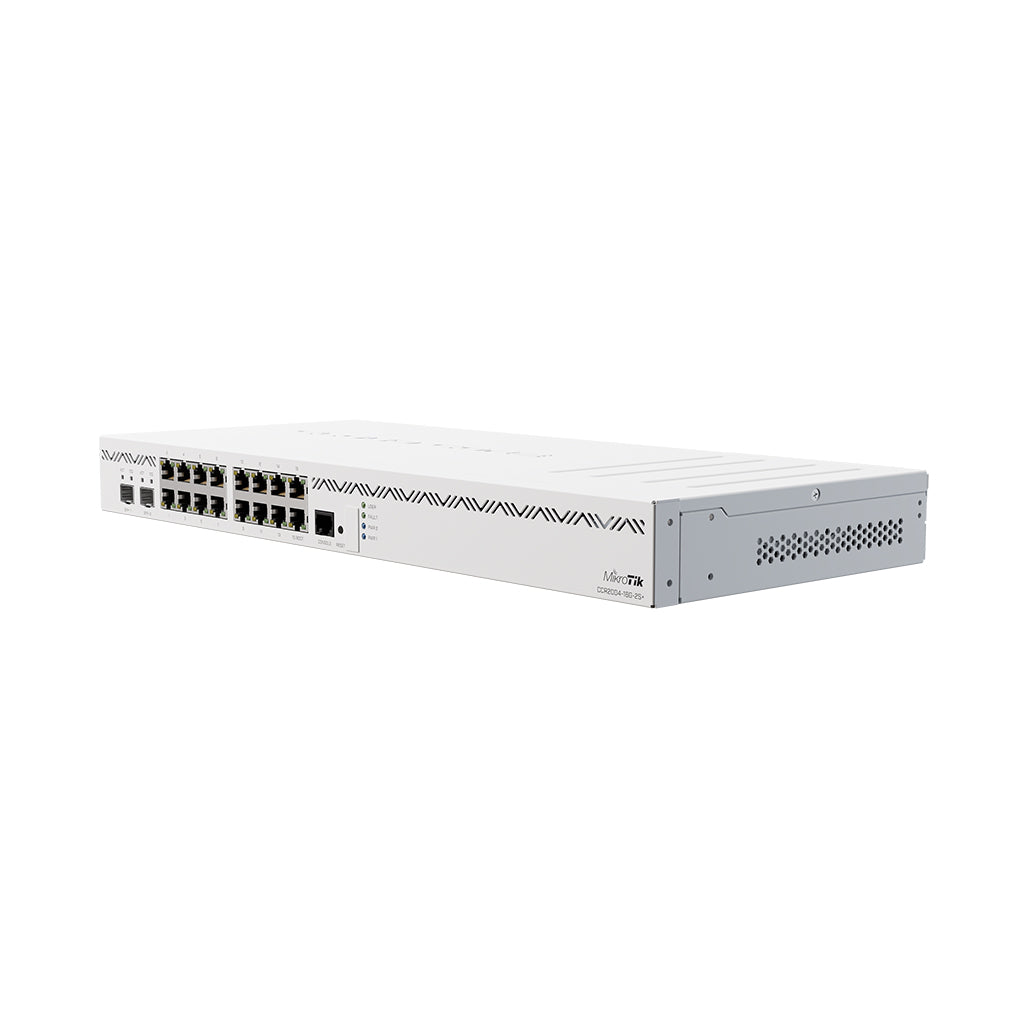

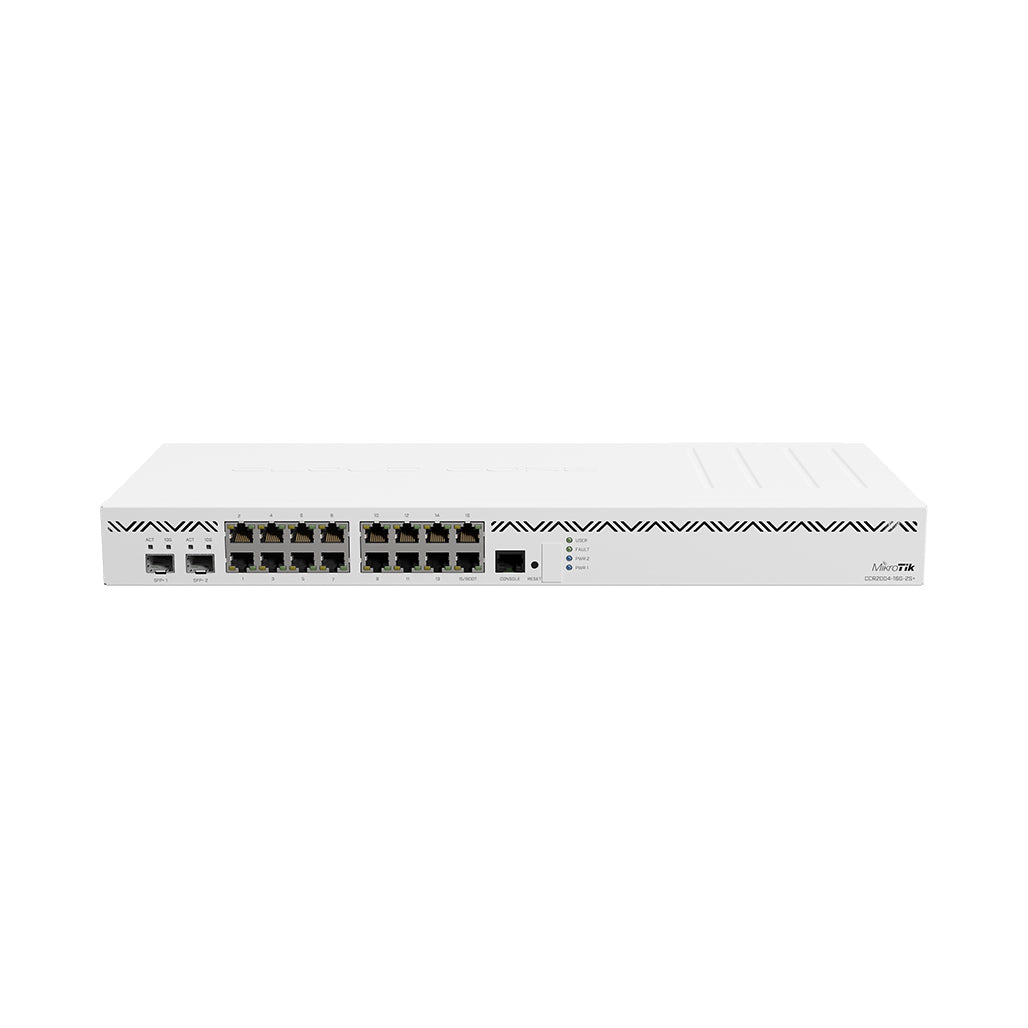

Mikrotik CCR2004-16G-2S+ Router with 16 Gigabit Ethernet Ports and 2x10G SFP+ Cages

The Mikrotik CCR2004-16G-2S+ Router stands out in the CCR series with its advanced performance capabilities and efficient design. Featuring 16 Gigabit Ethernet ports and two 10G SFP+ cages, this router is engineered to handle demanding network tasks with exceptional efficiency. The device is powered by the Annapurna Labs Alpine v2 CPU, which boasts 4x 64-bit ARMv8-A Cortex-A57 cores running at 1.7GHz. This CPU delivers outstanding single-core performance, making it particularly effective for operations that rely heavily on per-connection processing, such as advanced network queues.

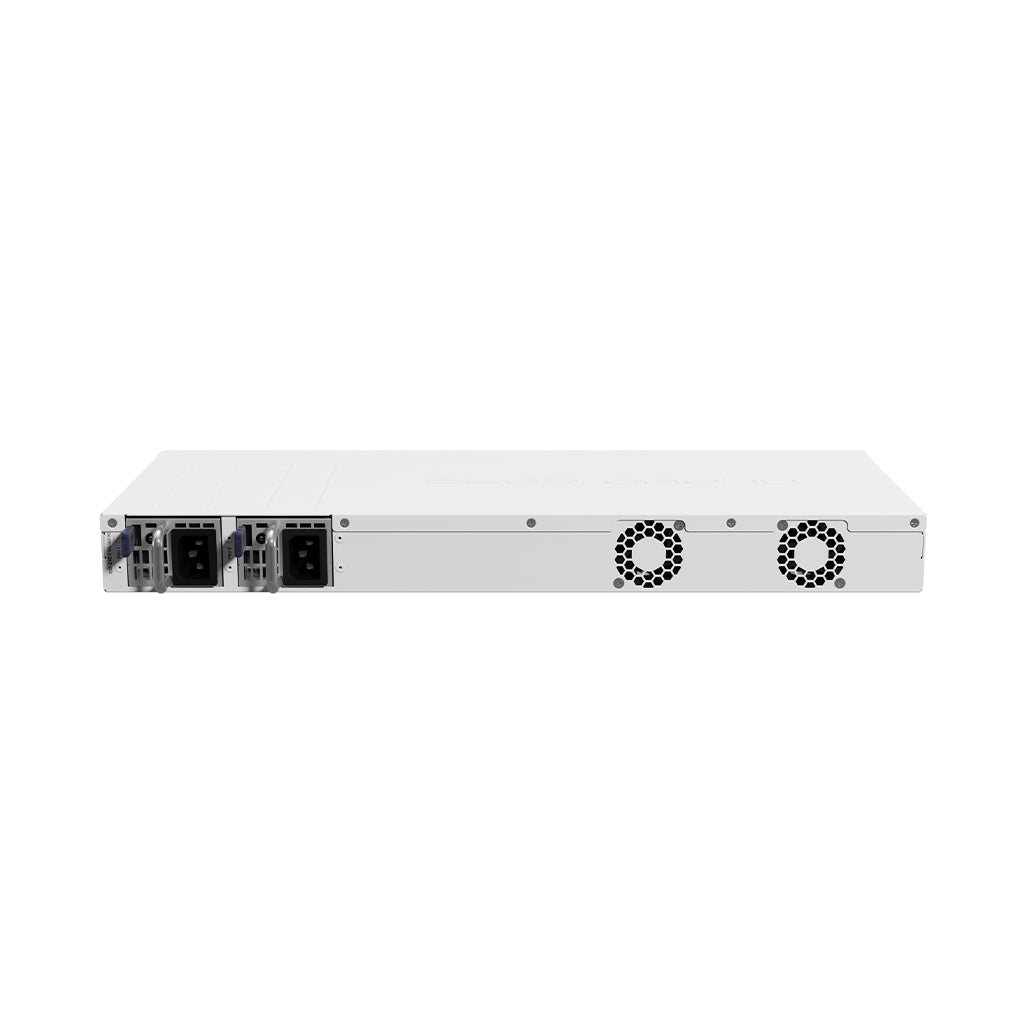

The CCR2004-16G-2S+ is housed in a classic white 1U rackmount case and includes dual redundant power supplies for added reliability. It also features active cooling with dual fans to ensure optimal performance and longevity. Each group of 8 Gigabit Ethernet ports is managed by a separate Marvell Amethyst switch chip, with a 10 Gbps full-duplex line connecting to the CPU, ensuring no bottlenecks. The router comes equipped with 4GB of DDR4 RAM and 128MB of NAND storage, providing ample resources for demanding network environments. The CCR2004-16G-2S+ delivers top-tier performance at an affordable price, making it an ideal choice for small to medium-sized businesses seeking a robust and cost-effective networking solution.

Key Features:

• 16 Gigabit Ethernet Ports: Provides ample high-speed network connectivity for diverse networking needs.
• 2x10G SFP+ Cages: Offers high-speed fiber connectivity for enhanced network performance.
• Annapurna Labs Alpine v2 CPU: Features a powerful 4x 64-bit ARMv8-A Cortex-A57 cores running at 1.7GHz for superior single-core performance.
• Dual Redundant Power Supplies: Ensures reliable operation with built-in redundancy.
• Active Cooling System: Equipped with dual fans to maintain optimal operating temperatures.
• Marvell Amethyst Switch Chips: Each group of 8 Gigabit Ethernet ports is managed by a separate switch chip with a 10 Gbps full-duplex line.
• 4GB DDR4 RAM: Provides sufficient memory for handling high-performance network tasks.
• 128MB NAND Storage: Offers reliable and fast storage for system operations.

Specifications:

• Product Code: CCR2004-16G-2S+
• Architecture: ARM 64bit
• CPU: AL32400
• CPU Core Count: 4
• CPU Nominal Frequency: 1700 MHz
• Switch Chip Model: 88E6191X
• Dimensions: 443 x 210 x 44 mm
• RouterOS License: 6
• Operating System: RouterOS v7
• Size of RAM: 4 GB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240 V
• Frequency (Hz): 50-60
• Max Power Consumption: 48 W
• Max Power Consumption Without Attachments: 35 W
• Cooling Type: 2 fans

Ethernet:

• 10/100/1000 Ethernet Ports: 16

Fiber:

• SFP+ Ports: 2

Peripherals:

• Serial Console Port: RJ45

Other:

• CPU Temperature Monitor: Yes
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik CCR2004-16G-2S+ Router offers a comprehensive solution for high-performance networking with its extensive array of 16 Gigabit Ethernet ports and two 10G SFP+ cages. Equipped with a powerful Annapurna Labs Alpine v2 CPU and advanced cooling and power management features, this router delivers exceptional performance and reliability. Its efficient design and cost-effective pricing make it a valuable choice for small and medium-sized businesses seeking robust network infrastructure. With its capability to handle high-throughput tasks and maintain optimal operation, the CCR2004-16G-2S+ represents an excellent investment for modern networking needs.
