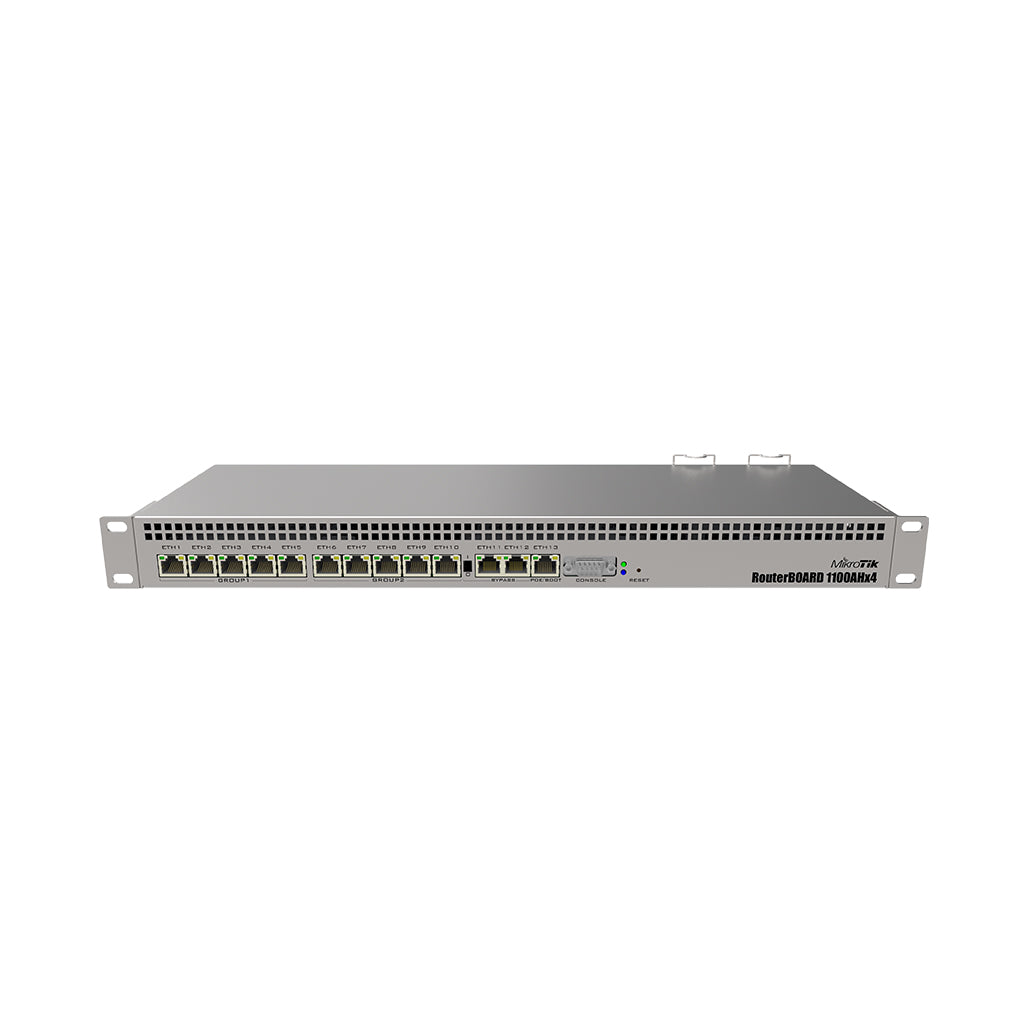

The Mikrotik RB1100x4 is a powerful 1U rackmount router designed for high-performance networking environments. Equipped with thirteen Gigabit Ethernet ports and an Annapurna Alpine AL21400 CPU, this router ensures robust connectivity and performance. The AL21400 CPU features four Cortex A15 cores running at 1.4 GHz, providing a maximum throughput of up to 7.5 Gbps. With IPsec hardware acceleration supporting up to 2.2 Gbps with AES128 encryption, the RB1100x4 excels in delivering secure and efficient data processing.

The RB1100x4 is housed in a 1U rackmount case, making it suitable for rack-mounted installations. It includes a RS232 serial port for console access and dual redundant power supplies, ensuring reliable operation with -48V DC telecom power and 802.3at/af PoE support. The router's passive cooling system and durable construction are designed to operate in demanding conditions, with a tested ambient temperature range from -40°C to 70°C. Ideal for enterprise and telecom applications, the RB1100x4 provides high-speed networking and redundancy for critical infrastructure.

Key Features:

• 13 Gigabit Ethernet Ports: Offers extensive high-speed network connectivity for various devices and applications.
• Annapurna Alpine AL21400 CPU: Equipped with four Cortex A15 cores running at 1.4 GHz, delivering high performance and throughput.
• IPsec Hardware Acceleration: Supports up to 2.2 Gbps with AES128 encryption, ensuring secure and efficient data processing.
• 1U Rackmount Case: Designed for rack-mounted installations, optimizing space in server environments.
• Dual Redundant Power Supplies: Provides reliability with -48V DC telecom power and 802.3at/af PoE support.
• RS232 Serial Port: Facilitates console access for configuration and management.
• Passive Cooling System: Ensures quiet and reliable operation without active cooling components.
• Durable Construction: Tested to operate in extreme temperatures ranging from -40°C to 70°C.

Specifications:

• Product Code: RB1100x4
• Architecture: ARM 32bit
• CPU: AL21400
• CPU Core Count: 4
• CPU Nominal Frequency: 1.4 GHz
• Switch Chip Model: RTL8367
• Dimensions: 443 x 148 x 44 mm
• RouterOS License: 6
• Operating System: RouterOS
• Size of RAM: 1 GB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C
• IPsec Hardware Acceleration: Yes

Powering:

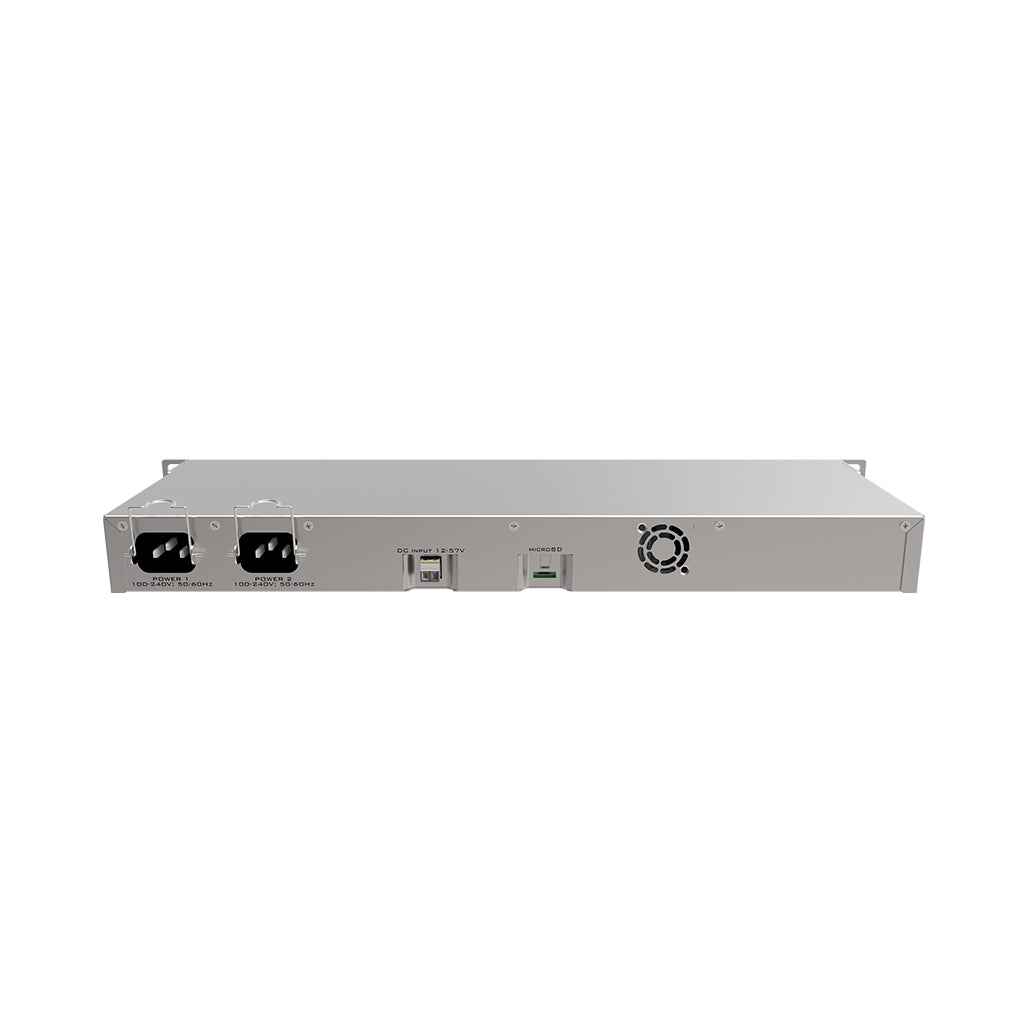

• Number of AC Inputs: 2
• AC Input Range: 100-240 V
• Number of DC Inputs: 2 (2-pin terminal, PoE-IN)
• 2-Pin Terminal Input Voltage: -48, 12-57 V
• Max Power Consumption: 20 W
• Cooling Type: Passive
• PoE In: 802.3af/at
• PoE In Input Voltage: 20-57 V

Ethernet:

• 10/100/1000 Ethernet Ports: 13

Peripherals:

• Memory Card Type: microSD
• Memory Cards: 1
• Serial Console Port: RS232

Other:

• Current Monitor: Yes
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Mode Button: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik RB1100x4 stands out as a high-performance 1U rackmount router, combining extensive connectivity options with advanced processing capabilities. The inclusion of thirteen Gigabit Ethernet ports, IPsec hardware acceleration, and a robust ARM-based CPU ensures that this router delivers exceptional performance and security for demanding network environments. Its dual redundant power supplies, passive cooling, and wide temperature tolerance further enhance its reliability and suitability for critical applications. The RB1100x4 offers a balanced solution for enterprise-grade networking needs, providing both performance and redundancy without compromising on efficiency.
