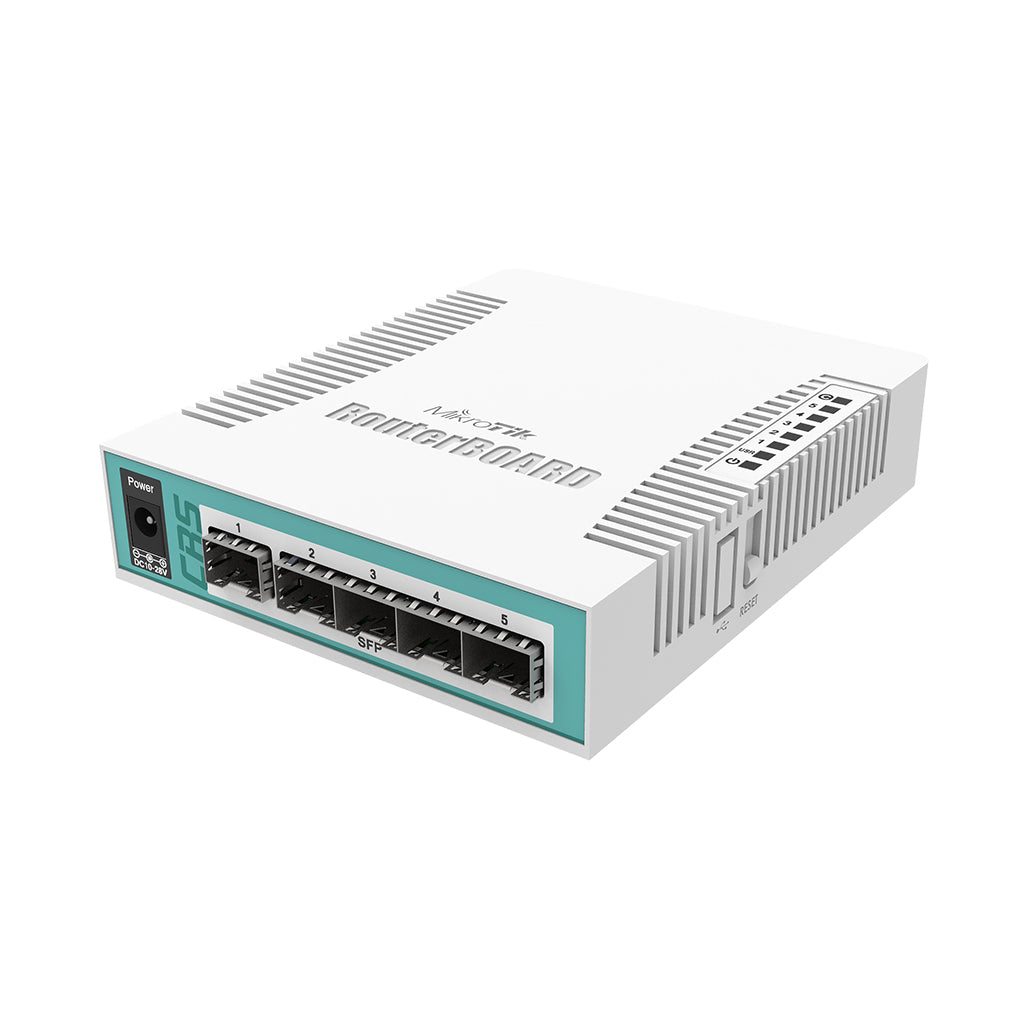

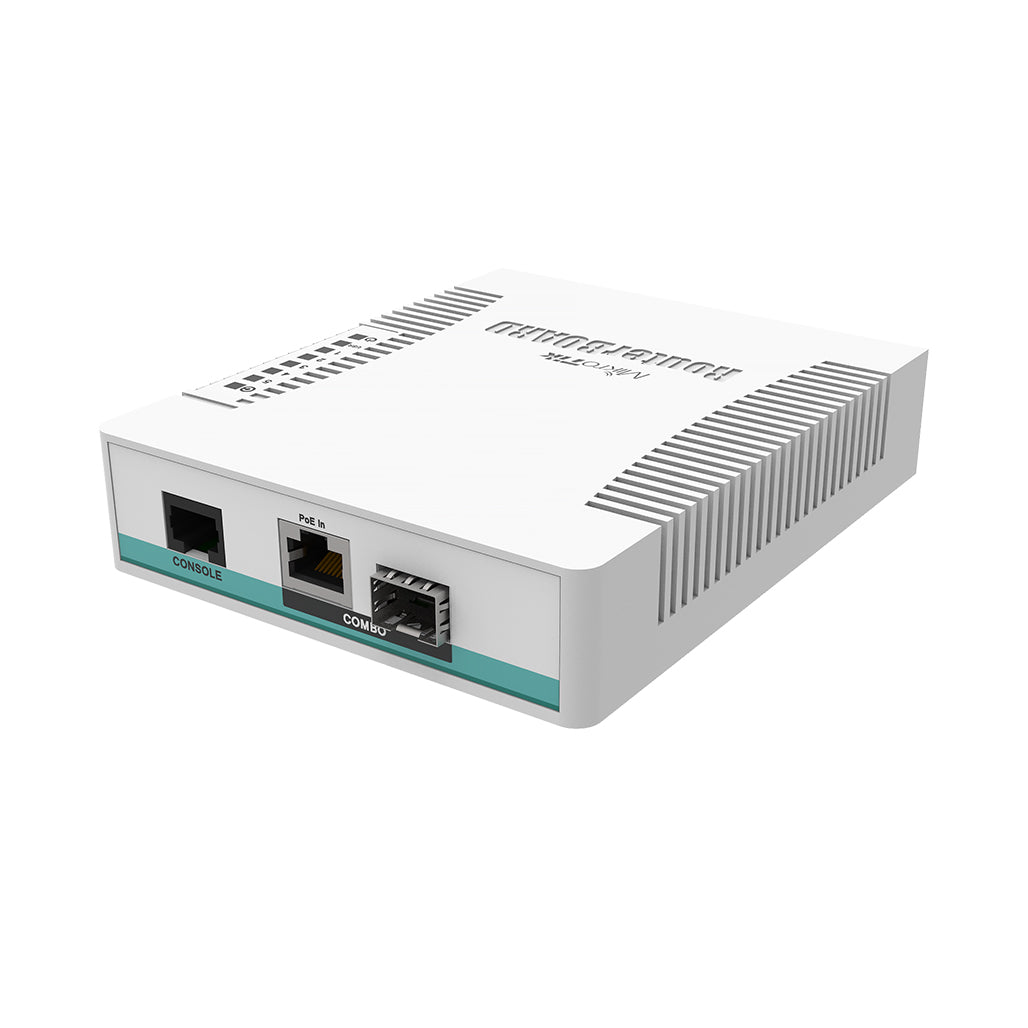

The MikroTik Cloud Router Switch 106-1C-5S is a compact and versatile desktop switch, designed for efficient network management. It features one Gigabit Ethernet/SFP combo port and five 1.25Gbps SFP cages, making it ideal for high-speed fiber connections.
Powered by a 400MHz CPU and 128MB of RAM, the switch runs on RouterOS with a Level 5 license, offering advanced features for network configuration. The device supports Passive PoE and comes with a power supply, ensuring flexible deployment and reliable performance.
Key Features:
Versatile Connectivity: One Gigabit Ethernet/SFP combo port and five 1.25Gbps SFP cages.
Advanced Management: Runs RouterOS with Level 5 license for extensive network management capabilities.
Compact Design: Desktop size, suitable for various setups.
Power Efficiency: Supports Passive PoE and operates within a broad voltage range.
Specifications:
Product Code: CRS106-1C-5S
Architecture: MIPSBE
CPU: QCA8511
CPU Core Count: 1
CPU Nominal Frequency: 400 MHz
Dimensions: 114 x 137 x 29 mm
RouterOS License: 5
Operating System: RouterOS
Size of RAM: 128 MB
Storage Size: 16 MB
Storage Type: FLASH
MTBF: Approximately 100,000 hours at 25°C
Tested Ambient Temperature: -20°C to 70°C
Powering:
Number of DC Inputs: 2 (DC jack, PoE-IN)
DC Jack Input Voltage: 11-30 V
Max Power Consumption: 11 W
Cooling Type: Passive
PoE In: Passive PoE
PoE In Input Voltage: 11-30 V
Ethernet:
Ethernet Combo Ports: 1
Fiber:
SFP Ports: 5
Peripherals:
Serial Console Port: RJ45
Certification & Approvals:
Certification: CE, EAC, ROHS
IP Rating: IP20
Conclusion:
The MikroTik Cloud Router Switch 106-1C-5S offers a robust solution for network connectivity with its combination of Gigabit Ethernet/SFP ports and five 1.25Gbps SFP cages. Its compact size, combined with the power of RouterOS and support for Passive PoE, makes it an excellent choice for high-speed, flexible network setups in desktop environments.
