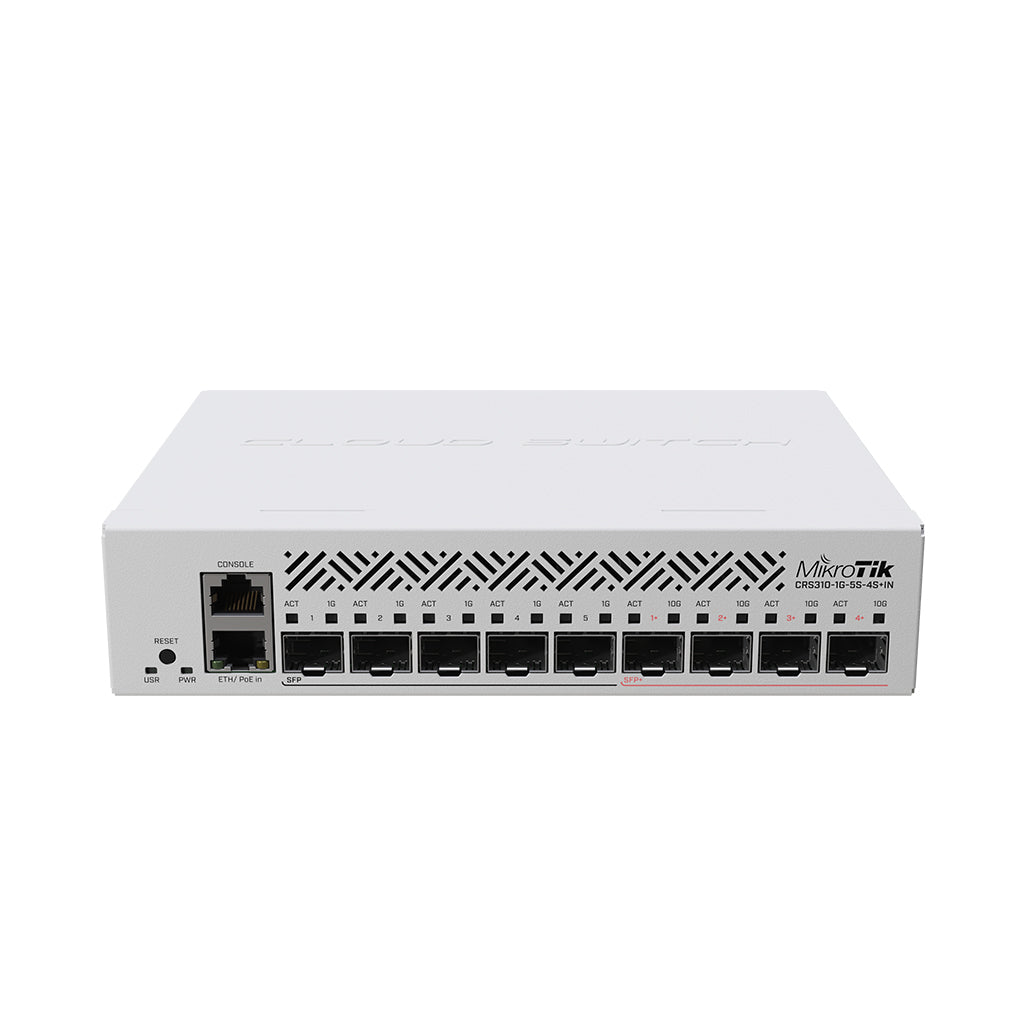

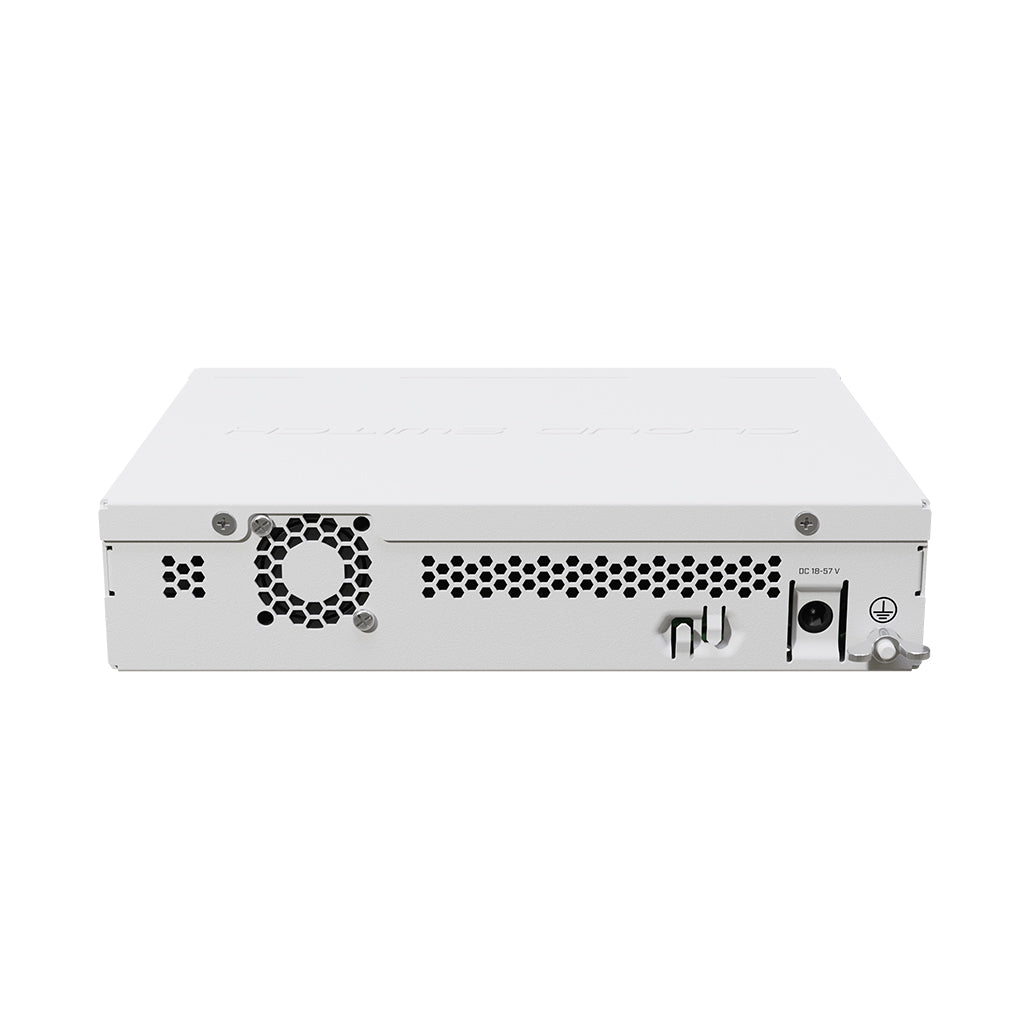

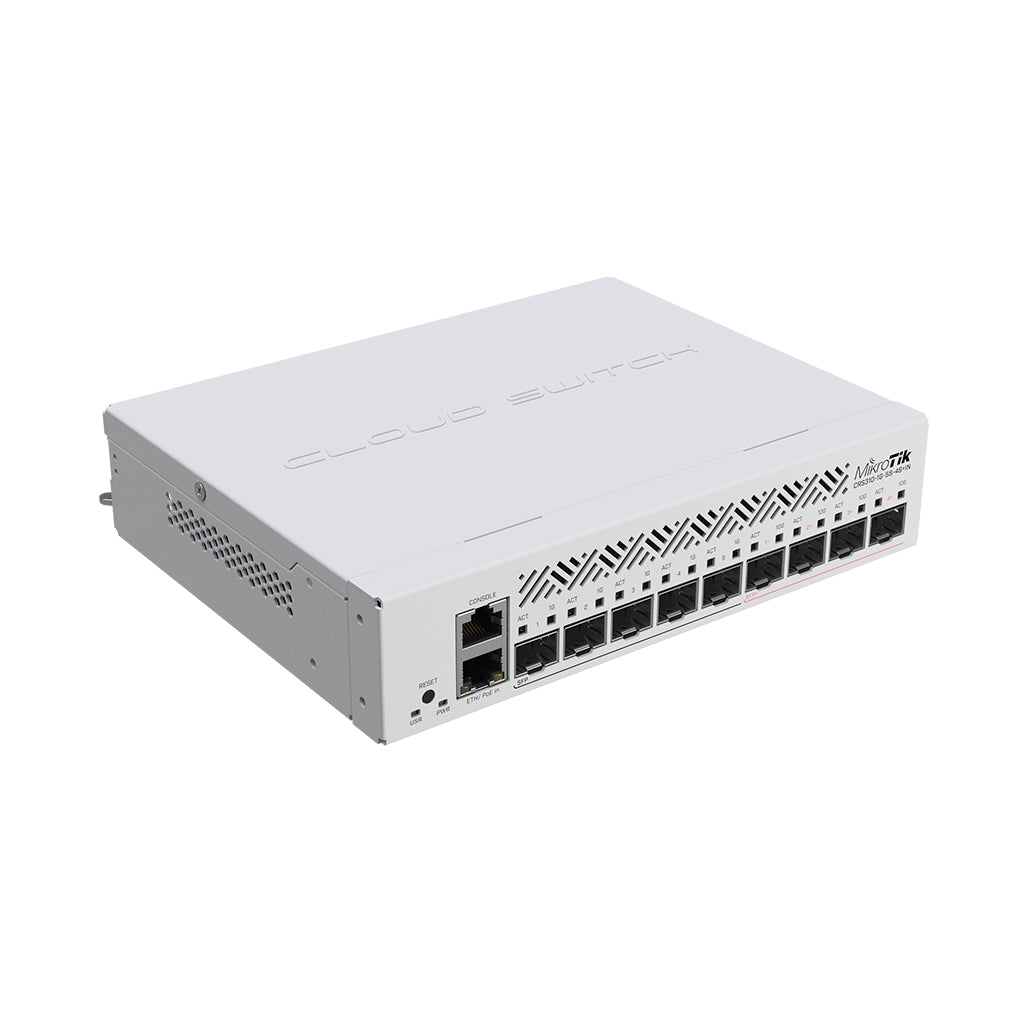

MikroTik CRS310-1G-5S-4S+IN - 10 Gigabit Fiber Switch with 1G SFP, 10G SFP+, and PoE-in

The MikroTik CRS310-1G-5S-4S+IN is a high-performance indoor switch designed for reliable 10 Gigabit fiber connectivity over distances exceeding 100 meters. Ideal for small to medium ISPs and advanced network setups, this switch features a robust configuration with five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port for enhanced network flexibility.

Equipped with a powerful ARM v7 CPU, 256 MB of RAM, and advanced Marvell switch chips, the CRS310 ensures superior performance and efficiency. It supports hardware offloaded VLAN filtering and Layer-3 routing, making it a versatile choice for demanding network environments.

The switch is housed in a 1U rackmount case, providing organized installation and optimal cooling with a single fan. Additionally, it includes PoE-in support (802.3af/at), offering flexibility in power options for installations in challenging locations.

Key Features:

• High-Speed Connectivity: Five 1G SFP ports and four 10G SFP+ ports for high-speed fiber connections.
• Flexible Power Options: PoE-in support (802.3af/at) and DC jack input for versatile powering.
• Advanced Performance: ARM v7 CPU, 256 MB RAM, and Marvell switch chips for top-notch performance.
• Efficient Cooling: Equipped with a single fan to maintain optimal operating temperatures.
• Rackmount Compatibility: Fits in a standard 1U rack for organized and efficient setup.

Specifications:

• Product Code: CRS310-1G-5S-4S+IN
• Architecture: ARM 32bit
• CPU: 98DX226S
• CPU Core Count: 1
• CPU Nominal Frequency: 800 MHz
• Switch Chip Model: 98DX226S
• Dimensions: 200 x 166 x 44 mm
• RouterOS License: 5
• Operating System: RouterOS
• Size of RAM: 256 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 2 (DC jack, PoE-IN)
• DC Jack Input Voltage: 18-57 V
• Max Power Consumption: 20 W
• Max Power Consumption Without Attachments: 8 W
• Cooling Type: 1 Fan
• PoE-in: 802.3af/at
• PoE-in Input Voltage: 18-57 V

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Fiber:

• SFP Ports: 5
• SFP+ Ports: 4

Peripherals:

• Serial Console Port: RJ45

Other:

• CPU Temperature Monitor: Yes
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The MikroTik CRS310-1G-5S-4S+IN provides exceptional 10 Gigabit fiber connectivity with a comprehensive port setup and advanced features, making it an ideal solution for high-performance and reliable network installations. With its robust cooling, versatile powering options, and advanced performance capabilities, this switch is a valuable asset for managing demanding network environments.
