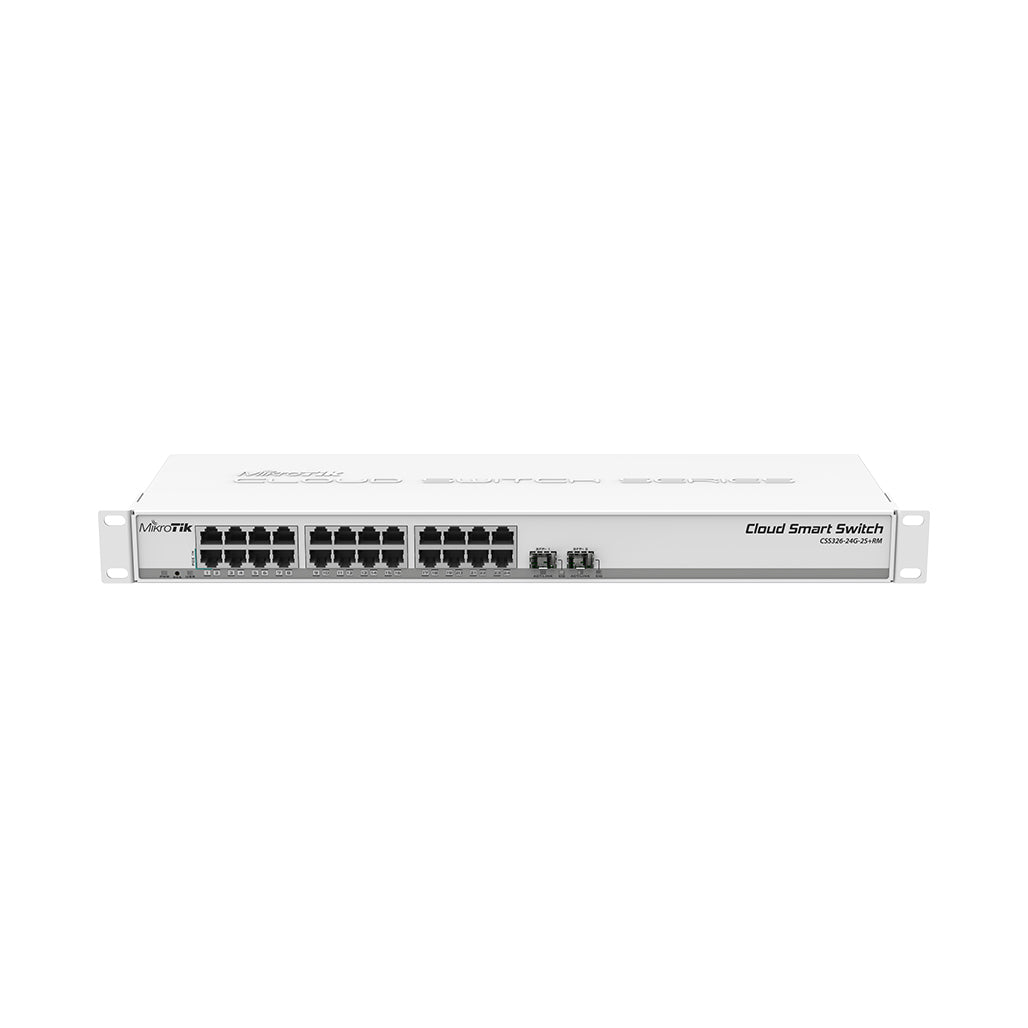

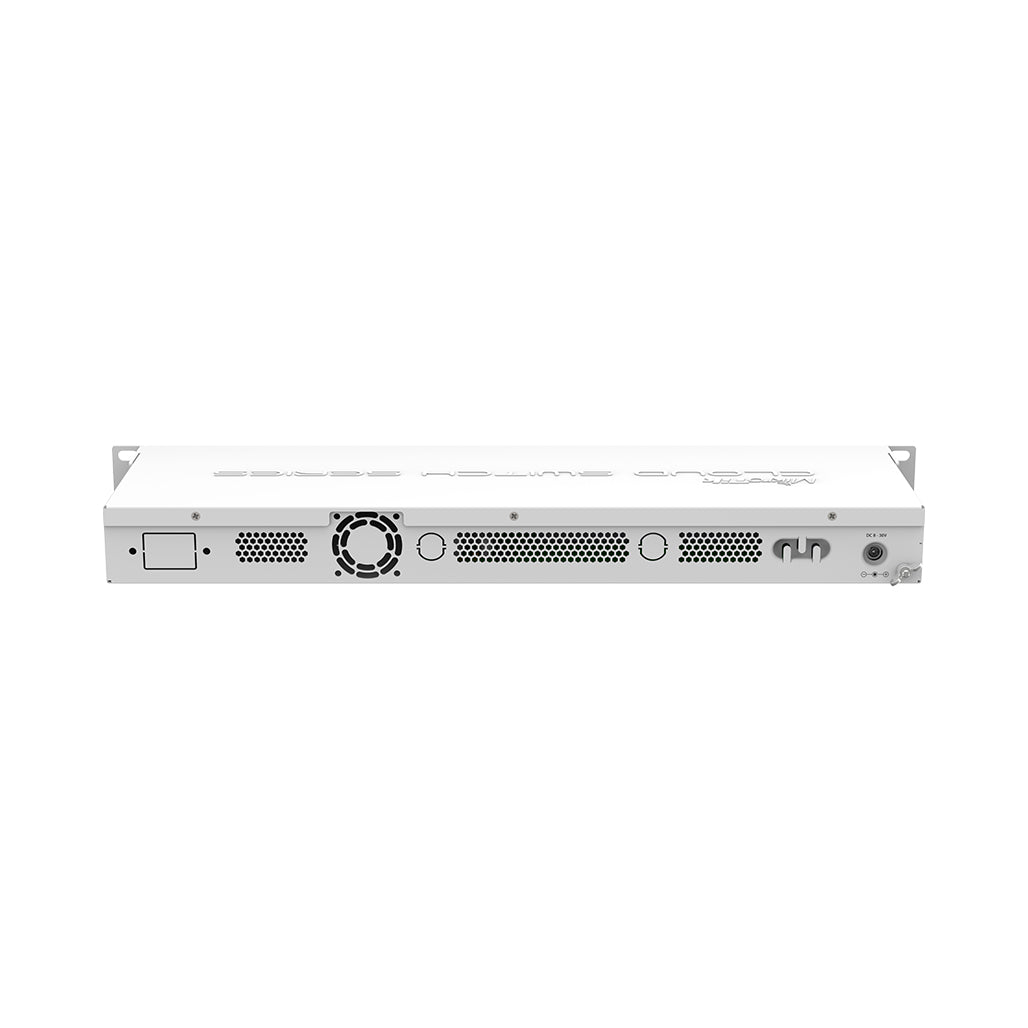

Mikrotik 24-Port Gigabit Ethernet Switch with 2 SFP+ Ports | CSS326-24G-2S+RM, 1U Rackmount

The Mikrotik CSS326-24G-2S+RM is a high-performance 1U rackmount switch designed to deliver reliable Gigabit Ethernet connectivity with advanced management features. This 24-port Gigabit Ethernet switch includes two SFP+ ports for high-speed fiber connections, providing flexible and scalable networking options. The switch operates with SwOS, offering a robust set of management capabilities such as port-to-port forwarding, VLAN configuration, MAC filtering, traffic mirroring, and bandwidth limitations.

Built with a high-quality switch chip and featuring passive cooling, the CSS326-24G-2S+RM is engineered for optimal performance and durability in various temperature conditions. With support for both 1.25 Gb SFP and 10 Gb SFP+ modules, it accommodates different network speeds and requirements. This switch is ideal for data centers, server rooms, and enterprise environments where reliable and scalable network management is essential.

Key Features:

• 24 Gigabit Ethernet Ports: Provides extensive connectivity options for high-speed network environments.
• 2 SFP+ Ports: Supports 10 Gb SFP+ modules for high-bandwidth fiber connections, enhancing network scalability.
• SwOS Operating System: Includes advanced management features such as VLAN configuration, MAC filtering, traffic mirroring, and bandwidth limitation.
• High-Quality Switch Chip: Utilizes the 98DX3216 switch chip for reliable and efficient network performance.
• Passive Cooling: Ensures quiet operation and reliable performance without active cooling components.
• Versatile SFP Cage: Compatible with both 1.25 Gb SFP and 10 Gb SFP+ modules, offering flexible networking options.

Specifications:

• Product Code: CSS326-24G-2S+RM
• Switch Chip Model: 98DX3216
• Dimensions: 443 x 144 x 44 mm
• Operating System: SwOS
• Storage Size: 2 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 70°C

Powering:

• Number of DC Inputs: 2 (PoE-IN, DC jack)
• DC Jack Input Voltage: 10-30 V
• Max Power Consumption: 19 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 10-30 V

Ethernet:

• 10/100/1000 Ethernet Ports: 24

Fiber:

• SFP+ Ports: 2

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik CSS326-24G-2S+RM offers a comprehensive solution for high-speed networking with its 24 Gigabit Ethernet ports and two SFP+ ports in a 1U rackmount form factor. Its advanced management capabilities and passive cooling design ensure reliable performance and efficient network management in various environments. The switch is built to handle demanding network tasks with flexibility and durability, making it an excellent choice for enterprise and data center applications.
