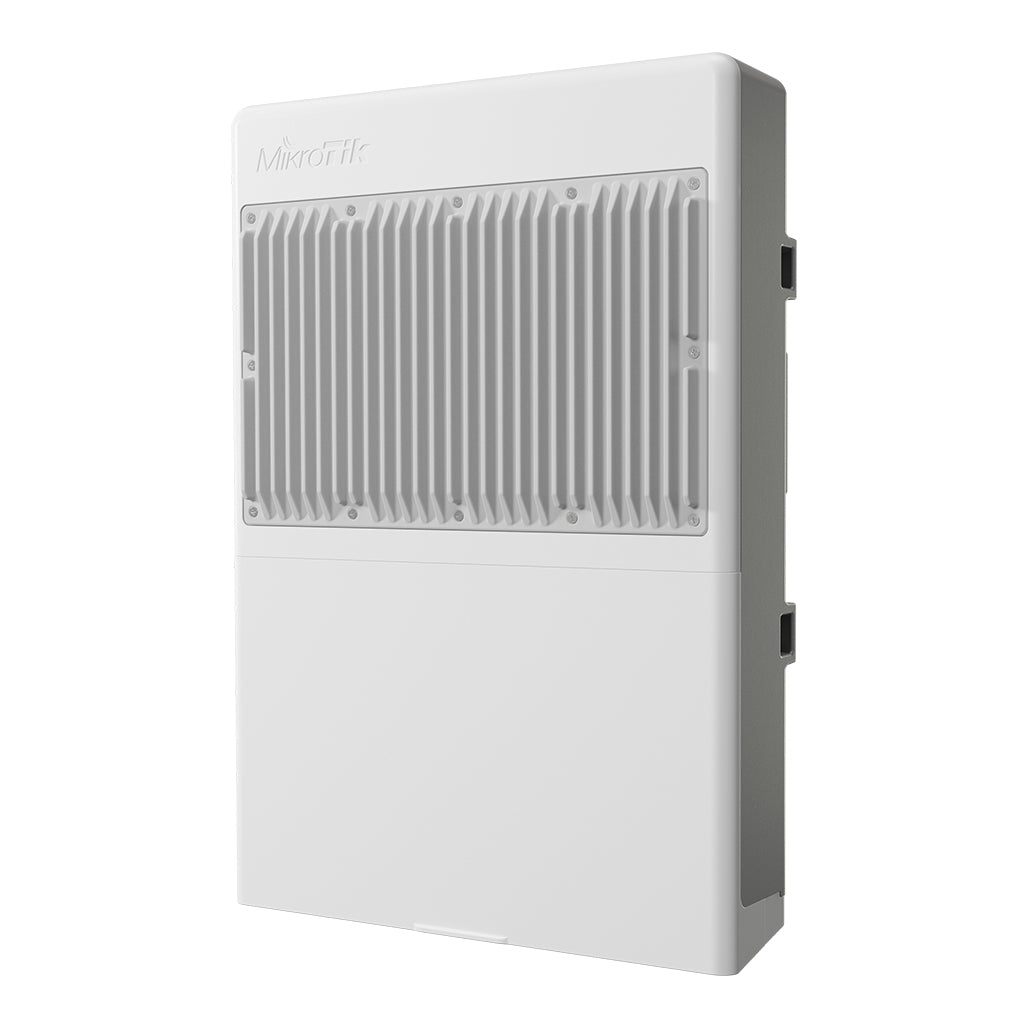

MikroTik NetPower 16P Outdoor 18-Port Gigabit PoE Switch with 2 SFP+ 10G Uplinks | CRS318-16P-2S+OUT

The MikroTik NetPower 16P is an advanced outdoor network switch designed for robust and reliable performance in challenging environments. This high-capacity switch features 16 Gigabit Ethernet ports with Power over Ethernet (PoE) capability, providing power to connected devices like access points and IP cameras. With two SFP+ ports, it supports high-speed 10G fiber uplinks, ensuring seamless and efficient data transmission for demanding network setups.

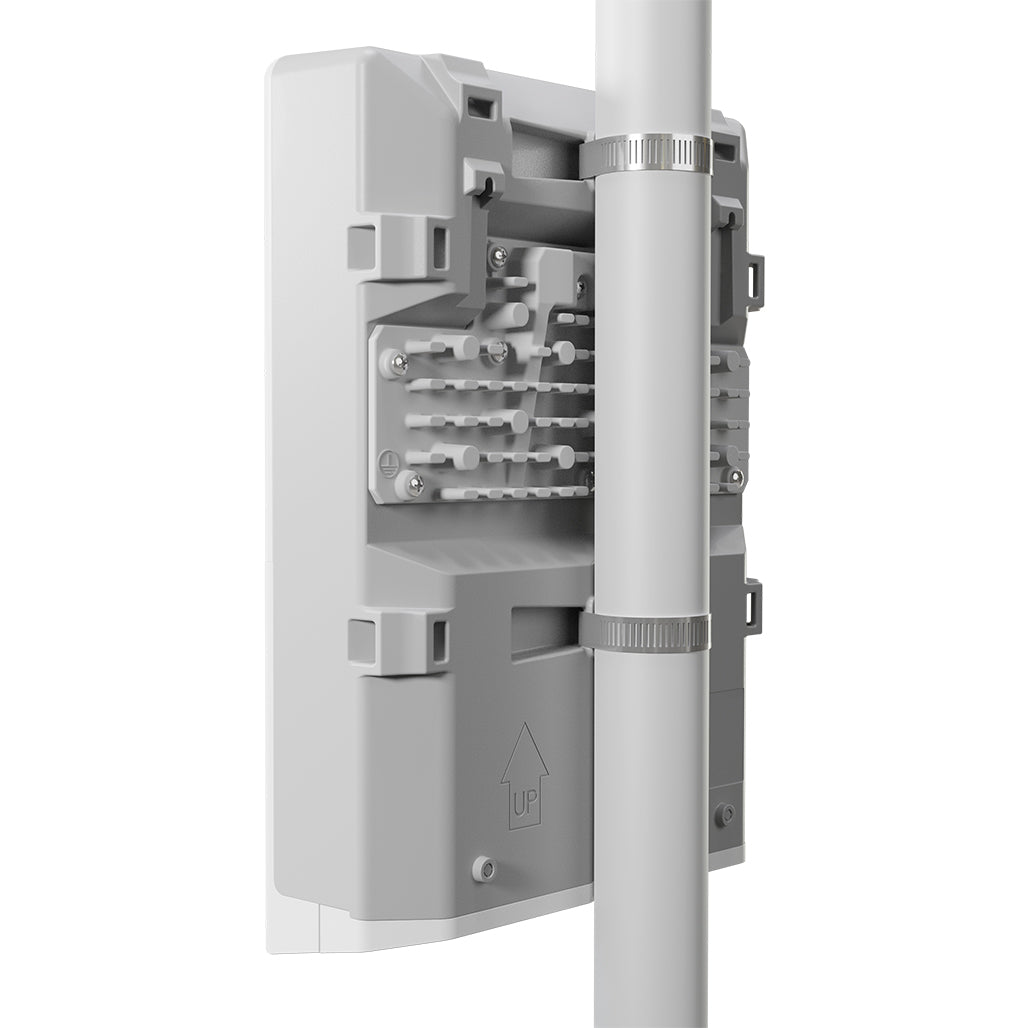

The NetPower 16P is engineered with a durable and compact enclosure that withstands harsh outdoor conditions, including moisture and extreme temperatures. Its versatile mounting options make it suitable for installation on towers, masts, poles, or other outdoor locations. The switch delivers impressive non-blocking throughput of 36 Gbps, a switching capacity of 72 Gbps, and a forwarding rate of 53.6 million packets per second, making it ideal for high-traffic network environments.

Key Features:

• Robust Outdoor Enclosure: The NetPower 16P is built with a rugged, weatherproof housing, allowing it to be deployed in various outdoor environments such as towers, masts, and poles.
• High-Power PoE: Equipped with 16 Gigabit Ethernet ports with PoE-out, the switch supports IEEE 802.3af/at standards, providing up to 1.1 A per port at 18-30 V and up to 0.6 A per port at 30-57 V. Total output capacity is 2.8 A at 18-30 V and 1.4 A at 48-57 V.
• High-Speed Fiber Connectivity: Two SFP+ ports offer 10G fiber uplink support, enhancing network performance and enabling high-speed data transfers.
• Efficient Cooling: The switch features passive cooling, ensuring reliable operation without additional fans or cooling mechanisms.
• Advanced Monitoring: Includes CPU temperature and voltage monitoring to help maintain optimal performance and prevent potential issues.

Specifications:

• Product Code: CRS318-16P-2S+OUT
• Architecture: ARM 32bit
• CPU: 98DX226S
• CPU Core Count: 1
• CPU Nominal Frequency: 800 MHz
• Switch Chip Model: 98DX226S
• Dimensions: 303 x 212 x 78 mm
• RouterOS License: 5
• Operating System: RouterOS / SwitchOS
• Size of RAM: 256 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 2 (DC jack)
• DC Jack Input Voltage: 18-30 V / 48-57 V
• Max Power Consumption: 316 W
• Max Power Consumption Without Attachments: 16 W
• Cooling Type: Passive

PoE-Out:

• PoE-Out Ports: Ether1-Ether16
• PoE Out Standard: 802.3af/at
• Max Out Per Port Output (Input 18-30 V): 1.1 A
• Max Out Per Port Output (Input 30-57 V): 0.6 A
• Max Total Out (A): 2.8 A (18V-30V) & 1.4 A (48V-57V) x2 A

Ethernet:

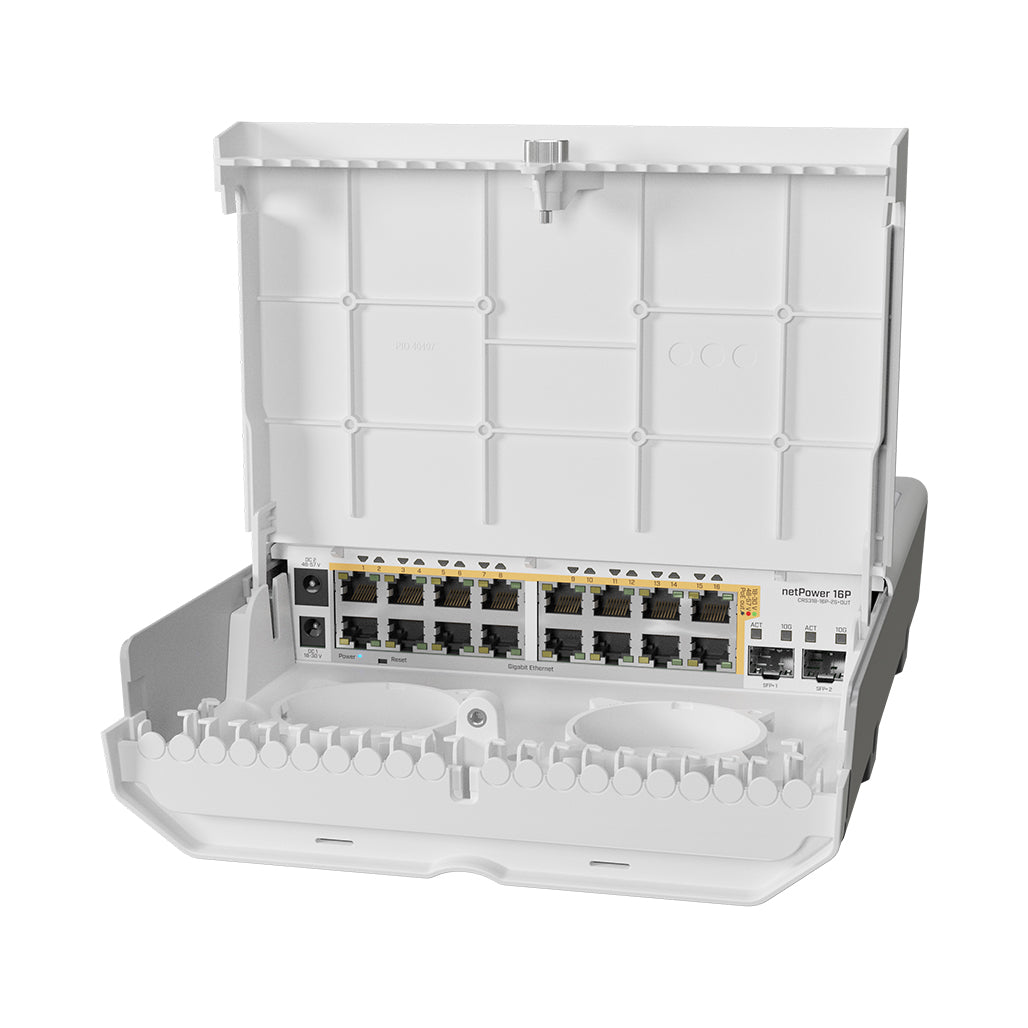

• 10/100/1000 Ethernet Ports: 16
• Number of 1G Ethernet Ports with PoE-Out: 16

Fiber:

• SFP+ Ports: 2

Other:

• CPU Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP54

Conclusion:

The MikroTik NetPower 16P provides an exceptional solution for managing outdoor network infrastructure. With its high PoE capacity, dual SFP+ ports, and durable design, this switch is tailored for high-performance and reliable operation in demanding environments. The comprehensive set of features ensures that network operations are optimized, delivering stable and efficient connectivity for various applications.
