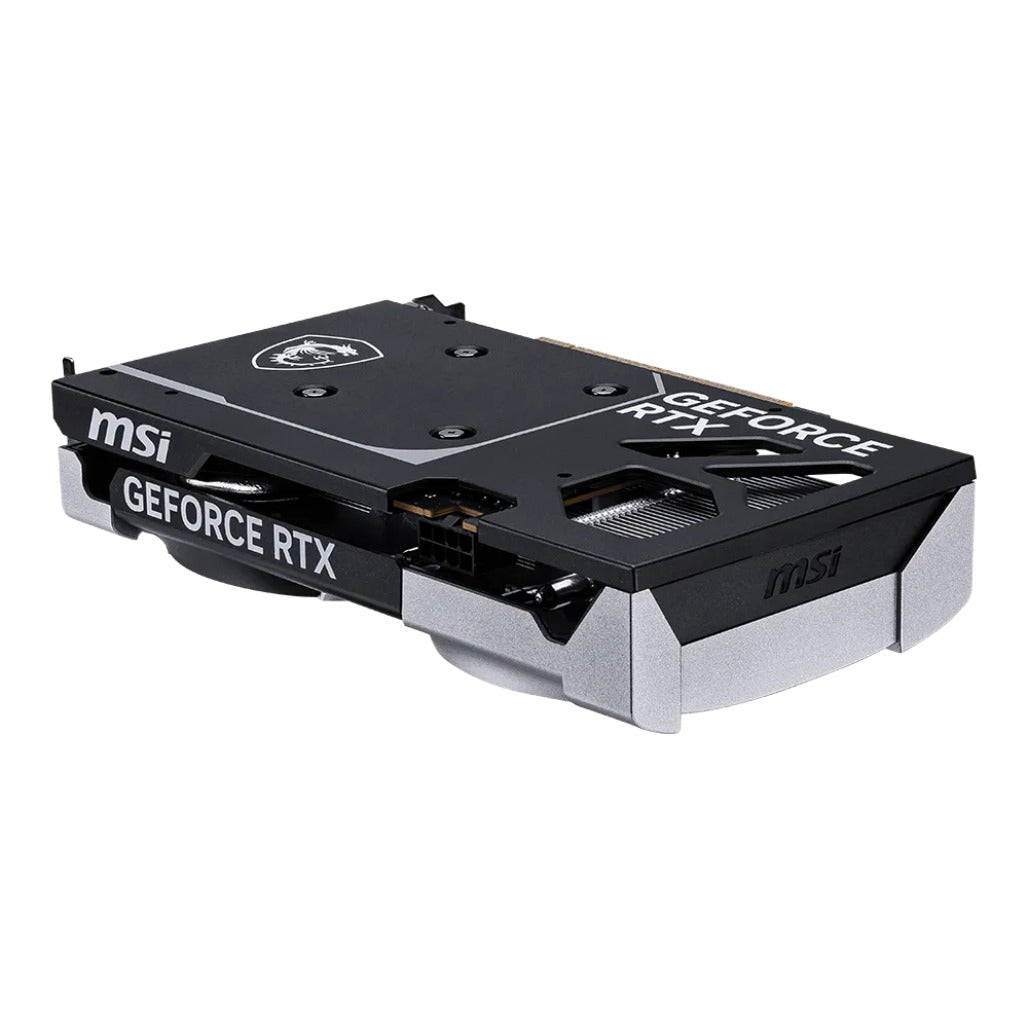

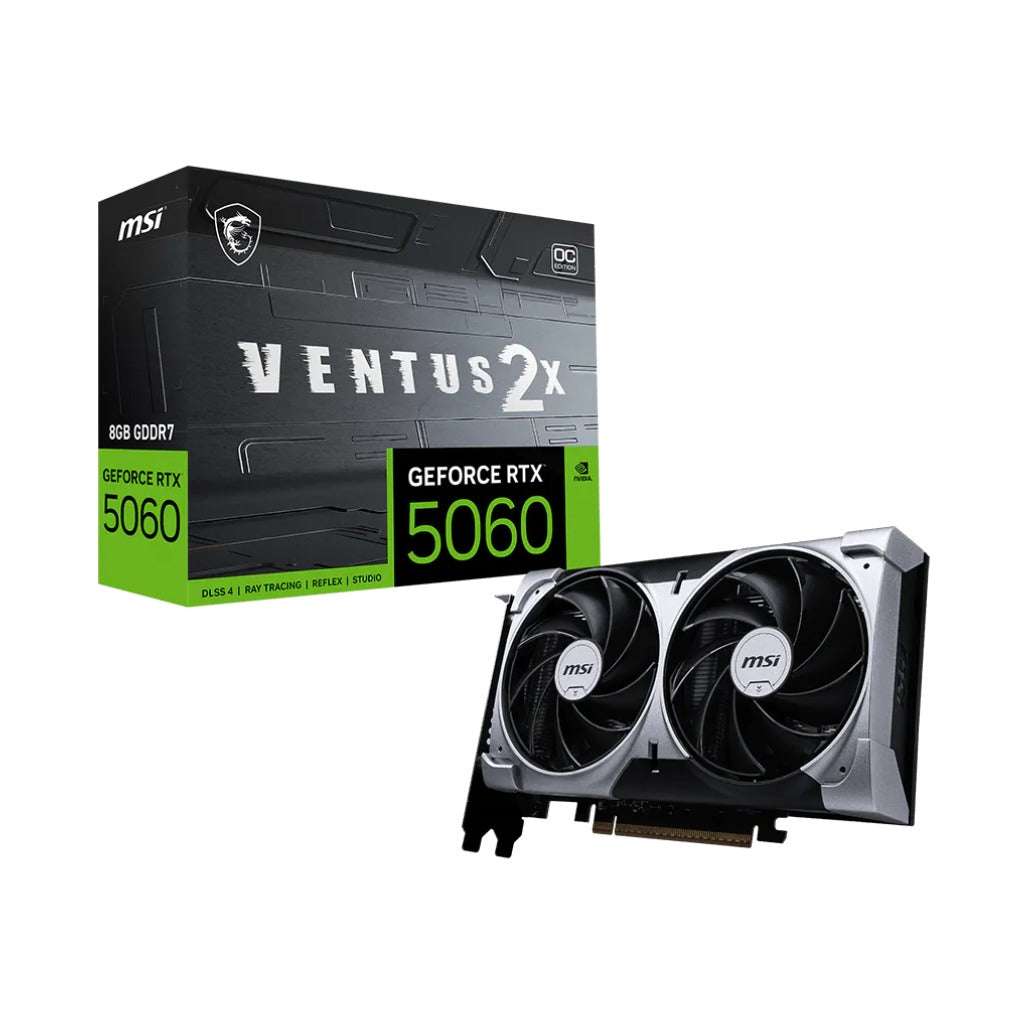

MSI GeForce RTX 5060 - 8G VENTUS 2X OC - G5060-8V2C

Built for high-performance PC graphics, the MSI GeForce RTX 5060 8G VENTUS 2X OC combines NVIDIA GeForce RTX 5060 processing with advanced cooling and control features. Designed around PCI Express® Gen 5 x16 (uses x8), it supports up to 4 simultaneous displays and targets DirectX 12 Ultimate compatibility. With a power consumption of 145 W and an 8-pin power connector, it’s positioned for systems with a recommended PSU of 550 W. Memory is specified as 8GB GDDR7 with a 128-bit memory bus and 28 Gbps memory speed, pairing with core clock targets of Extreme Performance 2535 MHz (MSI Center) and Boost 2527 MHz. For users who want software-driven control and monitoring, MSI Center is listed as a way to monitor, tweak, and optimize MSI products in real time, including AI Tuning for AI-oriented requirements. MSI Afterburner is also included in the description, providing graphics card overclocking control and real-time system monitoring. Display connectivity is specified as DisplayPort x 3 (v2.1b) and HDMI x 1 (as specified in HDMI 2.1b), with HDCP support noted as Y and G-SYNC technology noted as Y. The included architecture and display capabilities are specified via NVIDIA Blackwell, DLSS 4.5, and a digital maximum resolution of 7680 x 4320.
Key Features
• High-quality clay-based thermal pads offer additional heat dissipation for critical board components.
• Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
• MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
• MSI Center includes AI Tuning, intelligently adjusting your system to meet AI-oriented requirements.
• MSI Afterburner is graphics card overclocking software with real-time system monitoring.
• MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
• Developed under an exclusive partnership with BlueStacks.
• Powered by the NVIDIA Blackwell architecture and DLSS 4.5
• Core Clocks: Extreme Performance 2535 MHz (MSI Center); Boost 2527 MHz

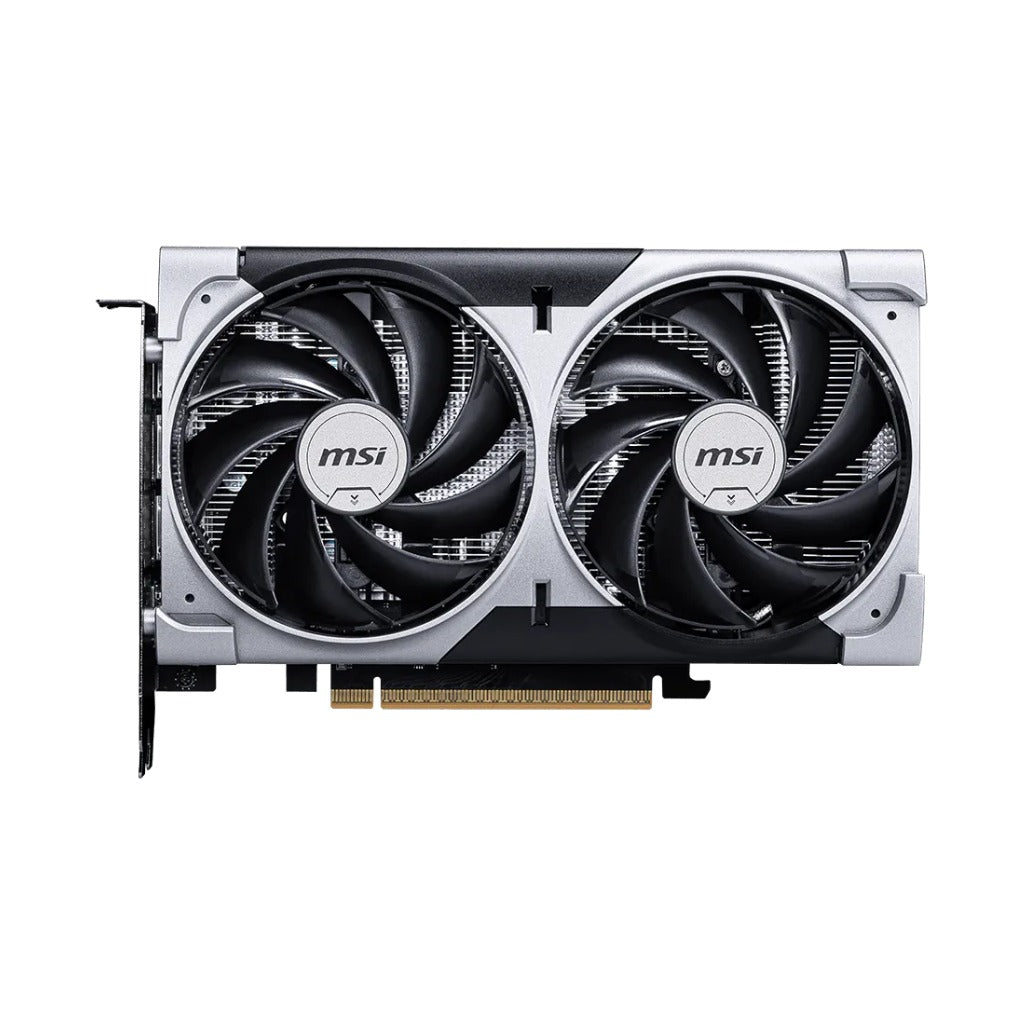

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Heat Pipes designed for efficient heat transfer draw thermal energy away from the GPU.

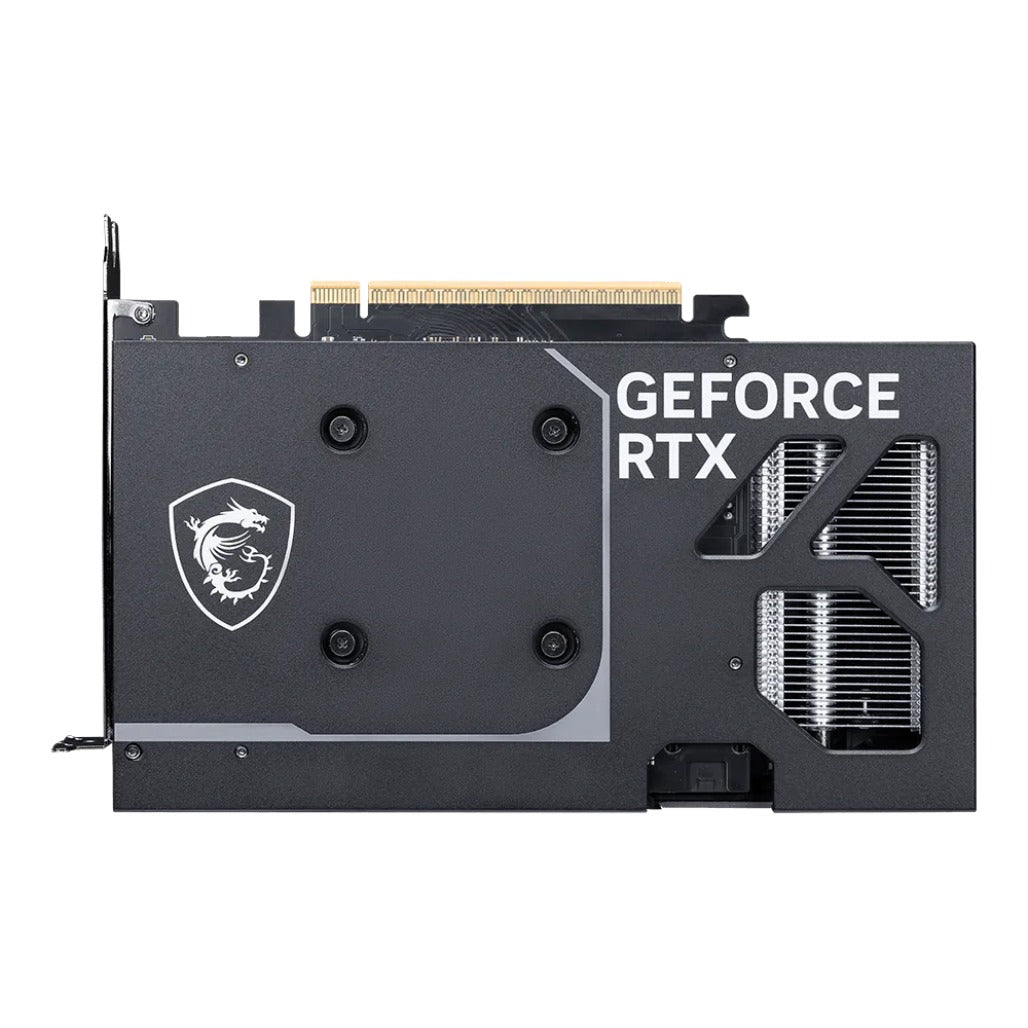

• Reinforcing Backplate: includes an airflow vent that allows exhaust air to directly pass through.
• DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
• MSI Afterburner takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications
• Marketing Name: GeForce RTX™ 5060 8G VENTUS 2X OC
• Model Name: G5060-8V2C
• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060
• Interface: PCI Express® Gen 5 x16 (uses x8)
• Core Clocks: Extreme Performance: 2535 MHz (MSI Center)
• Core Clocks: Boost: 2527 MHz
• CUDA® CORES: 3840 Units
• Memory Speed: 28 Gbps
• Memory: 8GB GDDR7
• Memory Bus: 128-bit

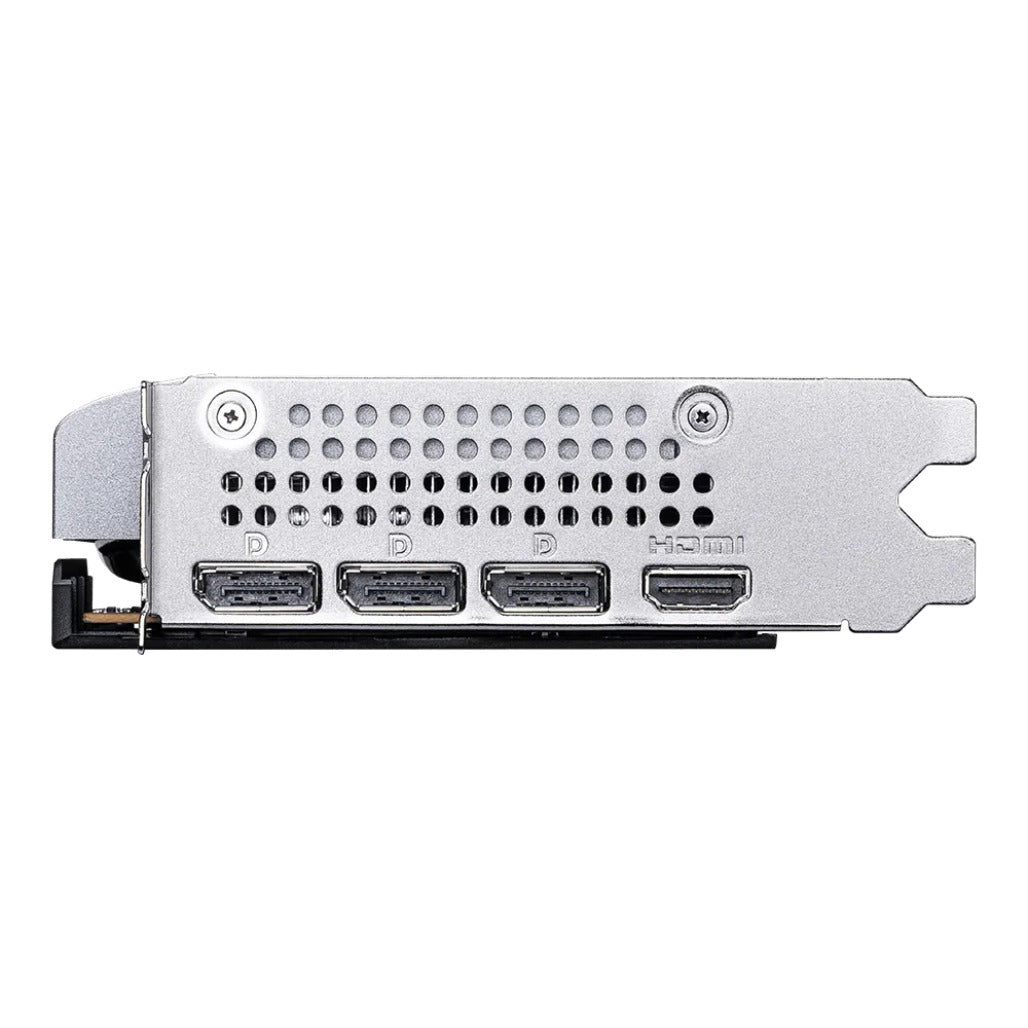

• Output: DisplayPort x 3 (v2.1b)
• Output: HDMI™ x 1 (as specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Y
• Power consumption: 145 W
• Power connectors: 8-pin x1
• Recommended PSU: 550 W
• Card Dimension (mm): 197 x 120 x 41 mm
• Weight (Card / Package): 511 g / 829 g
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320
