MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS - G506T-16V2CP

Meet the MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS, powered by the NVIDIA Blackwell architecture and DLSS 4.5. This graphics card is built around an NVIDIA® GeForce RTX™ 5060 Ti GPU and features Core Clock targets of 2617 MHz for Extreme Performance (via MSI Center) and 2602 MHz Boost. With a 16GB GDDR7 memory configuration and a 128-bit memory bus, it’s designed for systems that need reliable performance for high-resolution, multi-display setups. Connectivity includes DisplayPort x 3 (v2.1b) and HDMI™ x 1 (as specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR). For control and tuning, MSI Center supports real-time monitoring, tweaking, and optimization, while MSI Afterburner provides precision controls and real-time system monitoring. Cooling and protection features are part of the design, including STORMFORCE fan engineering with seven fan blades, claw texturing, and a circular arc for airflow with minimal noise. Heat pipes are included for efficient heat transfer, helping draw thermal energy away from the GPU for improved cooling performance. A metal backplate strengthens the card, and an airflow vent design is included to help reduce excess heat. Power is rated at 180 W with an 8-pin x1 power connector and a recommended 600 W PSU. The card supports up to 4 maximum displays and uses PCI Express® Gen 5 x16 (uses x8) for system connection.
Key Features
• Powered by the NVIDIA Blackwell architecture and DLSS 4.5
• MSI Center: exclusive software to monitor, tweak and optimize MSI products in real-time
• AI Tuning: intelligently adjusts your system to meet AI-oriented requirements
• Afterburner: graphics card overclocking software with precision controls and real-time system monitoring

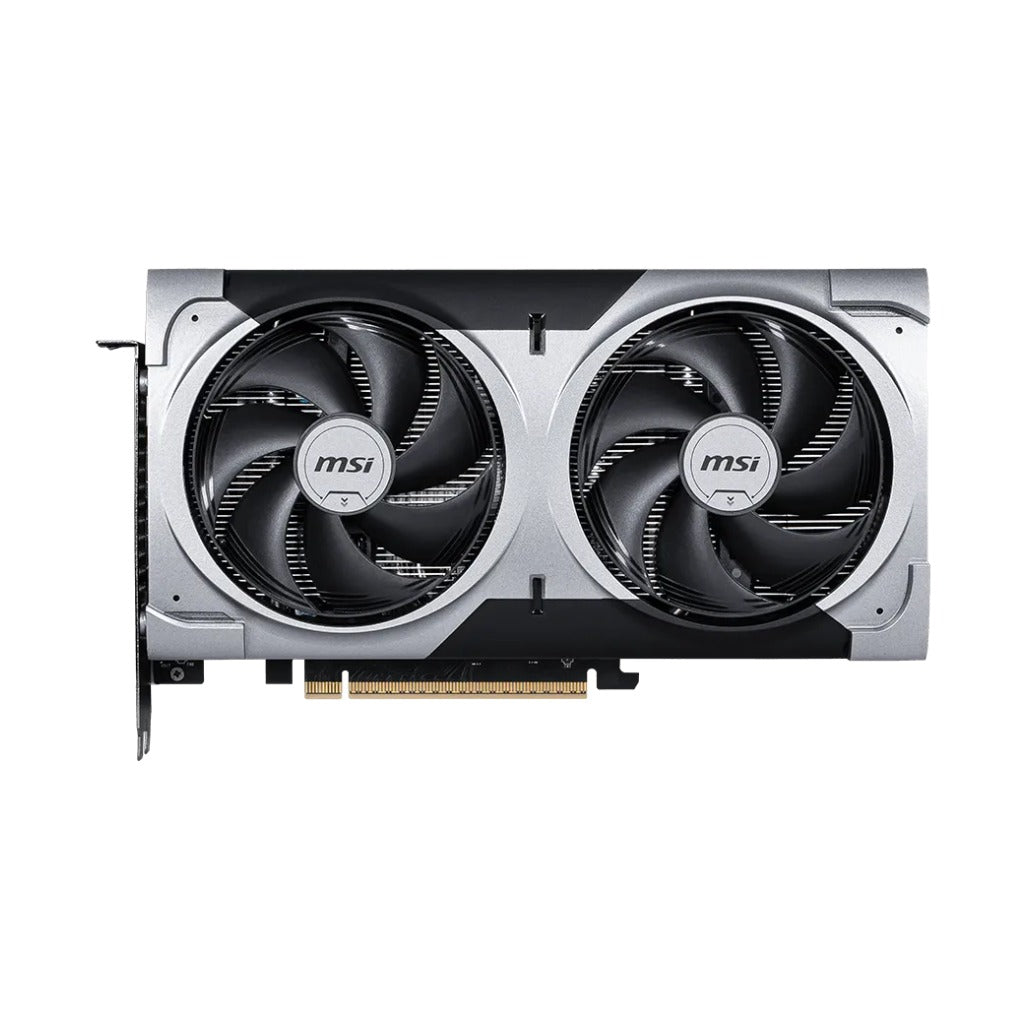

• STORMFORCE fan: seven fan blades, claw texturing, and a circular arc designed for optimal airflow with minimal noise
• Heat Pipes designed for efficient heat transfer

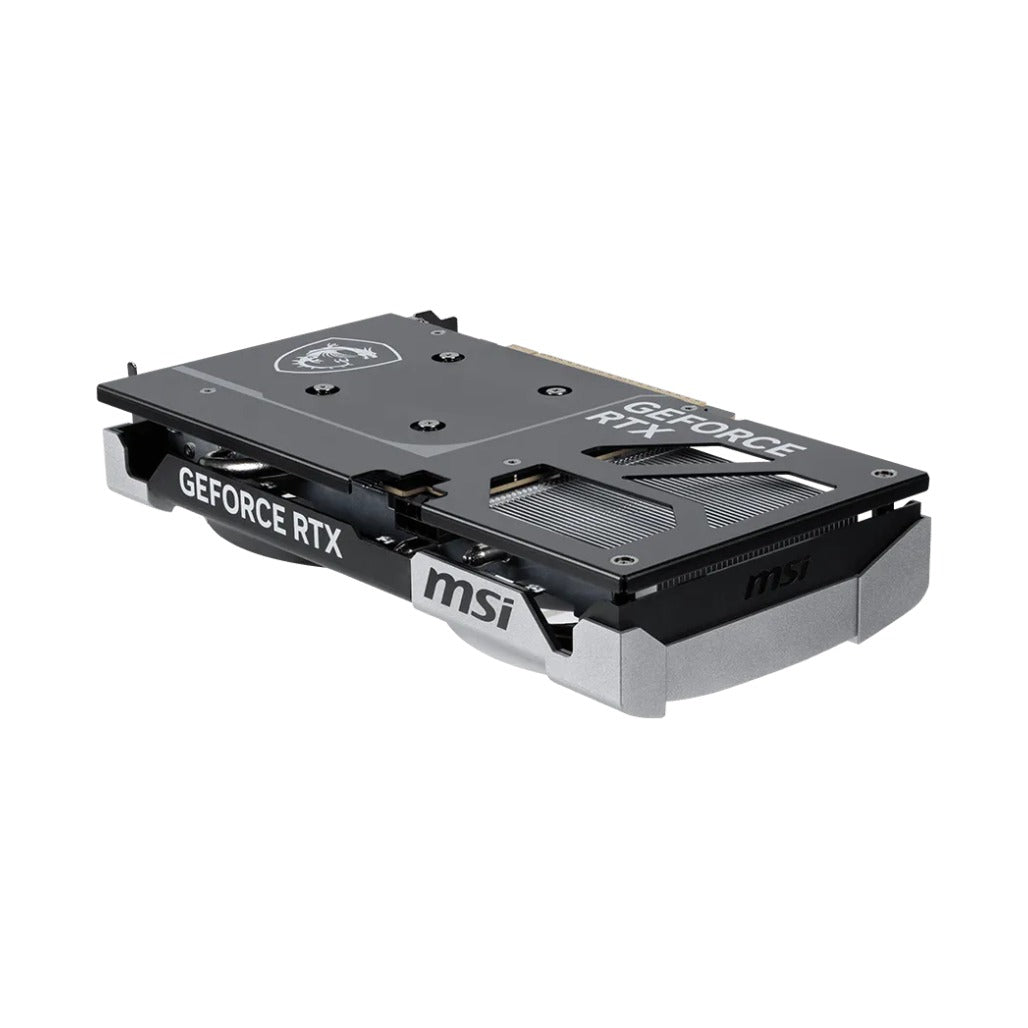

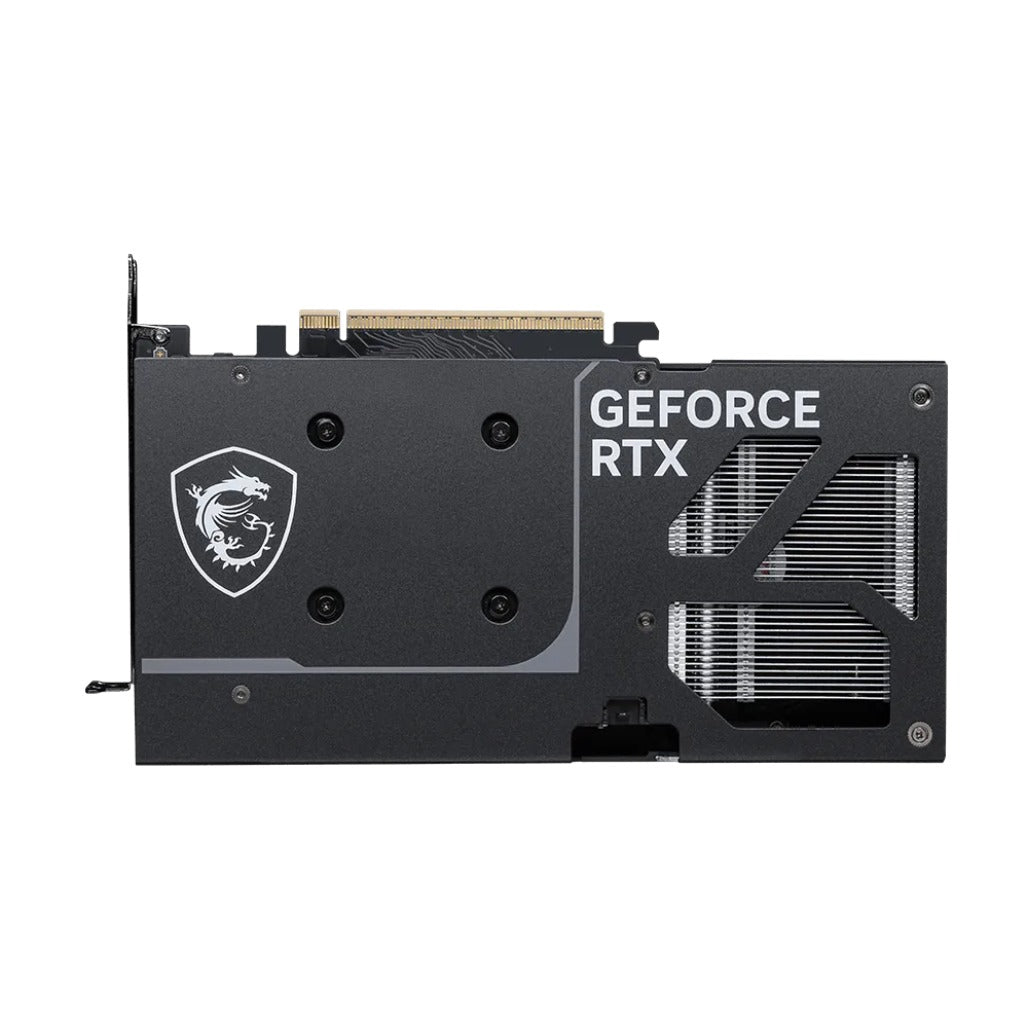

• Metal Backplate: a sturdy metal backplate that strengthens the graphics card while the airflow vent design reduces excess heat
• High-quality clay-based thermal pads offer additional heat dissipation for critical board components
• Additional fuses built into the custom PCB provide additional safeguards against electrical damage
• MSI APP Player: seamless gaming experience between mobile gaming and the PC (exclusive partnership with BlueStacks)
• DrMos power stage solutions provide great efficiency with low power loss and enhanced voltage controls
Specifications
• Marketing Name: GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS
• Model Name: G506T-16V2CP
• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
• Interface: PCI Express® Gen 5 x16 (uses x8)
• Core Clocks: Extreme Performance: 2617 MHz (MSI Center); Boost: 2602 MHz
• CUDA® CORES: 4608 Units
• Memory Speed: 28 Gbps
• Memory: 16GB GDDR7
• Memory Bus: 128-bit

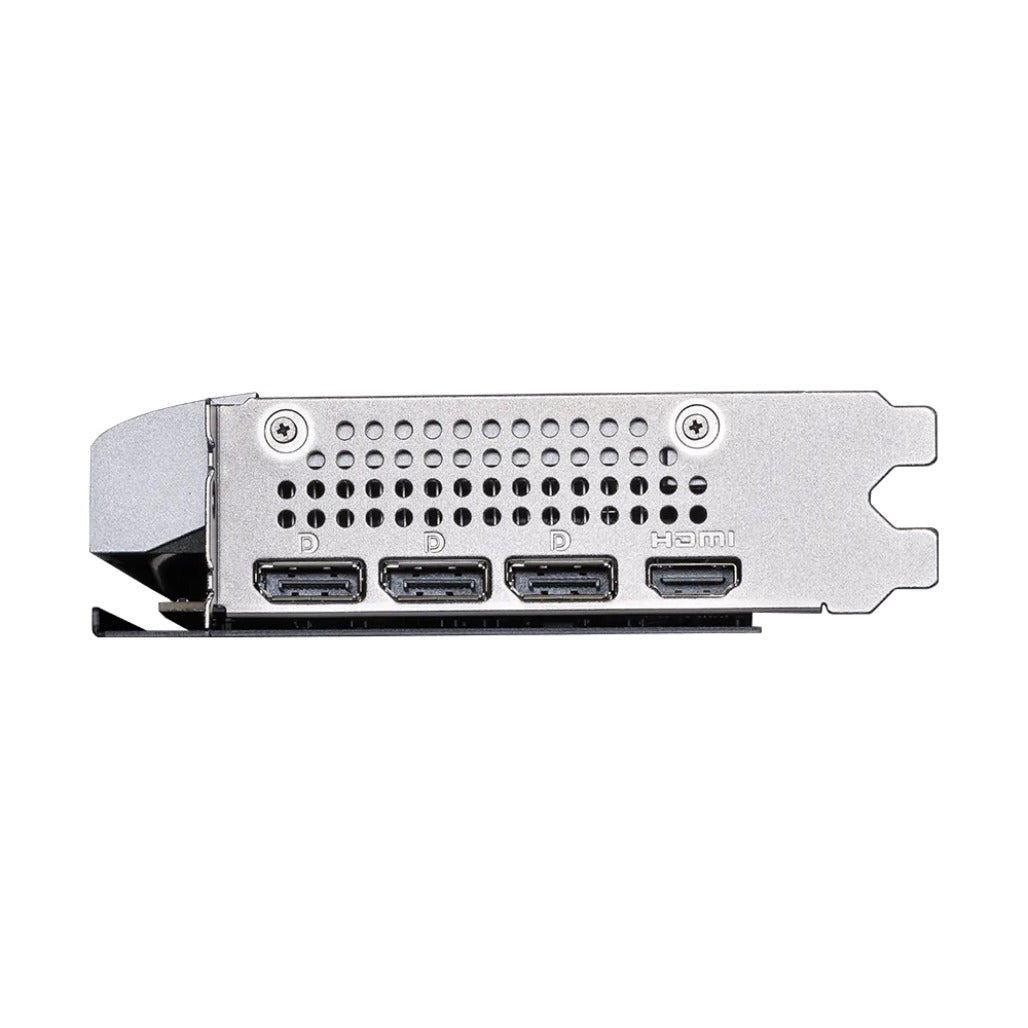

• Output: DisplayPort x 3 (v2.1b); HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
• HDCP Support: Y
• Power consumption: 180 W
• Power connectors: 8-pin x1
• Recommended PSU: 600 W
• Card Dimension (mm): 227 x 126 x 41 mm
• Weight (Card / Package): 600 g / 862 g
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320
