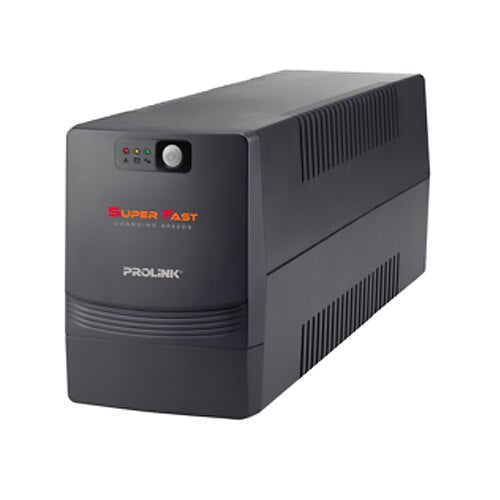

Prolink pro1501 Super Fast Charging Line Interactive Series

Your Price:
$117.00 $129.00

Pro1501-NV-S
Quantity

Added to wishlist
Order on Whatsapp

Prolink pro1501 Super Fast Charging Line Interactive Series

Your Price:
$117.00 $129.00

Currently out of stock



Prolink pro1501 Super Fast Charging Line Interactive Series

Technical Specs


GENERAL

Capacity 1500VA
Dimension (mm) 320 x 130 x 182  (D x W x H)
Weight (kg) 10.4

INPUT

Nominal Voltage 230VAC
Voltage Range 140 - 300 VAC ± 5%
Nominal Frequency 50 or 60Hz (Auto sensing)

OUTPUT

Voltage Regulation ± 10%
Frequency 50 or 60Hz ± 1Hz
Transfer Time (typical) 2 - 6ms
Waveform Simulated Sinewave

BATTERY

Number of Battery 12 V/10 Ah x 2
Recharge Time (typical) 2-4 hours recover to 90% capacity

ALARM & INDICATORS

LED Display AC Mode - Green Lighting Battery Mode - Yellow Flashing every 10 seconds Overload - Red Flashing every second Fault - Red Lighting
Sounding Battery Mode - Sounding every 10 seconds Low Battery - Sounding every second Overload - Sounding every 0.5 second Battery Replacement Alarm - Sounding every 2 seconds Fault - Continously sounding

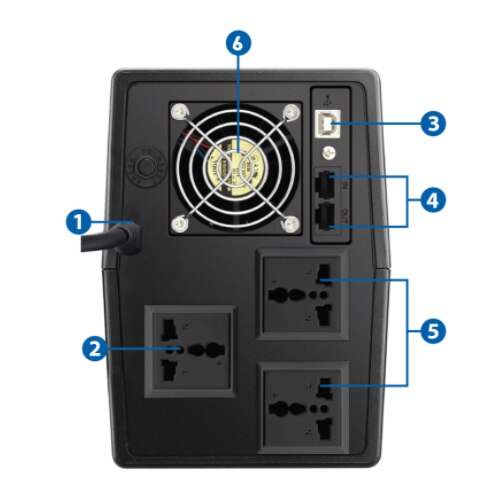

Rear Panel

  1. AC input
  2. Bypass Output (without battery back up)
  3. USB Port (Only available in PRO1501SFCU)
  4. RJ45 Ports
  5. Backup Outlets
  6. Cooling Fan
