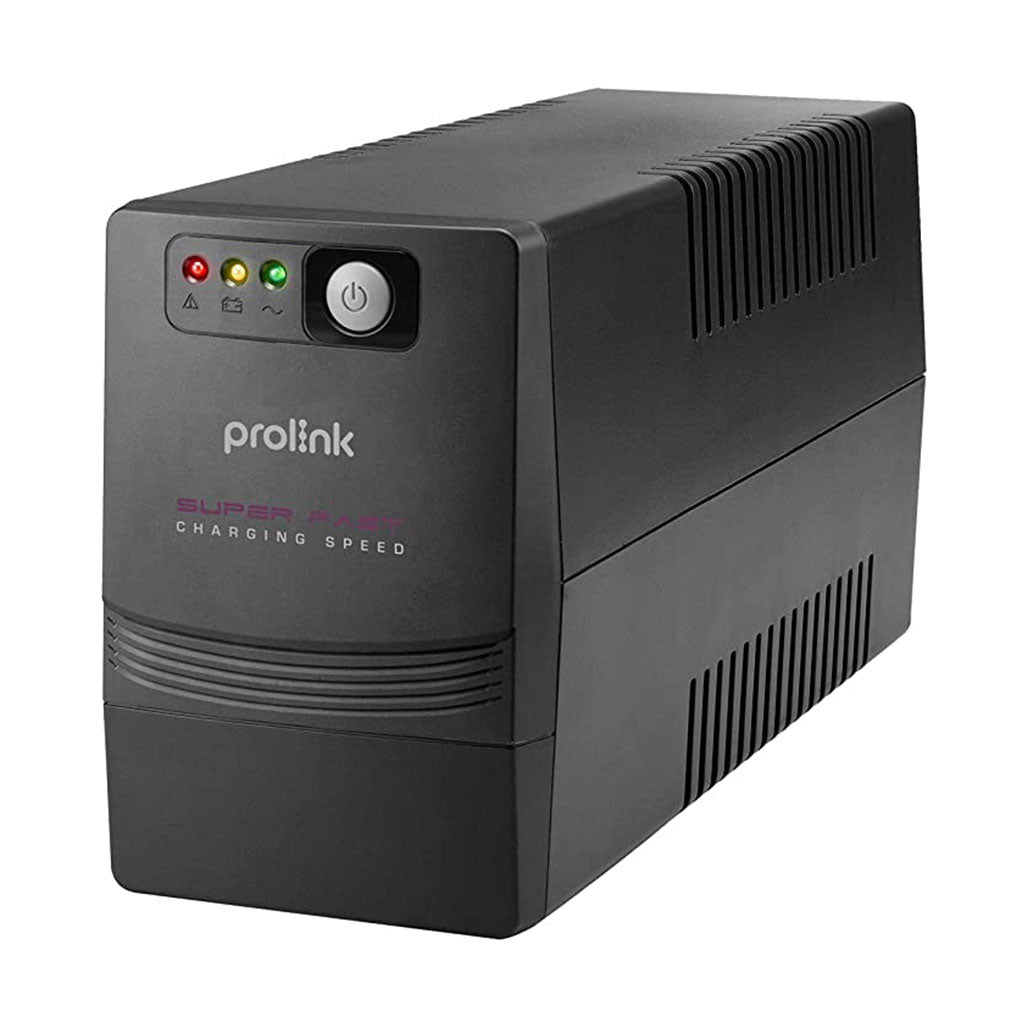

Prolink PRO851SFCU Super Fast Charging Line Interactive UPS - 850VA

The Prolink PRO851SFCU Super Fast Charging Line Interactive UPS is designed to deliver reliable power protection with an 850VA capacity. This compact UPS is ideal for small to medium-sized setups, providing essential backup power and surge protection. With its advanced line-interactive technology, the PRO851SFCU ensures your devices remain operational during power disruptions.

Featuring a rapid transfer time of 2-6ms and a simulated sinewave output, the PRO851SFCU maintains consistent power supply to connected equipment. Its single 12V/10 Ah battery recharges quickly, reaching 90% capacity in just 2-4 hours. The UPS is equipped with clear alarm and indicator systems to monitor the status of your power and identify any issues promptly.

Key Features:

• Capacity: 850VA, suitable for smaller devices and setups.
• Dimension & Weight: Compact dimensions (279 x 101 x 142 mm) and a weight of 4.9 kg.
• Input Voltage & Frequency: 230VAC input with a voltage range of 140 - 300 VAC ± 5% and auto-sensing for 50/60Hz.
• Output Voltage Regulation: ±10% regulation with simulated sinewave waveform.
• Transfer Time: Quick transfer time of 2 - 6ms to minimize downtime.
• Battery: Single 12V/10 Ah battery with a recharge time of 2-4 hours to 90% capacity.
• Alarms & Indicators:
  • LED Display:
    • AC Mode: Green Lighting
    • Battery Mode: Yellow Flashing every 10 seconds
    • Overload: Red Flashing every second
    • Fault: Red Lighting
  • Sounding Alarms:
    • Battery Mode: Sounding every 10 seconds
    • Low Battery: Sounding every second
    • Overload: Sounding every 0.5 seconds
    • Battery Replacement Alarm: Sounding every 2 seconds
    • Fault: Continuously sounding

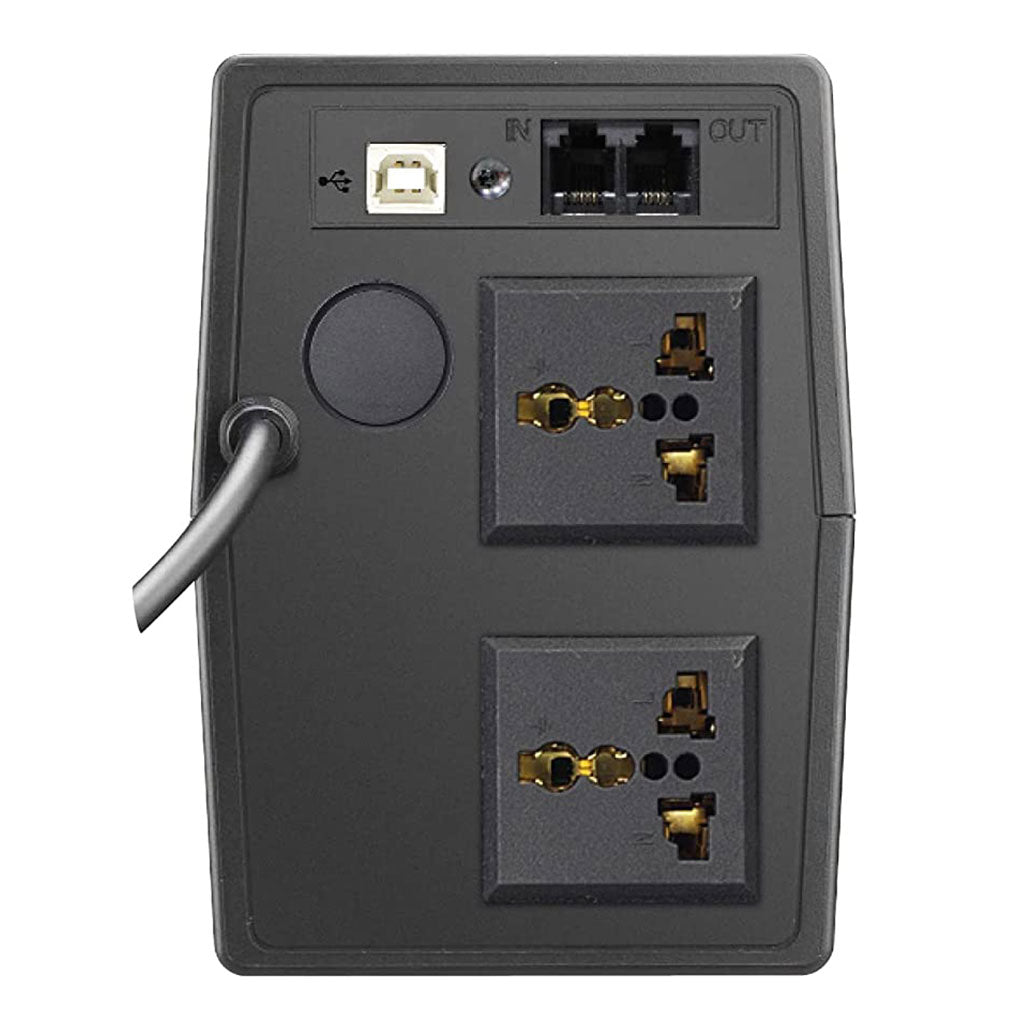

• Rear Panel Connectivity:
  • AC Input
  • Backup Outlets
  • USB Port (Available in PRO851SFCU model)
  • RJ11 Ports

Specifications:

• Capacity: 850VA
• Dimension (D x W x H): 279 x 101 x 142 mm
• Weight: 4.9 kg
• Nominal Voltage: 230VAC
• Voltage Range: 140 - 300 VAC ± 5%
• Nominal Frequency: 50 or 60Hz (Auto sensing)
• Voltage Regulation: ± 10%
• Frequency: 50 or 60Hz ± 1Hz
• Transfer Time (Typical): 2 - 6ms
• Waveform: Simulated Sinewave
• Battery: 12V/10 Ah x 1
• Recharge Time (Typical): 2-4 hours to 90% capacity

The Prolink PRO851SFCU UPS offers dependable power backup and surge protection with a compact design, making it an excellent choice for protecting essential equipment and maintaining power continuity during outages.
