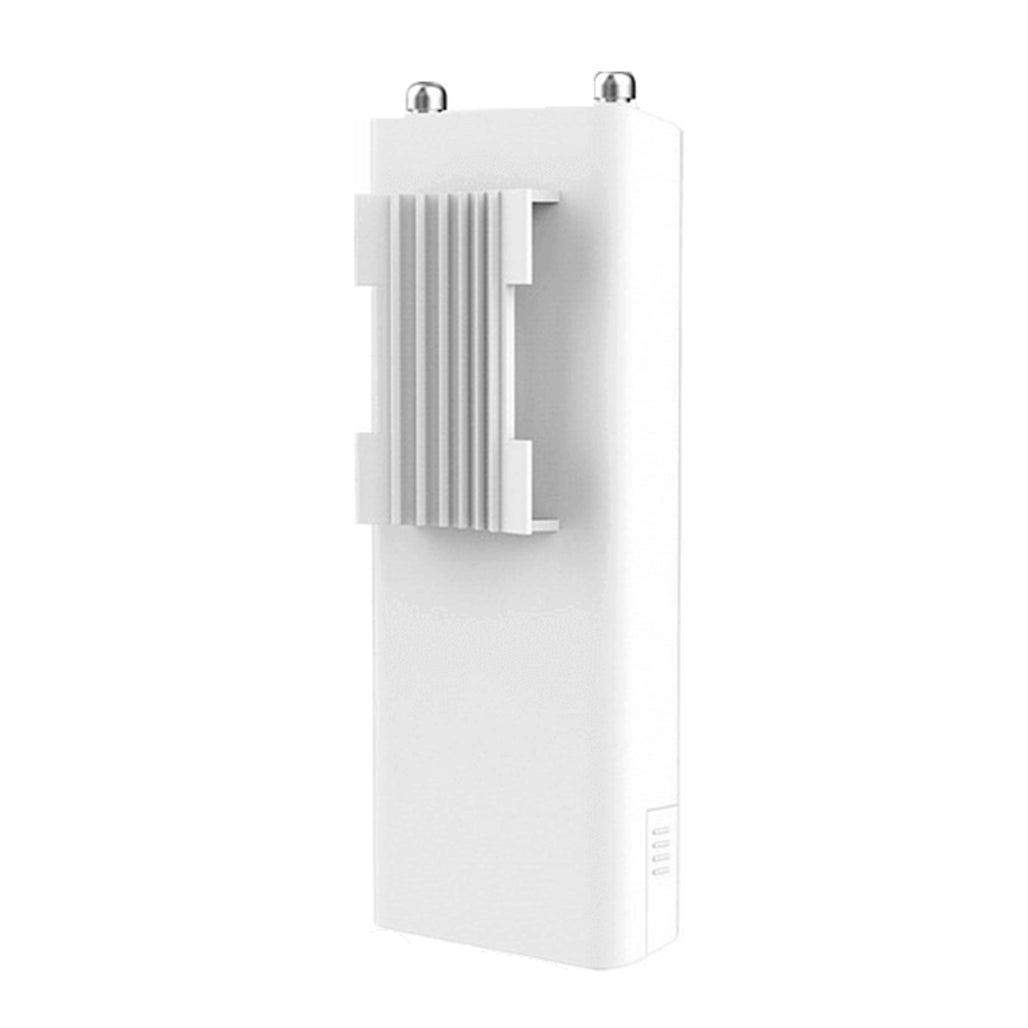

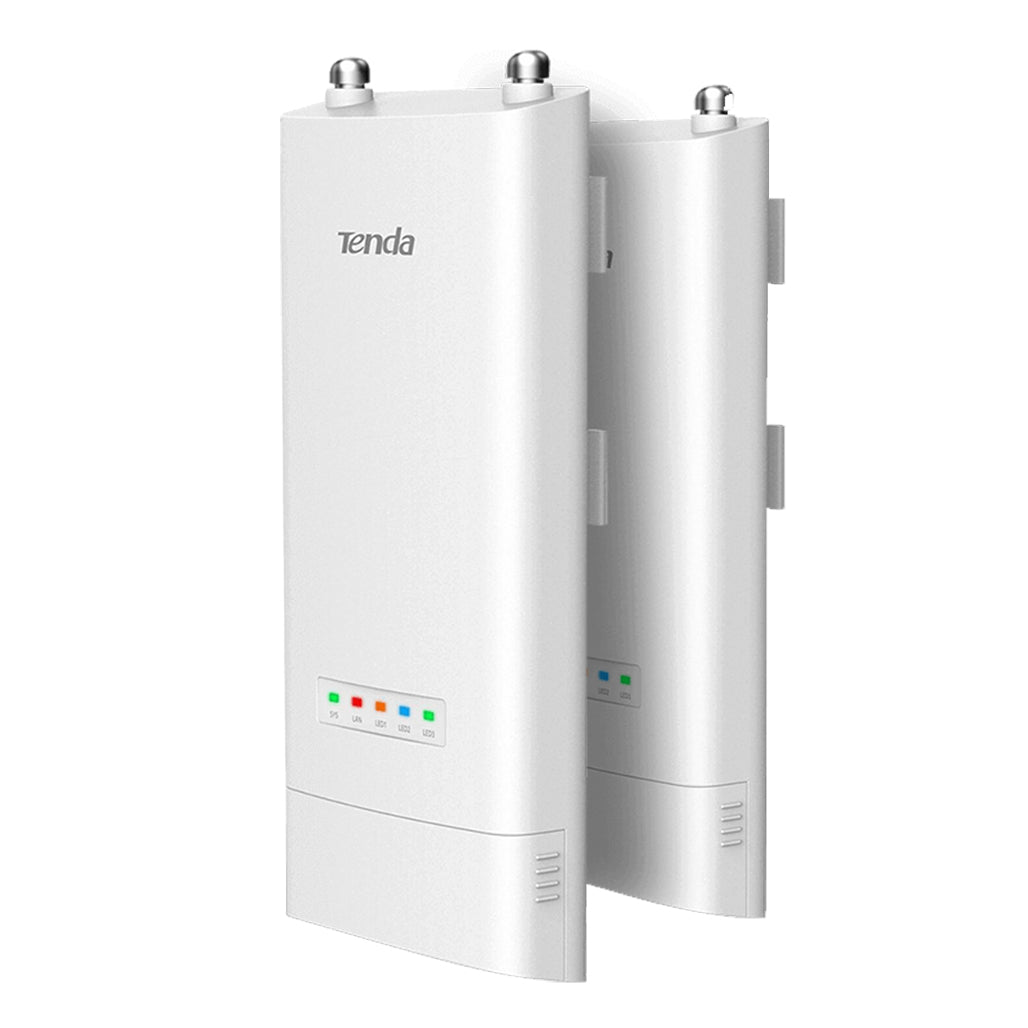

Tenda B6 Outdoor Base-Station N300 5 GHz – 300 Mbps Gigabit PoE Wireless Bridge

A rugged 5 GHz outdoor base station is provided by the Tenda B6, offering N300 wireless speeds to support long-range point-to-point (PtP) and point-to-multipoint (PtMP) links. With dual external RP-SMA antenna connectors, signal reach is enhanced and flexible antenna options are allowed, so a stronger directional or sector antenna may be attached to suit connection distance or environment. Operation is made cleaner via passive PoE, enabling both power and data to be delivered over a single cable, reducing installation complexity.

Weather-resistance and electrical protection are emphasized. The B6 is built in an IP65 enclosure that guards against rain and dust; lightning surge protection is included to prevent damage from electrical storms. Wireless interference is reduced through features such as channel bandwidth selection (10/20/30/40 MHz) and channel shift, which help when neighbouring wireless networks or signals cause contention. Multiple operating modes are allowed — AP, Station, WISP, P2MP, WDS, and repeater—to adapt to different deployment scenarios like rural ISP backhaul, outdoor surveillance, or extending coverage in large open spaces.

Key Features

• Wireless transmission at up to 300 Mbps over 5 GHz using IEEE 802.11a/n

• Two RP-SMA antenna connectors to allow external high-gain antenna flexibility

• Passive PoE powering simplifies mounting in remote outdoor locations

• IP65-rated weatherproof housing with 6000V lightning protection for outdoor durability

• Adjustable channel bandwidth (10, 20, 30, 40 MHz) and channel shift options to avoid interference

• Multiple deployment modes (AP, Station, WISP, P2MP, WDS repeater) for varied network setups

• LED indicators for power, LAN/PoE status, signal strength or link status

• Reset button for restoring factory settings

Specifications

• Wireless Standard: IEEE 802.11a / 802.11n on the 5 GHz band

• Maximum Wireless Rate: 300 Mbps

• Interfaces: 1 × 10/100 Mbps Ethernet Port

• Antennas: 2 × RP-SMA external antenna connectors

• Power Supply: Passive PoE (24V, 0.5A)

• Power Consumption: ~8.5W

• Waterproof / Weatherproof Rating: IP65

• Protection: 6000V lightning surge protection on the Ethernet port

• Operating Modes: AP / Station / WISP / P2MP / WDS Repeater / Router

• Channel Bandwidth Options: 10 / 20 / 30 / 40 MHz

• Features: Wireless radio may be disabled; SSID hiding; client isolation; limited weak-signal client support; WMM and APSD support; VLAN tagging; bridge / router modes; schedule reboot; remote diagnostics like ping/traceroute; firmware upgrade support

• Reset Function: Reset button included

• Default Management Access: Default IP, username/password (admin/admin)

• Dimensions: 190 × 84 × 37 mm

• Operating Temperature: -30 °C to +60 °C

• Storage Temperature: -40 °C to +70 °C

• Operating Humidity: 10%–90% non-condensing

Conclusion

Performance and durability are combined in the Tenda B6 Outdoor Base-Station, making it suitable for outdoor wireless bridging, rural ISP links, CCTV systems, or any deployment where stable 5 GHz connectivity over distance is required. Long-range performance is enabled by external antenna support and PoE, while weather resistance and surge protection ensure uptime in challenging environments. For installations where wired backbone is hard to run, or where interference on lower frequency bands is heavy, reliable wireless connectivity is provided.
