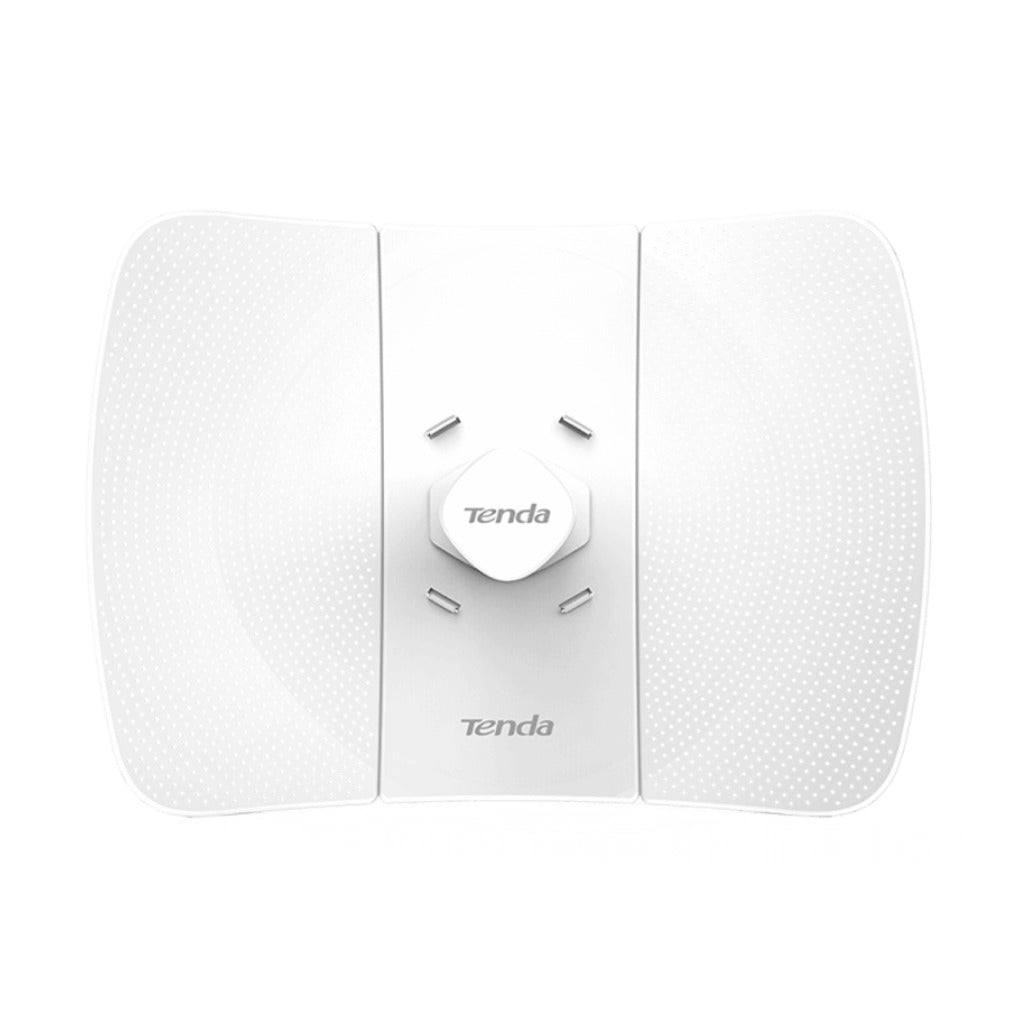

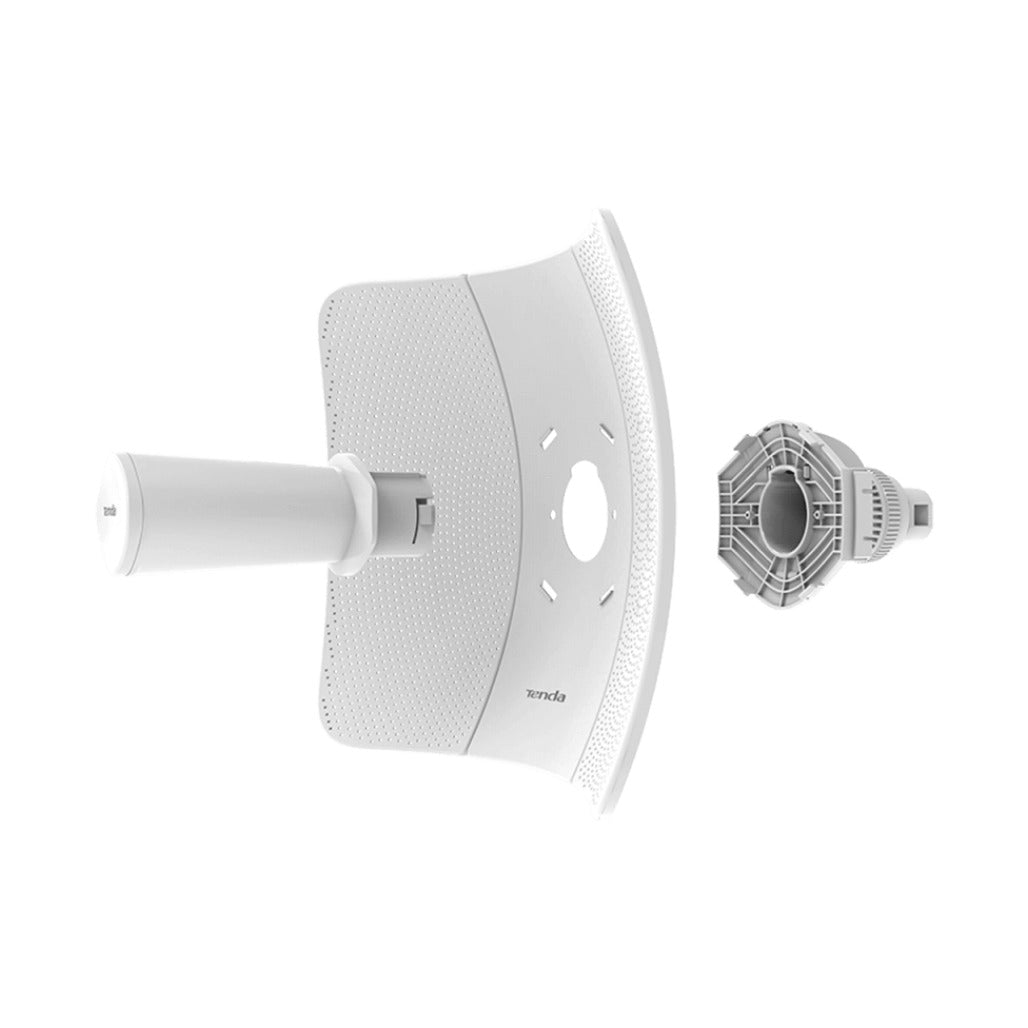

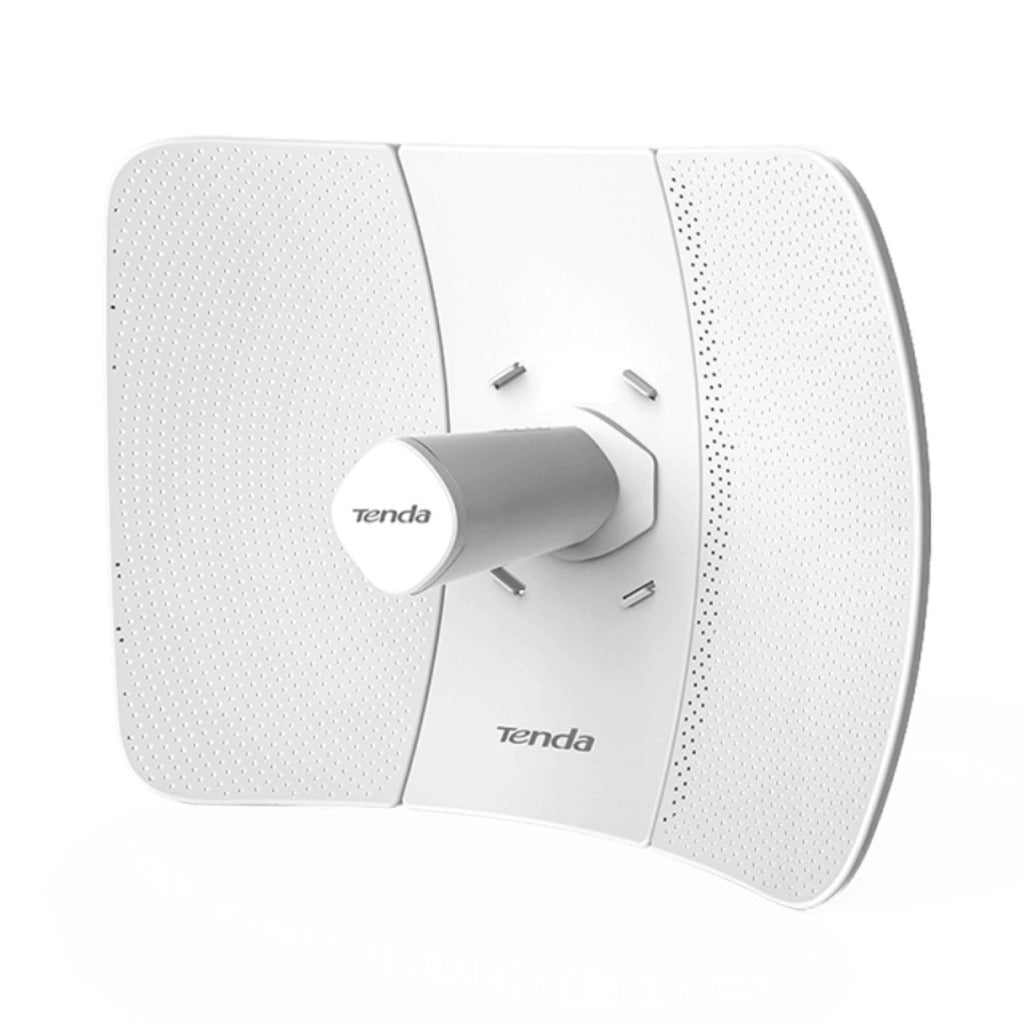

Tenda Access Point Outdoor CPE O9 - 450Mbps - 5Ghz - 23dBi

The Tenda Access Point Outdoor CPE O9 is designed for 5GHz WiFi 6 deployments and supports IEEE 802.11a/n/ac standards. With a maximum wireless rate of 867Mbps and a wireless rate of 450Mbps (pole mount), it’s built for scenarios where reliable outdoor connectivity is needed. The device features working modes including AP/Station/WISP/P2MP/WDS Repeater/Router, giving you multiple deployment options. For setup and control, it includes features such as remote web access, schedule reboot, firmware upgrade, backup/restore configuration, and managed-by-controller operation. It’s suitable for private ISP access or CCTV surveillance, as stated in the deployment/application scenario information. For radio performance, the outdoor CPE O9 includes a 23dBi dual-polarization antenna and operates on the 5 GHz frequency range. Network connectivity is provided through a 1*10/100/1000Mbps Ethernet port using Passive PoE with a 24V0.5A power method, and the voltage range is 21–25V DC. Wireless security options listed include 64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK, WPA, and WPA2. Management and diagnostics features include network diagnoses (Ping, Traceroute, Signal Scan) plus time/date setting, system logs, and username management. Additional capabilities include SSID hidden, SSID isolation, channel bandwidth 20/40/80MHz, channel shift, WMM and APSD support, transparent bridge, and VLAN tagging for SSID.
Key Features
• Deployment: Pole Mount
• Application Scenarios: Private ISP access or CCTV Surveillance
• Frequency Range: 5GHz
• Compliant Standards: IEEE 802.11a/n/ac
• Private TDMA Protocol: TD-MAX
• Antenna Gain: 23dBi
• Antenna Polarization: Dual Polarization
• Waterproof Level: IP65
• Lightning Protection: Passive PoE
• Reception Sensitivity: 11a 6Mbps -96dBm±1.5dBm; 11n MCS7 HT20 -72dBm±1.5dBm; 11ac MCS9 HT80 -65dBm±1.5dBm
• Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router
• SSID Hidden
• SSID Isolation
• Channel Bandwidth: 20/40/80MHz
• Channel Shift
• Weak Signal Client Limitation
• WMM Capable
• APSD Capable
• Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
• Transparent Bridge
• VLAN Tagging for SSID
• DHCP Server
• VPN Pass-Through: PPTP,L2TP
• Remote Web access
• Schedule Reboot
• Page Timeout
• Ping Watchdog
• Dyndns: noip, dyndns.org
• Network Diagnoses: Ping, Traceroute, Signal Scan
• Time and Date Setting
• Firmware upgrade
• Backup/Restore Configuration
• Username Managerment
• System Logs
• Managed By Controller
• PC Software CPE Assistant
• Enable/Disable Wireless Radio
• Wireless Client isolation
• Wireless Access Control
• Transmission Power: Adjustable power by 1dBm
• Transmission Range: 25km+
Specifications
• Model: O9
• Maximum Wireless Rate: 867Mbps
• Wireless: Wifi 5
• Data Rate: 450Mbps
• Speed: Gigabit
• Frequency: 5Ghz
• Antenna: 1
• Antennas Gain: 23dBi
• Antenna Beamwidth: Horizontal: 10°; Vertical: 10°
• Interfaces: 1*10/100/1000Mbps Ethernet Port
• Power Method: 24V0.5A Passive PoE
• Power Consumption: 7.5W
• Passive PoE: Passive power over ethenet via PoE/LAN (+4,5pins-7,8pins )
• Voltage range: 21-25V DC
• Power: POE
• Operating Temperature: 30℃ ~ 60℃
• Storage Temperature: -40℃ ~ 70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: (not specified)
• Default login IP: 192.168.2.1
• Default Login Username: admin
• Default Login Password: (not specified)
• Reset Button: 1*Reset Button
• LED Indicator: PoE/LAN,LED1,LED2,LED3
• Lightning Protection: Passive PoE
• Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
• Wireless Client isolation
• Wireless Access Control
• Transmission Power: Adjustable power by 1dBm
• Channel Bandwidth: 20/40/80MHz
• Certifications: FCC/CE/RoHS
• Dimension: 391.5*280*223mm
• Package Contents: 1*5GHz 11ac 23dBi Gigabit Outdoor CPE O9; 1*Quick Installation Guide; 1*PoE Power Adapter; 1*Power cord
• Reference: NETWORK L127
• VPN Pass-Through: PPTP,L2TP
• Remote Web access: Supported
• PC Software: CPE Assistant
