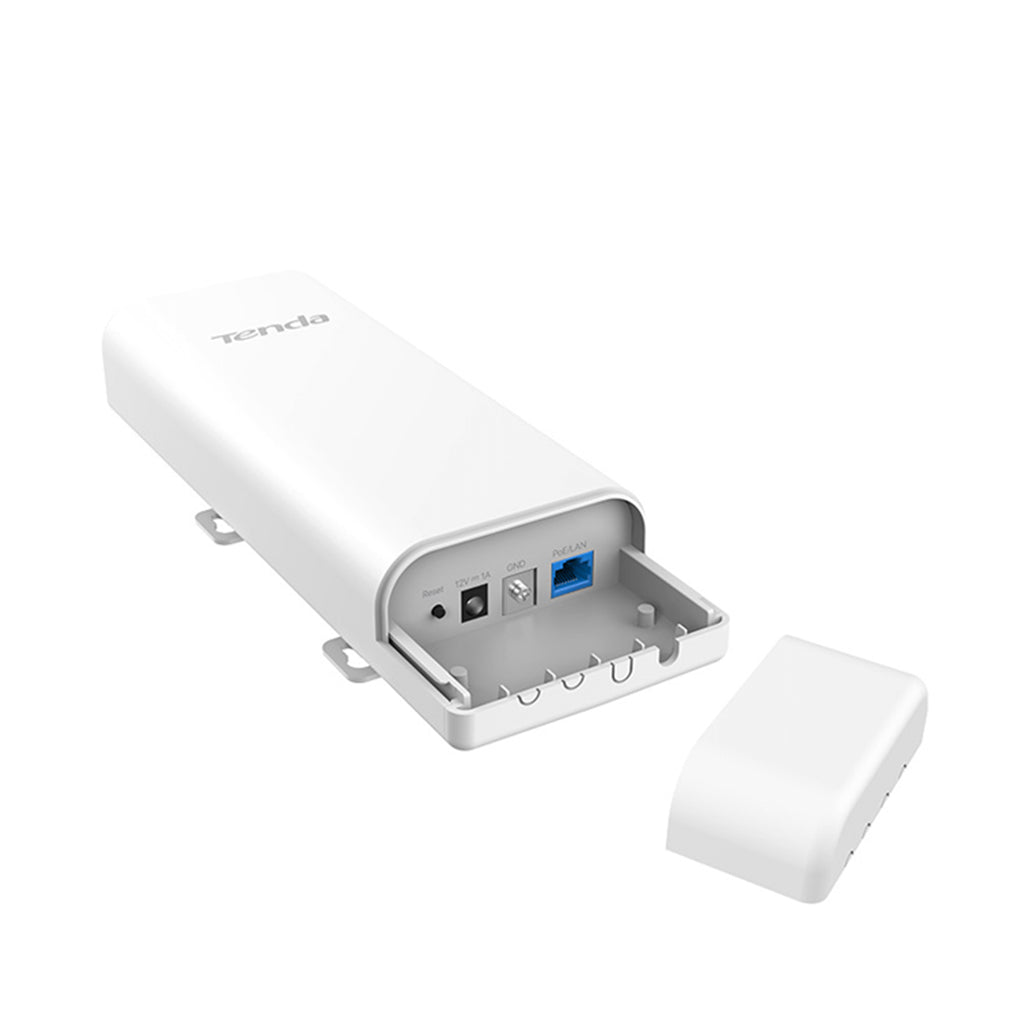

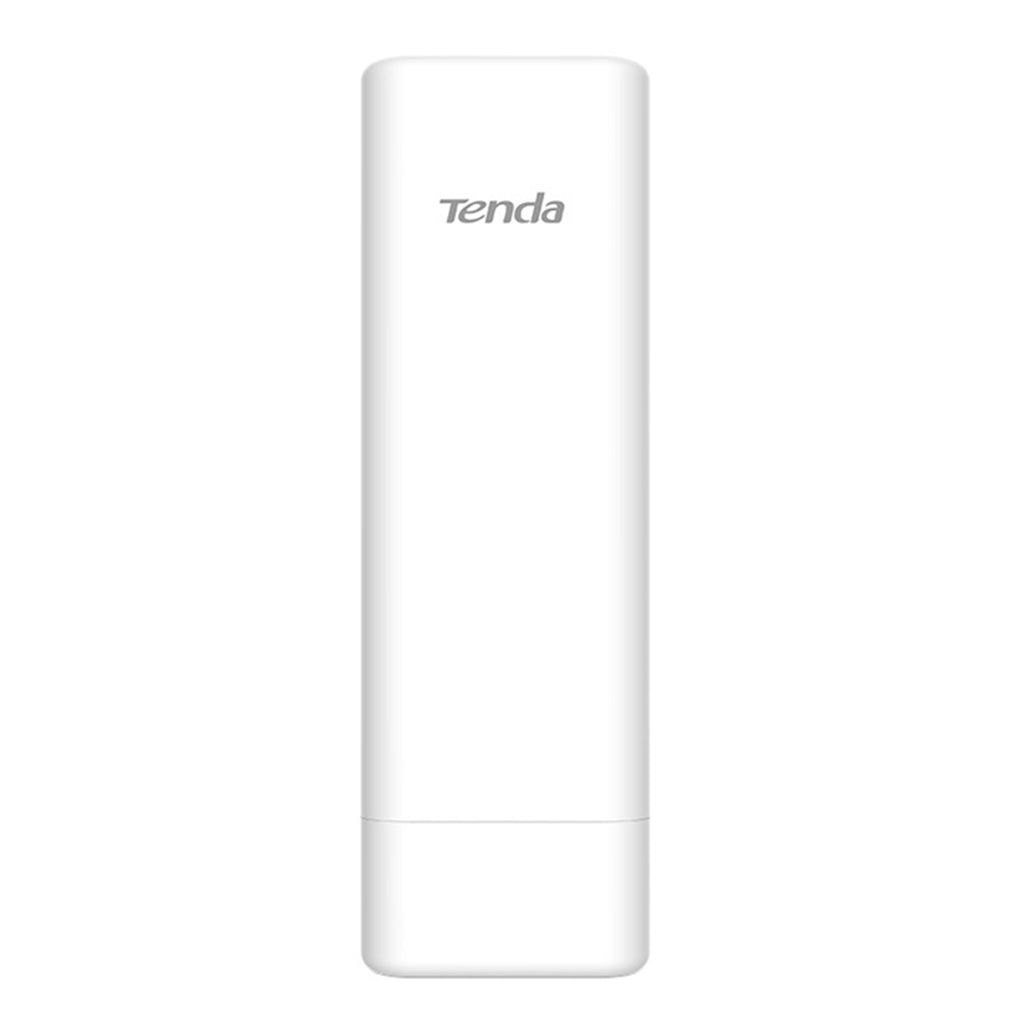

Tenda O6 Outdoor N450 Power-over-Ethernet 5 GHz Point-to-Point CPE – 16 dBi Gigabit Bridge

A rugged outdoor access point is provided by the Tenda O6 for extending wireless network across long distances on the 5 GHz band. It supports N450 class speed and uses a high-gain 16 dBi directional antenna to focus signal, enabling stable point-to-point or point-to-multipoint connections. The unit is enclosed in a waterproof housing rated IP65 and includes lightning protection so that reliable operation is ensured under harsh weather conditions.

Installation is simplified through PoE (Power over Ethernet), allowing both power and data to be transmitted over a single cable. Gigabit Ethernet backhaul is also supported so that wired-fast performance is maintained. Multiple operating modes are built in—AP, Station, WISP, Repeater—which make the device suitable for remote surveillance, ISP bridging, or network extension across large properties.

Key Features and Explanations

• High-Gain 16 dBi Directional Antenna: Focused beam provides greater distance and strong signal strength in one direction, ideal for bridging outdoor links.

• Gigabit Ethernet Port: Ensures that wired backbone does not become a bottleneck, supports high throughput.

• PoE Support: Single cable handles both power and data, simplifying mount installation on poles or towers.

• Weatherproof IP65 Case & Surge Protection: Protected against dust, rain, and surges such as from lightning strikes, making it durable outdoors.

• Flexible Operating Modes: Modes such as AP, Station, WISP, and Repeater allow versatile setups depending on networking needs.

Specifications

• Wireless Standard: IEEE 802.11a/n/ac at 5 GHz

• Maximum Wireless Rate: N450 (≈450 Mbps)

• Antenna: 16 dBi directional, dual-polarization

• Ethernet Interface: 1 × Gigabit RJ-45 (10/100/1000 Mbps)

• Operating Modes: AP / Station / WISP / Repeater

• Power Method: Power over Ethernet (PoE)

• Weather Protection: IP65 rating for outdoor exposure

• Surge Protection: Built-in to handle electrical transients outdoors

• Mounting: Pole mounting supported

Conclusion

When long-range wireless bridging is required—such as for linking remote buildings, setting up CCTV links, or delivering broadband to outbuildings—the Tenda O6 is well suited. Its directional antenna, robust outdoor protections, and versatile mounting and PoE capabilities make the device dependable for high-performance outdoor wireless infrastructure.
