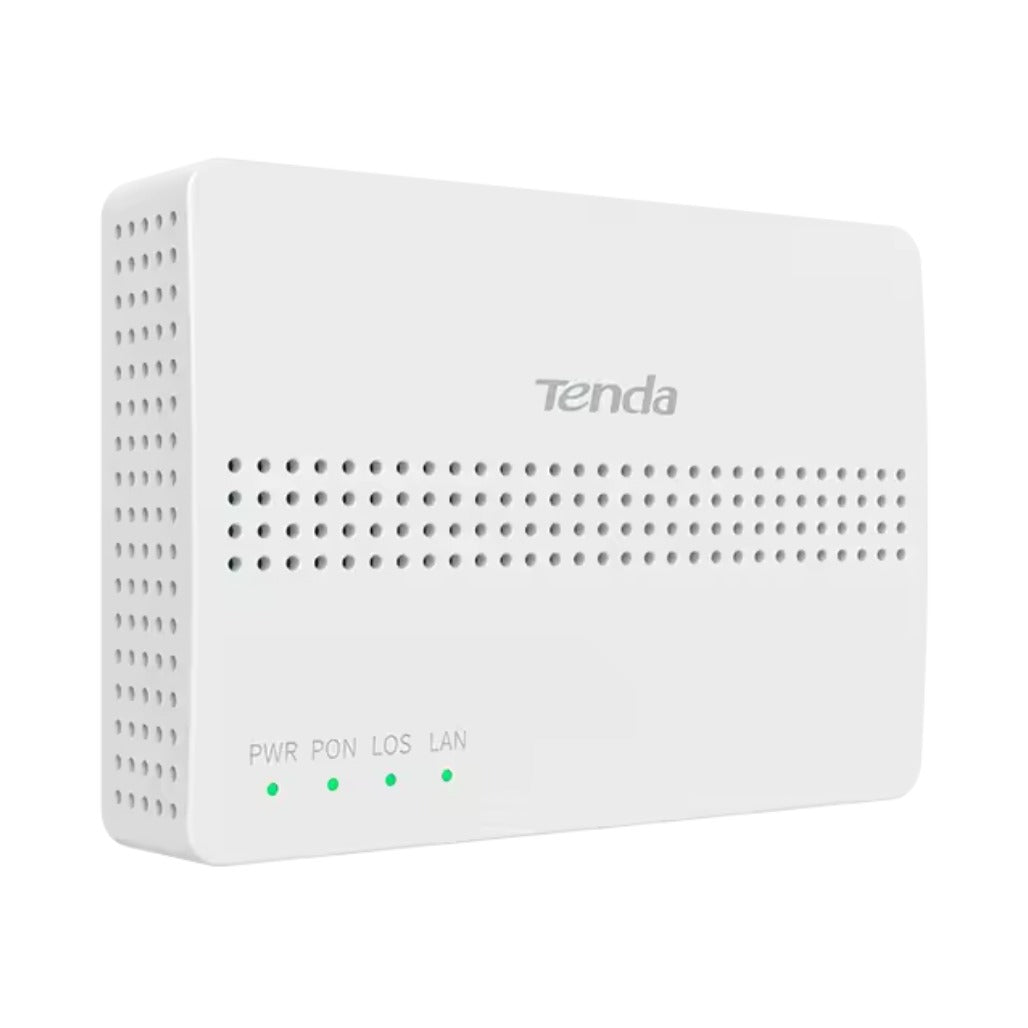

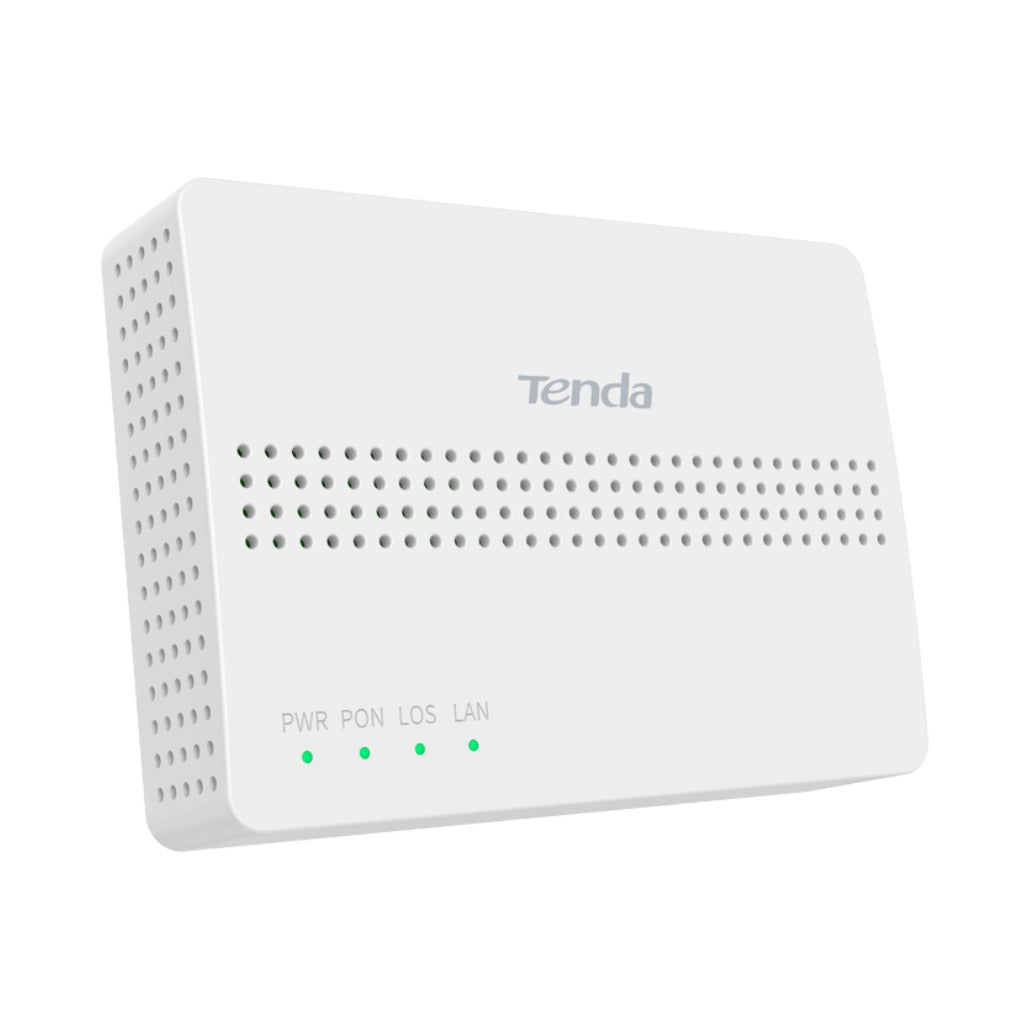

Tenda GPON Single Port Xpon ONT Gigabit - HG1-UPC

The Tenda GPON Single Port Xpon ONT Gigabit HG1-UPC is a network device designed for Internet access with both routing mode and bridge mode support. It provides a single SC/APC XPON port alongside a 1000Mbps RJ45 LAN port and a DC port, making it suited for business-type “Internet” applications where wired connectivity is required. The ONT supports a Class B+ optical mode with transmit at 1310nm and receive at 1490nm, with a maximum transmission distance of 20km. Bandwidth support includes upstream 1.25Gbps Max and downstream 2.5Gbps Max, plus optical power range details for TX and RX. Local web management and optical power monitors help support day-to-day oversight of the connection. For network configuration, this HG1-UPC includes DHCP Server features such as DHCP server/client functions, DHCP client list, address reservation, and DHCP relay. WAN connection support includes PPPoE, Dynamic IP, Static IP, and Bridge, while the device supports IP versions IPv4 and IPv6. Firewall and filtering options listed include ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, and DMZ. For diagnostics, it supports Ping/Ping6 and Tracert/Tracert6, and for IPv6 services it includes Radvd, DHCPv6, MLD Proxy, and MLD Snooping. Operational environment details include 0°C ~ 45°C operating temperature and 10% ~ 90% (non-condensing) operating humidity.
Key Features
• 1*SC/APC XPON Port
• 1*1000Mbps RJ45 LAN Port
• 1*DC Port
• Optical mode: Class B+
• Optical wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission distance: 20km Max
• Bandwidth: Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
• TX Power: 28~-8dBm
• RX Power: 28~-8dBm
• DHCP Server: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• WAN connection: PPPoE, Dynamic IP, Static IP, Bridge
• Services: DHCP, Dynamic DNS
• Firewall: ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• Supports routing mode and bridge mode access
• Local Web management
• Optical power monitors
• Certification: CE, FCC, RoHS, Anatel
• Color: blue
• Application: Digital Data
• Interconnection: not compatible with APC
• End face: Flat 0 degree
• Return loss: -50 dB
• Insertion loss: slightly lower
• External Power Supply: DC 9V /0.6A
• Power consumption: ≤5.4W
• Package contents: 1*HG1, 1* Power adapter, 1* Quick install guide
• Mobile app: Yes
• Speed: Gigabit
Specifications
• Reference: NETWORK L38
• Mobile App: Yes
• Speed: Gigabit
• Power: DC

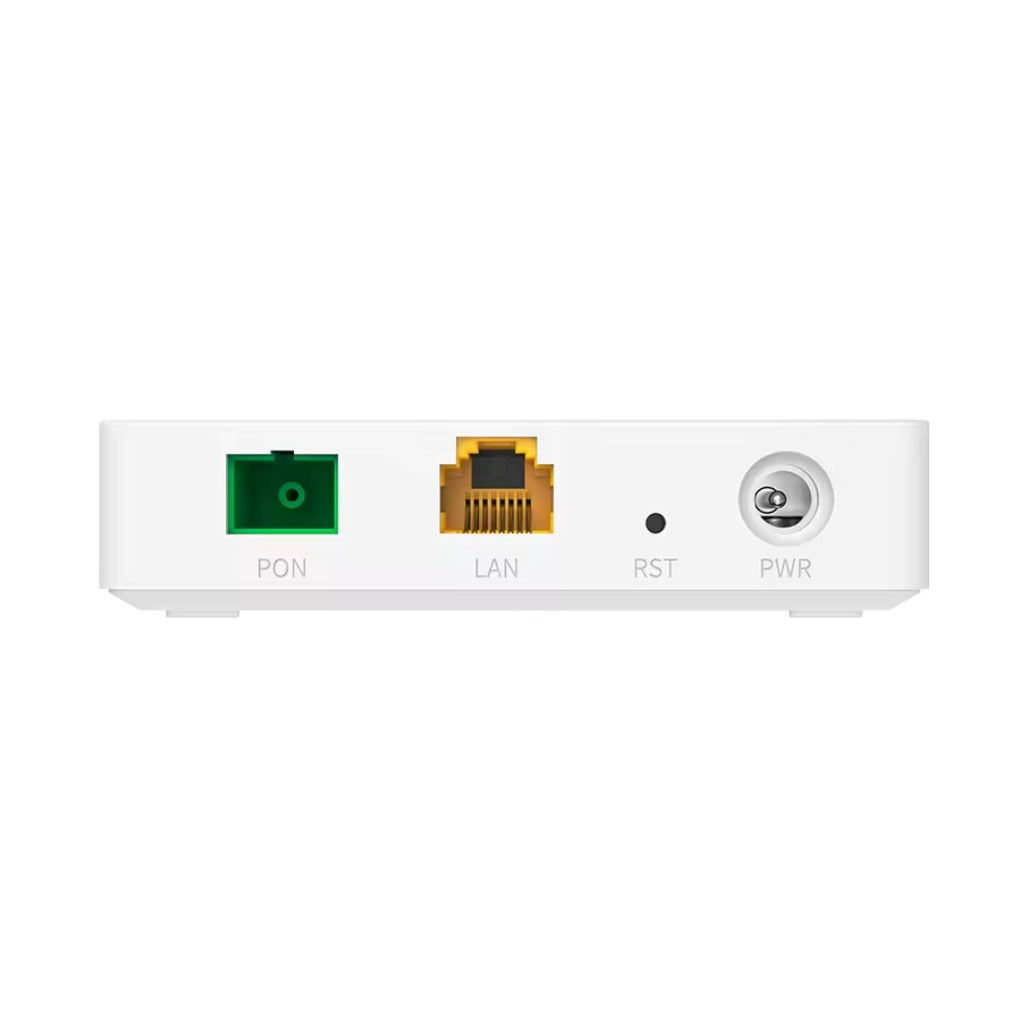

• Interfaces: 1*SC/APC XPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port
• Optical mode: Class B+
• Optical wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission distance: 20km Max
• Bandwidth: Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
• TX Power: 28~-8dBm
• RX Power: 28~-8dBm
• External power supply: DC 9V /0.6A
• Power consumption: ≤5.4W
• Operation temperature: 0°C ~ 45°C
• Storage temperature: not specified
• Operating humidity: 10% ~ 90% (Non-condensing)
• Storage humidity: 5% ~ 90% (Non-condensing)
• Wireless: 40°C ~ 70°C
• Certification: CE, FCC, RoHS, Anatel
• End face: Flat 0 degree
• Return loss: -50 dB
• Insertion loss: slightly lower
• Color: blue
• Application: Digital Data
• Interconnection: not compatible with APC
• Local web management: included
• Optical power monitors: included
• Supports routing mode and bridge mode access
• WAN connection: PPPoE, Dynamic IP, Static IP, Bridge
• IP version: IPv4, IPv6
• Services: DHCP, Dynamic DNS
• DHCP server: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Firewall: ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ
• IPv6 features: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• Package contents: 1*HG1, 1* Power adapter, 1* Quick install guide
