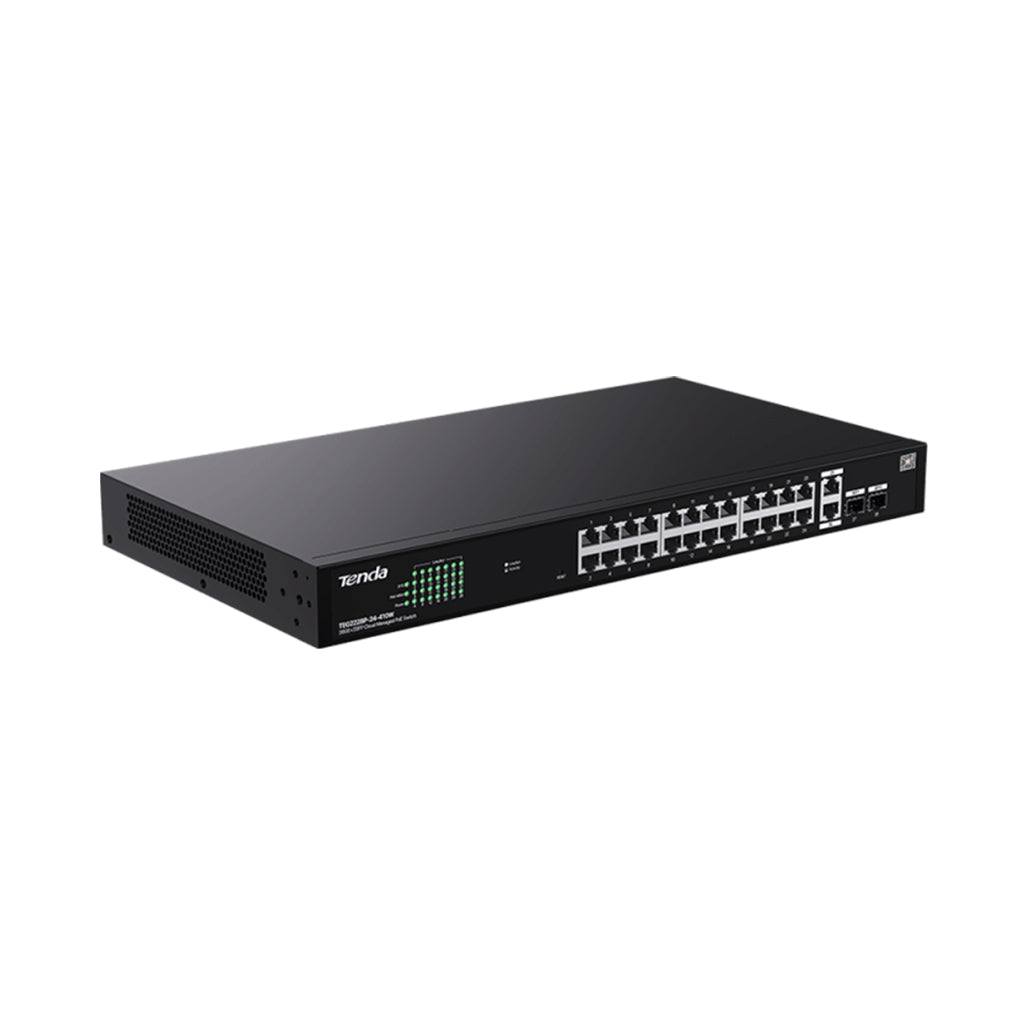

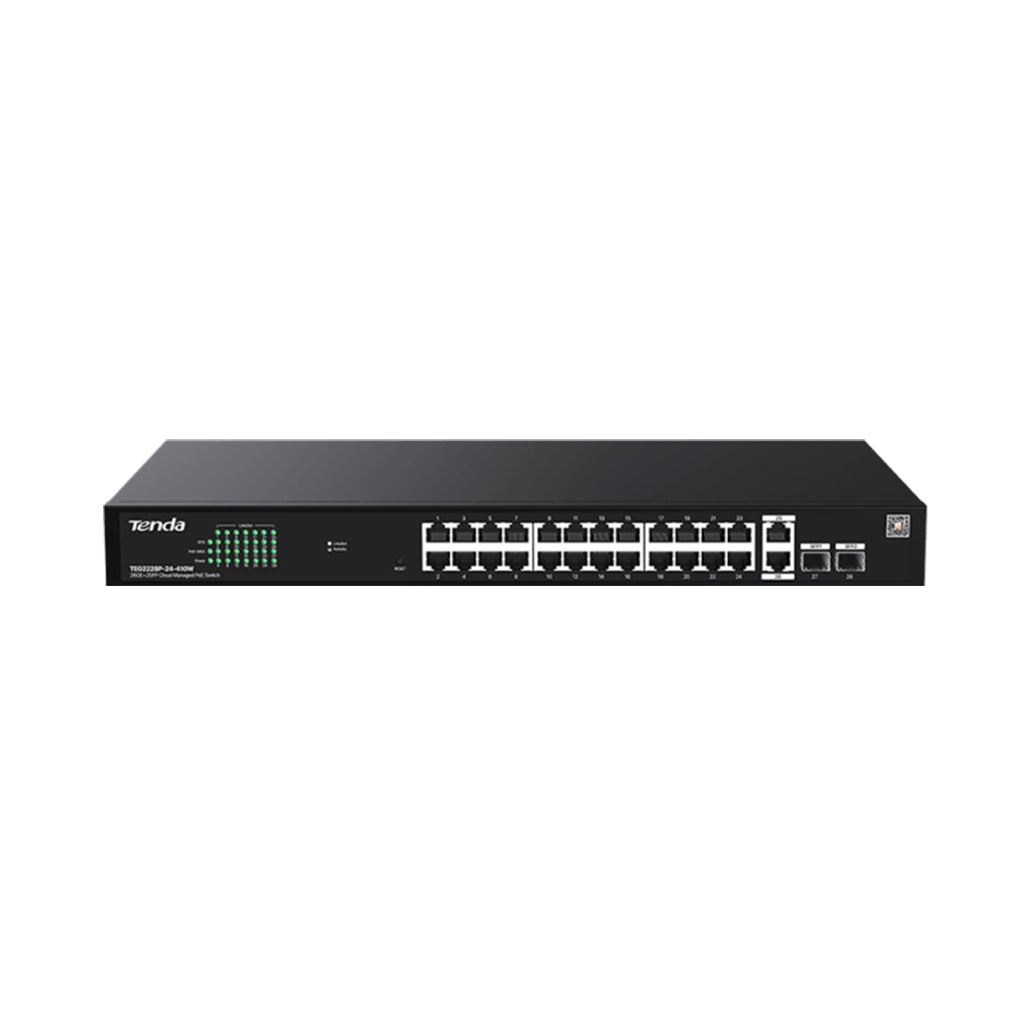

Tenda TEG2228P-24-410W 28-Port Cloud-Managed Gigabit PoE+ Switch – 24 PoE Ports + 2 SFP Uplinks

A powerful network backbone is provided by the Tenda TEG2228P-24-410W switch, which is designed for high-density PoE deployments in enterprise, ISP, and surveillance systems. With 24 IEEE 802.3af/at PoE+ capable Gigabit ports and two additional SFP uplink ports, wired access points, cameras, and other network devices may be powered and connected simultaneously. Up to 370W is available for PoE to ensure devices receive enough power, while all RJ-45 data ports handle full Gigabit throughput without bottlenecks. Remote management is supported via cloud platform and local web interface so that network control, firmware upgrades, and status monitoring are enabled anywhere.

Robust operation is enabled by the metal enclosure, support for rack-mount, wall-mount, and desktop installation, along with built-in protection features such as 6 kV lightning/surge resistance and loop prevention. Network performance is enhanced via VLAN support (802.1Q), QoS controls, MAC binding, and traffic statistics so that key data flows may be prioritized and segmented. Power consumption is optimized by a PoE timing feature, which allows PoE ports to be scheduled or turned off during idle periods, helping to reduce energy usage in large PoE networks.

Key Features and Explanations

• High port density with 24 PoE+ Gigabit ports + 2 SFP uplinks allows many powered devices and flexible backbone connectivity.

• Generous PoE power availability (up to 370W) ensures sufficient power per port, enabling deployment of power-hungry access points, IP cameras, or outdoor equipment without external injectors.

• Cloud-based and local web management are supported so remote configuration, monitoring, device health tracking, and firmware updates may be done efficiently.

• Advanced network controls including VLAN tagging, speed limit per port, MAC address binding, and loop protection are included to improve security, traffic segmentation, and reliability.

• Robust physical design with metal chassis, multiple mounting options (rack, wall, desktop), and high surge protection make this switch suited for demanding installation environments.

Specifications

• 24 × 10/100/1000 Mbps RJ-45 ports with PoE+ output

• 2 × Gigabit SFP uplink ports

• PoE standard: IEEE 802.3af/at on 24 output ports

• Max PoE power per port: up to 30 W

• Total PoE power budget: approx. 370 W

• Switching capacity: ~56 Gbps non-blocking

• Forwarding rate: ~41.7 million packets per second (Mpps)

• MAC address table size: 8,000 entries

• LED indicators: Link/Activity per port; Power, System, PoE-MAX status LEDs

• Enclosure: Metal housing

• Mounting: Rack mounting, wall mounting, desktop placement supported

• Surge / Lightning protection: ≥ 6 kV

• Operating temperature: 0 °C to +45 °C

• Storage temperature: -40 °C to +70 °C

• Operating humidity: 10% to 90% RH non-condensing

• Storage humidity: 5% to 90% RH non-condensing

Conclusion

Strong performance, high PoE capacity, and flexible connectivity are combined in the Tenda TEG2228P-24-410W switch, making it well suited for large network deployments, such as campus or enterprise PoE backbone systems, surveillance operations, or networks with many access points. The large power budget, multiple uplinks, and robust build ensure system reliability, while cloud and local management support simplifies administration and scaling.
