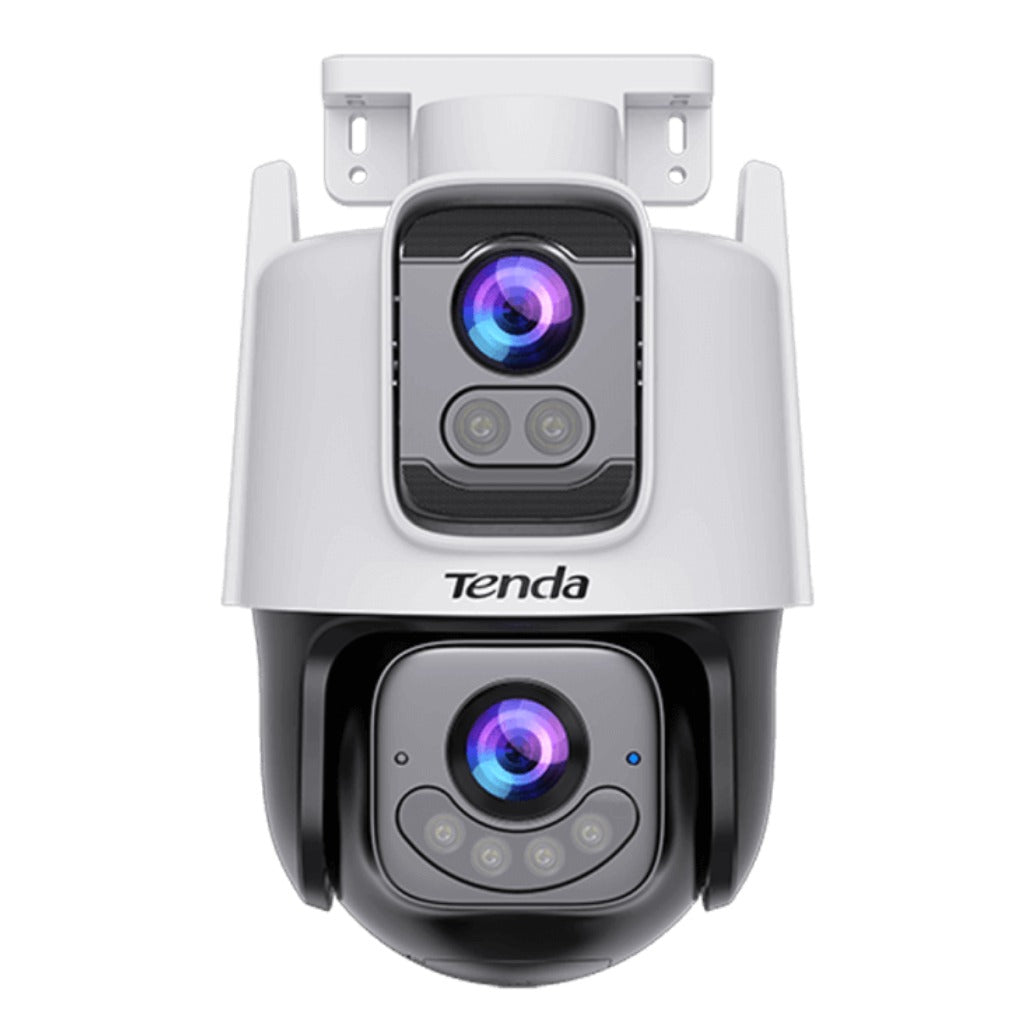

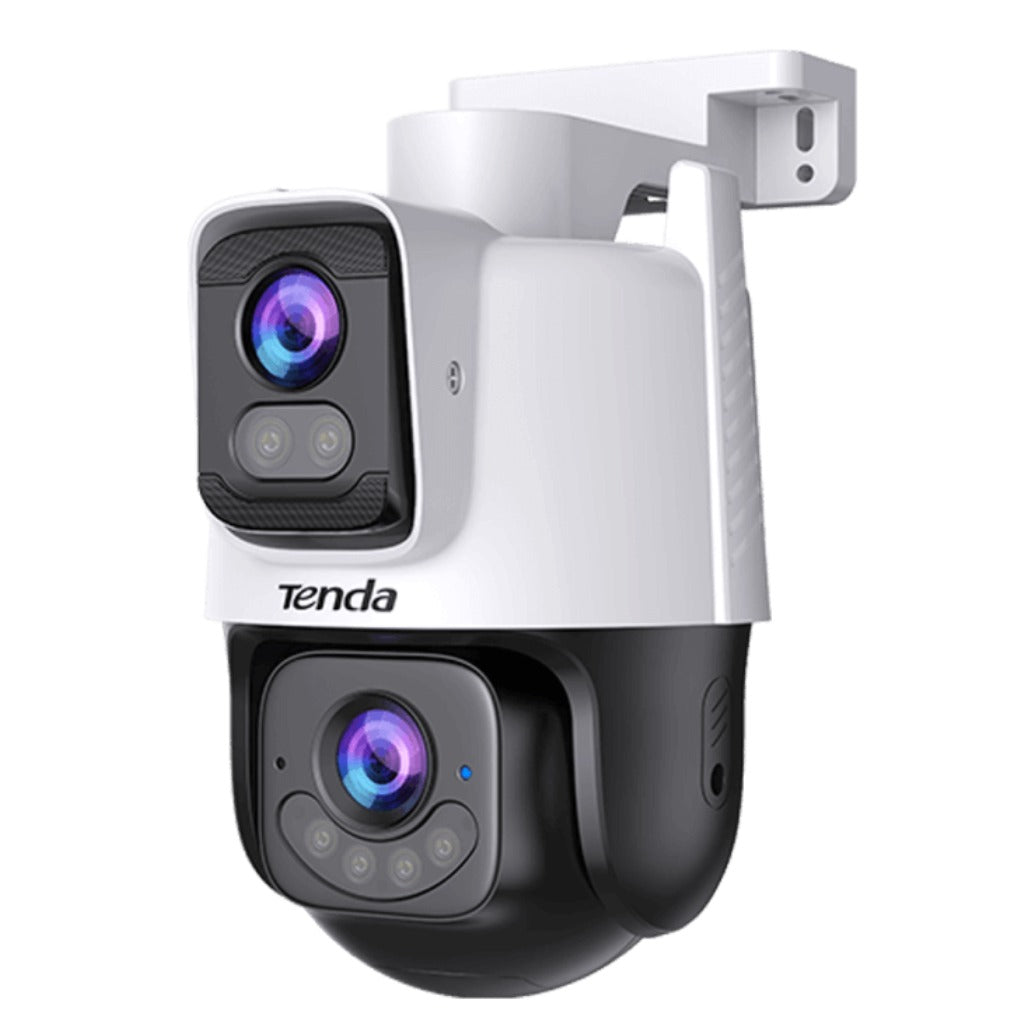

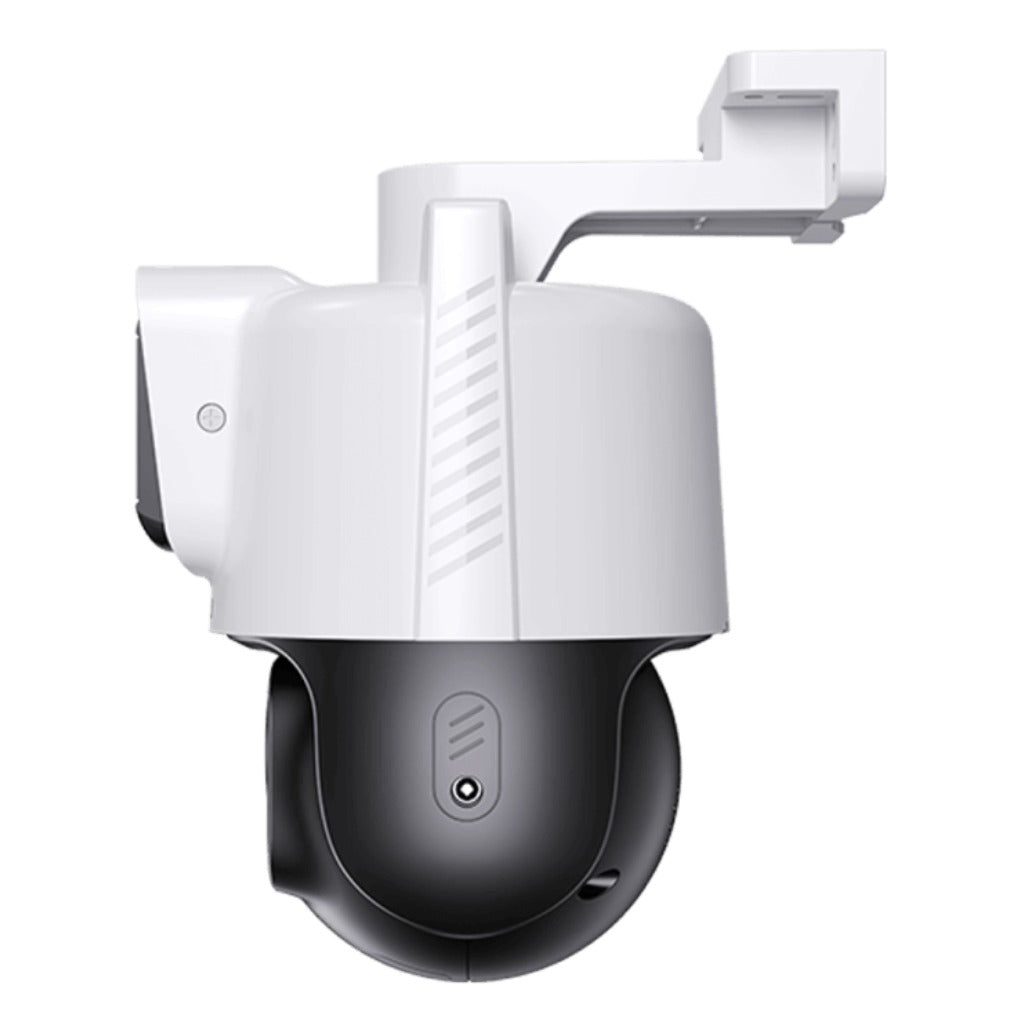

Tenda Ip Wifi Camera CH9 - Dual Lens 6MP Outdoor 30 Meters Night Vision

The Tenda IP WiFi Camera CH9 is an outdoor dual-lens camera designed for day and night monitoring with a 1/3 Progressive Scan CMOS sensor and ICR type. It supports night vision with 6 IR lights and 6 spotlights, with an IR wavelength of 850nm, and is positioned for up to 30 meters depending on environment. With a 6MP video configuration (3MP+3MP) and dual-lens coverage, it offers multiple recording resolutions for both fixed lens and PT lens, including 2304 ×1296, 1920 × 1080, and 1280 × 720. You can use smart detection features such as motion detection, human detection, vehicle detection, line crossing detection, and intrusion detection on both fixed lens and PT lens. For alerts and tracking, it supports sound & light alert and dual-lens linkage tracking. For flexible connectivity, this WiFi camera includes an IEEE 802.11 b/g/n/ax wireless standard with a transmission rate up to 287Mbps and supports channel width 20/40 MHz. An Ethernet port is also provided (1 RJ45, 10Mbps/100Mbps auto-negotiation), and it supports ONVIF and a range of network protocols including TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, and WebSockets. Audio support includes built-in MIC and built-in speaker, with audio encoding formats G.711A, G.711U, and AAC, plus audio sampling rate 8 kHz. Installation options include wall mounting, ceiling mounting, and pole mounting, and it is rated IP65 with operating temperature -30°C ~ 60°C (-22°F ~ 140°F). Mobile app management and quick installation items are included to help you get started.
Key Features
• 1/3 Progressive Scan CMOS sensor
• Day and Night ICR type
• Bracket Angle Adjustment: Pan 0° to 260°
• Fixed Lens aperture: F1.6
• PT Lens aperture: F1.6
• Supplementary Light: 6 IR Lights, 6 Spotlights
• IR Wavelength: 850nm
• Night Vision Mode (Smart Mode, Full Color Mode, Black & White Mode)
• Video Encoding Format: Fixed Lens H.265, H.264; PT Lens H.265, H.264
• Main Stream Resolution: Fixed Lens 2304 ×1296, 1920 × 1080, 1280 × 720; PT Lens 2304 ×1296, 1920 × 1080, 1280 × 720
• Sub Stream Resolution: Fixed Lens 640 × 360; PT Lens 640 × 360
• Frame Rate: Fixed Lens 1-25fps (2304 × 1296 1-18fps), Default 18fps; PT Lens 1-25fps (2304 × 1296 1-18fps), Default 18fps
• Bit Rate: Fixed Lens 512kbps -- 4096kbps; PT Lens 512kbps -- 4096kbps
• Bit Rate Control: Fixed Lens CBR, VBR; PT Lens CBR, VBR
• Audio Encoding Format: G.711A, G.711U, AAC
• Audio Sampling Rate: 8 kHz
• Audio Communication: Two-way audio, Voice Input
• Image Enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy Mask: 4 Areas
• Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF Support: Support
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
• Web Browser: Plug-in free live view: Chrome, Edge, Opera
• Pan Movement Range: 0°--355°
• Tilt Movement Range: 0°--90°
• Preset: 6
• Patrol: Panoramic Patrol, Preset Patrol
• Antenna: Internal antenna
• Smart Detection: Motion detection, human detection, vehicle detection, line crossing detection, intrusion detection (supported by both fixed lens and PT lens)
• Smart Linkage: Sound&light Alert, Dual-lens Linkage Tracking
• Dual Color (red & blue) LED Indicator
• DIY Audio: 3 Customized Audios
• Built-in MIC
• Built-in Speaker
• Storage: Built-in Micro SD Card Slot, Up to 512 GB
• Reset Button
• LED Indicator
• Installation Method: Wall Mounting, Ceiling Mounting, Pole Mounting
• Protection Level: IP65
• Certification: CE, RoHS, FCC, RCM, UKCA
• Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Wireless Standard: IEEE 802.11 b/g/n/ax
• Transmission Rate: Up to 287Mbps
• Channel Width: 20/40 MHz
• Modulation: DSSS/OFDM/OFDMA
• Frequency Band: 2.4GHz: 2412MHz-2472MHz (CH1-CH13)
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE
• Transmission Power: 2.4GHz: <0.1W(EIRP)
• Power: 12V DC, 1A, Ø5.5mm & Ø2.1mm Power Plug
• Material: Plastic
• Product Dimension: 203mm x 122mm x 62mm (8.0 ×4.8 × 2.4)
• Package Dimension: 240mm x 145mm x 193mm (9.4 ×5.7 × 7.6)
• Product Weight: 527g (1.16lb)
• With Package Weight: 802g (1.77lb)
• Package Contents: Power Adapter (cord length: 3m)
• Reference: NETWORK L104
• Mobile App: Yes
• CAM Type: Outdoor
• Power: DC
• Focal Length: Fixed Lens 4mm; PT Lens 6mm
• Horizontal FOV: 82.3° (Fixed Lens) and 51.8° (PT Lens)
• Vertical FOV: 44.7° (Fixed Lens) and 28.2° (PT Lens)
• Diagonal FOV: 97.4° (Fixed Lens) and 60.4° (PT Lens)
• Up to 30 m/100 ft (depending on environment)
Specifications
• Dual lenses for double areas protection
• PT lens for close up views
• Dust and Water Protection
• Mobile Application management
• Audio & light alert active defense to deter intruders
• Wi-Fi 6 Technology for Stable and Smooth Video
• Full-color night vision (light for 30 meters)
• 6MP resolution video(3MP+3MP), 360° visual coverage
• Sharing Camera to Your Family to Protect Safety Jointly
• Cloud storage/SD Card )up to 512MB), NVR/NAS
• Power Plug 12V DC,1A, 5.5mm & 2.1mm
• full-duplex two-way audio, Voice Input
• Ethernet port 1 RJ45, 10Mbps/100Mbps auto-negotiation
• Dual-lens Linkage, Tracking Active Objects Automatically or Manually
• Can access the video via wireless or wired connection to the Internet
• Focal Length
• Fixed Lens: 4mm
• PT Lens: 6mm
• Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4°
• Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4°
• Up to 30 m/100 ft (depending on environment)
• Smart Mode, Full Color Mode, Black & White Mode
• Two-way Audio, Voice Input
• Plug-in free live view: Chrome, Edge, Opera
• Wireless Standard
• Channel Width
• Transmit Power
• 2.4GHz: <0.1W(EIRP)
• Audio Input
• Audio Output
• Dual Color(red & blue) LED Indicator
• Power
• 12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug
• Material
• Product Dimension
• 203mm x 122mm x 62mm(8.0 ×4.8 × 2.4)
• Package Dimension
• 240mm x 145mm x 193mm(9.4 ×5.7 × 7.6)
• Product Weight
• 527g(1.16lb)
