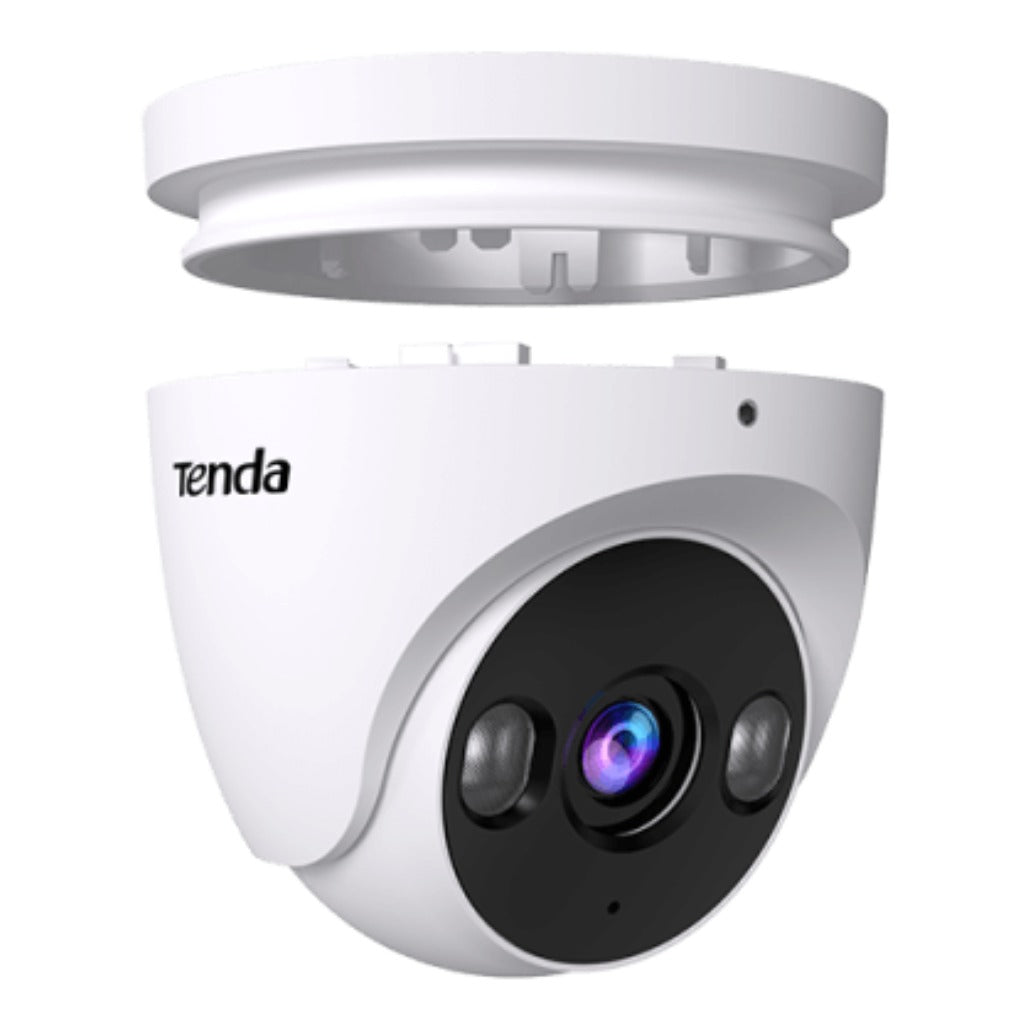

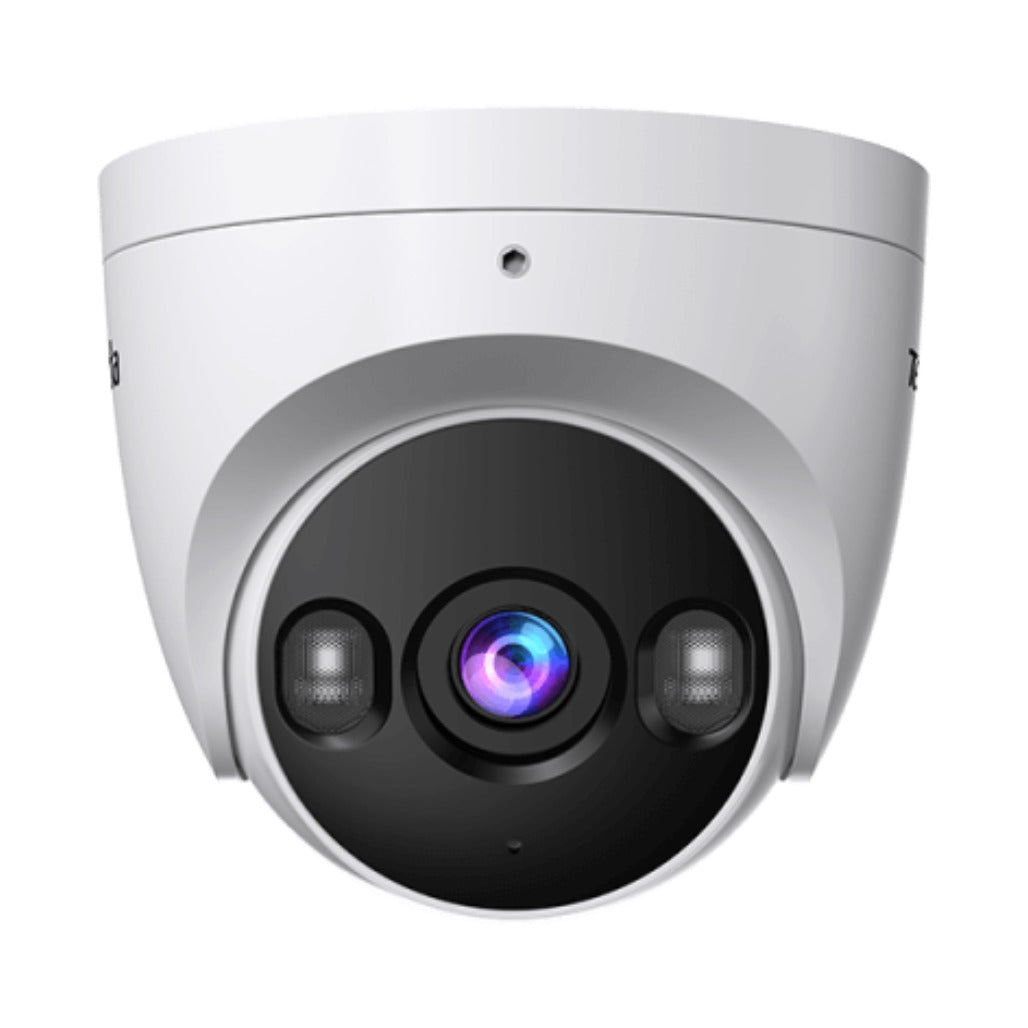

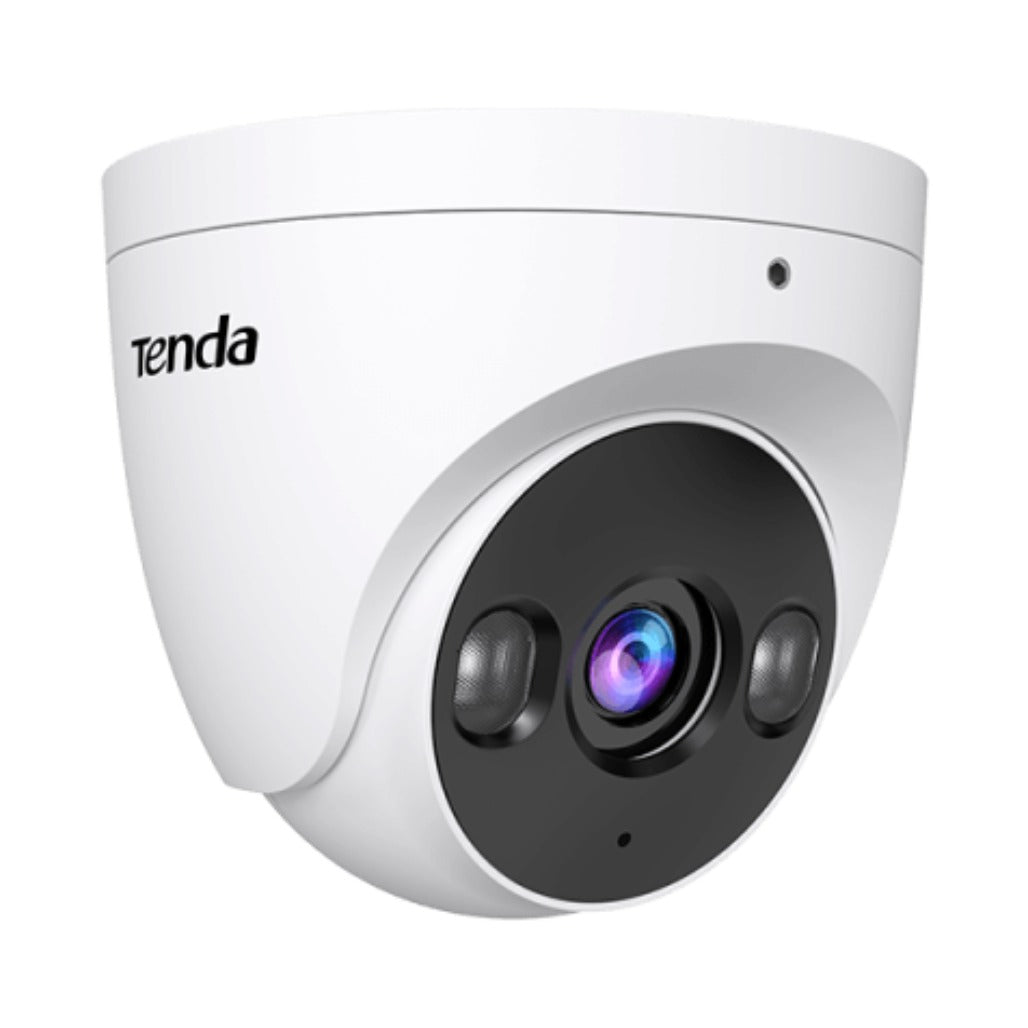

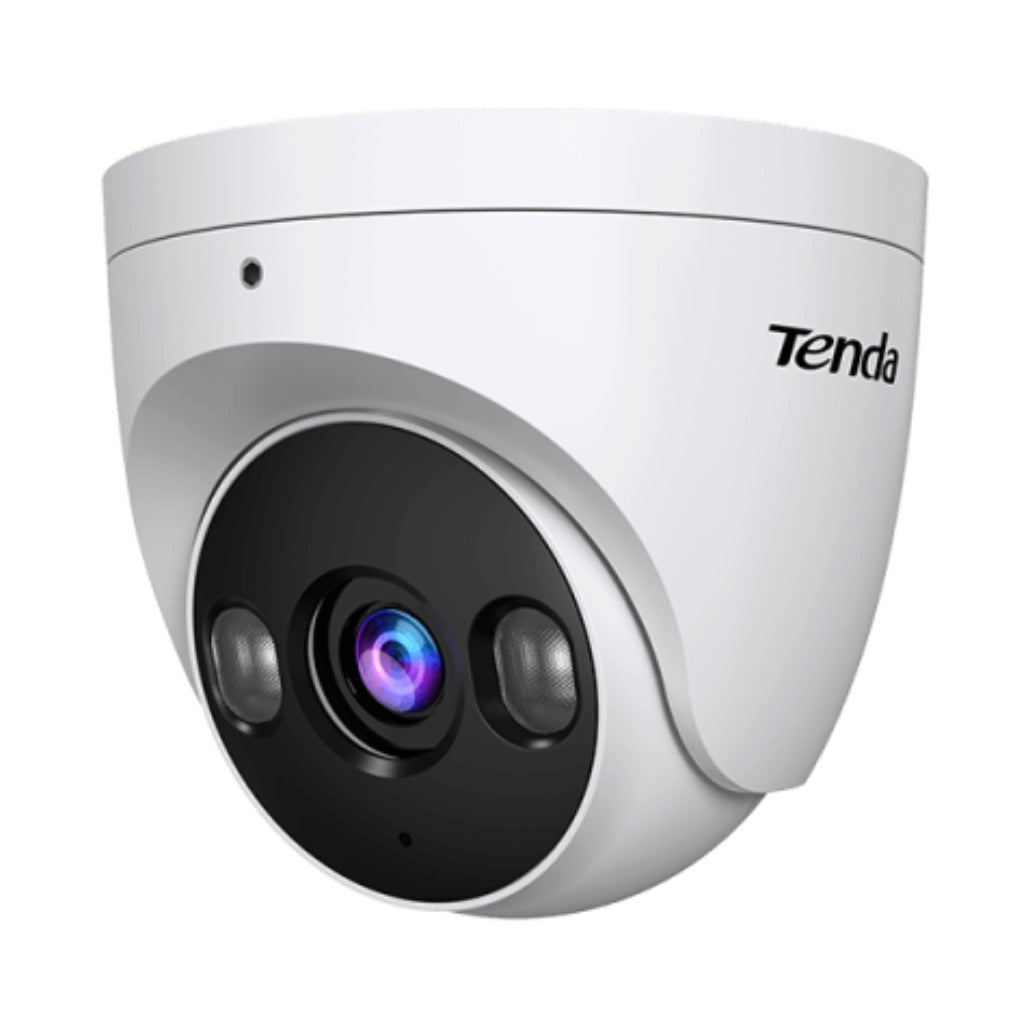

Tenda Security Camera Poe TC3T24C 4Mp 2.8MM Outdoor 30 meters Night Vision

Tenda Security Camera POE TC3T24C is an outdoor 4MP camera designed for day & night monitoring with ICR type. It uses a 1/3" Progressive Scan CMOS sensor and features an aperture of F1.6. The camera supports night vision with 2 infrared and white light combined illuminators, including supplementary light with a wavelength of 850nm. For video capture, it offers main stream resolutions of 2560 x 1440, 2304 x 1296, 1920 x 1080, and 1280 x 720, along with sub stream resolutions of 640 × 360 and 352 × 288. Video encoding formats include H.265+, H.265, and H.264, with bit rate values of 512kbps -- 4096kbps. For audio, it includes a built-in MIC with audio encoding formats G.711A, G.711U, and AAC, plus an audio sampling rate of 8 kHz. For smart alerts, the camera includes motion detection, human detection, vehicle detection, line crossing detection, and intrusion detection, supporting targeted detection scenarios. Network connectivity includes an Ethernet port (1 RJ45, 10Mbps/100Mbps auto-negotiation) and ONVIF support, with protocols such as TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, and NTP. You can manage it with TDSEE (mobile phone) and TDSEE STUDIO (PC), and view via a plug-in free live view in Chrome, Edge, and Opera. Installation is wall mounting or ceiling mounting, with a pan range of 0° ~ 360°, tilt range of 0° ~ 78°, and rotation of 0° ~ 360°. The casing material is metal, and it is rated IP67 for weather resistance, with operating temperature listed as -40°C ~ 60°C.
Key Features
• 4MP resolution sensor videos
• Outdoor camera
• 1/3" Progressive Scan CMOS sensor
• Day & Night with ICR type
• Supplementary light: 2 infrared and white light combined illuminators
• Supplementary Light Distance: Up to 30 m (depending on environment)
• IR Wavelength: 850nm
• Night Vision Mode: Video
• Video encoding format: H.265+, H.265, H.264
• Main Stream Resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub Stream Resolution: 640 × 360, 352 × 288
• Frame rate: PAL 1-25fps (default 25fps), NTSC 1-30fps (default 30fps)
• Bit Rate: 512kbps -- 4096kbps
• Bit Rate Control: CBR, VBR
• Audio encoding format: G.711A, G.711U, AAC
• Audio sampling rate: 8 kHz
• Image enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy Mask: 4 Areas
• Smart detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Interface: Built-in MIC
• ONVIF support
• Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web browser: Plug-in free live view: Chrome, Edge, Opera
• Installation: Wall Mounting, Ceiling Mounting
• Smart Mode, Full Color Mode, Black & White Mode
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°
• Power: 12 V DC, 1A, Ø5.5mm & Ø2.1mm power plug; POE: IEEE 802.3af
• Metal casing
• Protection level: IP67
• Waterproof kit: Yes
• Operating temperature: -40°C ~ 60°C
• Storage temperature: -40°C ~ 70°C
• Operating humidity: 10% ~ 95% RH (non-condensing)
• Storage humidity: 3% ~ 95% RH (non-condensing)
• Installation template: Yes
• Mounting accessories kit: Yes
• Quick Installation Guide: Yes
• Package includes: Installation Template, Mounting Accessories Kit, Quick Installation Guide
• Reference: NETWORK L37
• Mobile app: Yes
• CAM Type: Outdoor
• Power: POE
• Focal length: 2.8mm
• Focal length options listed: 4mm / 2.8mm
• Horizontal FOV (4mm): 79.1°, Vertical FOV: 43.3°, Diagonal FOV: 94.9°
• Horizontal FOV (2.8mm): 82.91°, Vertical FOV: 46.2°, Diagonal FOV: 97.3°
Specifications
• 2.5K/4MP resolution sensor Videos
• Focal Length: 2.8mm
• Built in Microphone
• Human/Vehicle/Intrusion Detection
• Light Distance: Up to 30 m
• Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation
• Power: 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug, POE: IEEE 802.3af
• Installation: Wall & Ceiling Mounting
• Resolution 2560*1440
• Line Cross detection
• Mobile Application management
• 4MP Smart Full-Color Turret Camera
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°
• Focal Length
• 4mm / 2.8mm
• Horizontal FOV(4mm): 79.1°, Vertical FOV: 43.3°, Diagonal FOV: 94.9°
• Horizontal FOV(2.8mm): 82.91°, Vertical FOV: 46.2°, Diagonal FOV: 97.3°
• Up to 30 m/100 ft (depending on environment)
• Smart Mode, Full Color Mode, Black & White Mode
• PAL: 1-25fps, Default 25fps
• NTSC: 1-30fps, Default 30fps
• Plug-in free live view: Chrome, Edge, Opera
• Audio Input
• Power
• 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
• POE: IEEE 802.3af
• Casing Material

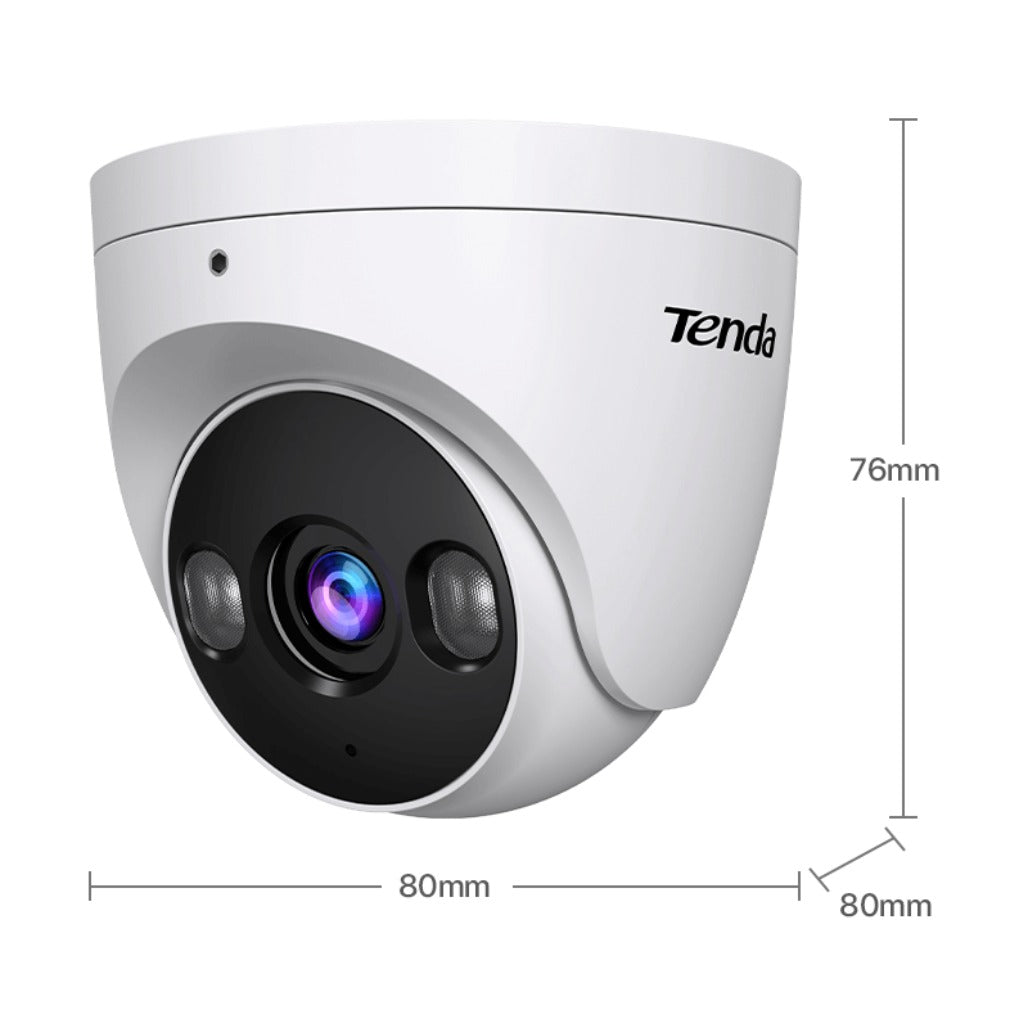

• Product Dimension
• 80mm x 80mm x 76mm (3.15" x 3.15" x 3")
• Package Dimension
• 125mm x 125mm x 107mm(4.9" × 4.9" × 4.2")
• Product Weight
• 307g(0.68lb)
• With Package Weight
• 412g(0.91lb)
• IP67
• Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
