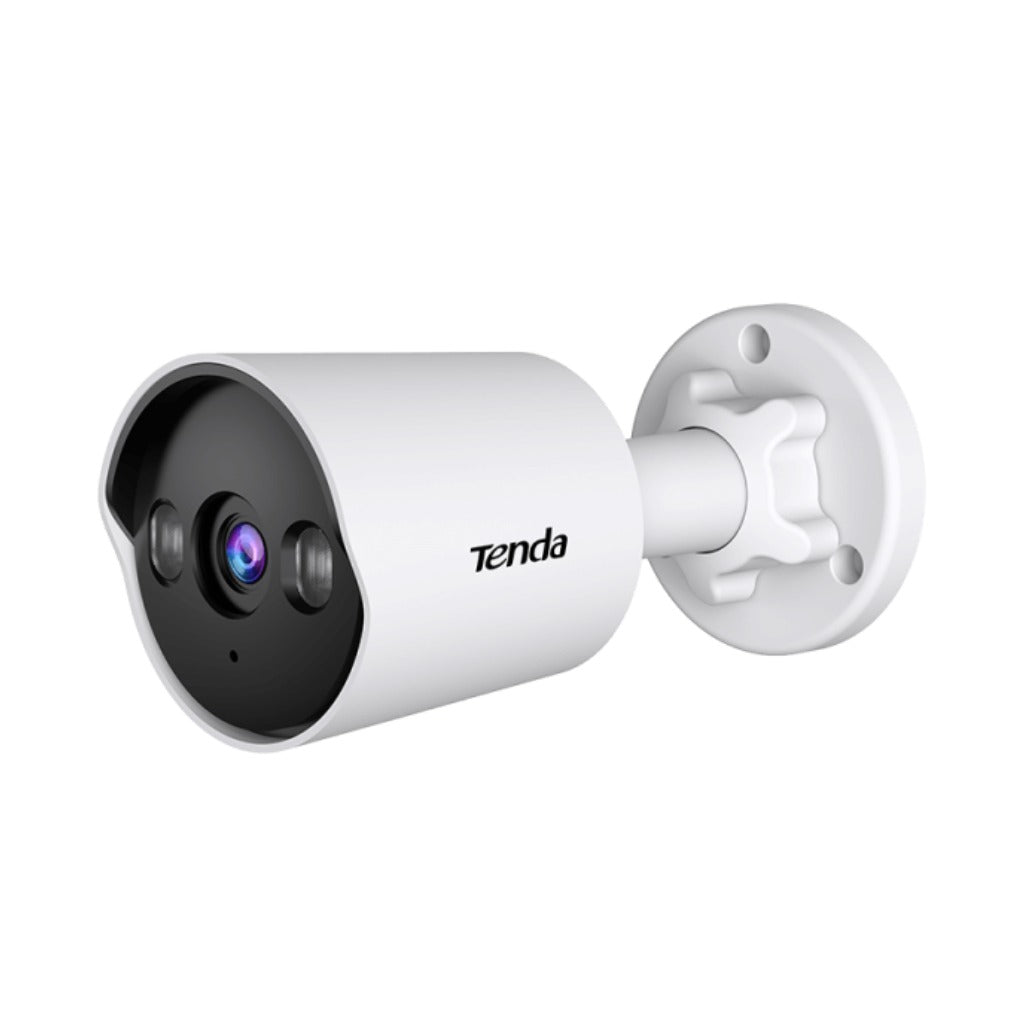

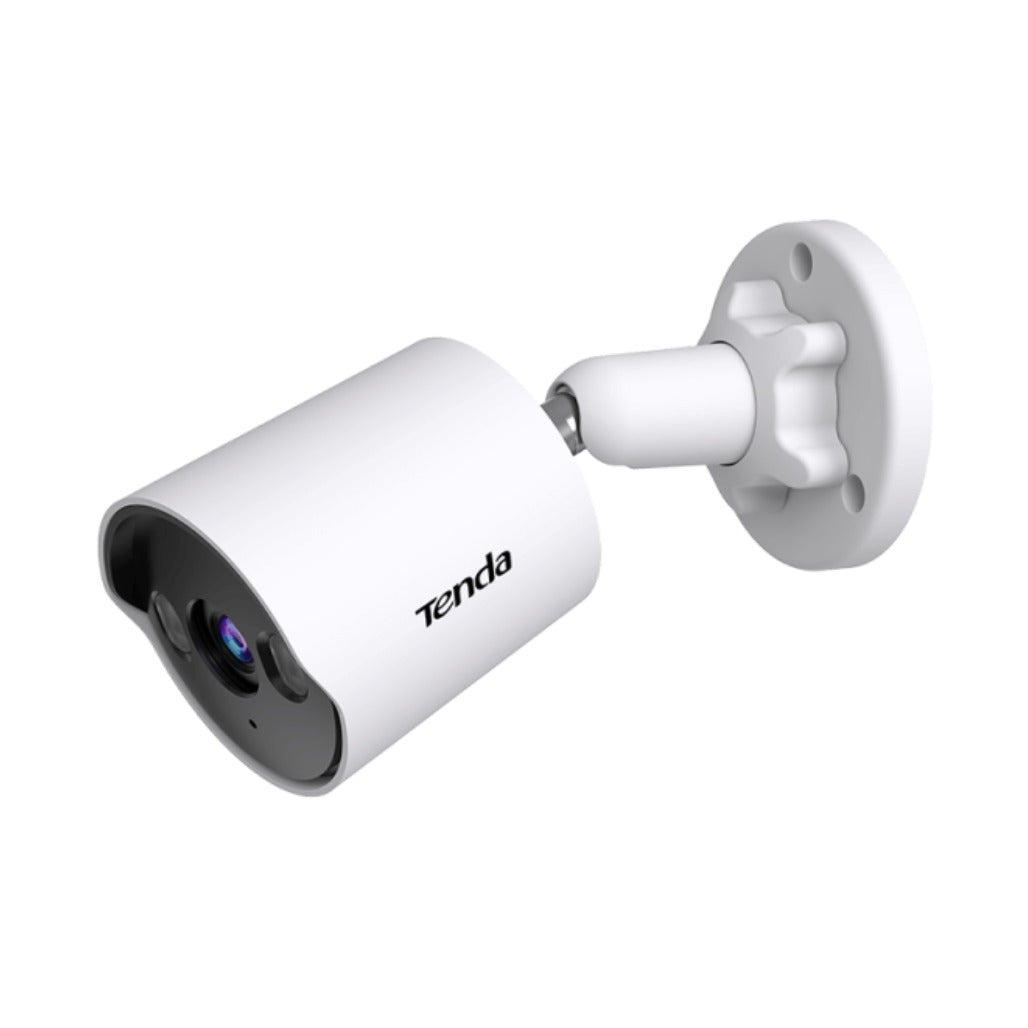

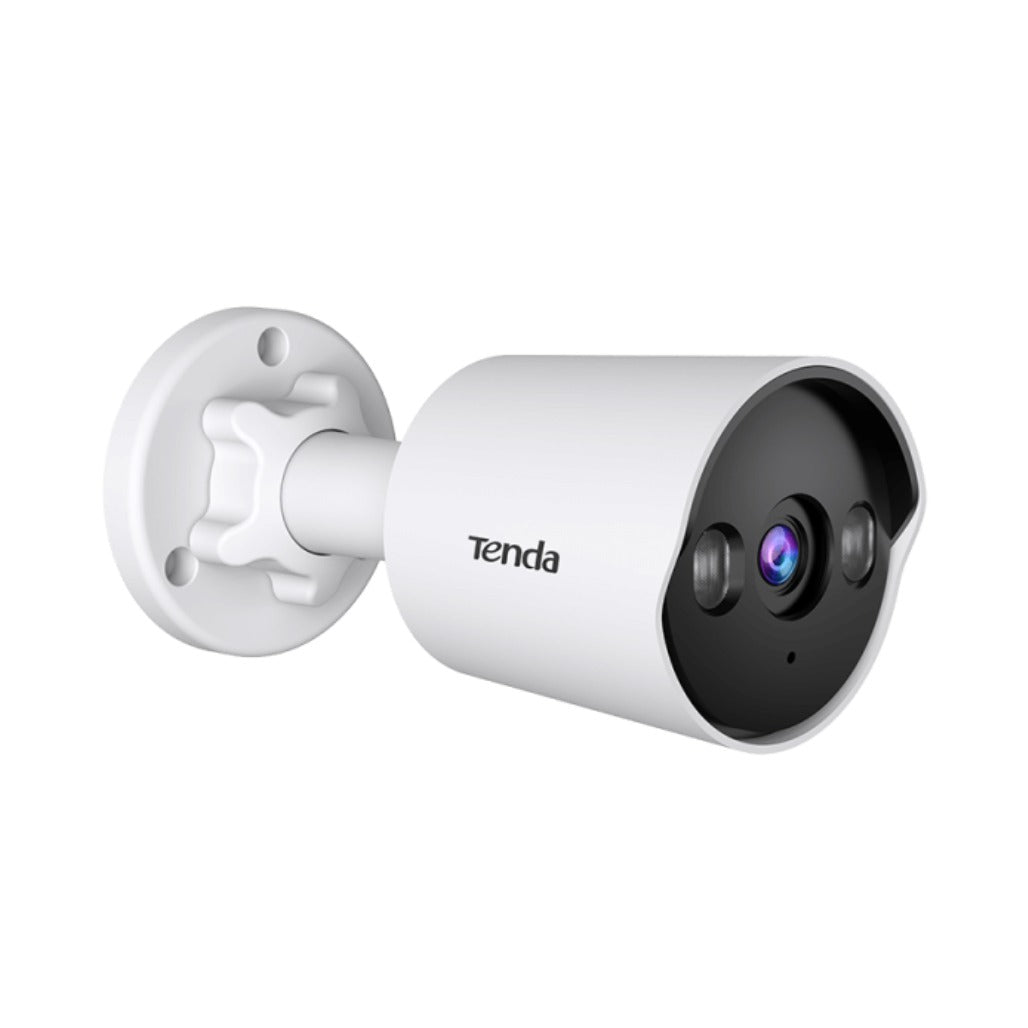

Tenda Security Camera Poe TC3B24C 4Mp 6MM Outdoor 30 meters Night Vision

The Tenda TC3B24C outdoor security camera features a 1/3" Progressive Scan CMOS sensor and an ICR type day & night design. It includes a 6mm lens with F1.6 aperture and supplementary lighting with 2 infrared and white light combined illuminators. For night viewing, the camera uses 850nm IR wavelength and offers a night vision mode with supplementary light. The camera supports multiple video encoding formats including H.265+, H.265, and H.264. For day-to-day monitoring, the TC3B24C provides main stream resolutions up to 2560 x 1440 and sub stream resolutions including 640 × 360 and 352 × 288. Video frame rate settings are listed as PAL: 1-25fps with a default of 25fps, and NTSC: 1-30fps with a default of 30fps. The camera is designed for wall mounting and ceiling mounting, and it supports a built-in MIC with audio encoding formats including G.711A, G.711U, and AAC. Network connectivity includes 1 RJ45 auto-negotiation Ethernet port and ONVIF support, along with protocols such as TCP/IP, UDP, HTTP, HTTPS-style services listed (HTTP is provided), DHCP, DNS, DDNS, RTP, RTSP, RTCP, and NTP.
Key Features
• Brand: Tenda
• Model: TC3B24C
• Camera type: Outdoor
• Image sensor: 1/3" Progressive Scan CMOS sensor
• Day & Night: ICR type
• Lens focal length: 6mm
• Aperture: F1.6
• FOV (6mm): Horizontal FOV 79.1°, Vertical FOV 43.3°, Diagonal FOV 94.9°
• Supplementary light: 2 infrared and white light combined illuminators
• Supplementary light distance: up to 30 m
• IR wavelength: 850nm
• Night vision: Night vision mode
• Video encoding format: H.265+, H.265, H.264
• Main stream resolutions: 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub stream resolutions: 640 × 360, 352 × 288
• Frame rate: PAL 1-25fps (default 25fps); NTSC 1-30fps (default 30fps)
• Bit rate: 512kbps -- 4096kbps
• Bit rate control: CBR, VBR
• Audio: built-in MIC
• Audio encoding formats: G.711A, G.711U, AAC
• Audio sampling rate: 8 kHz
• Image enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy mask: 4 areas
• Network: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF support
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web browser: Plug-in free live view: Chrome, Edge, Opera
• Smart detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Interface: Built-in MIC
• Installation: Wall Mounting, Ceiling Mounting
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°
• Smart mode / full color mode / black & white mode
• Detection-related features listed: Line Cross detection
• Mobile app management: Mobile Application management
• Built-in microphone: Yes
• Waterproof kit: Waterproof Kit
• Installation template: Installation Template
• Mounting accessories: Mounting Accessories Kit
• Quick installation guide: Quick Installation Guide
Specifications
• Reference: NETWORK L115
• Mobile App: Yes
• CAM Type: Outdoor
• Power: POE
• Metal casing
• Protection level: IP67
• Product dimension: 80mm x 80mm x 76mm (3.15" x 3.15" x 3")
• Package dimension: 125mm x 125mm x 107mm (4.9" × 4.9" × 4.2")
• Product weight: 307g (0.68lb)
• With package weight: 412g (0.91lb)
• Operating temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating humidity: 10% ~ 95% RH (non-condensing)
• Storage humidity: 3% ~ 95% RH (non-condensing)
• Ethernet port: 1 RJ45, 10Mbps/100Mbps auto-negotiation
• Power: 12 V DC, 1A
• Power plug: Ø5.5mm & Ø2.1mm
• POE standard: IEEE 802.3af
• Aperture: F1.6
• FOV (6mm): Horizontal 79.1°, Vertical 43.3°, Diagonal 94.9°
• IR wavelength: 850nm
• Supplementary light distance: up to 30 m / 100 ft (depending on environment)
• Smart mode / Full color mode / Black & white mode
• PAL: 1-25fps (default 25fps)
• NTSC: 1-30fps (default 30fps)
• Bit rate: 512kbps -- 4096kbps
• Bit rate control: CBR, VBR
• Privacy mask: 4 areas
• Certification: CE, FCC, RoHS, UKCA
