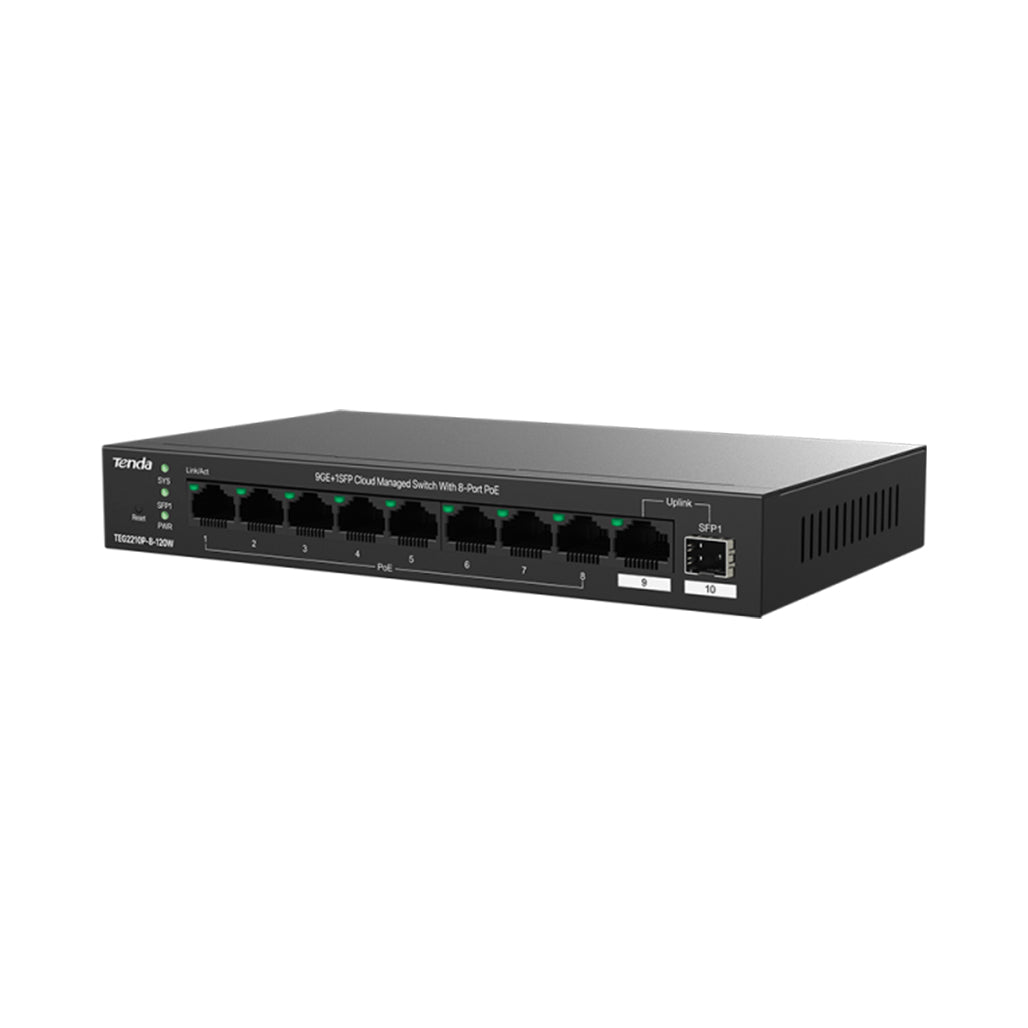

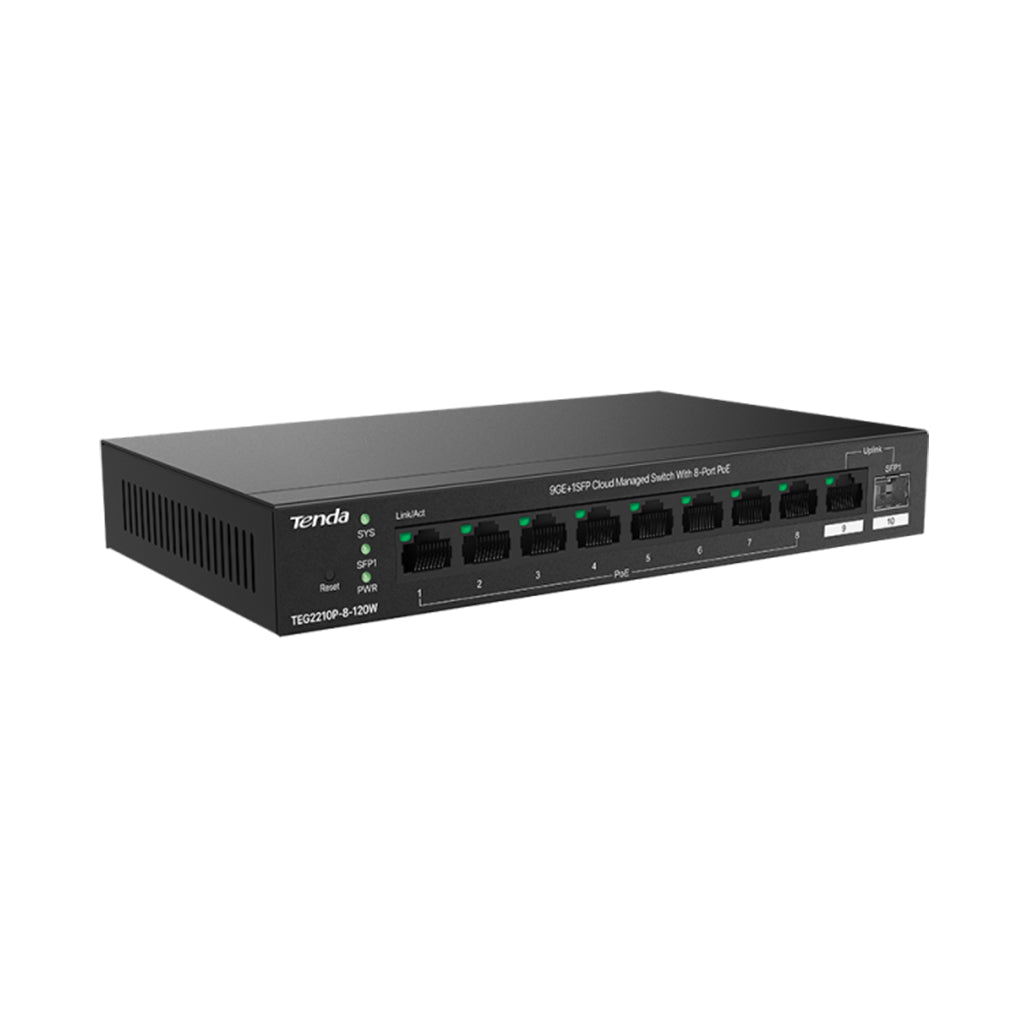

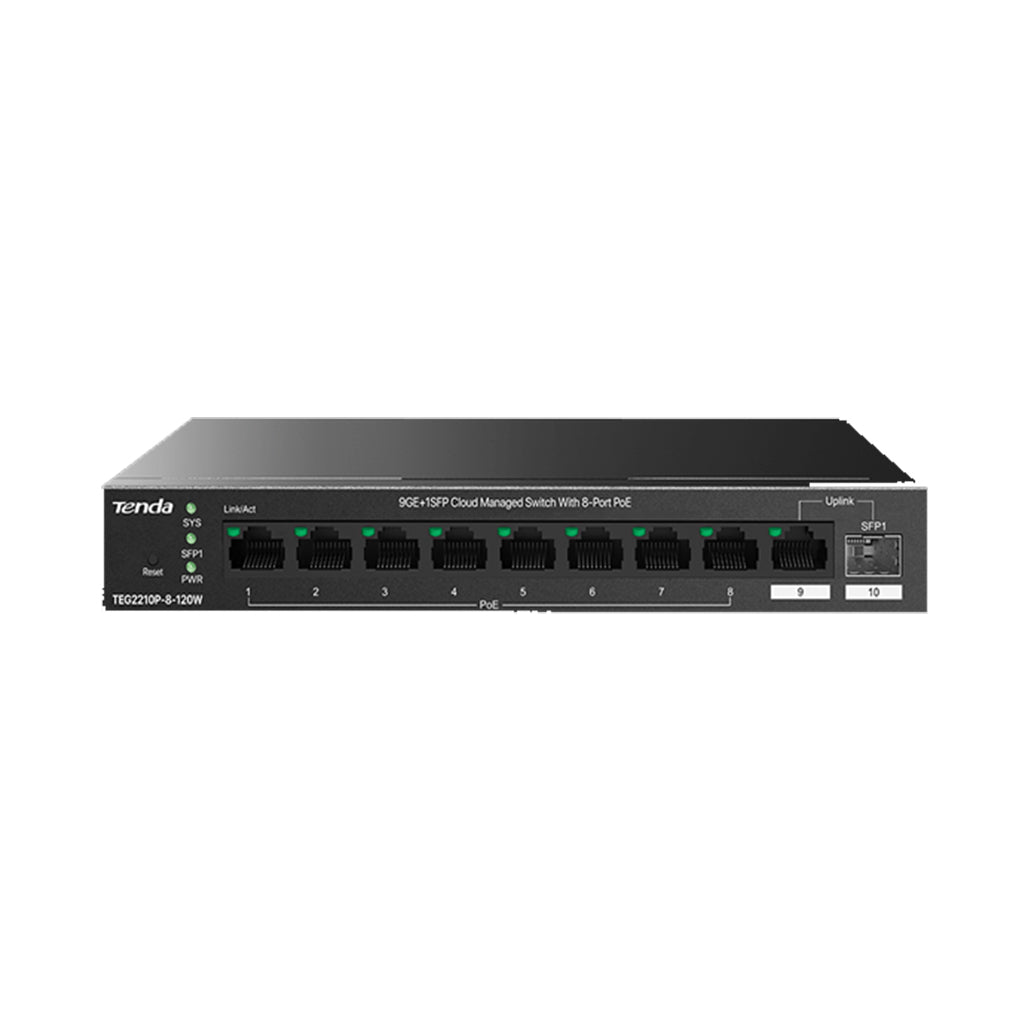

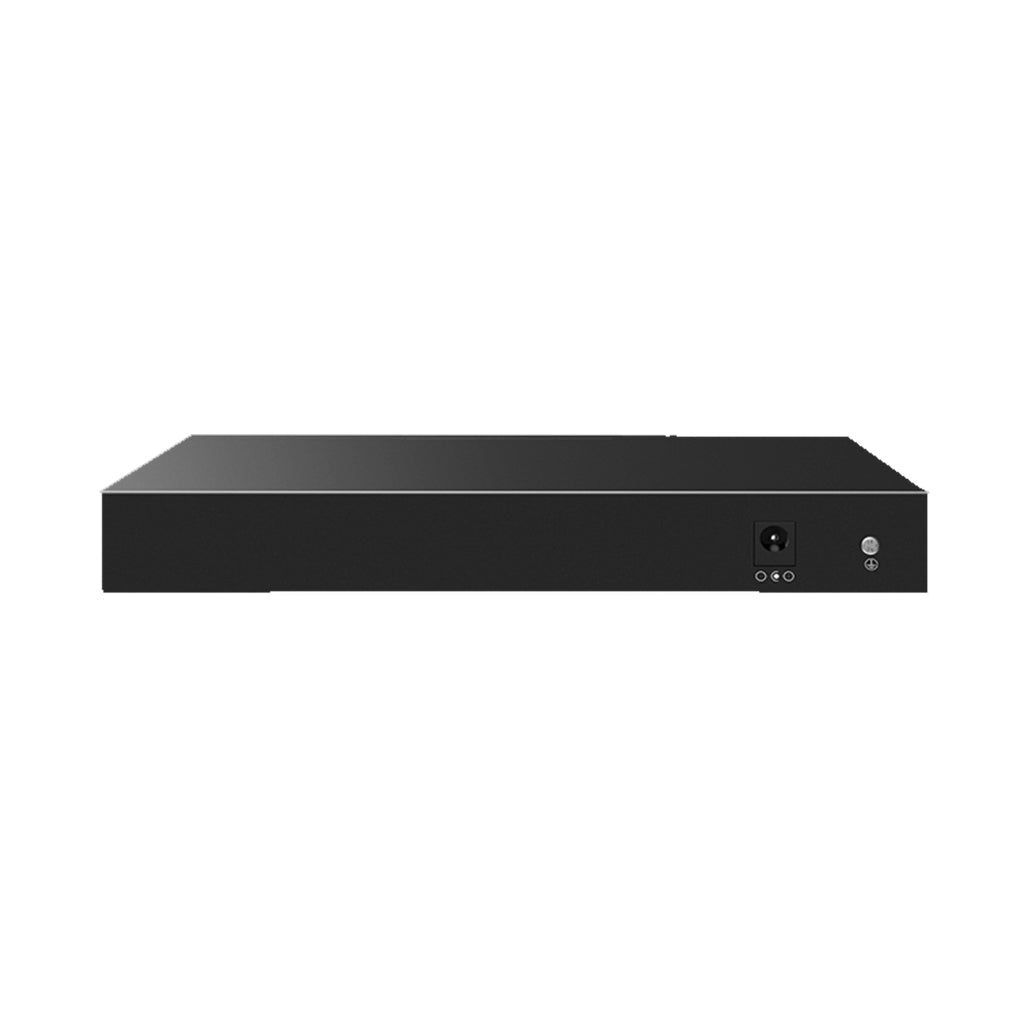

Tenda TEG2210P-8-120W 10-Port Gigabit Cloud-Managed PoE Switch – 8 PoE Ports + SFP Uplink

The Tenda TEG2210P-8-120W switch is designed for modern networks where centralized management, high PoE (Power over Ethernet) capacity, and high throughput are required. It delivers full Gigabit performance across nine copper ports plus one SFP uplink, with eight ports supplying PoE to power access points, cameras, or other networked devices. With a total PoE power budget of up to 110-120 watts, each PoE port may deliver up to 30 watts, enabling support for high-powered devices without additional power adapters.

Management of this switch is made flexible through cloud-based management (CloudFi) and local web UI, allowing remote configuration, monitoring, and updates via app or browser. Network security features such as loop protection, DHCP snooping, MAC binding, and VLAN (802.1Q) are included so that secure wireless and wired networks may be formed. An efficient, compact metal design with desktop, wall-mount, or rack-mount options ensures that indoor and semi-outdoor installations are accommodated.

Key Features and Explanations

• High PoE Budget & Gigabit Ports: Eight PoE ports allow multiple devices to be powered via Ethernet; a dedicated uplink port plus nine Gigabit data ports ensure that backbone traffic or uplink speed does not become a bottleneck.

• Cloud and Local Management: Configuration through a cloud platform and via local web interface permits remote monitoring, firmware upgrades, and topology visualization, so network maintenance is simplified.

• Advanced Network Security & Controls: Features like loop detection, DHCP snooping, MAC address binding, and VLAN support provide tools for preventing unauthorized access and segmenting traffic securely.

• Multiple Mounting Options & Durable Build: Metal casing, suitable form-factor for desktop, wall, or rack mounting, with dimensions that enable convenient deployment in network closets or cabinets.

• Efficient Switching Performance: Non-blocking wire-speed switching with up to 20 Gbps capacity ensures that traffic flows smoothly even under heavy data loads.

Specifications

• Number of Ports: 9 × 10/100/1000 Mbps RJ-45 data/PoE ports + 1 × SFP gigabit uplink port

• PoE Standards Supported: IEEE 802.3af/at on PoE-output ports

• Maximum PoE Power per Port: up to 30 W

• Total PoE Budget: Approx. 110-120 W for all PoE ports combined

• Switching Capacity: ~20 Gbps non-blocking

• Forwarding Rate: Approx. 14.9 million packets per second (Mpps)

• MAC Address Table Size: ~8,000 entries

• Surge / Lightning Protection: ≥6 kV

• LED Indicators: Link/Activity per port; Power, System, PoE-Max status LEDs

• Power Input: AC 100-240 V ~50/60 Hz

• Form Factor & Mounting: Desktop / Wall-mount; metal enclosure

• Operating Temperature: 0 °C to +40 °C

• Storage Temperature: -40 °C to +70 °C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

Conclusion

A solid choice for enterprise and high-demand environments is represented by the Tenda TEG2210P-8-120W, where high-power PoE support, cloud-based remote control, and robust hardware protections are prioritized. Networks that require reliable power delivery to multiple devices, secure access, and simplified management can be built with confidence using this switch. It is suited for surveillance systems, managed WiFi deployments, or any setting where multiple PoE-enabled devices must be powered and managed centrally.
