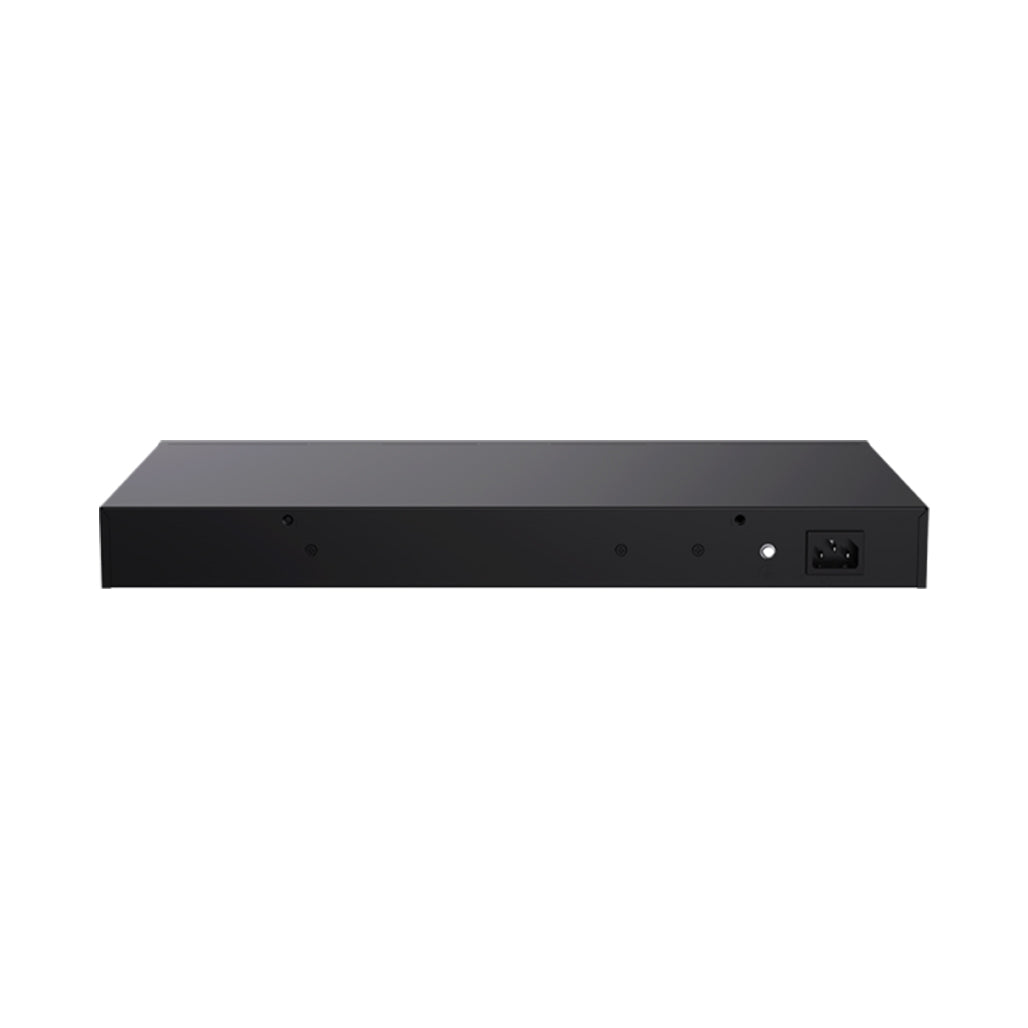

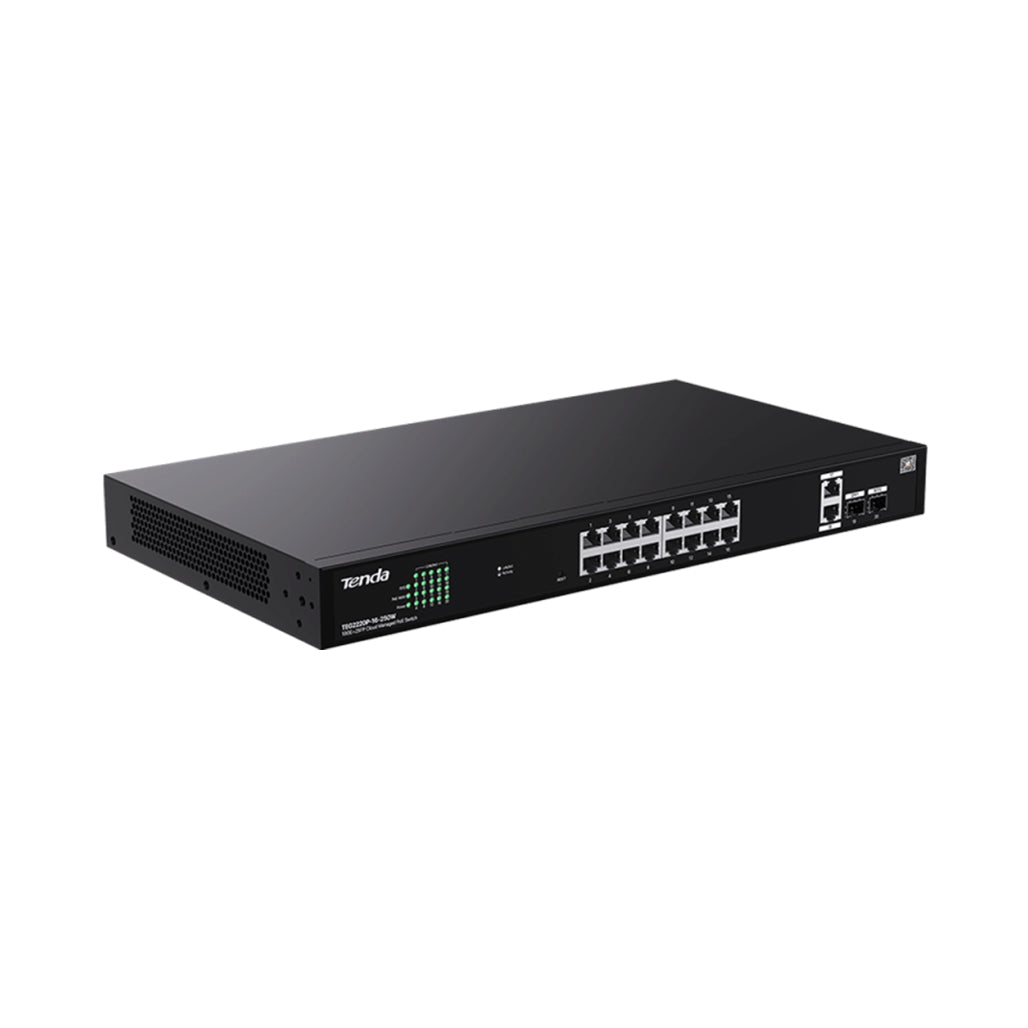

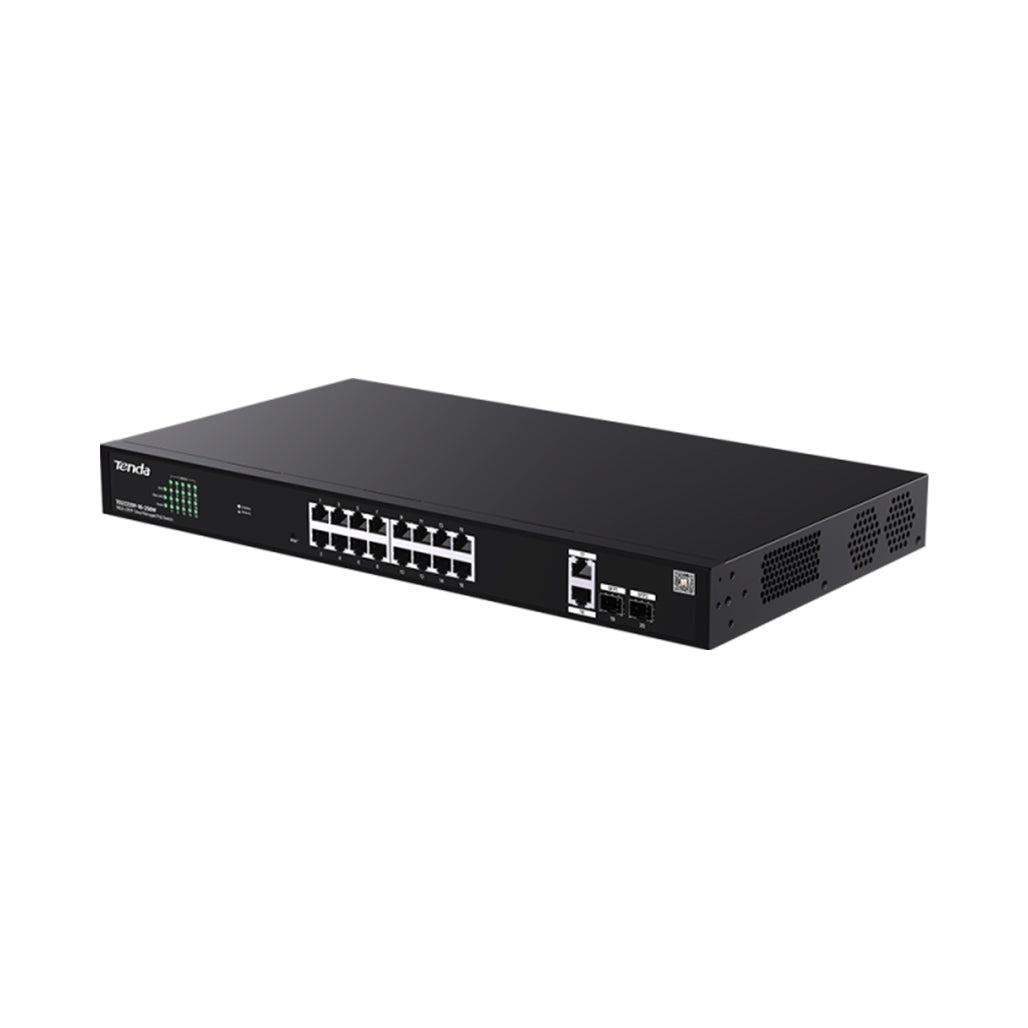

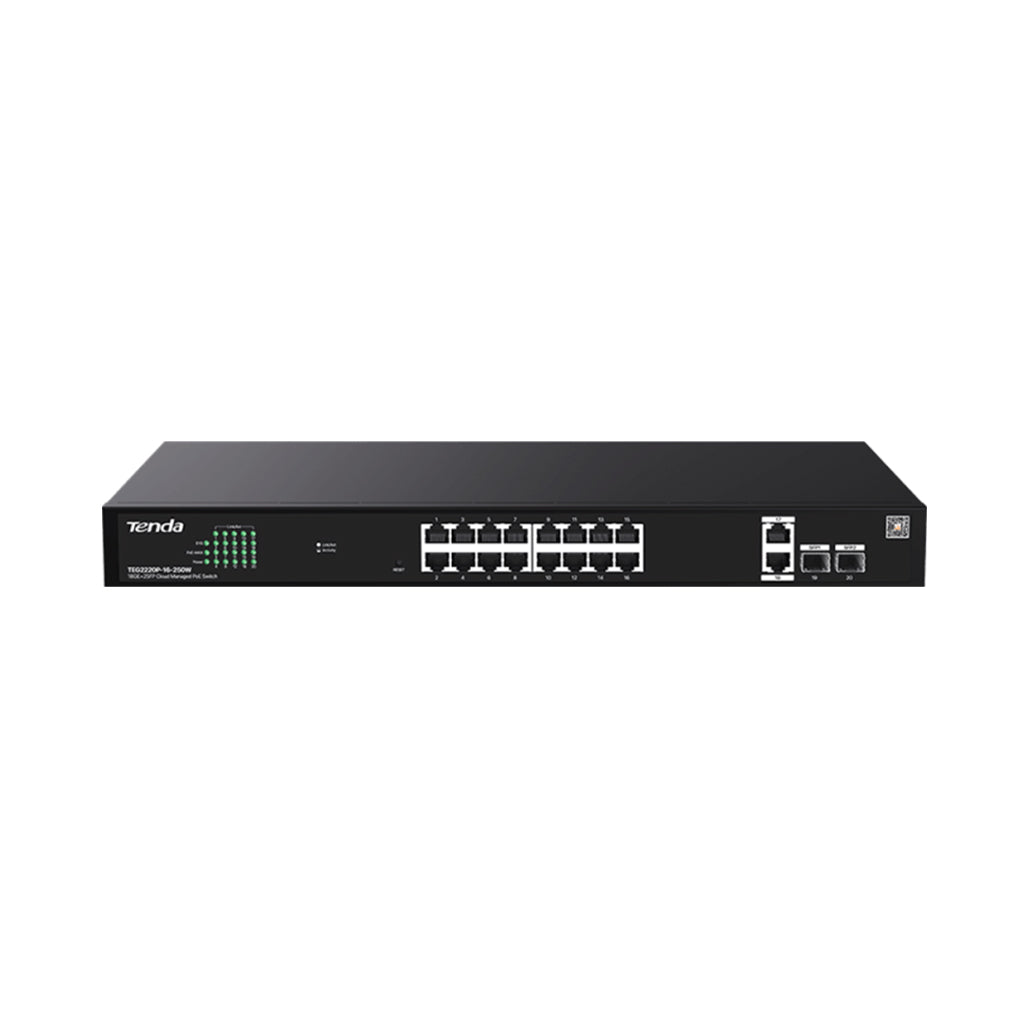

Tenda TEG2220P-16-250W Cloud-Managed 20-Port Gigabit PoE Switch – 16 PoE Ports + 2 SFP Uplinks

A high-performance network infrastructure is provided by the Tenda TEG2220P-16-250W, which is engineered for enterprise, security, and smart building deployments. Sixteen of its twenty ports supply IEEE 802.3af/at PoE power to devices such as wireless access points, IP cameras, or IoT sensors, while two SFP uplink ports and eighteen Gigabit RJ-45 ports manage data backbone traffic. A total PoE budget of 230-250 watts allows multiple high-power devices to run concurrently without power limitations.

Cloud-based management is included through Tenda’s CloudFi platform along with local web UI access, enabling remote monitoring, configuration, and firmware updates. Features such as QVLAN (VLAN tagging by SSID), DHCP snooping, and loop protection are supported so that network security and reliability are reinforced. A rugged metal casing, rack-mountable form factor, and support for mounting alternatives are employed so that installation flexibility and device protection are ensured in demanding environments.

Key Features and Explanations

• Sixteen PoE+ Output Ports with Generous Budget: Ample power is provided to many endpoints at once (such as outdoor cameras or dual-band access points) without risk of brown-outs or overloads.

• Dual SFP Uplinks: Fiber optics or module uplink capability is enabled by SFP slots, securing high-speed backbone links and supporting long-distance connections.

• CloudFi and Local Management: Remote configuration, performance tracking, alerting, and firmware updates are made simpler with cloud-platform control plus browser access.

• Advanced Security and Control Features: Protection mechanisms like DHCP snooping, loop protection, and VLAN isolation help prevent common network attacks and optimize traffic separation.

• Robust Enclosure and Mount Flexibility: Metal housing helps with heat dissipation and durability, rack mounting is supported, and additional mounting options give deployment versatility.

Specifications

• 18 × 10/100/1000 Mbps RJ-45 Ethernet ports for data/PoE

• 2 × 1000 Mbps SFP uplink ports

• 16 ports supplying PoE (IEEE 802.3af/at)

• Single port maximum output power up to 30 W

• Total PoE power budget: approximately 230-250 W

• Support for QVLAN (VLAN by SSID)

• Support for DHCP snooping, loop protection, and other safety features

• Enclosure material: metal

• Dimensions: approximately 440 mm × 178 mm × 44 mm

• Mounting support: rack mount, desktop, wall mount

• Switching capacity: full wire-speed forwarding across all ports

• MAC address table size: large capacity (≈ 8,000 entries)

• LED Indicators: Link/Activity per port, PoE-MAX status, Power/System LEDs

• Auto-negotiation and Auto-MDI/MDIX on RJ-45 ports

• Operating temperature: 0 °C to +40 °C

• Storage temperature: -40 °C to +70 °C

• Operating humidity: 10 % to 90 % RH non-condensing

Conclusion

Powerful and reliable performance is provided by the Tenda TEG2220P-16-250W switch, making it suited for large-scale PoE deployments in surveillance, wireless access, or industrial settings. Strong power capacity, resilient hardware, and flexible management combine to meet the demands of complex networks. Stability under load is expected, and full-Gigabit connectivity throughout ensures that high-bandwidth network traffic is accommodated without compromise.
